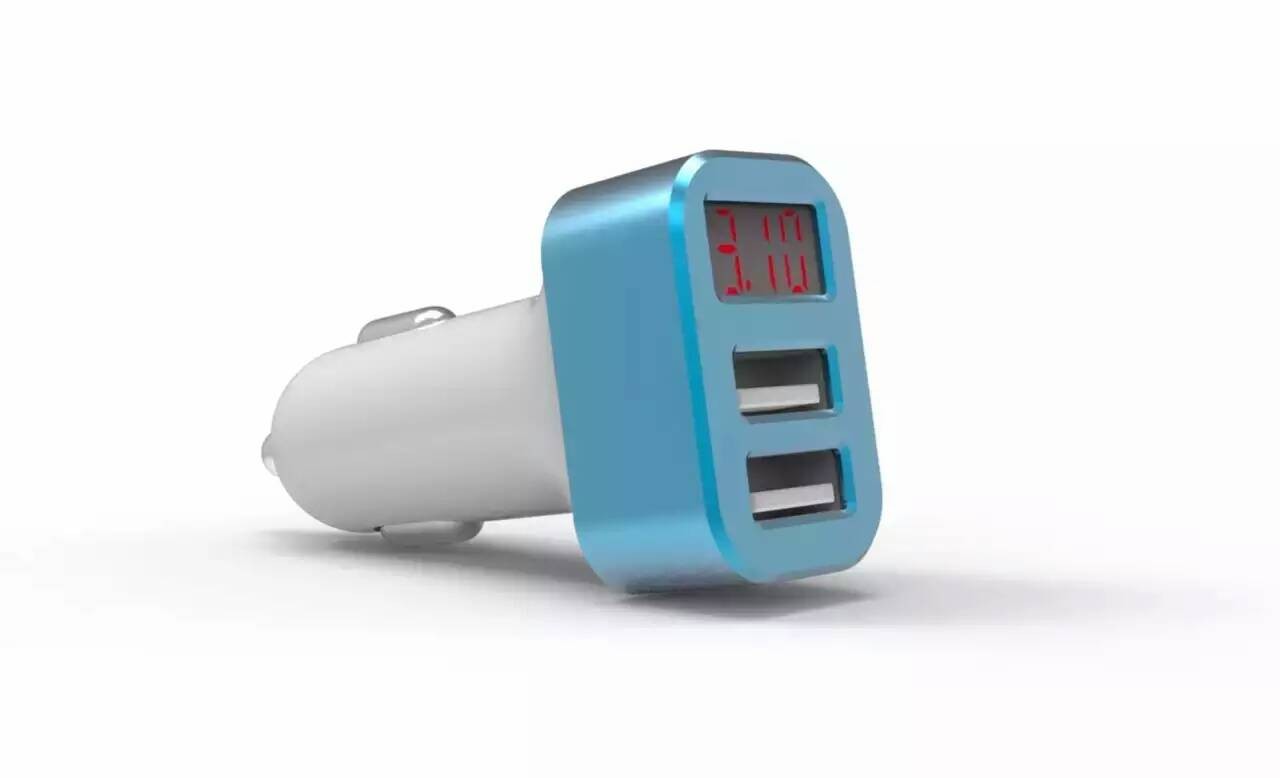

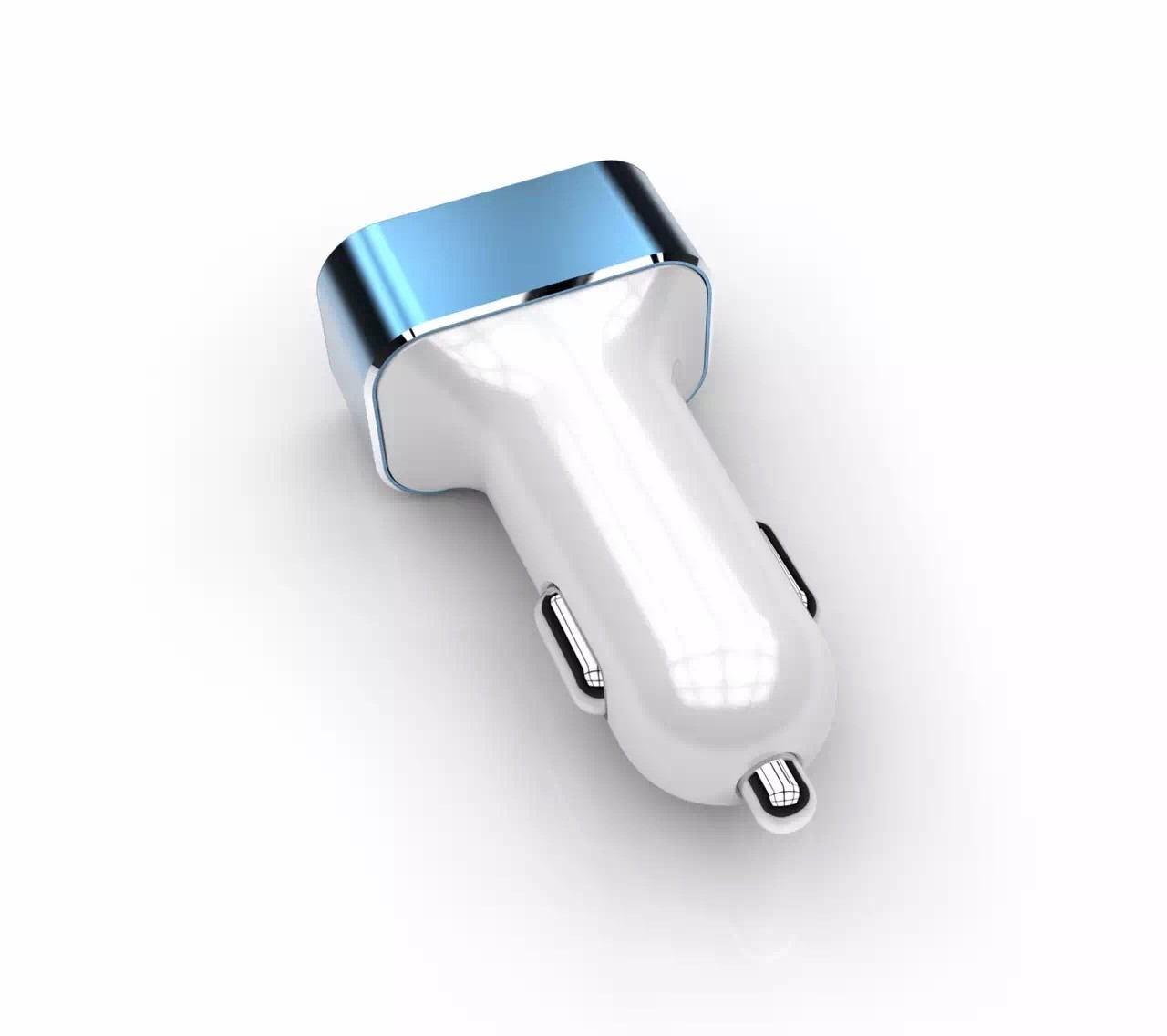

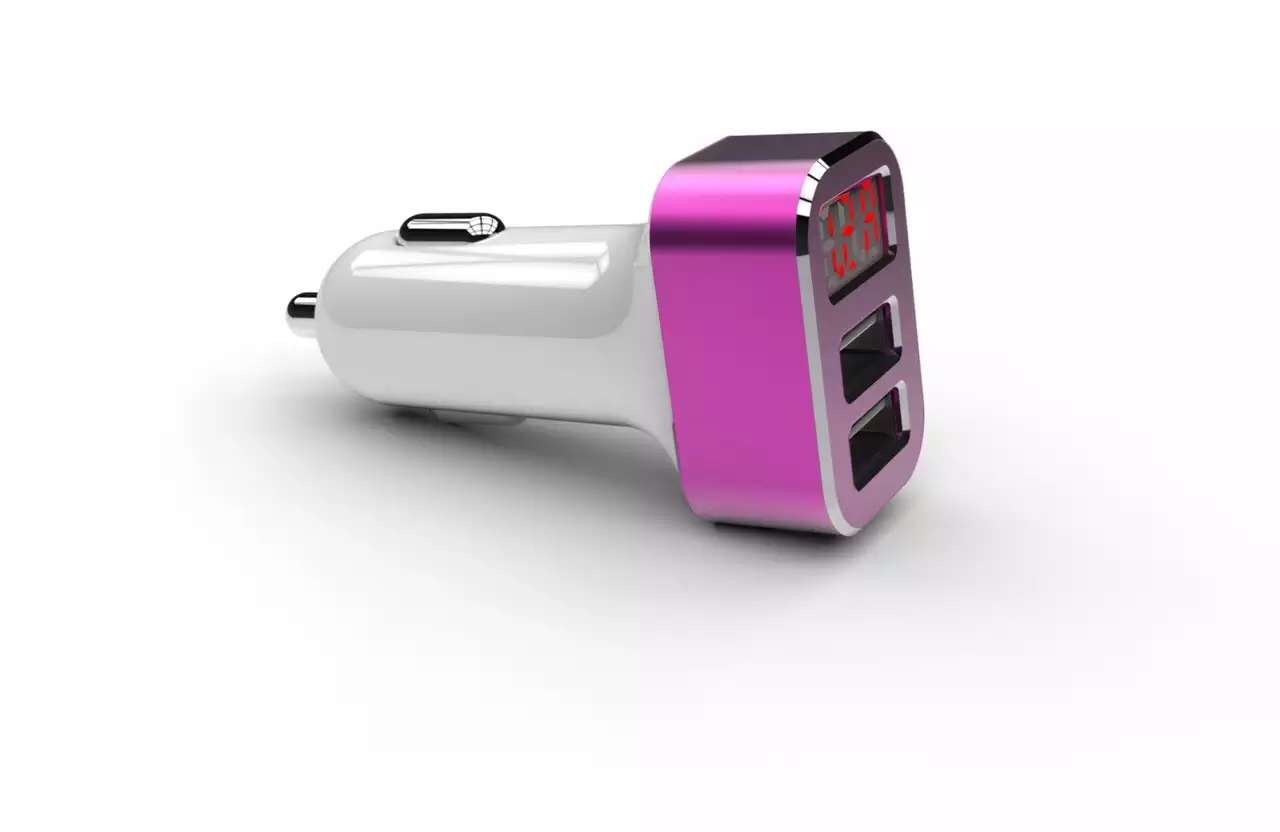

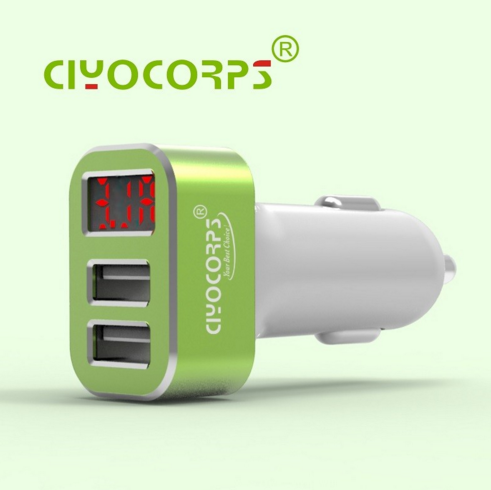

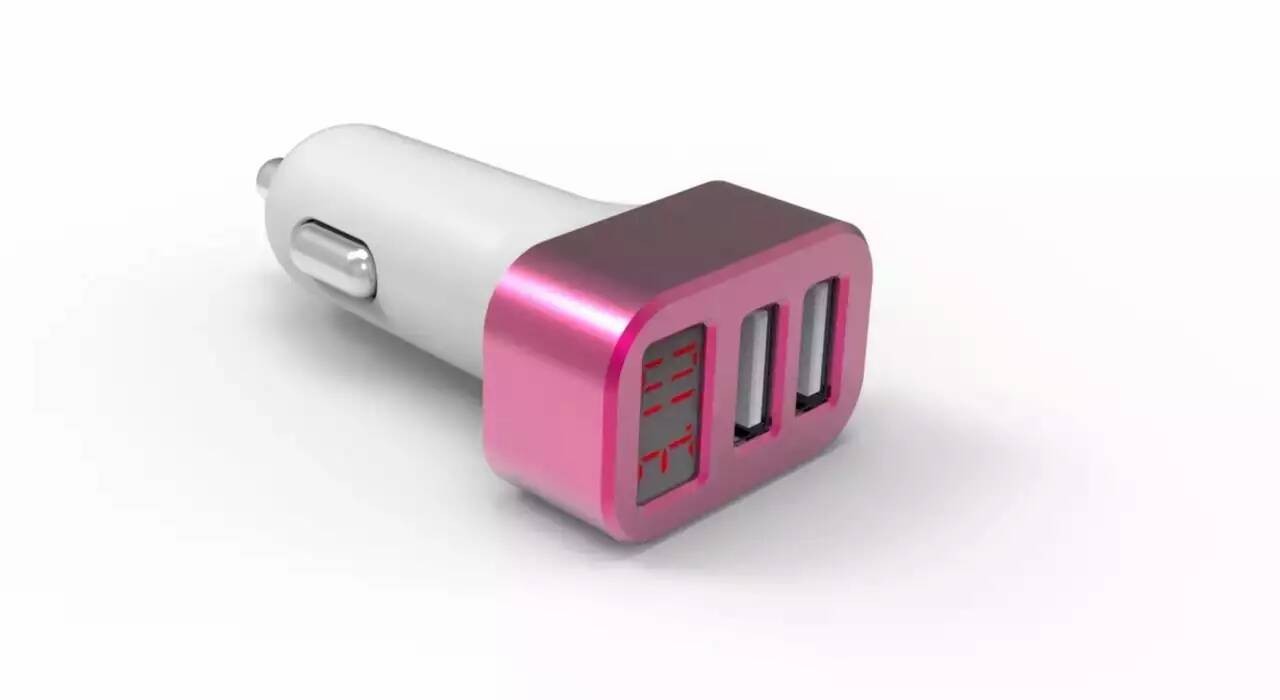

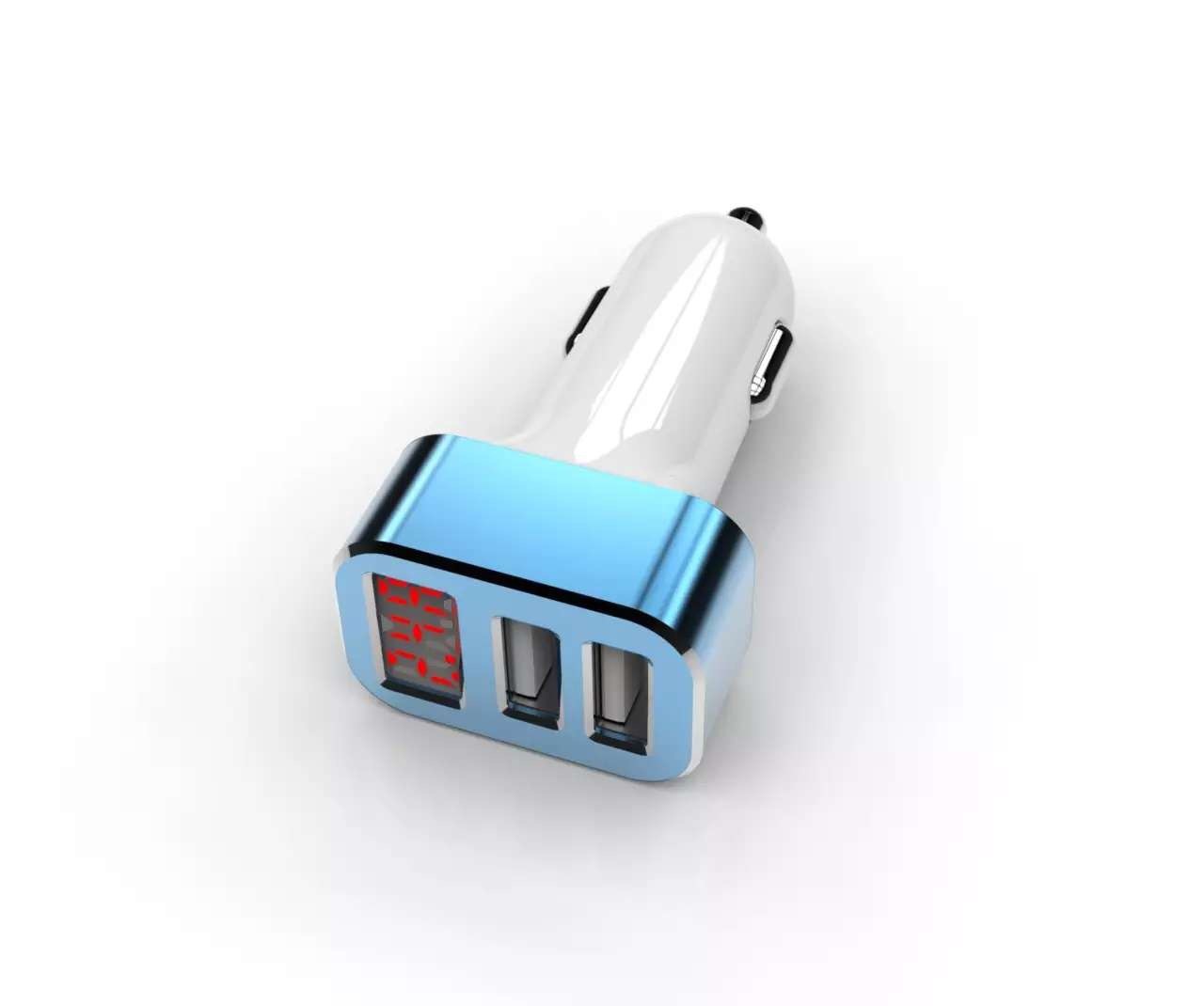

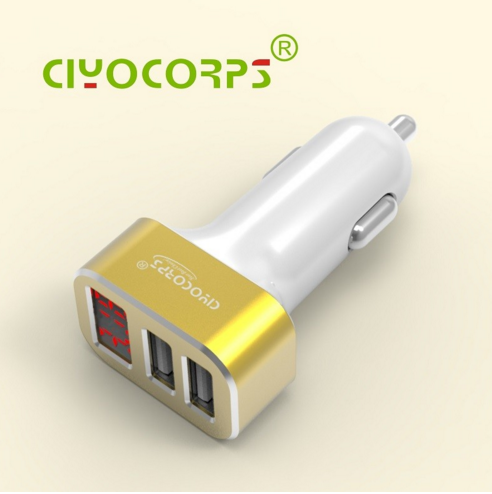

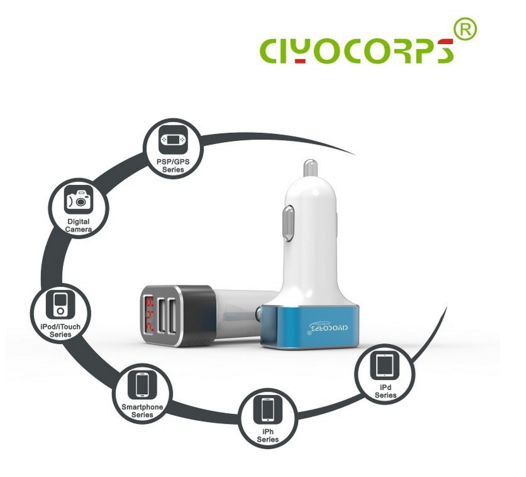

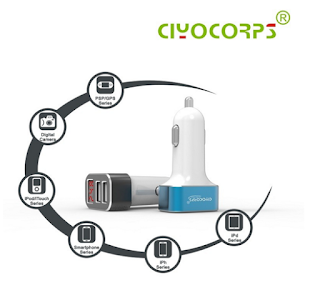

Dual USB Phone Car Charger With Voltmeter Monitor

STOCK CODE :CAR022





1. Small size, high efficiency, high cost-effective, portability; stable product quality

2. Imported integrated IC control circuit, with overload, over voltage, over current,

    over heat, short circuit protection

3. Working Temperature: 0 ℃ ~ 40 ℃, 10% ~ 90% RH

    Storage Temperature: -20 ℃ ~ 85 ℃, 10% ~ 90%, altitude <3000M

4. Reliability: 3000Vac60 seconds 10mA; Leakage current; 0.25mAmax

5. Fine workmanship, good material, very easy to use!

 Specifications

Input Voltage Range:

DC 11--30V

No-load Output Voltage:

DC 4.75--5.25V

Rated Output Voltag:

DC 5V

Accurate Output Voltage:

DC5V ±0.25V

Output Rated Current:

3.1A

Current Output Range:

0--3.4A

Efficiency:

80%

Output Ripple Resistance:

≤200mV

Output Overcurrent Protection:

4A

Maximum Output Power:

17W

Input Overvoltage Protection:

32V
