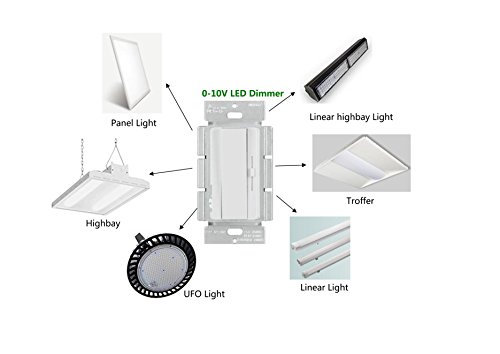

PRESET DIMMER, LTMATE 0-10V VOLT LOW-VOLTAGE LIGHTING CONTROL PROVIDES DIMMING CONTROL FOR 0-10 VOLT COMPATIBLE LED FLAT PANEL LIGHT, LED TROFFER, LED VAPOR TIGHT, LED HIGH BAY, LINEAR HIGH BAY, UFO

SPECIFICATION

Model No.	6741455221674

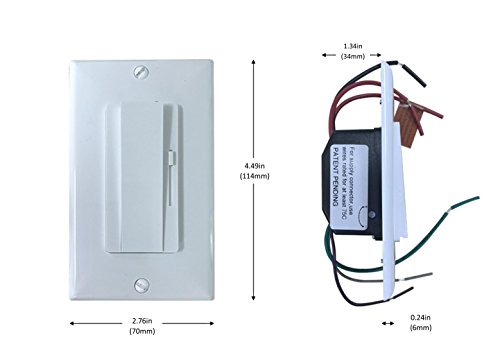

Item Dimension	5.08 x 0.00 x 10.67 Cm
Package Dimension	7.59 x 6.40 x 12.70 Cm
Package Weight	0.09 ~ 0.11 Kg
Product Group	Home Improvement
Availability	Available (Usually ships in 1-4 business days)

DESCRIPTION

Operation:
The 0-10 volt low-voltage lighting control provides dimming control for 0-10 volt compatible LED drivers, fluorescent ballast and HID ballast. Minimum light level (low-end) shall be adjusted to optimize performance.

Important Notes:
Please read before installing
1. Turn off power at circuit breaker or fuse before wiring.
2. Only one dimmer can be used per 3-way circuit.
3. It is normal for the dimmer to feel warm to the touch during operation.
4. FOR SUPPLY CONNECTOR, USE WIRES RATED FOR AT LEAST 75?C and USE COPPER WIRE ONLY.

CAUTION - To Reduce The Risk of Overheating and Possible Damage to Other Equipment, Do Not Install to Control a Receptacle, a Motor-Operated Appliance or a Fluorescent Lighting Fixture or a Transformer Supplied Appliance.

Dimming Range Adjustment:
1. Push dimmer on and move slider down to the bottom.
2. Turn knob down until lowest light level is achieved and light output is stable for all bulbs.
3. Turn dimmer off, then back on to verify bulbs.
4. Turn knob up lightly and do step 3 again if all bulbs do not turn on.

LIGHTS DO NOT OPERATE AT FULL BRIGHTNESS:
Push slide up. Turn high-end knob clockwise with a screwdriver to achieve maximum light intensite.
LIGHTS DO NOT DIM LOW ENEOUGH:
Push slide down. Turn the low-end knob counter-clockwise to achieve minimum light intensity.
