Color: Blue

Weight: 160g / 5.65oz

Height: 116mm / 4.57inch

Width: 75mm / 2.95inch

Rope Size: 8~12mm / 0.315~0.472inch

Material: Aircraft Grade Aluminum Alloy

Standard Finish: Anodized

Max Strength: 4kN / 890lb

Certification(s) : CE 1019 EN567

Package Included:

1 x 4kN Chest Ascender Climbing

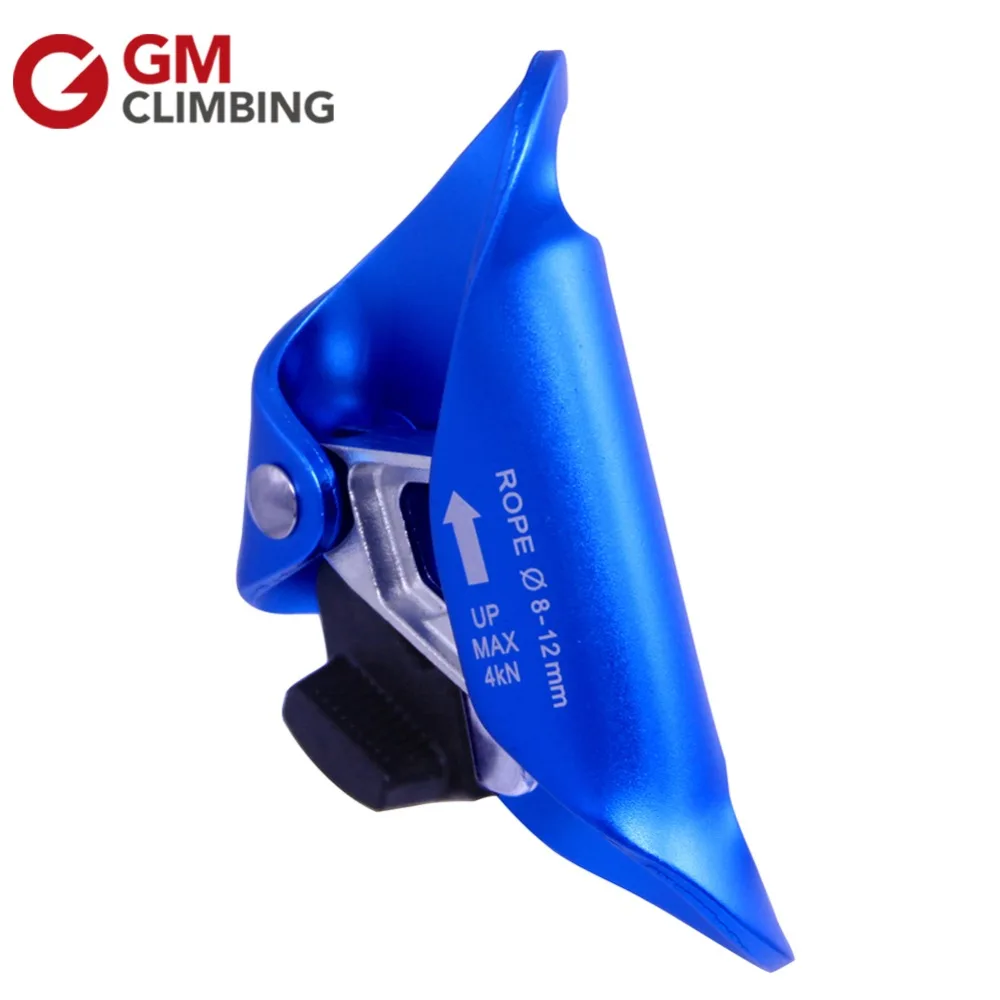

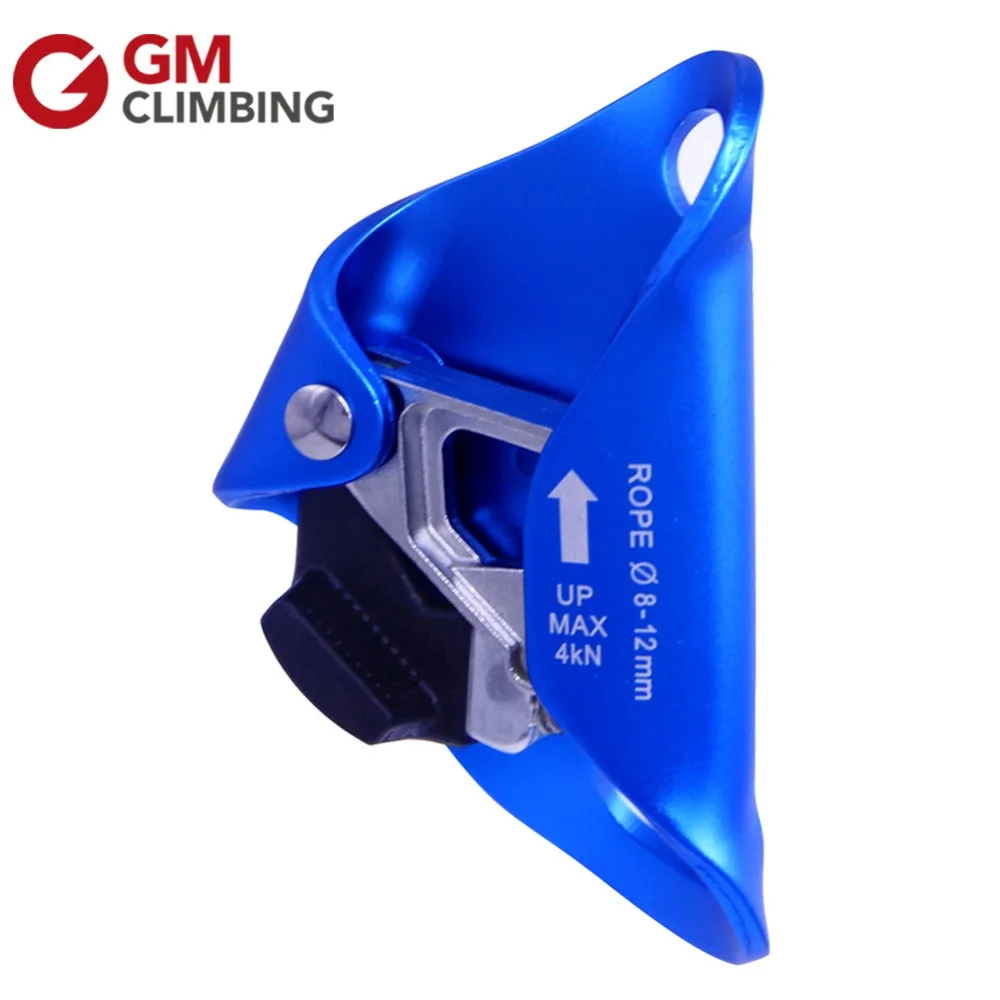

GM CLIMBING Chest Ascender provides firm grip in compact shape, widely used in rope access (arborist, rescue,

working at height, etc.) to keep body upright and most important, add protection during working.

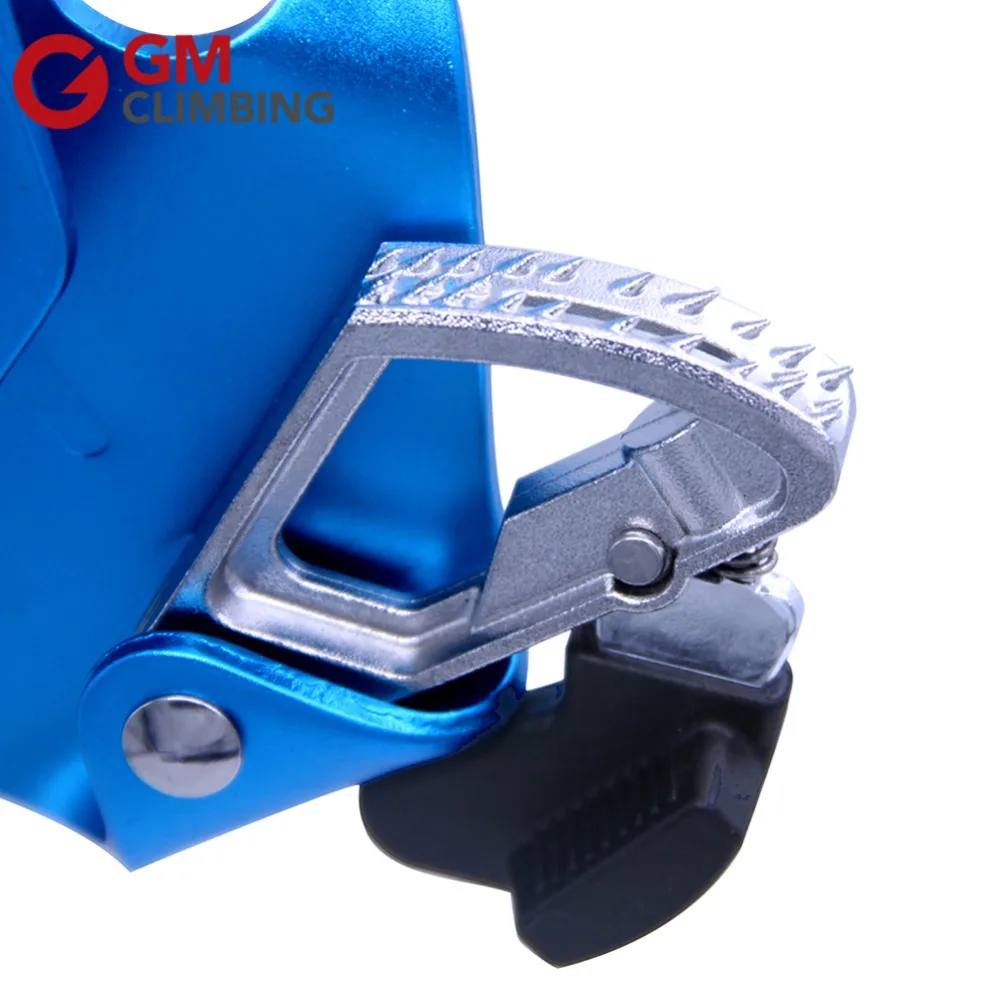

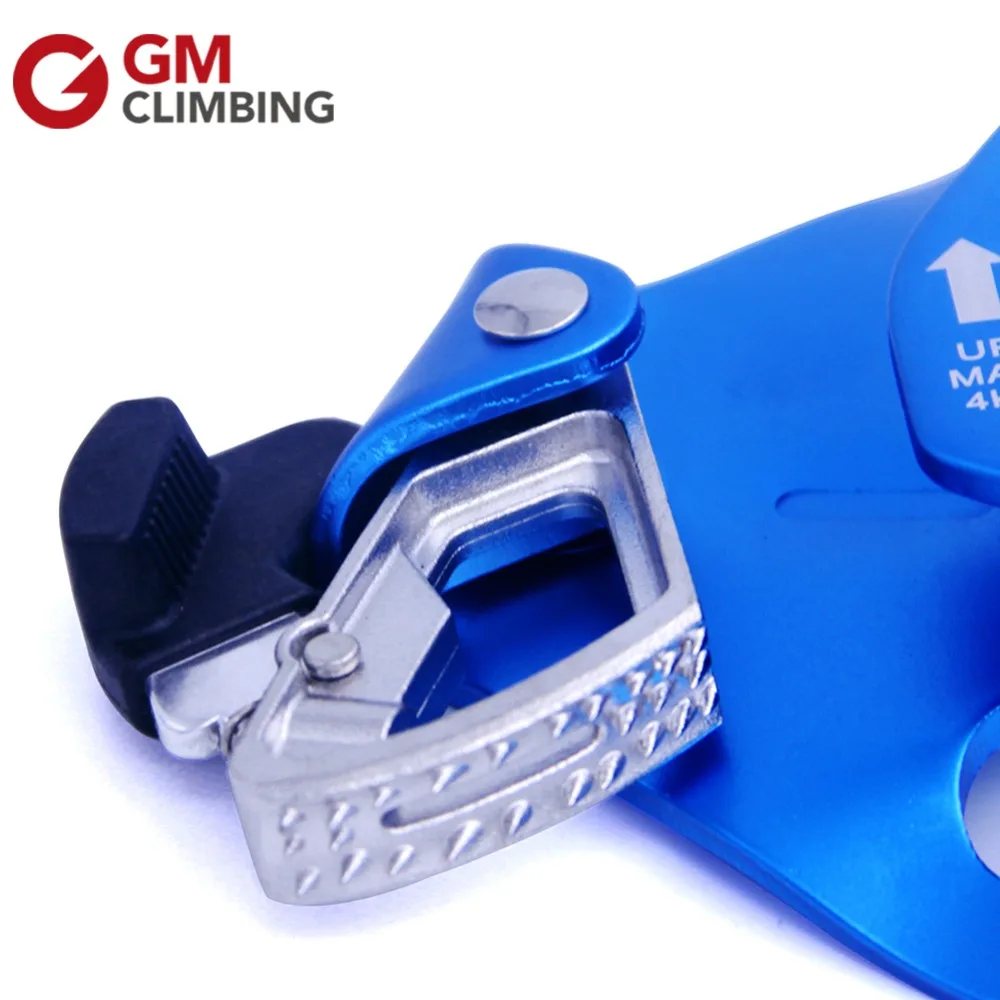

Ascender, functioned by tooth cams, moves freely smoothly up rope and clamps to rope when pulled down.

Cam is easy to be engaged with only thumb, which makes it convenient to install rope on ascender with one-hand

operation.

In both higher and lower end of ascender, exists a slot for carabiner or other gears to connect.

Fits ropes from 0.315in(8mm) to 0.472in(12mm). Conform to CE EN 567 and CE Certified.

Firm grip in compact shape:

Widely used in rope access (arborist, rescue, working at height, etc.) to keep body upright and most important,

add protection during working.

Single Rope Access:

SRT Arborist

Working at height

Rescue System, etc.

Mainly to keep body upright and add safety protection.

Process Capture System:

In hauling/rigging /tensioning pulley system, process capture system can be easily realized by ascenders.

Therefore, chest ascender is also widely used in slackline, hammock, and other rigging system setups to

facilitate operation.

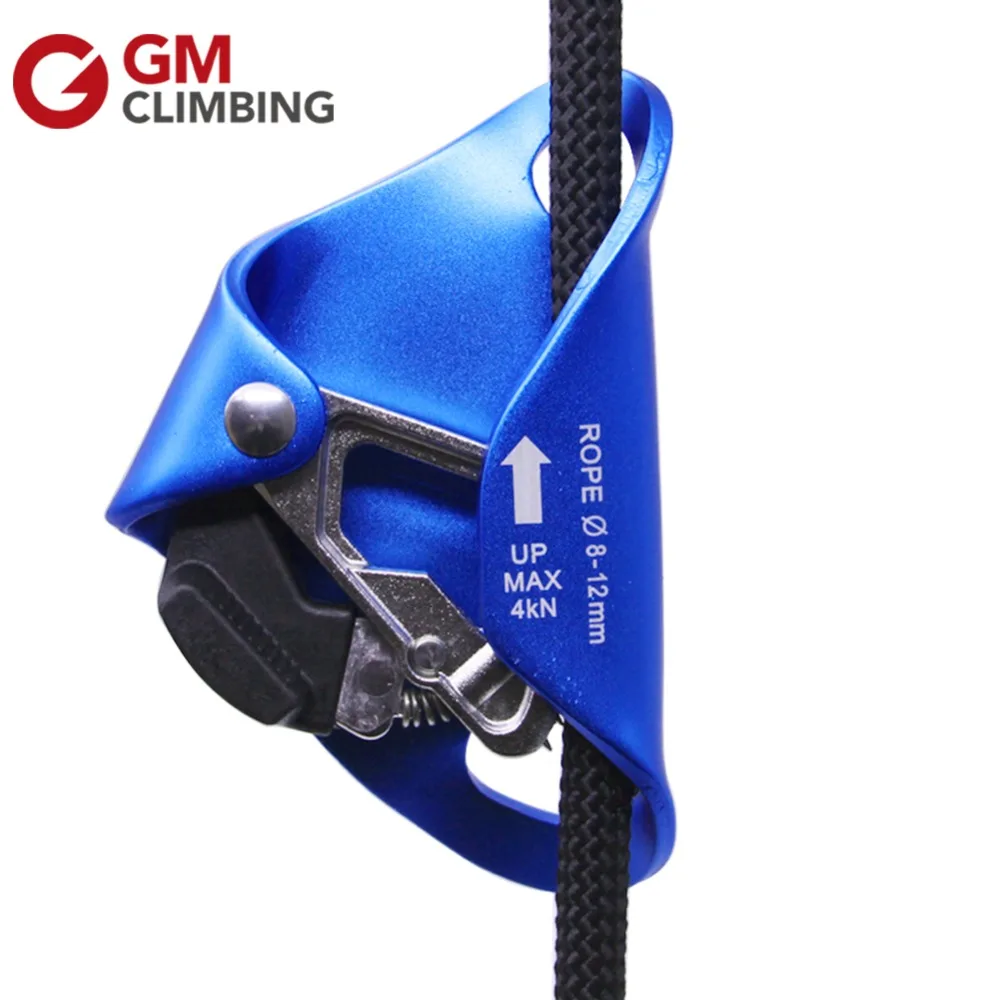

How to Engage Rope on ascender

Hold the ascender with arrow mark upside (or in opposite to rope move direction)

Pull Safety Catch outward and fix it by clipping to the body.

Install rope between device body and cam.

Release safety catch and make sure cam firmly bite rope.

How to remove rope from ascender

When remove rope from ascender, it’s vital and must kept in mind that ascender should have a tendency to move

upward or in arrow mark direction while operator opens safety catch.

The action is to protect rope sheath from abrasion.

Working Principle

Cams installed allow device to move along rope upward or in the arrow mark direction but clamp to rope when

pulled in the opposite direction.
