Product Description
What are you providing several connect cables and cable connector?

Sma-male to sma-female, sma-male to sma-male, sma-male to BNC

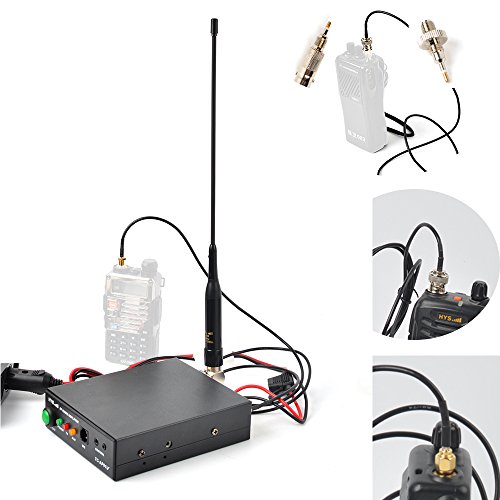

How to connect Motorola Walkie Talkies?

RF ADAPTERS:BNC to MOTOROLA RADIOS ANTENNA PLUG, SMA-FEMALE to MOTOROLA RADIOS ANTENNA PLUG.

How to hear sound from 2-6W walkie talkies or amplifier speaker?

2-6W walkie talkie is a transmission way for sound, the amplifier speaker is not a transmission way for sound.

What is the antenna frequency,gain and power? How to connect?

144/430MHz, Max power: 100W. We will provide so239 to pl259 90 degree adapter, better to help you to use this amplifier and operating convenience.

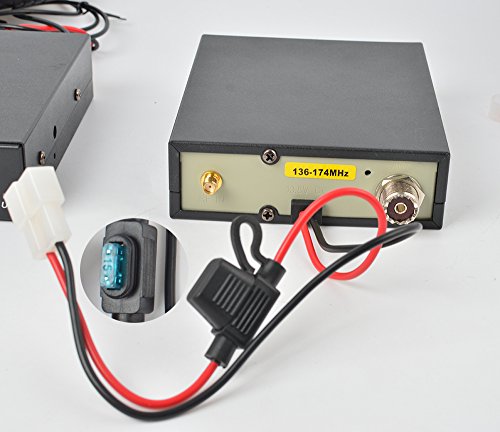

Frequency range:

136MHz-174MHz

Voltage:DC 13.8V (±15%)

Input RF power:2 - 6W (±10%)(Please confirm input power , especially baofeng radio)

Output RF power:20 - 30W(Baofeng radio normal Output power about 15-30W)

Current:4.0-5.5A

Size:135*115*35mm

High-power equipment: Please do not transmit without an antenna.

This device built-in radiato, please do not touch when used for a long time.

2-6W Ham Radio of Amplifier can be used on VHF digital and analog RF Handheld Radio , it can be used on most FDMA digital Handheld Radio such as YAESU C4FM, KENWOOD D-STAR, ICOM/KENWOOD NXDN, ICOM IDAS, dPMR digital Handheld Radio, American Public Security P25, MPT1327 system ,etc.

If you can not confirm the walkie talkie whether can connect amplifier and use, please send message to us via Amazon

Packing Includes:

2*136-174Mhz Power Amplifier

2* SMA MALE TO SMA FEMALE, SMA MALE TO SMA MALE, SMA MALE TO BNC Adaptor Adaptor Cable

2* 144/430MHz Telescopic Antenna

2* so239 to pl259 90 degree adapter

2* SMA-FEMALE/BNC to MOTOROLA RADIOS ANTENNA PLUG
