• 3 Working Modes in 1

    Wireless Router: Instead of General large routers to provide high-performance Wi-Fi for families， transform the hotel wired network into the wireless. The new-moon-like product covered by white-jade-like façade is shaped by nature and rekindles the yearning of human returning to the nature.

    Wireless Range Extender: As a wireless range extender， it can effectively extend exist wireless router's Wi-Fi coverage， to provide full Wi-Fi coverage solutions for the villa-level residential and office area.

    Wireless Client: WS322 can provide wireless access function for PC and STB as the same as the wireless network card， to reduce the cable and enjoy the clean life.

  • Wireless strength Intelligent Detection

    When WS322 is working as wireless range extender， it can automatically detect the signal strength of wireless access point (AP)， users can select the best installation location according to wireless strength light.

  • One-click secure wireless connection by WPS

    You just need to press WPS buttons on the device and WS322 to establish the secure wireless connection quickly.

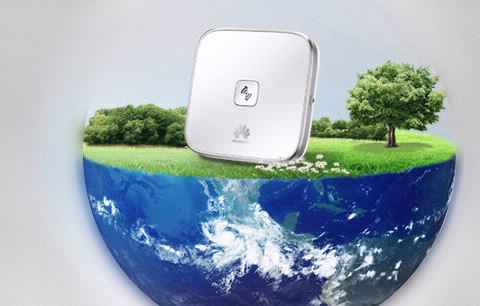

  • Stylish， Compact ID design

    Unimaginable compact body， saving space; Arc body， easily accessible; Clear indicator， easily learn its running state.

  • High-speed Wireless Connection

    Complies with 802.11n and support 2x2 MIMO， its wireless transmission rate can be up to 300Mbps， to meet multi-device access simultaneously.

  • Eco-friendly

    Not only meet the certification of CCC China， but also meet the strict secure and environmental requirements， like CE， FCC， RoHSpecification

    Width

    73mm

    Depth

    30.7mm（Without Plug）

    Height

    73mm

    Weight

    < 200g

    One 10/100/1000Mbps Ethernet RJ-45 port

    Built-in power：100V AC～240V AC

    Protocol：802.11 b/g/n

    Speed：300Mbps

    Antenna：2x2 internal antennas， support MIMO

    Frequency：2.4GHz

    Working modes：Wi-Fi Router/Repeater/Client

    Reset

    WPS

    WLAN

    WPS

    ETH

    WEP(64/128)， WPA-PSK， WPA2-PSK， WPA-PSK/WPA2-PSK certificate，

    TKIP， AES encryption，

    Wireless MAC address filtering

    Route function

    Bridging function

    TR-069


    100V AC～240V AC

    <5W

    Operating Temperature: 0°C to 40°C

    Relative humidity: 5% to 95% ，non-condensing
