Studio : Dahon

Publisher : Dahon

Product Description
Authorized dealer-warranty is valid.

General Information
Carribean
Wheel Size 20

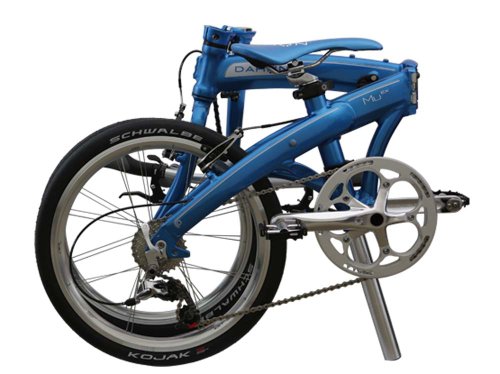

Folded Size 40 x 80 x 67 cm (15.75 x 31.50 x 26.38)
Weight 9.6 kg (21.1 lbs)

Features / Benefits
Dalloy aluminum Mu frame
SRAM RED Super Premium Rear Derailleur and Doubletap flat bar shifter
20 DAHON Full Carbon Clincher wheelset
DAHON Custom Carbon Fiber Fork, w/Fusion Technology

Detail Specifications
Frame: Dalloy Sonus Aluminum Tubeset w/ Forged Lattice Hinge and V-Clamp Technology
Fork: Super Lightweight Fusion Carbon Crown and Blades
Handlepost: Forged Alloy Radius Telescope w/ Fusion Technology, Painted Frame Color
Rims: Full Carbon SL Aero Profile Clincher
Front Hub: Control Tech SL Compact, Sealed Cartridge bearings
Rear Hub: Control Tech SL FreeHub, Sealed Cartridge Bearings
Spokes: n/a
Tires: Schwalbe Durano RaceGuard Speed Grip 20 x 1.10
Cranks: Cold Forged Alloy, 53 Tooth Chainring w/ CNC Guard
Bottom Bracket: Sealed Cartridge Bearing
Chain: KMC X 10EL
Rear Cogs: Shimano Ultegra 11-25, 10-Speed
Front Derailleur: n/a
Rear Derailleur: SRAM RED
Shifters: SRAM SL Flat Bar Road Doubletap
Grips: Ergon GR2 w/ Composite Integrated Bar End
Headset: Fusion, Zero Stack, Cartridge Bearing
Brakes: TRP SL Mini V CX9 w/ CNC
Brake Levers: TRP Forged Alloy w/ Carbon Fiber Lever
Saddle: DAHON SL Ergo Comfort Cro Mo Rails
Seatpost: DAHON Custom SL 2014 Aluminum,33.9 mm x 580 mm
Pedals: Quick Draw Quick Release, Alloy Body and Cage

GEOMETRY
SP-HB: Min: 570 mm (22.4) Max:620 mm (24.4)
Saddle to Pedal: Min: 670 mm (26.3) Max: 920 mm (36.2)
Rider Height Range: 140-192 cm (4'7--6'3)
Rider Max. Weight: 105 kg (231 lbs)
