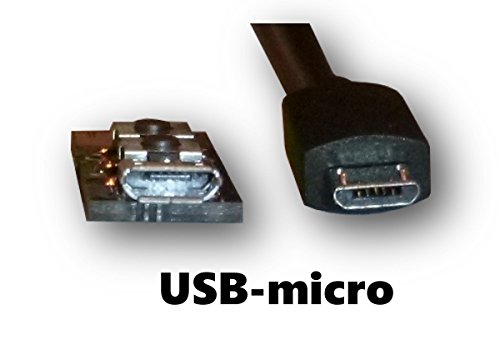

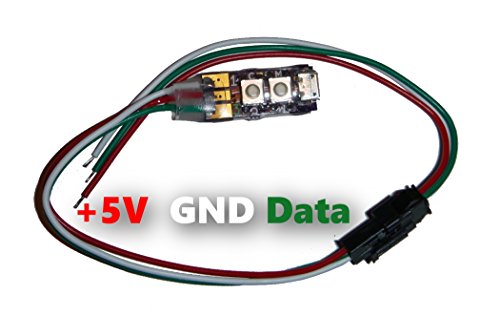

USB-micro WS Basic Water-Resistant Controller and 3-pin Tail
Product Description

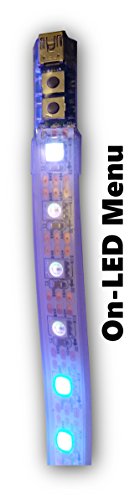

This listing includes one water-resistant WS Basic controller with a JST 3-pin connector and mating tail to attach to your WS2811/12 LED project. Package does not include USB cable or power supply as they are application specific. ****** The WS Basic is a compact controller for the Worldsemi WS2811 or WS2812 intelligent control LED. The WS Basic is sold in several forms; ready to use, kit, and fully integrated products. Measuring just 30mm x 12mm x 8mm the WS Basic offers more than you might expect. The light engine uses color and intensity compression for a smoother display that consumes less power. • 22 Motion patterns • 24 Color modes • 10 Speed settings • 6 Brightness levels (that's over 30,000 permutations) • On-LED menu for accurate control • Settings saved on power loss • 800kHz signal rate (legacy 400kHz capable) • Signals 150 LEDs • Automatic power supply health monitoring and display dimming ****** A simple yet powerful menu allows changing the pattern, color, speed and brightness. (M)ode Button: changes what setting is being adjusted. (C)hange Button: changes the current setting. Operation: Pressing either button will open the On-LED menu. The bright LED indicates which menu is active • LED 1 : Pattern Menu • LED 2 : Color Menu • LED 3 : Speed/Direction Menu • LED 4 : Brightness Menu ****** The power supply should be capable of about 1 Amp for every 50 WS2811/12 LED's in use. The vast majority of problems (discoloration, flickering, flashing) can be resolved by improving the power source. A manual can be found at jopeldesigns.com or by contacting support@jopeldesigns.com (please add exemption in spam filter).Feature
Compact 2-Button water resistant controller for WS2811 and WS2812 addressable LEDs.
