Item Descriptions:

Color:

black

step 1:

First turn off the power.

Remove the screws on both sides of the main unit's bottom Lightning connector.

A dedicated driver is required because of the special shaped screw called penta lobe (star).

* Working without turning off the power may cause unexpected accidents and damage to the main body base.

Remove two star screws on each side of the dock connector.

Step 2:

Pull the suction cup to the front button side of the front panel and pull slowly to open the front panel.

If the panel is tightly fitted, at the stage where a slight gap is formed between the panel and the case, inserting a plastic spatger or the like makes it easy to open it.

Notes on opening the main unit:

The iPhone 5 has a fingerprint sensor cable between the front panel and the back cover. There is a danger of cutting the fingerprint sensor cable, so please do not open it when opening the main body.

Step 3

Remove the following screws.

● 1.2 mm screw

● 1.6 mm screw

Removing the screw removes the plate as shown, as it can be removed.

Step 4:

Remove the liquid crystal screen or the fixing plate of the cable connecting the digitizer and the logic board.

Remove the screw holding the fixing plate, remove the fixing plate when the screw comes off.

(Caution: Be sure to note the screw position as the screws here are different in size depending on the location.)

Step 5:

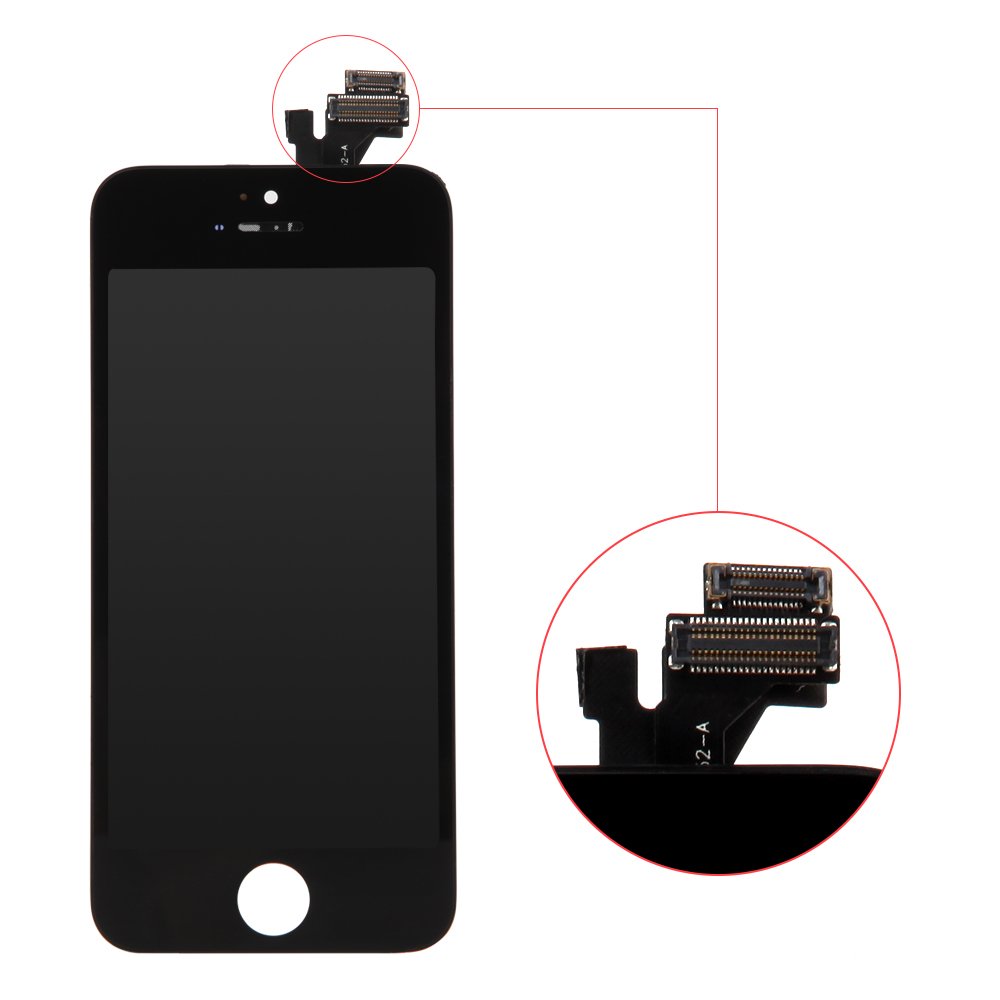

Remove the cables connecting the LCD screen, digitizer, front camera, etc. to the logic board in order.

Remove it by raising the connector part with a plastic spatger or the like as shown in the photo on the right.

When the cable is disconnected at the end, the front panel and the bottom case side are separated.

When the cable is disconnected at the end, the front panel and the bottom case side are separated.

please note

When installing the cable in the position of ①, do not put too much force;

Please be sure to note the original position of the screw because the size of the red circle part varies depending on the place; (Note: If you use a long screw at the short screw part, the circuit may short-circuit

,Let's watch out.

Features:

• Please enter model number Confirm this is compatible:

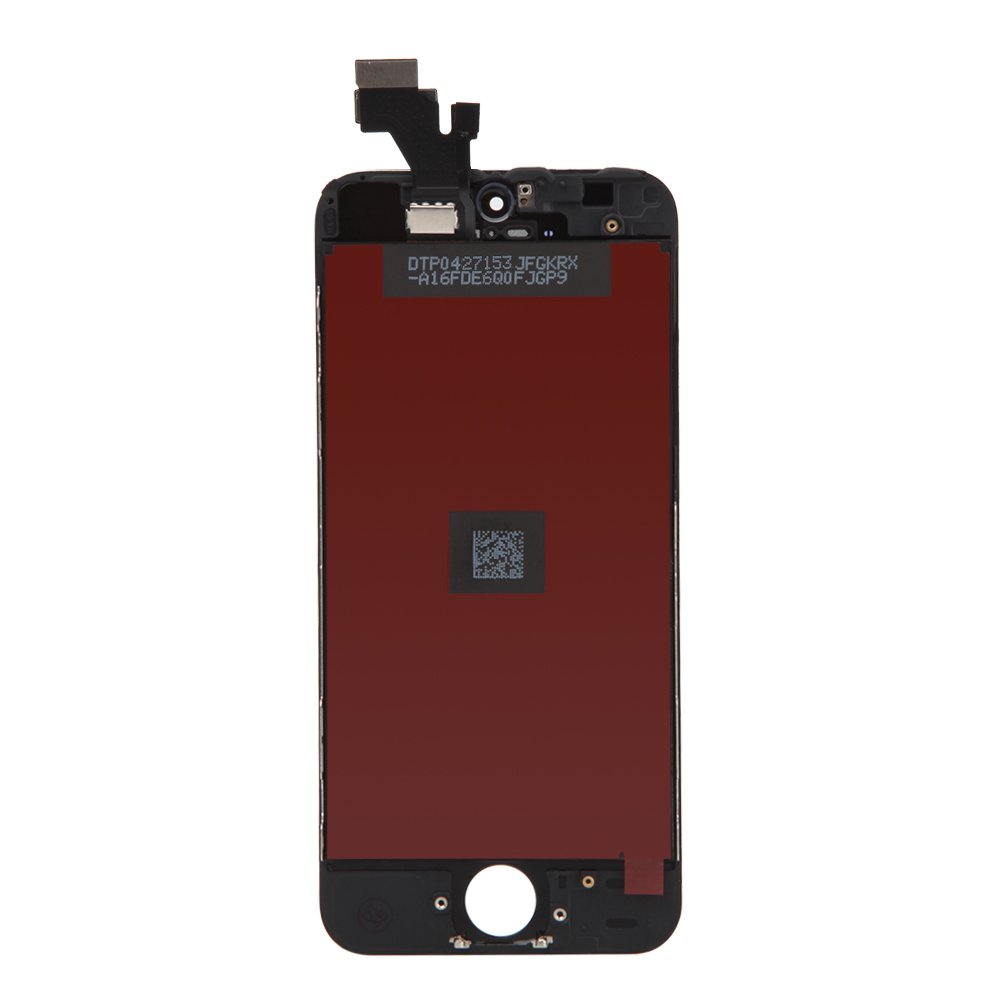

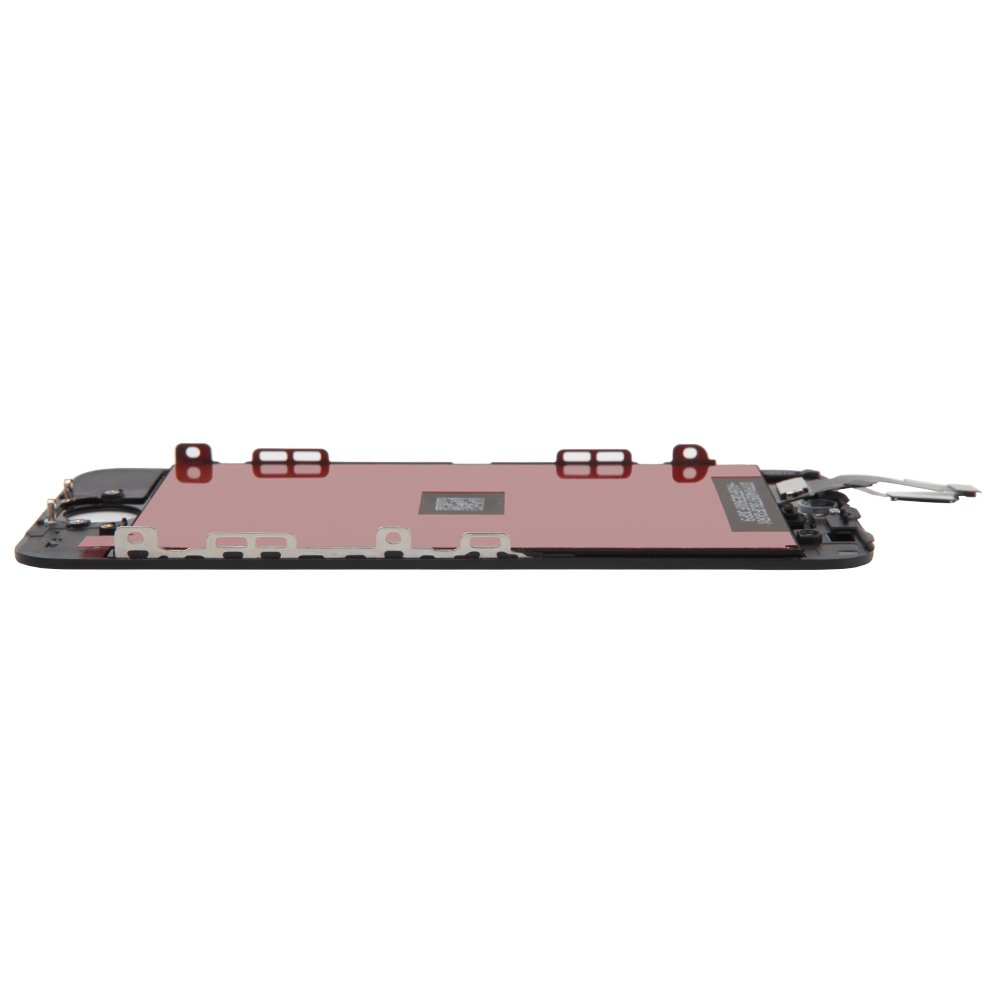

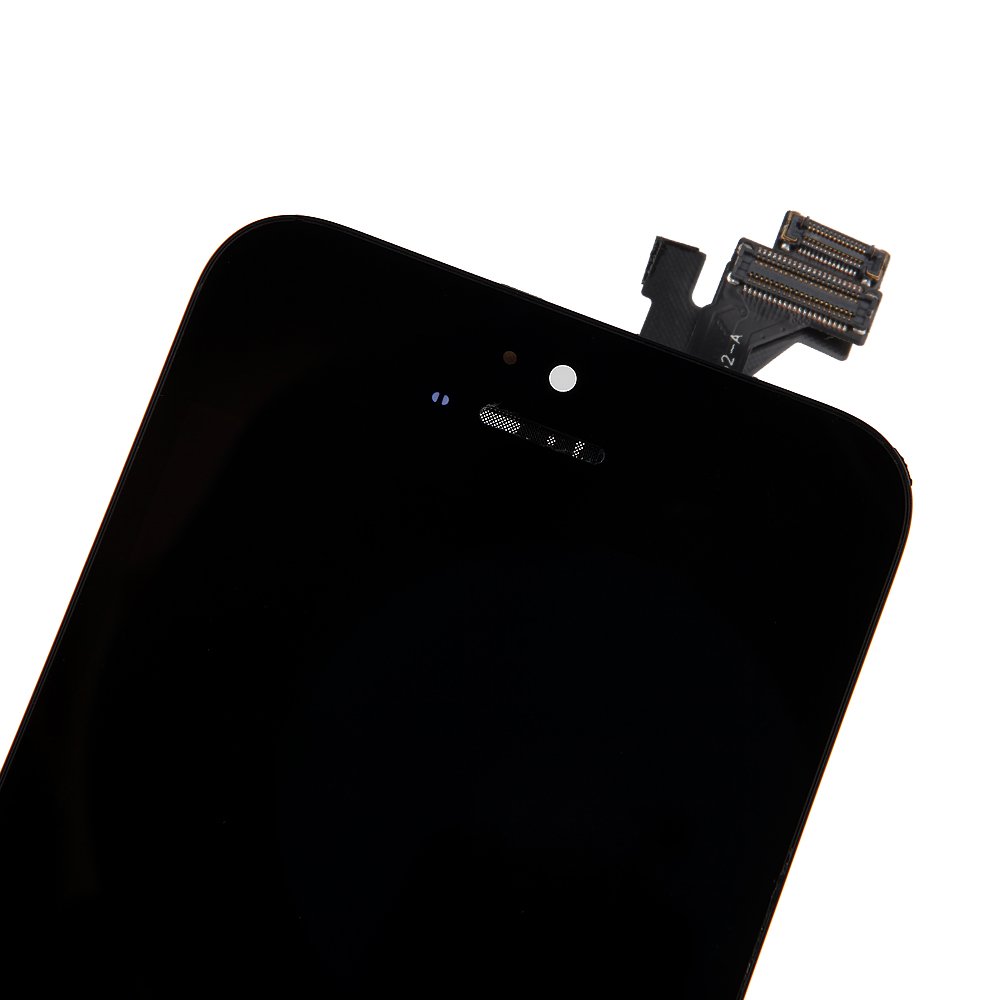

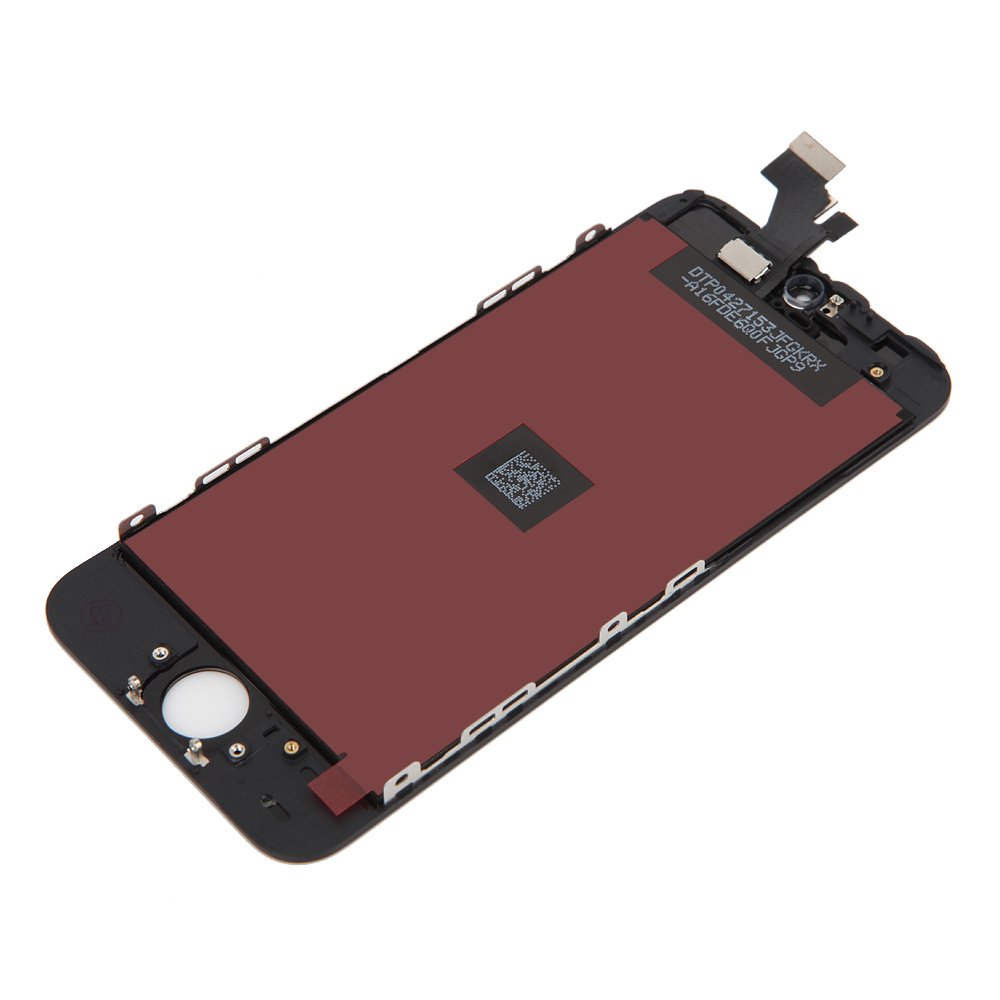

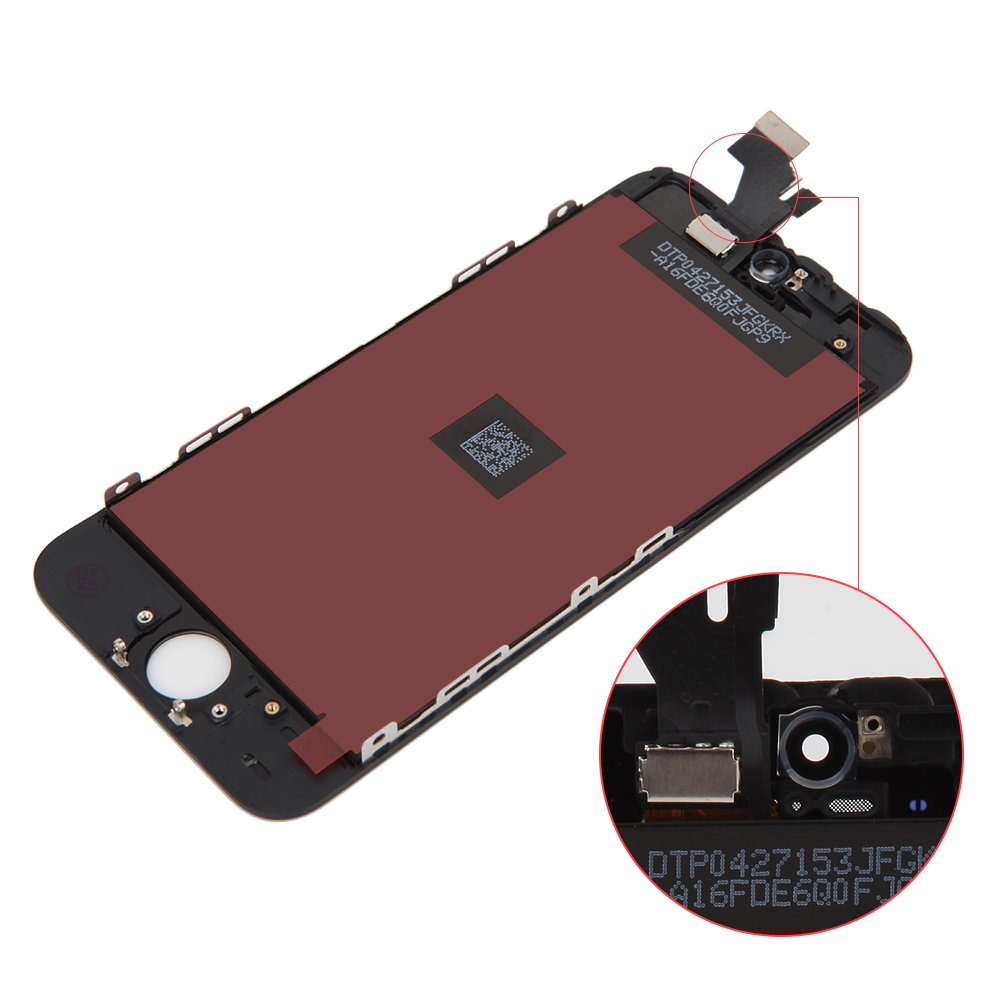

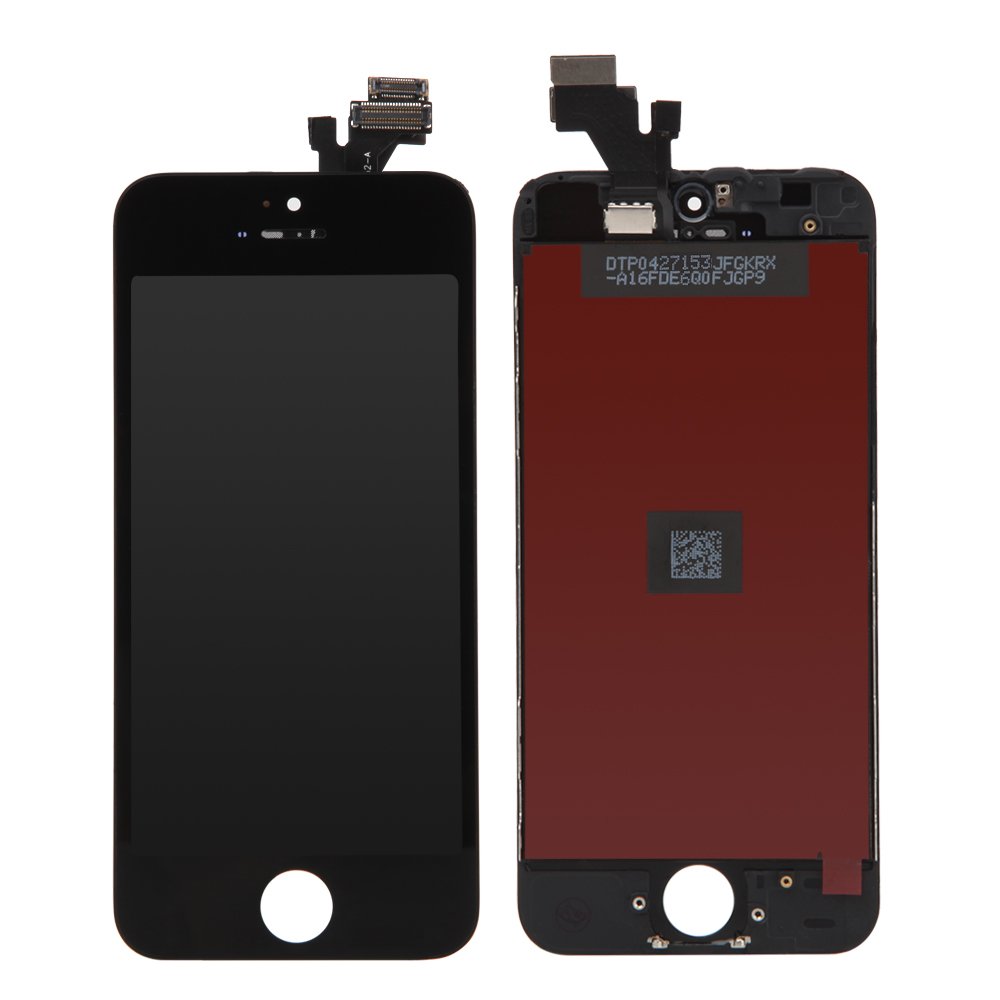

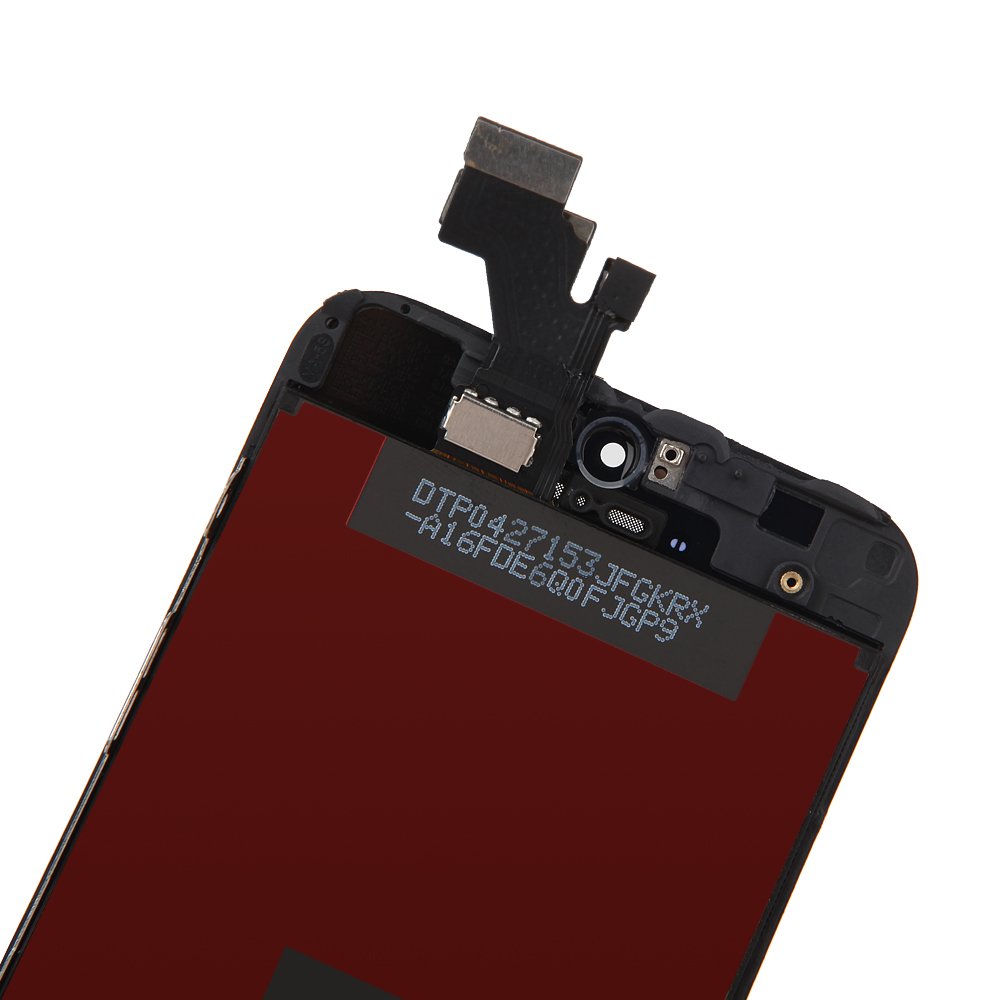

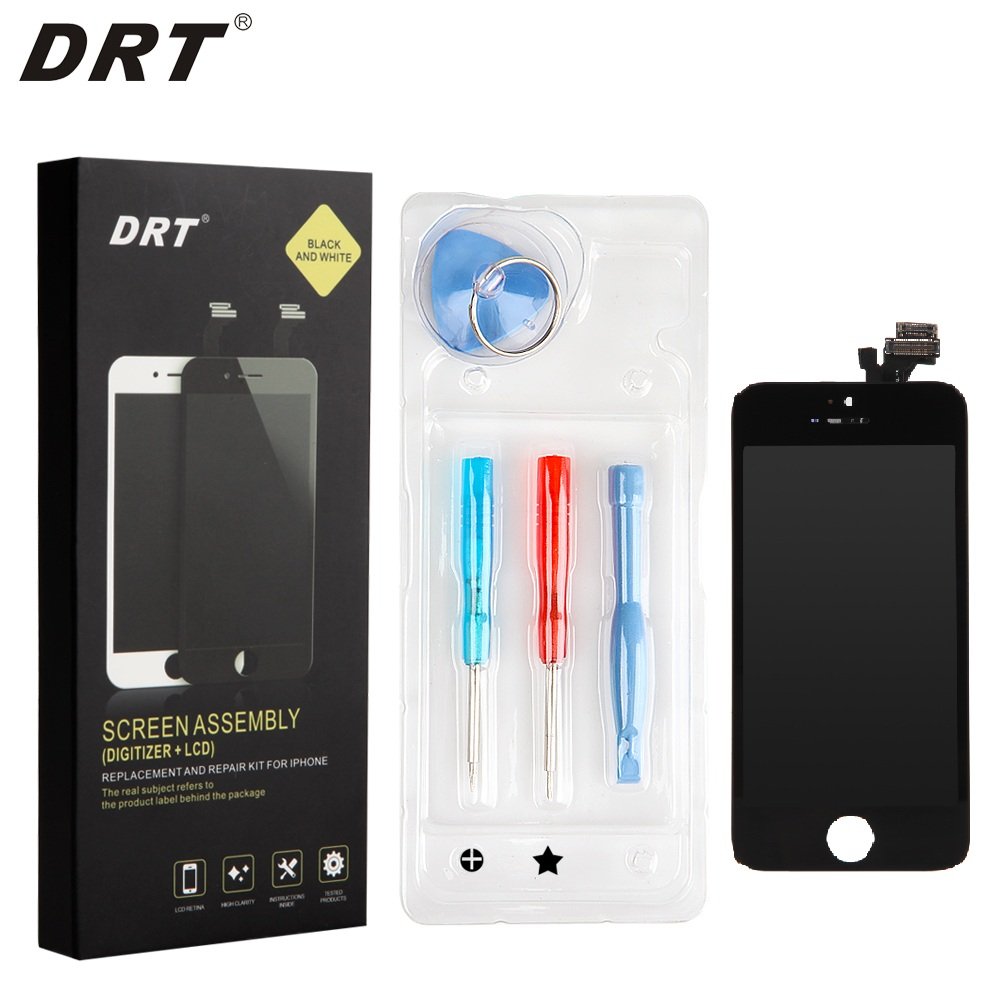

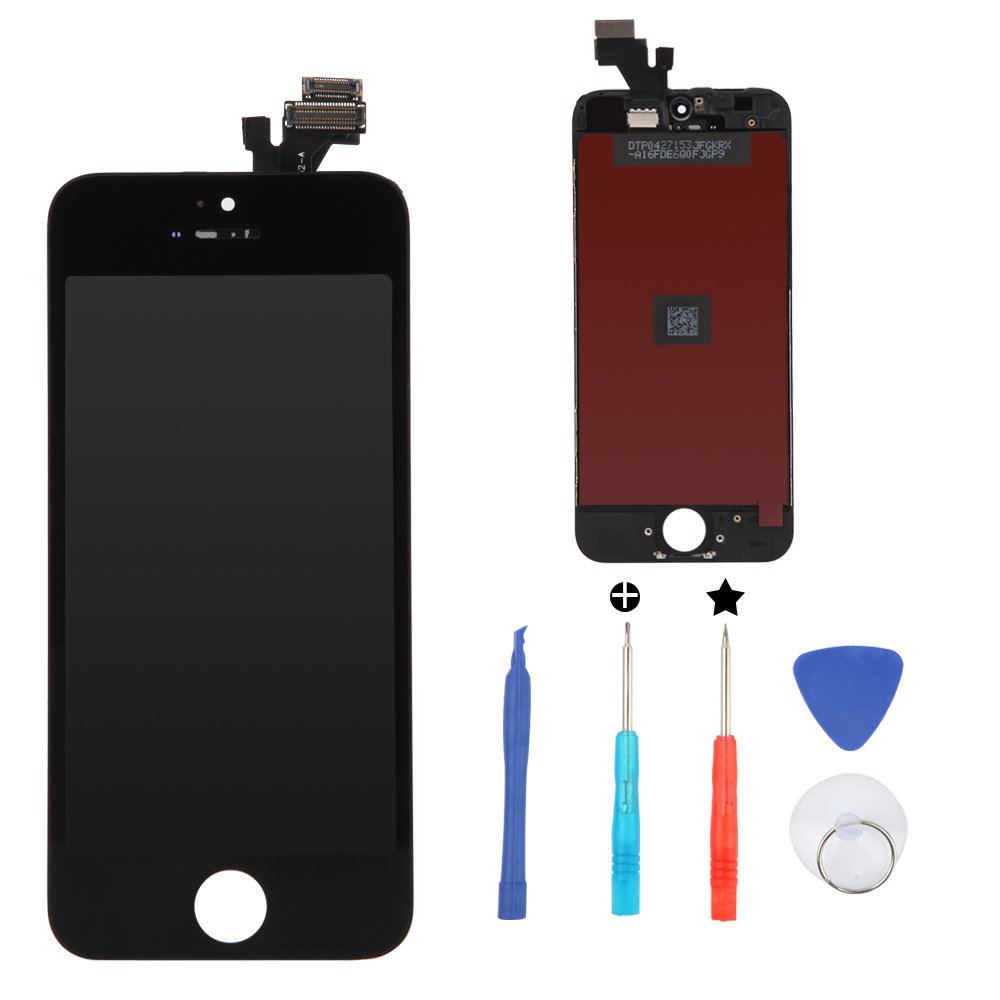

• For iPhone 5 repair replacement, high quality LCD liquid crystal · touch panel digitizer front panel.To repair replacement tool kit is attached.
• Please ship after severely inspecting, please purchase with confidence.
• If there is a problem such as a crack by any chance, it is possible to exchange it for returning goods and new ones.
• Please do not hesitate to contact us
• The installation of the screen requires some knowledge and skill, so please refrain from exchanging yourself if you do not have the technology.
• We will proceed with replacement repair at a specialized repair shop.
• Testing against the front panel is very important in order to avoid improper operation and unexpected damage by the customer during the process of installing the front panel.
• If there are problems such as touch defects and image problems, please contact us without installation.
• It is a screen for trouble restoration such as display trouble, broken pixels, LCD screen crack, coloring trouble, screen breakage etc.

Product information:

Shipping Weight: 99 g

Package Dimensions: 2.31 x 8.30 x 17.30 cm
