Product Description

Parameter:

1)Input voltage: DC5V

2)Power: 43.2W/M

3)LED resource: WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 IC)

4)Q'ty of LED: 144leds/m,each LED is separately controlled

5)IC Type: improved version ws2811 IC(built inside the 5050 smd rgb led)

6)Q'ty of IC: 144IC/meter (1 IC drives 1 led chip);

7)Pixels: 144/meter;

8）Grey scale: 256;

9)Bits/color: 8-bits/color;

10)FPC color: White

12)View angle:120°

12)Life span:≥50000hrs

13)Protection rate: IP30 Non-waterproof

14)Colors: Full color RGB, dream color changing;

15）Cuttable: every LED is cuttable;

16）Package: 1m/roll in anti-static bag,with 3M adhensive tape on the back

Features:

1)The WS2812B strip, every 5050 RGB SMD built-in(embedded) one WS2811IC Chip, realize individually Addressable, means every one led lighting effect can be controlled.

2)Each LED is individually addressable, with 8 bits of red, green, and blue data shifted in for 24 bit color, Strips take data in green, red, blue order.

3)Work under DC5V, Low voltage for human safety , low power consumption, energy-saving , Super-bright but running with low temperature

4)All the light spread and completely smooth, luminous very even.

5)Every one LED lamp can be arbitrary cut off, good flexibility, can be arbitrary bending, according to your requirement .

6)LED Type: High Quality 5050 SMD LED, high intensity and reliability, Long lifespan >50,000 hours

Applications :

1)Full-color module, Full color soft lights a lamp strip.

2)LED decorative lighting, Indoor/outdoor LED video irregular screen.

Package included:

1x 1M WS2812B 144 leds/M White PCB Non-waterproof DC5V LED Strip

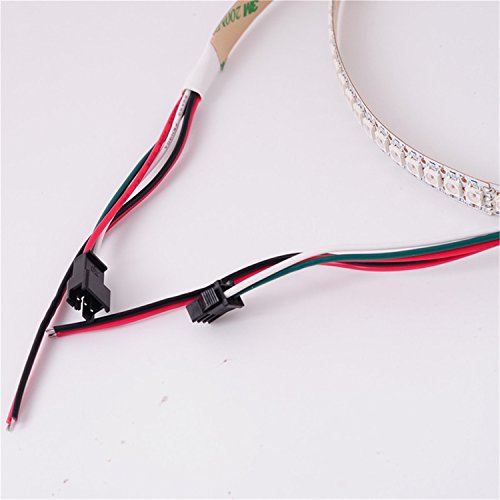

1x free 3pin female JST connector

Feature

Working Voltage: 5V DC.LED Quantity: 144leds/m, one pixel IC control one 5050RGB
PCB Background: White.They are allowable to be cut every one LED light
256 brightness display and full 24-bit color display.
Emit Color: dream magic color: Flash, Strobe, Fade, and Smooth.etc
Fully addressable (each LED can have it's own color and brightness).
Brand : mokungit
EAN : 0747150987200
