Item Descriptions:

size:

HDMI to Composite + S-Video conversion

【BLUPOW HDMI → Composite / S terminal converter】

This machine converts digital full HDTV signal to composite analog (yellow round pin) / S video (S-Video) signal, and outputs video and audio (R / L).

PSE approved AC adapter is attached, output stably!

With Japanese manual, you can use immediately without trouble!

This unit converts the digital signal of HDMI to an analog signal and outputs it, it does not output the image quality / sound quality of the digital HDMI signal as it is.

Also, the picture quality outputted depending on the specifications of the TV and the monitor also differs, Please note on your purchase beforehand.

【Hint】

In order to enjoy better picture quality, if you have S terminal and composite input terminal at the same time on TV, we recommend connecting with S terminal.

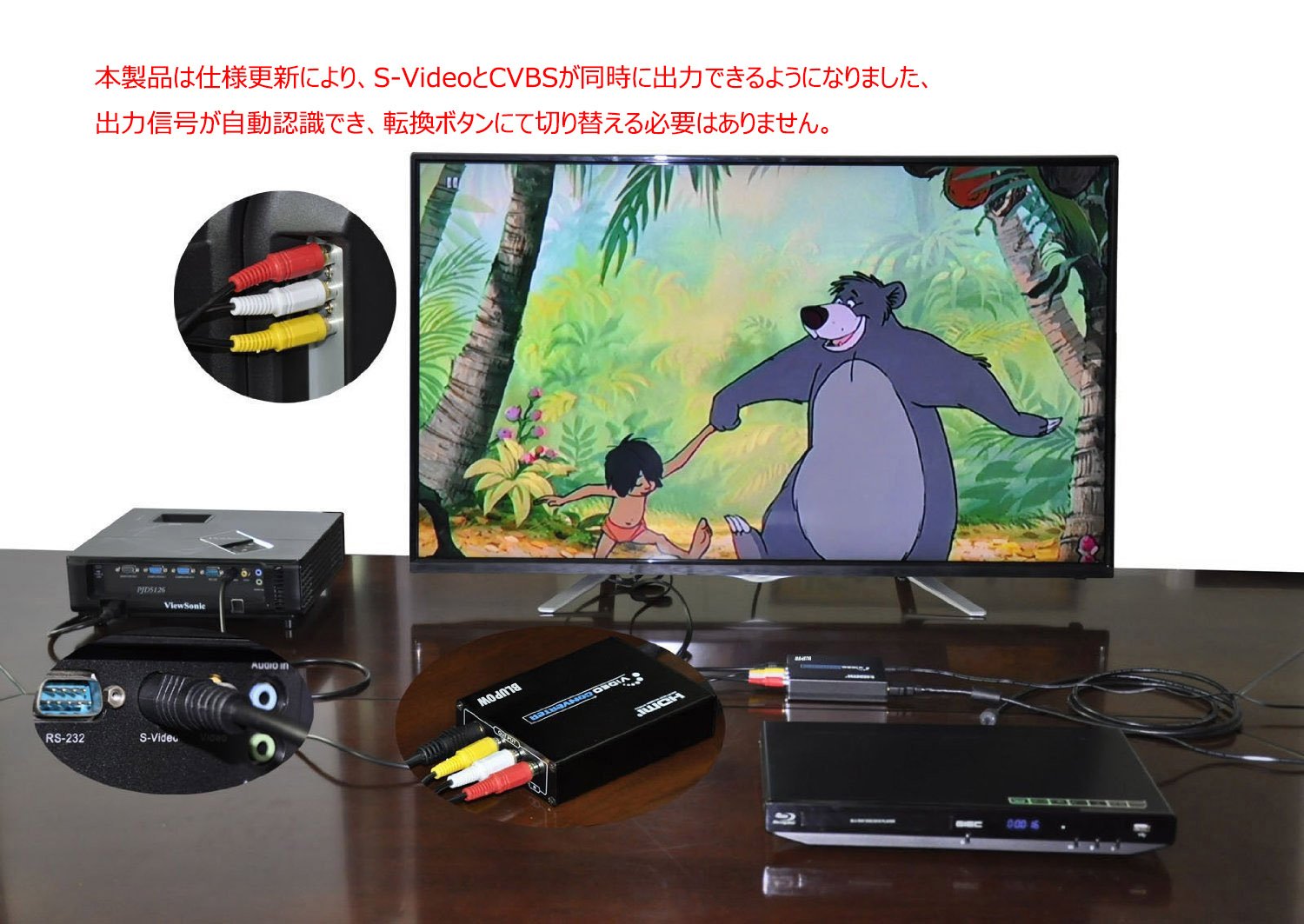

【Video distribution & audio separation possible】

Although it is a converter, it has a function of "distribution".

Since S terminal and composite signal can be output at the same time, images from Blu - ray recorder etc can be output simultaneously to 2 TV / monitor.

At the same time separate the sound into analog stereo R / L, and can output to your favorite speaker etc!

Output video signal can be recognized automatically, there is no need to switch with the conversion button.

【Old TV Revival】

Even with older TV / monitor without HDMI terminal, it is OK if S terminal and composite are available!

From game machines and smartphones that support HDMI output, analog images & sound sources can be output to TV / monitor.

Let's revive the sleeping TV as a sub monitor!

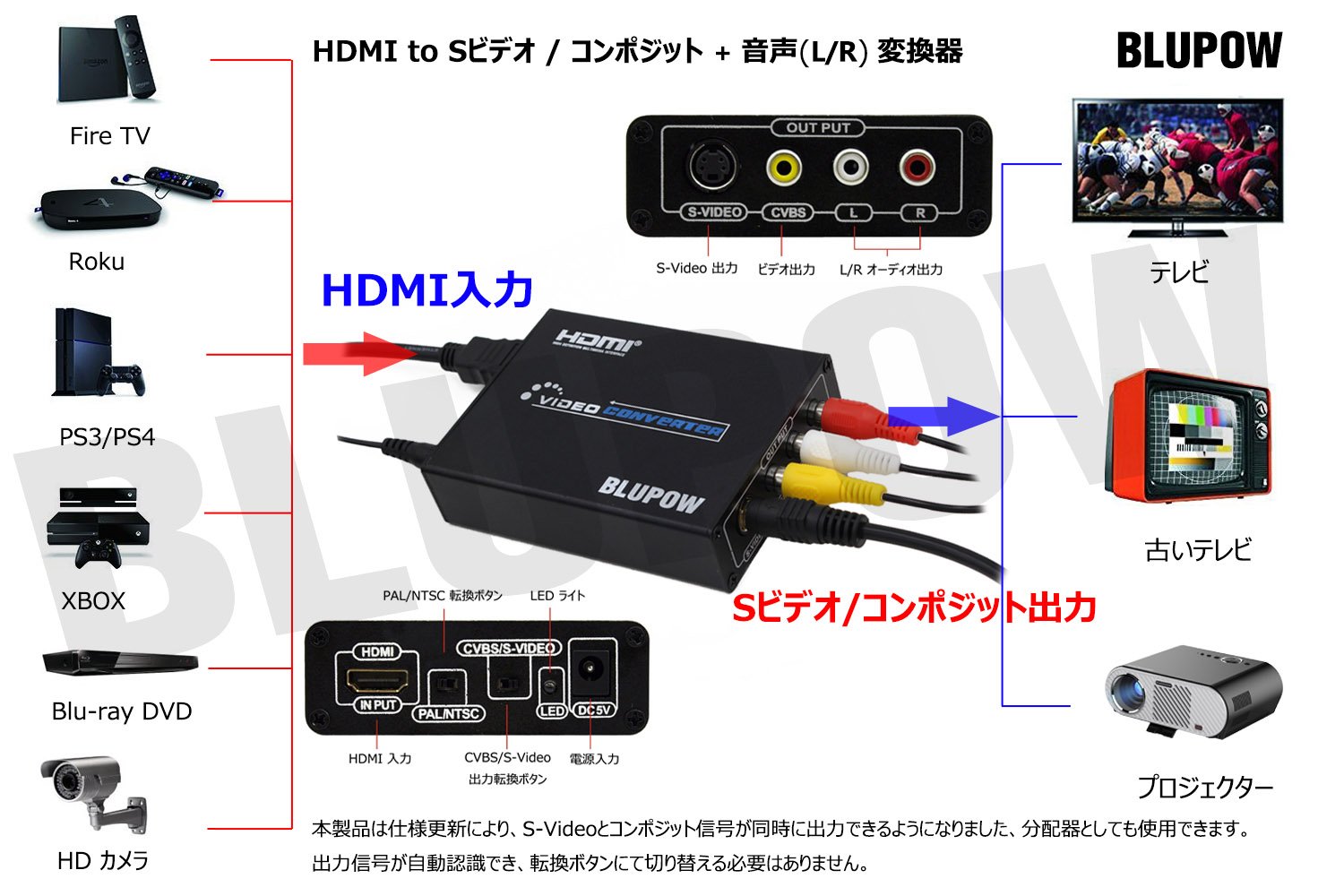

[Support various HD equipment]

It is used for devices with HDMI output terminals such as Blu-Ray / DVD player, HD recorder, HD camera, smart tablet, Apple TV, STB, HD PVRs, HD DVRs, PS3, PS4, Xbox 360, Wii, PC etc.

HDMI connection is the mainstream for connection terminals such as Blu - ray recorders and game consoles recently, but "Well then, can not you connect to TV / monitor with only old terminal?"

If you are worried, please use this converter!

For example:

When you want to output the PC screen to a large-sized LCD projector

When you want to use it for recording from the PC's HDMI terminal to DVD

When you want to connect PS4 / PS3 to the capture board

When you want to output or record DVD recorder / BD recorder / TV box on old LCD TV

When recording with SKY PerfecTV

When connecting a digital camera or iPad to an analog TV

When outputting smartphone / tablet screen to car navigation system without HDMI terminal

You can enjoy various uses such as.

Application location:

Digital entertainment center, HDTV retail store and security issues, data center management, information distribution, conference room, presentation, school and corporate training environment etc.

【※Notes※】

Depending on the video source, it may be blurred due to degradation of resolution during analog conversion, or characters may be crushed.

tv set

Setting on monitor side

It may not be output normally depending on specifications.

The input resolution of this machine can correspond to the maximum 1080P, it can not correspond to 4K × 2K.

Be sure to use the included power supply in order to operate this machine stably.

Operation is not guaranteed for all devices.

[Product specifications]

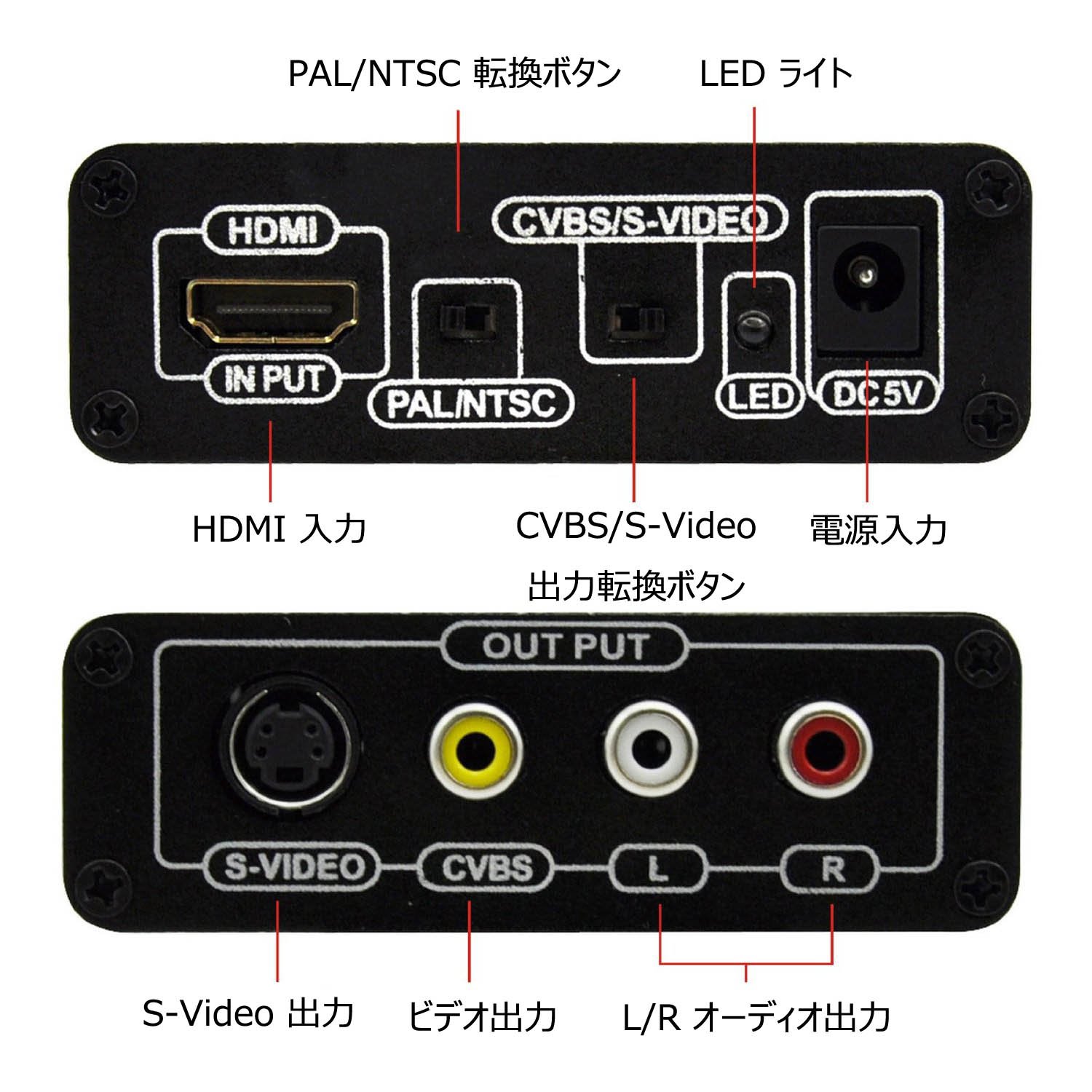

input:

HDMI × 1

output:

Composite (yellow circle pin) × 1, S video (S-Video) × 1, R / L (red · white circle pin) × 2

Input resolution:

480p (60Hz), 576p (50Hz), 720p (50Hz / 60Hz), 1080i (50Hz / 60Hz), 1080p (50Hz / 60Hz)

Output signal:

CVBS (1.0 Vpp), S-Video (Y: 1.0 Vpp, C: 0.3 Vpp)

Output video method:

PAL / NTSC

Output Video Resistance:

75 Ω

Power supply:

Input AC 100 to 240 V (50/60 Hz), Output DC 5 V / 1A

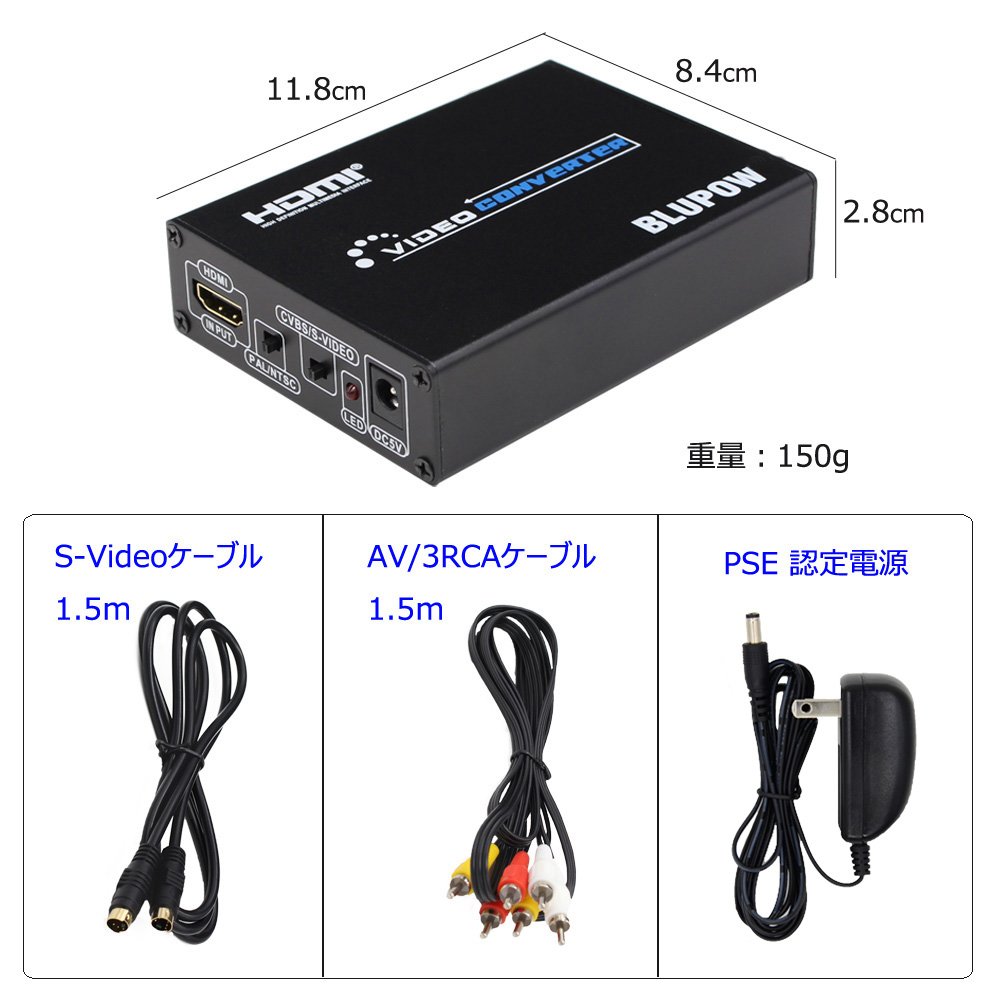

body size:

11.8 × 8.4 × 2.8 cm

Working temperature:

-25 ℃ to 75 ℃

Work humidity:

10% - 60%

Material:

steel

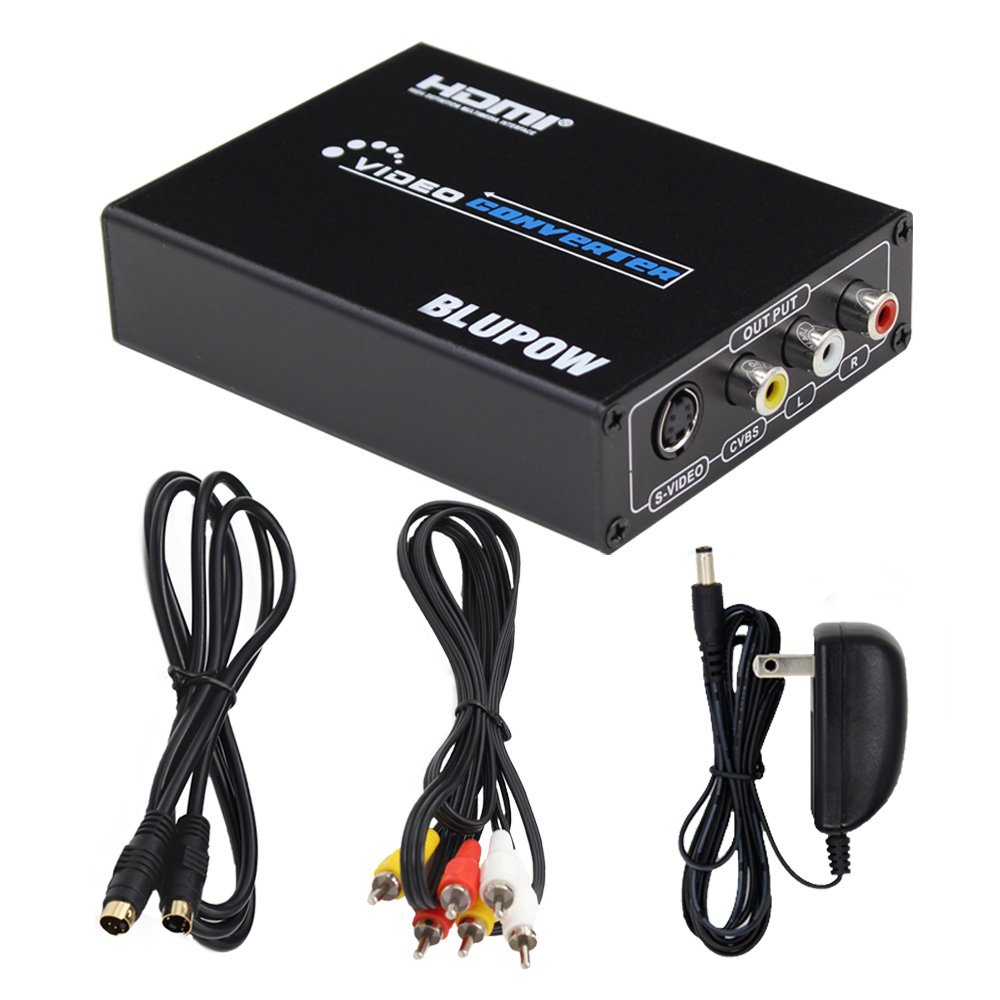

【Supplied List】

1 x body

1 x Power Adapter (PSE Approved)

1 x AV cable (length 1.5 m)

1 x S-Video cable (length 1.5 m)

1 x Japanese Manual

* If you do not have a Japanese manual attached to the item you arrived by any chance, we will send you PDF version by e-mail, so please do not hesitate to contact us.

※ This product with one year warranty by BLUPOW, If you have any question, please do not hesitate to contact us.

Our company E-Mail:

[email protected]

Features:

• Please enter model number Confirm this is compatible:
• 【HDMI → RCA / S terminal conversion】 This is a converter that converts a digital full HDTV signal into a composite (yellow round pin) / S video signal and outputs video and audio (R / L)
• .
• No driver required!
• Just connect it with OK!
• 【Caution】 This unit converts the HDMI digital signal to the analog signal and outputs it. It is not intended to output the image quality / sound quality of the digital HDMI signal as it is, please purchase it beforehand on your purchase.
• 【Revive old television】 Even with older TV / monitor without HDMI terminal, if you have S terminal and composite it is OK!
• From game machines and smartphones that support HDMI output, analog images & sound sources can be output to TV / monitor.
• Let's revive the sleeping TV as a sub monitor!
• 【Video Distribution & Audio Separation】 Since S terminal and composite signal can be output simultaneously, video can be distributed to two TV / monitor.
• At the same time separate the sound and can output to your favorite speaker etc.!
• Output video signal can be recognized automatically, there is no need to switch with the conversion button.
• [NTSC / PAL compatible] Since the video output can be switched not only to the NTSC system but also to the PAL system, it is an HDMI conversion adapter that can be used even by people overseas.
• In Japan, please switch to NTSC.
• 【Excellent heat dissipation performance】 Adopting the new eco metal casing, the service life is prolonged by the excellent heat dissipation.
• ※ Note: Please be sure to check before purchasing, as it may not be output correctly depending on the settings / specifications on the TV / monitor side.
• Included list: 1 x main unit, 1 x AC adapter (PSE certified item), 1 x AV cable (length 1.5 m), 1 x S terminal cable (length 1.5 m), 1 x Japanese manual

Product information:

Shipping Weight: 430 g

Package Dimensions: 6.71 x 15.80 x 19.61 cm
