Description:
This delicate digital display temperature controller can set start and stop temperature. The display and control temperature can be set to 0.1°. It is convenient to install and wiring is simple. With high precision and long service life， it can completely replace the mechanical temperature controller.
Features:
ABS flame retardant housing is avirulent and environmental protective， long service life and will not discolor or be out of shape.
Probe used stainless steel material shell and resin sealing treatment， waterproof and does not rust.
Wide temperature control range from -50° to 110° and high temperature control precision of 0.1°.
Can be installed directly or embedded in industrial control equipment panel， convenient and quick.

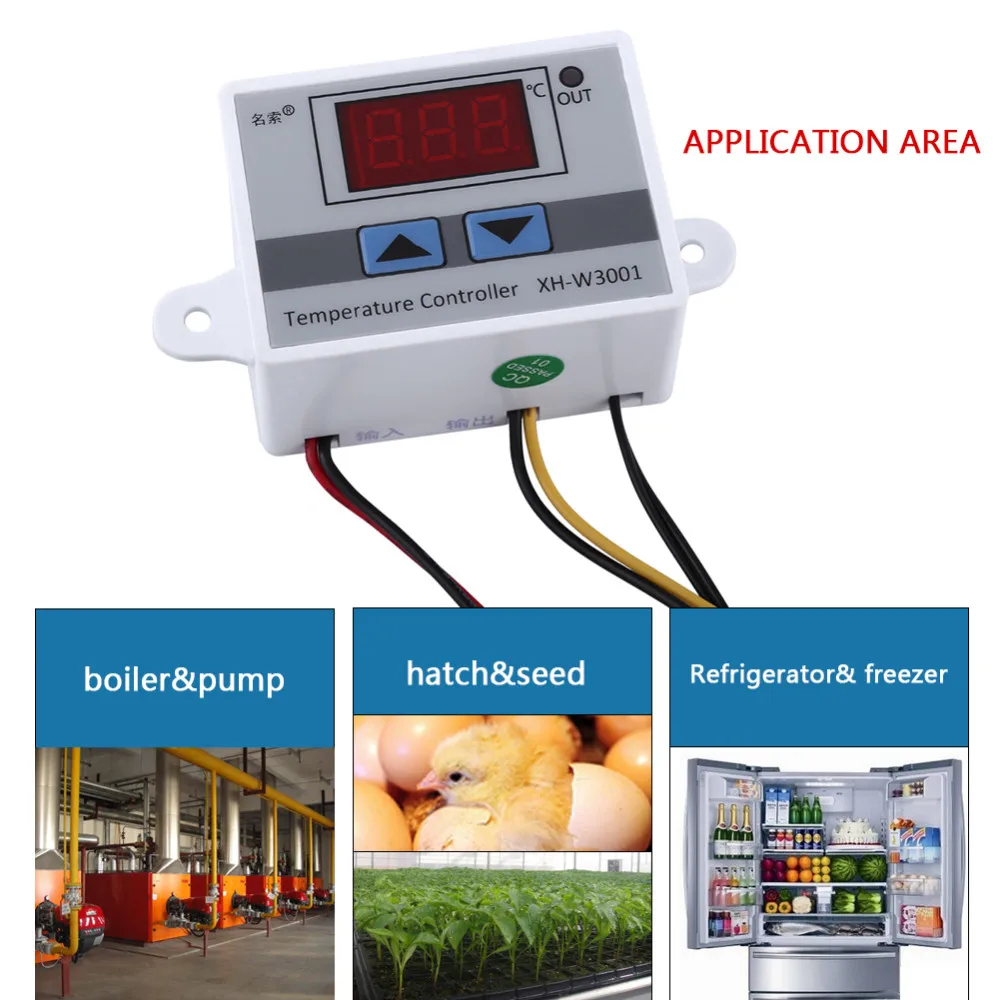

Widely used in the hatching area， equipment case， air conditioning system， temperature control protection and other fields.
Specifications:
Voltage: DC12V
Temperature Measurement Range: -50~110°
Temperature Control Range: -50~110°
Temperature Control Precision: 0.1°
Load Power: 120W
Measuring Input: NTC10K L=1 meterswaterproof probe
Output: Max 10A
Installation Hole Distance: 73mm / 2.87"
Hole Diameter: 4mm / 0.15"

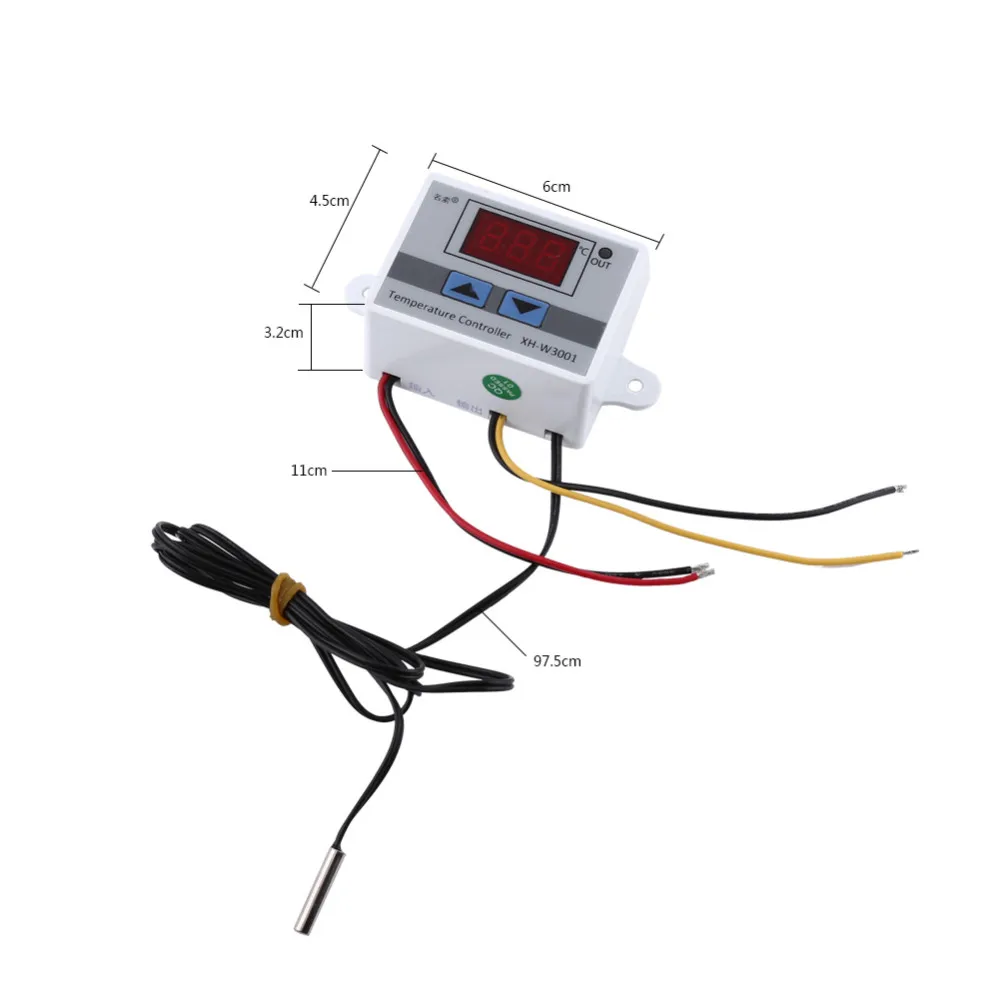

Size: 60 x 45 x 32mm / 2.36 x 1.77 x 1.26"
Wire Length: 11cm / 4.33"
Probe Cable Length: 97.5cm / 38.3"
Weight: 53g(approx.)

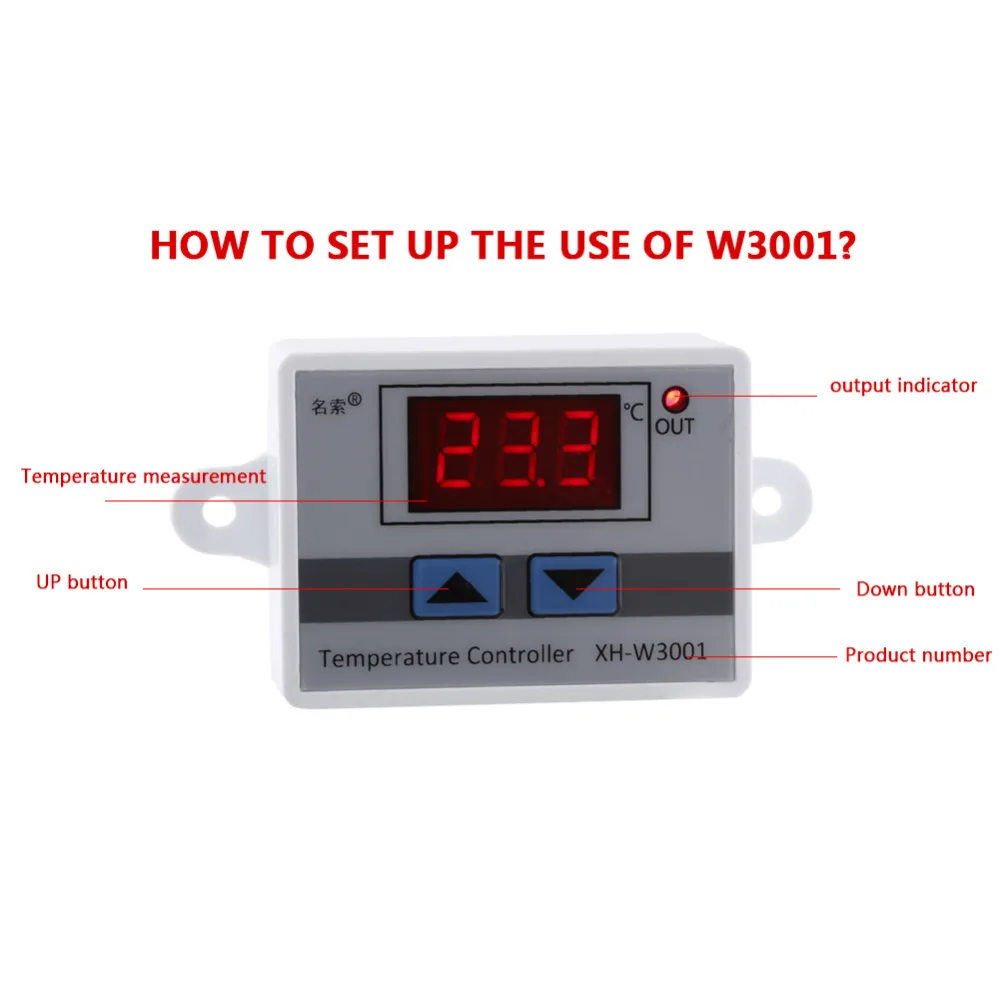

Instruction:
press up button show the starting temperature
long press UP button the temperature display Flashing ， press the UP or Down button Set the start temperature value.
Press Down button show the Stop temperature
long press Down button the temperature display Flashing ， press the UP or Down button Set the stop temperature value.
Package Includes:
1 x Thermostat
Note:
1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same， item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
