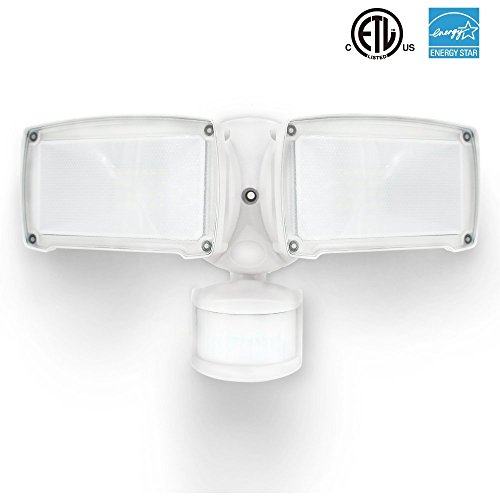

LED Security Light, Dusk to Dawn BWL 22W Outdoor Waterproof Motion Sensor Floodlight, 6000K Daylight, 1600Lm for Entryways Step, Garden, Yard, Deck, Stairs, Wall Light








30 Watt


42 Watt


50 Watt

Product Description

ASSEMBLY INSTRUCTIONS

CAUTION: PRODUCT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN!


1.Turn OFF power to work area at main circuit breaker or fuse box.
CAUTION: Do not reply on wall switch alone to turn off power
2.Insert the short machine screw into the center hole on the crossbar. Attach crossbar to junction box (not included) with two long machine screws. Ensure that the screw thread on the center hole is pointing away from the surface
3. Remove the protective paper barrier from the adhesive face of the EVA gasket. Pull out the supply wires through the openings in the gasket and adhere the gasket to the crossbar and outer edge of the round surface mount electrical box. Ensure that the short machine screw on the crossbar is threading the hole of EVA gasket
4. Connect YELLOW/GREEN ground wire from the light to the ground wire from outlet box by using ground screw onto the crossbar. Connect BLACK WIRE( Live Wire) from light to the bare end of Live Wire from outlet box by twisting Wire Nut. Connect the WHITE WIRE ( Neutral Wire) from the light to the bare end of Neutral Wire from outlet box by the other twisting Wire Nut.
5. Make sure wire connections are secure. Carefully place wires into junction box. Position wall plate over the crossbar. Mounting the light onto the crossbar and secure with the NUTS.DO NOT over tighten. For wet location, make sure fill full the gap of EVA gasket and mounting surface with sealing compound or silicon glue.As the security light can't light in the light, when you install the light in the light please kindly note to set the light in the TEST MODE.

Feature

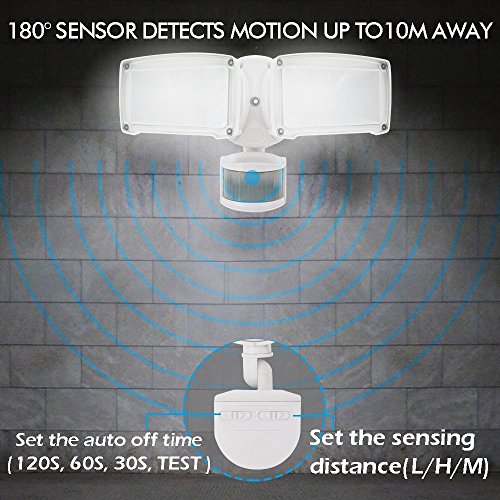

Powerful Motion Sensor Lights for Security: 180 degree motion sensor with adjustable detection feature up to 15m/50ft. Dusk to down, Auto on when motion is detected and auto off after pre-set time(30sec, 60 sec, 120sec) when no further movement has been detected.
Super Brightness LED Llight: 44 pcs ultra-bright LED light Design is rated at 1600lm high brightness clear white light, provide efficient lighting for your exterior living environment, which is much brighter than other halogen bulbs in the market.

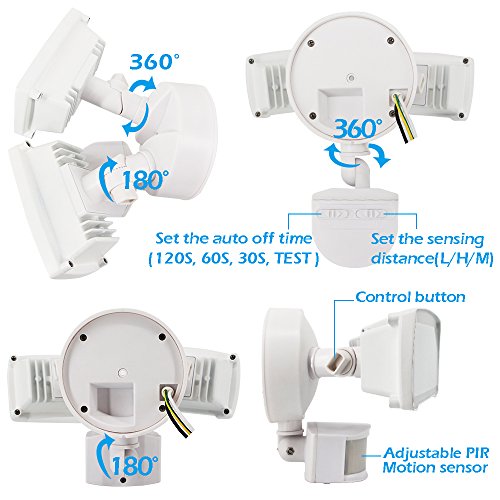

Easiest Installation & Adjustable Design: Super easy to connect the J-Box, adjustable detection sensitivity and resettable lighting time, setting it in accordance with your specific needs.

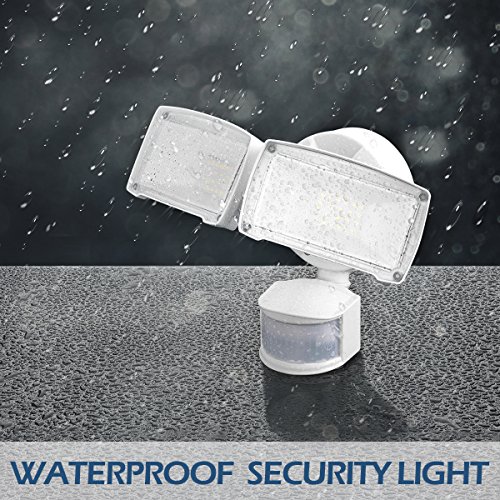

Waterproof & Energy Efficient: Solid waterproof aluminum+plastic construction for withstanding years of rain, snow, ice and wind, weather resistant for outdoor use. 50,000 hours product lifespan, long-lasting and stable performance for the time to come, no more frequent replacing and maintenance. Please email us if you receive the defective product.

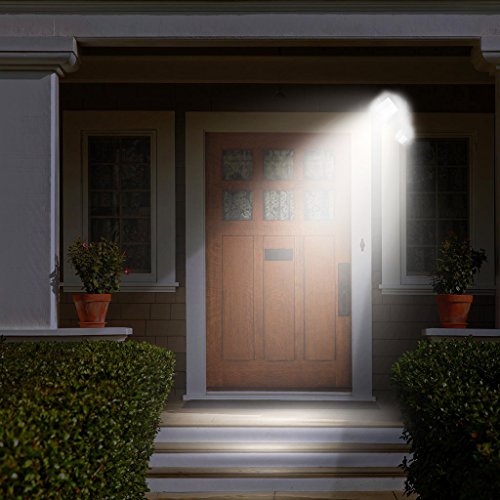

Great Outdoor Light: Designed for outdoors use, such as outside wall, garden, patio, pool, yard, driveway, etc. Please note to set the light to the TEST MODE when you install it during the day.
Brand : BEST WORLD LED
MPN(PartNumber) : BW-SCLP22W60K1V1P
EAN : 0754047003912
Package Dimensions(LxWxH) : 22x20x17cm ; 907 g
