Item Descriptions:
size:
Built-in HDD 1 TB
What is AHD
■ Analog High Definition is an abbreviated new technology for analog video transmission compatible with HD video.
■ Product features High image quality with coaxial cable, long distance wiring is possible.
■ Since the AHD recorder supports connecting to an analog camera as well as connecting an AHD camera,
It is possible to introduce Hi-vision surveillance video system without wasting existing analog surveillance video system.
video
Image compression: H.264
Encoding: 8 * AHD-H / 1080P @ 15 FPS
Decode: 8 * AHD-H / 1080P @ 15 FPS
Multimode input: Analog: 8 * 1080 P; 4 * 1080 N; 8 * 720 P; 8 * 960 H;
Network: 1 * 1080 P + 8 * 720 P; 4 * 1080 P; 20 * 960 H;
Analog + network: 4 * 720 P (analog) + 4 * 720 P (network) 2 * 1080 P (analog) + 2 * 1080 P (network)
audio
Audio compression: G.711A
Intercom: Support
Recording & Playback
Recording method: Always recording, Alarm, Motion recording, Schedule recording
Playback: 4ch
Capacity & Backup
Space: Video: 1080P 20-30G / day * Channel: 720P 20G / day * Channel; Audio: 691.2M / day * Channel
Backup mode: network, U disk, USB burner, SATA burner

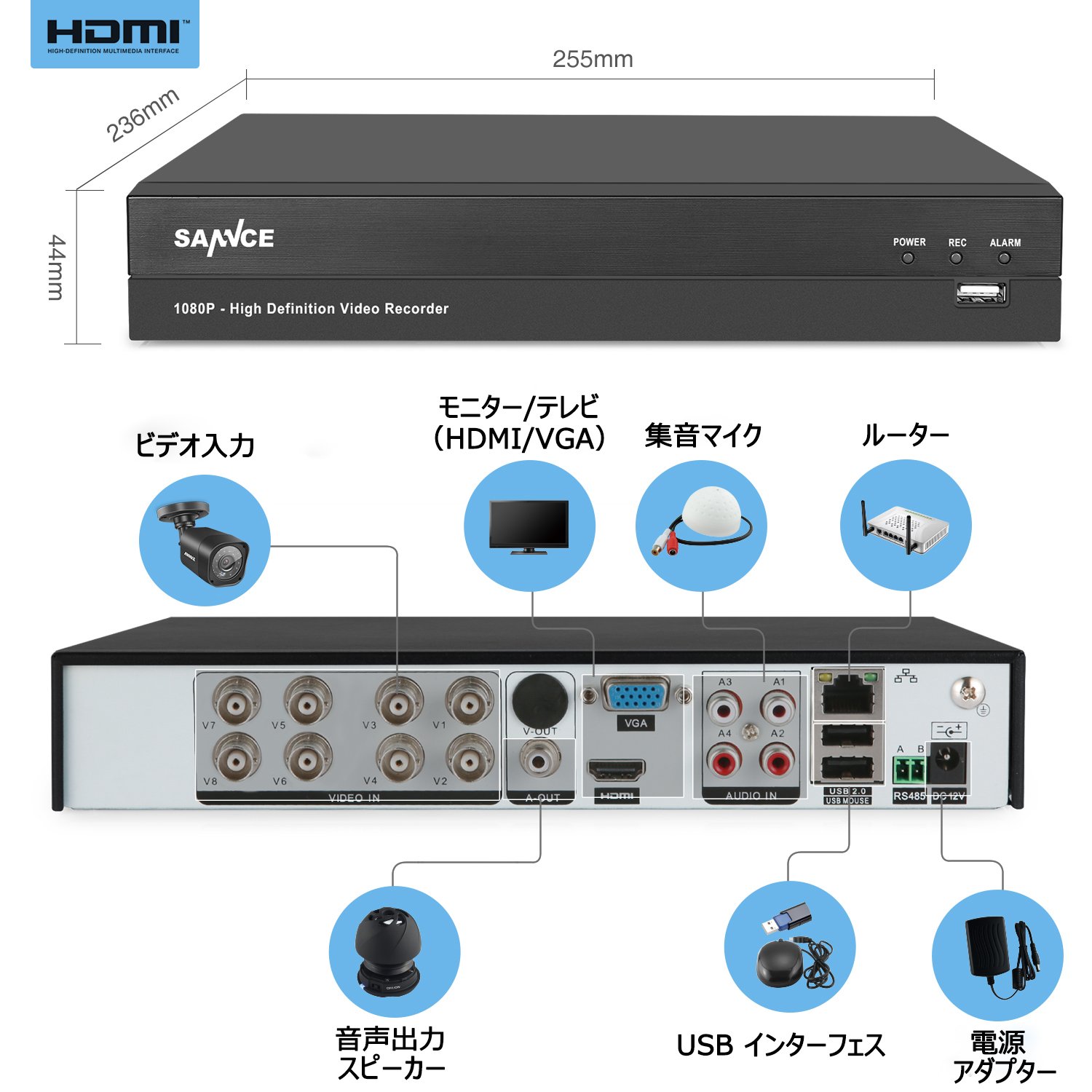

Interface & Net
Video input: 8 CH BNC
Video output: 1 CH VGA, 1 CH HDMI
Audio input: 8 CH RCA
Audio output: 1 CH RCA
Network interface: RJ 45 10 M / 100 M
PTZ control: 1 * RS485, supports multiple PTZ protocols
USB: 2 * USB 2.0
HDD: 1 * SATA port (maximum 4 TB / per)
Wireless: Support
3G: Support
Network services: DHCP, PPPOE, FTP, DDNS, NTP, UPNP, EMAIL RTSP, etc.
Mobile: iPhone, Android
Browser: Supports multiple browsers (IE, CHROME, FIREFOX, SAFARI)
Operating power supply: 12V / 3A

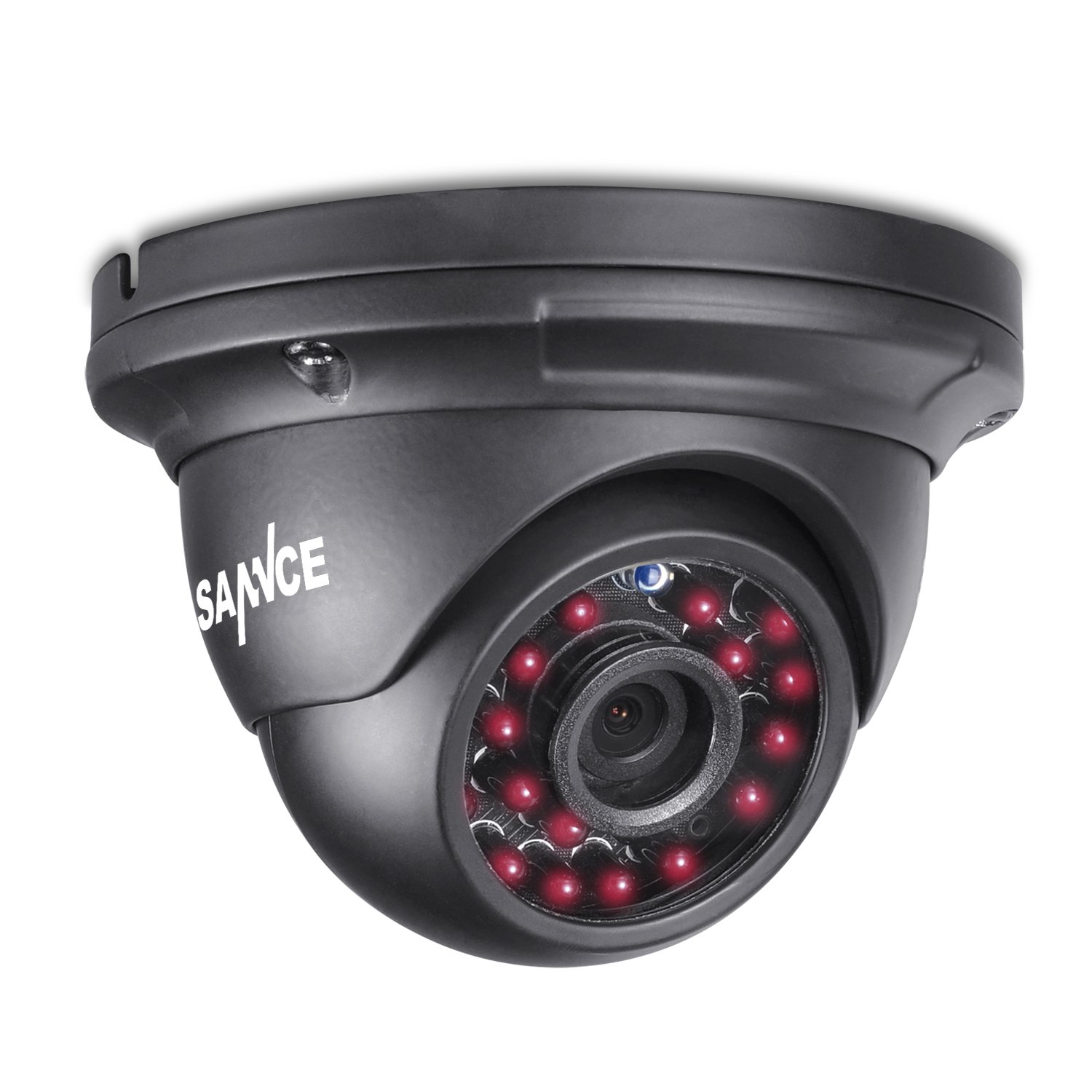

Camera specifications
Image sensor: 1/3 "color CMOS
Video Resolution: 1920 * 1080
Signaling method: NTSC
Video output: 1.0 vp - p 75 Ω
Lens: 3.6 MM
Infrared LED light number: 24
Minimum subject illuminance: 0.01 Lux / F 1.2 (0 Lux infrared on)
Day / night shooting: IR-CUT
Infrared effective distance: 30 m
S / N: ≥ 58 dB
Operating power supply: 12 VDC
Operating temperature: -20 ° C to 50 ° C
Indoor / outdoor: indoor / outdoor installation possible
Waterproof standard: IP66

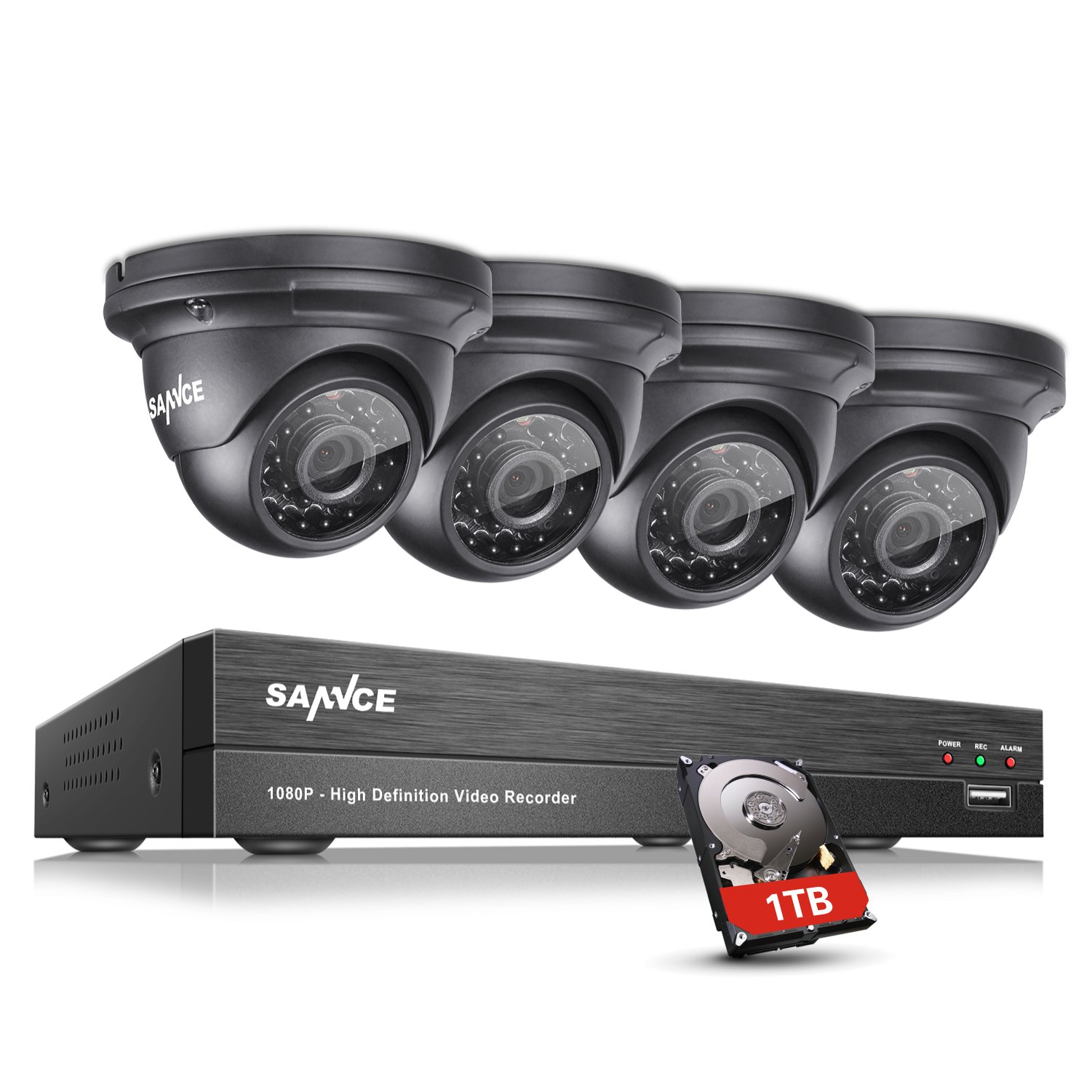

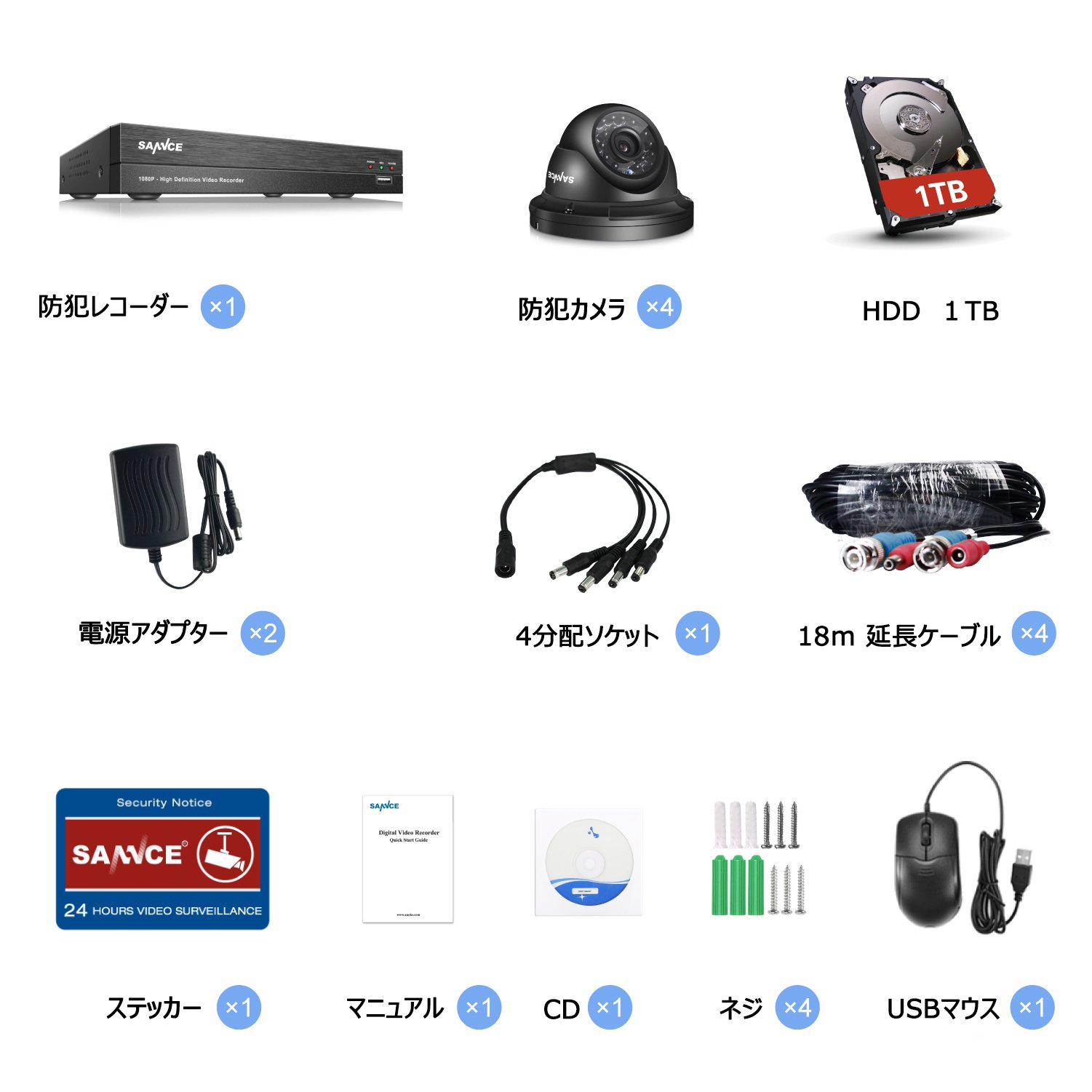

package
Digital recorder * 1
1080P security camera * 4
Adapter * 2
Mouse * 1
Remote control * 1
Power cable * 4
Camera mounting screw * 4
Instruction Manual (English) * 1
Features:
- Please enter model number Confirm this is compatible:
- A safe Japanese menu.
- Remote monitoring with PC or smartphone (iPhone, Android, Windows Mobile) is also possible.
- IP66 waterproof / dustproof specification.
- It is a smart dome type not only indoors, but also when installed indoors, it has no discomfort.
- Shooting the dark part with a camera with night vision infrared function (wide-angle lens with lens f = 3.6 mm) OK.
- With H.264 real-time high compression model, the image quality is beautiful and clear, save memory and transmission time is short.
- Beginners also have a safe one-year warranty & quick response with 30 days money back guarantee.
Product information:
Shipping Weight: 5080 g
Package Dimensions: 19.81 x 33.20 x 35.99 cm
