Item Descriptions:

size:

Luxury version with LCD monitor

This product is with manufacturer 3 months warranty.

During use, if you have any questions, please look at the solution in the description "If you think something is wrong".

Inquiries by email are also welcome!

Frequently Asked Questions

1. The motor is fragile

When using a spare battery, please rest for about ten minutes to prevent the motor from being broken.

When the motor is broken, parts exchange is possible.

2. Can not pair?

Please charge the transmitter and drones' batteries first.

When pairing,

Be sure to turn on the transmitter and then turn on the aircraft power.

If the order is incorrect, you may not be able to pair.

Also, when paired, please place the machine in a flat place and simultaneously confirm that the user is aligned with the fuselage in the same direction.

3. Can not rise and fall?

Propeller and motor have forward rotation and reverse rotation.

If you mistake the direction of rotation of the propeller or motor, the drone can not rise and falls.

Clockwise: motor with red and blue wiring, propeller with engraving A

Counterclockwise: black and white wiring motor, B engraved propeller

4. How do I set the mode 1 and mode 2?

Mode 1: Left is the throttle lever (up / down / rotate to the right / turn to the left) Right is direction control (forward / reverse / flight to the right / flying to the left)

Mode 2: Right is throttle lever (up / down / rotate to the right / turn to the left) Left is direction control (forward / reverse / flight to the right / flying to the left)

How to switch to mode 1: The default mode is mode 1, and after turning on the power of the transmitter, it enters mode 1 directly.

How to switch to mode 2: Turn on the airframe.

Then press and hold the transmitter's LED ON / OFF button at the same time, turn on the power.

At that time, MODE 2 is displayed on the liquid crystal display of the transmitter.

Mode 2 is entered.

(Mode 2 requires setting each time)

Product Specifications

Color: Blue Material: ABS Camera: 720P

Frequency: 2.4 G Channel: 4 CH Gyro: 6 Axis

Target age: 12 years old and over

Flight time: 6 to 7 minutes

Charging time: about 40-50 minutes

Control distance: within 20 meters radius

Lithium battery: 750 mA 3.7 V (4 pieces included)

Transmitter battery: 4 * AA batteries (not included)

Aircraft size: 30.5 * 30.5 * 7 cm

Aircraft weight: 0.15 kg

Package dimensions: 45 * 38 * 16 cm

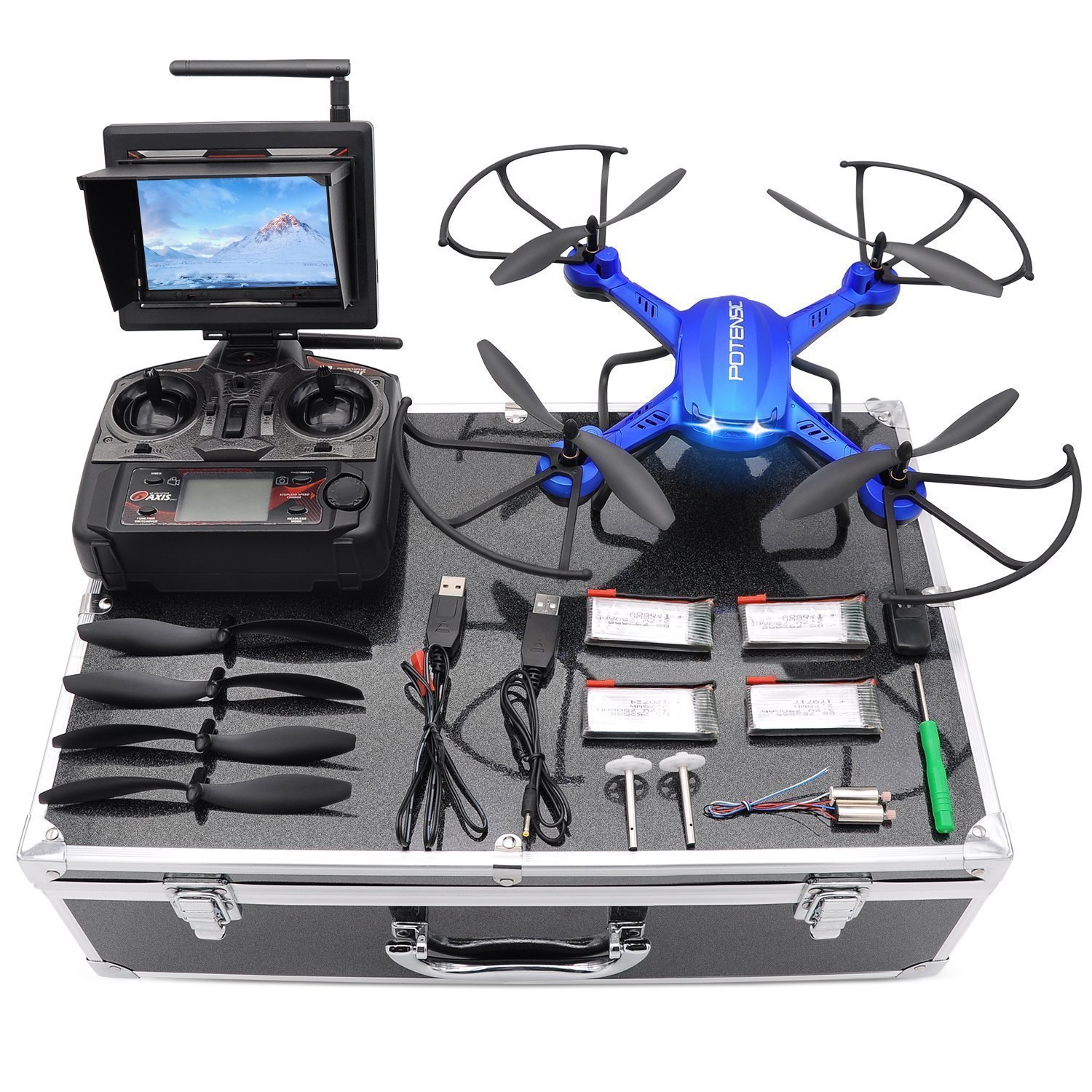

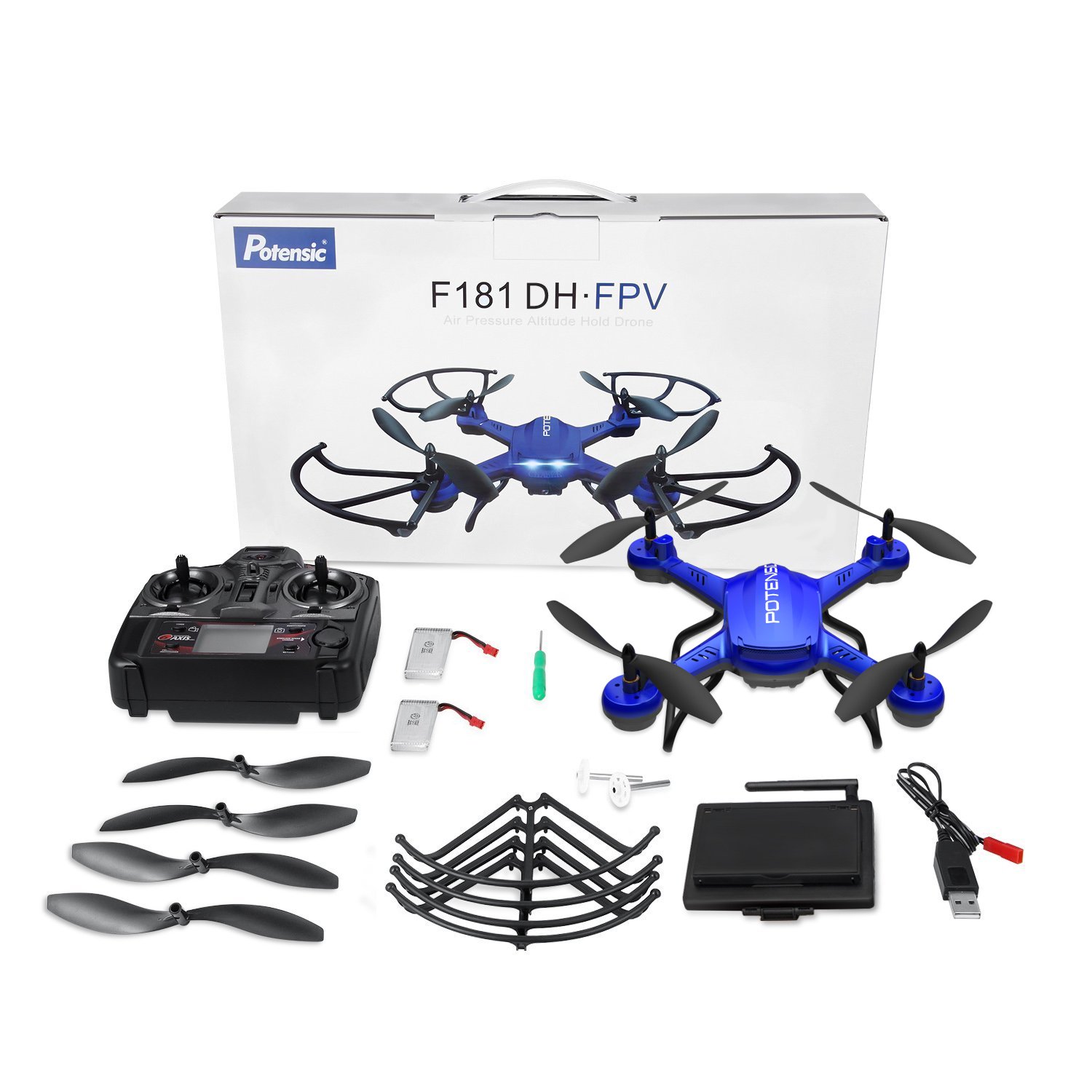

Package Contents

1 * Aircraft 2 * Spare gear

1 * Transmitter 1 * Preliminary motor set (1 clockwise, 1 counterclockwise)

1 * LCD monitor and antenna 4 * Spare propeller

2 * USB charging cable for battery 4 * Battery (1 piece wearing on the aircraft, 3 pieces included) 【Total 4 pieces】

1 * USB charging cable for LCD monitor 1 * Micro SD card

2 * Landing skid 1 * USB card reader

4 * Protective Frameset 1 * Japanese Instruction Manual

1 * screw driver 1 * storage box

Features:

• Please enter model number Confirm this is compatible:
• 【Deluxe Edition】 F181DH Luxury set of drone.
• With watch / reverse rotation motor set, 4 batteries (1 piece wearing in the aircraft, 3 pieces included), you can play as much as you want!
• And with shock-resistant exclusive storage box, not just gathering drones and parts firmly, it's carrying.
• 【5.8 G LCD monitor】 With a 5.8 G LCD monitor, equipped with a 720 P pixel HD camera, you can enjoy real time video transmission on the transmitter.
• SD card and card reader are attached, photos and videos can be saved on SD card, and you can share videos and photos anytime, anywhere.

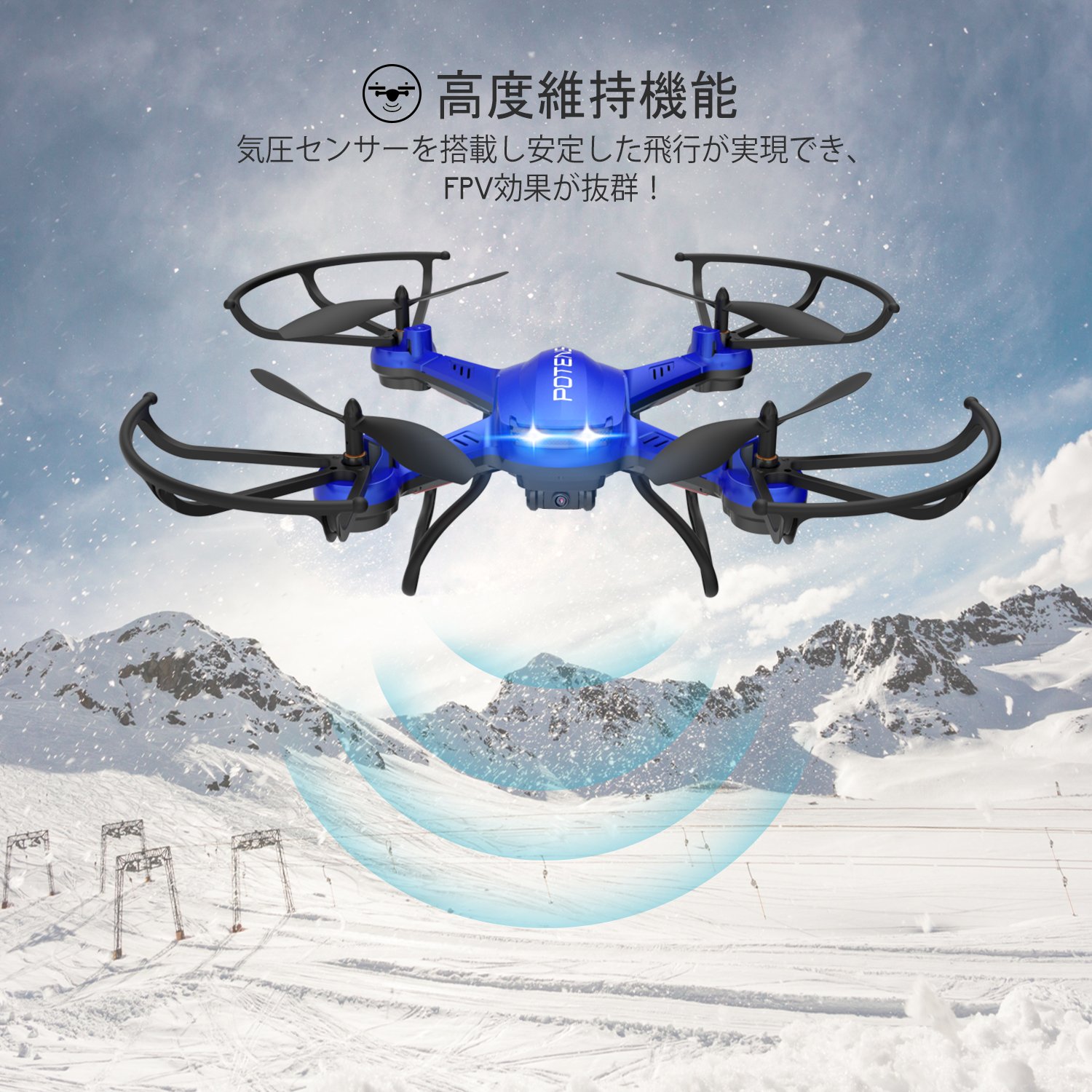

• 【Altitude Maintenance & Anti-Interference Capacity】 A stable flight can be realized with an atmospheric pressure sensor.
• One key take off and landing, hovering is possible.
• Furthermore, with 6-axis gyro mounted, it improves resistance to strong wind and secures anti-interference function.

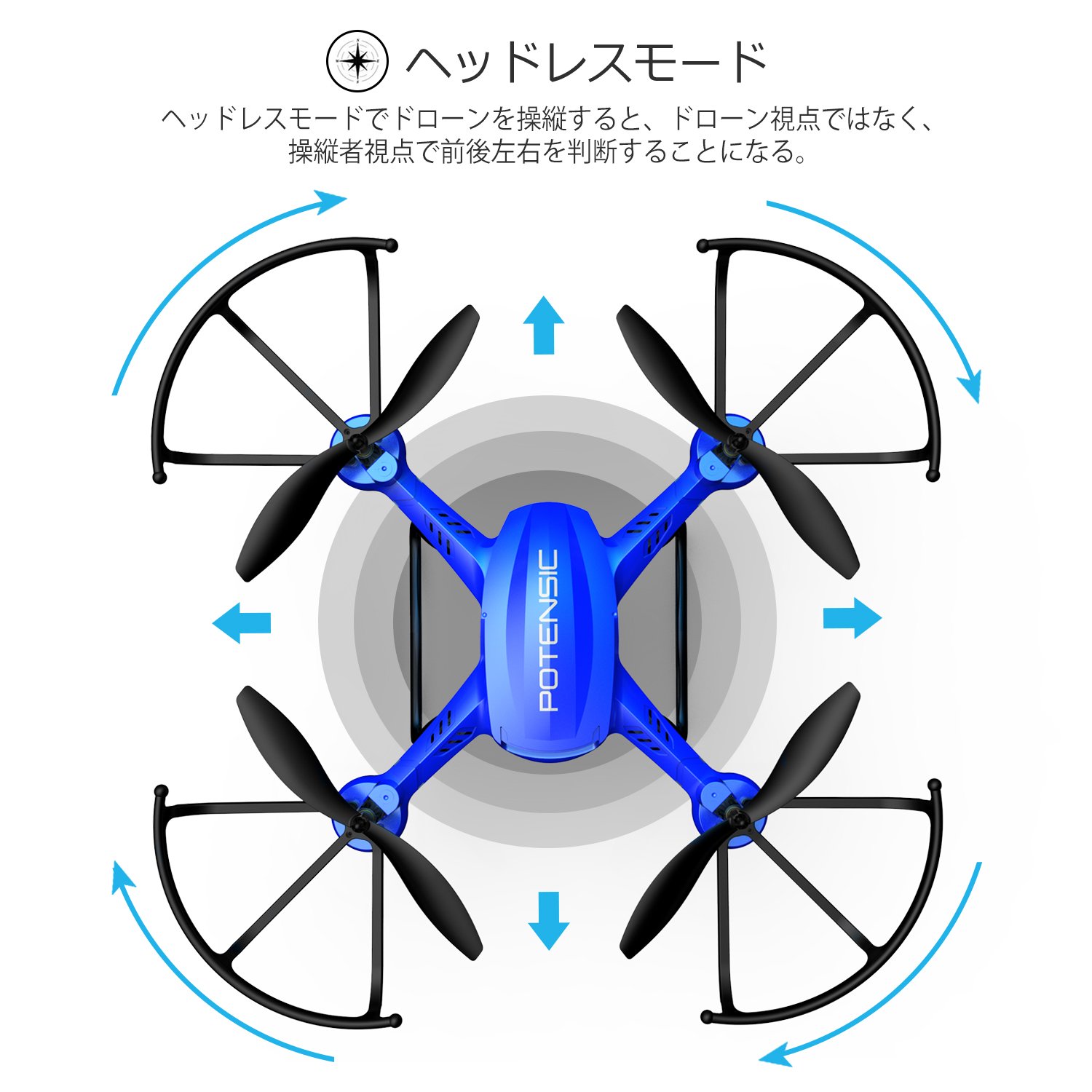

• 【Headless mode & stepless speed adjustment】 Easy manipulation in headless mode!
• If you drill the drone in headless mode, you will decide front, back, left and right at the pilot's point of view, not the droning point of view.

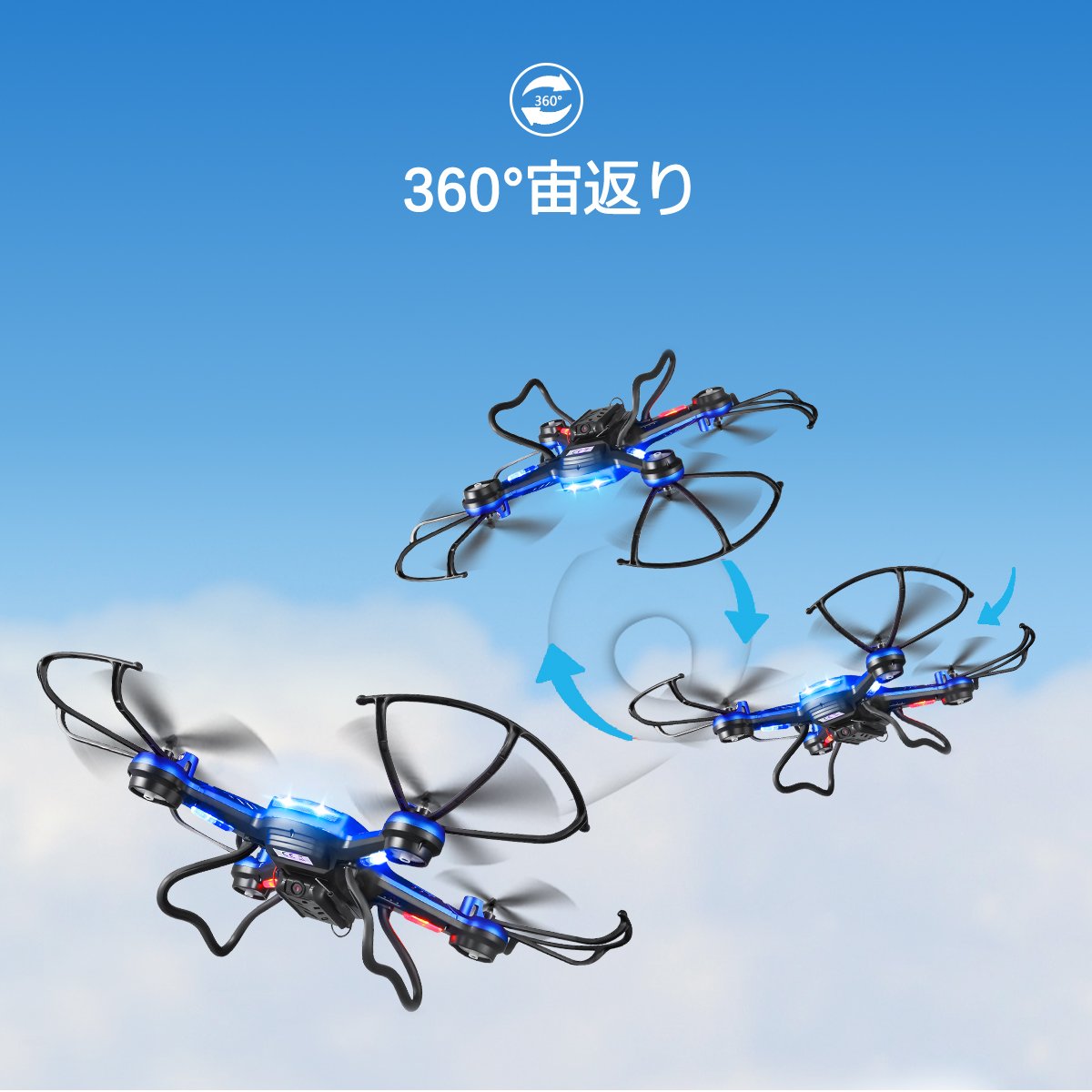

• There is a somersault function, drone flying in the air.

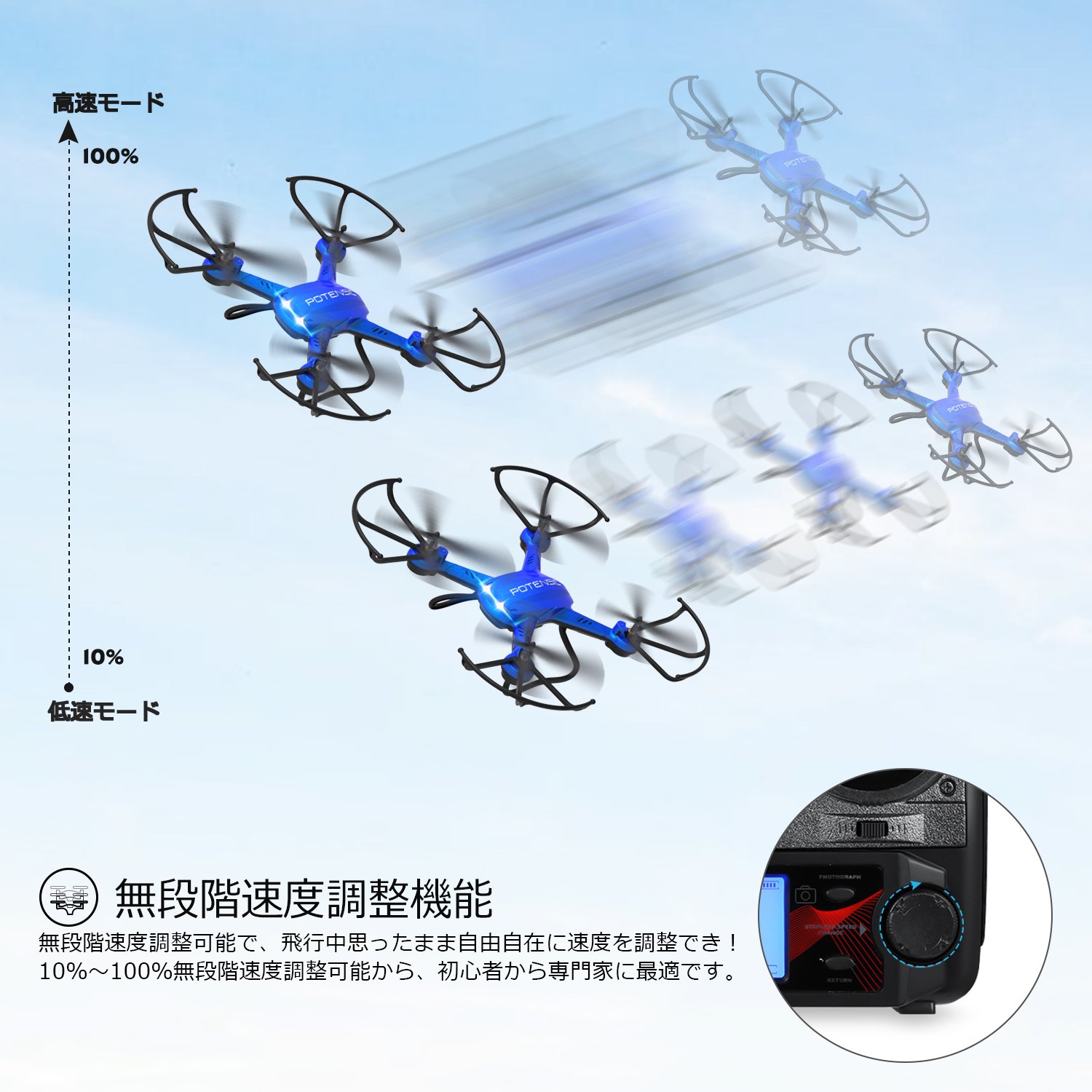

• Since it can adjust the stepless speed, you can adjust the speed at any time during flight as you like.
• Beginners as well as professionals are recommended.
• 【Caution】 1. Let the aircraft fly for a long time, the motor gets hot.
• Please rest for 10 minutes so that the motor does not break.
• 2. When pairing, please turn on the power of the transmitter after turning on the power of the transmitter.
• ※ If you have any questions, please feel free to contact our support center.
• In addition, this product is sold by DEPSTECH.
• In order to confirm the product quality, please be sure to purchase from "DEPSTECH" store.

Product information:

Shipping Weight: 2358 g

Package Dimensions: 14.40 x 33.40 x 43.41 cm
