Product features

Wireless performance excellence

TL-WA701N uses the 11N wireless technology， the wireless transmission rateup to 150Mbps， compared to the traditional 54M 11G products， can meet morewireless client access， wireless client number also can provide wireless higher bandwidth for each client， make the data transmission within a LAN more efficient， while TL-WA701N and 11N， 11G and 3945ABG， 4965AGN，5100/5300/5150/5350 Centrino notebook network card has a good compatibility.

TL-WA701N also uses CCA (Clear Channel Assessment) air channel detectiontechnique， the detection to the surrounding wireless signal interference， which can automatically adjust the bandwidth mode， to avoid the channel interference， so that the wireless signal is more stable. When the interferencedisappears， and automatic binding free channel， make full use of channel bundling advantages， enhance the performance of wireless.

A variety of wireless mode

TL-WA701N provides AP， Client， Bridge， Repeater a variety of practical work mode. Both point to point wireless transmission， or wireless coverage， can easily. Networking is more freedom， you can choose different work modeaccording to the actual demand.

Strong security guarantees

TL-WA701N supports SSID hidden， wireless MAC address filtering， 64/128/152bit WEP encryption and WPA-PSK/WPA2-PSK， WPA/WPA2 security mechanism， security of wireless network are not violated or theft.

QSS fast security function of TL-WA701N， with wireless network card with QSSor WPS function when in use， only need to be respectively press AP and thenetwork card QSS or WPS button， or on the computer input router PIN code，can be connected to a wireless security than traditional WEP encryption more secure WPA2 level， do not need to remember complex password.

Rich practical function

TL-WA701N supports Passive PoE cable power supply， allowing AP to get rid of the power access point limit， powered by cable. To simplify the installation，AP location more freedom.

Note: Passive PoE is not the standard PoE (802.3af)， please contact support for Passive PoE devices

TL-WA701N supports wireless transmission power adjustable and detachableantenna. According to the network range and network model， to change the wireless transmit power， or to choose the specific needs of the antenna products. Let the coverage and the emission direction of easy control，construct the most suitable wireless network.

Basic parameters

Protocol standard

IEEE 802.11g， IEEE 802.11b;

IEEE 802.3， IEEE 802.3u;

Wireless rate

150Mbps

Interface

1 adaptive 10/100M LAN port， support automatic turnover (Auto MDI/MDIX)，support for Passive PoE;

Button

The WPS button

Reset reset button

LED

PWR power indicator;

SYS system;

WLAN wireless status indication;

LAN Link/Act indicator;

Antenna

1 external detachable omni directional antenna

Size

181mm x 125mm x 36mm

Wireless parameters

The basic functions of

The wireless switch;

SSID radio switch;

Channel selection: 1-13;

Band selectable bandwidth: 20MHz， 40MHz， automatic;

Wireless optional mode: 11n only， 11 BGN mixed， 11 BG mixed， 11g only， 11bonly;

Adjustable transmitting power

Working mode

AP mode;

Client mode;

Bridge mode;

Multi-SSID mode;

Repeater mode;

Wireless security

Wireless MAC address filtering;

Wireless security function switch;

64/128/152 bit WEP encryption;

WPA-PSK/WPA2-PSK， WPA/WPA2 security mechanism;

QSS security settings

Other functions

Support wireless roaming;

The wireless host status display;

Cable

DHCP settings

The DHCP server;

The DHCP client;

The client list;

Static allocation;

Security settings

MAC address filtering;

System tools

System security log;

The configuration file import and export;

Web software upgrade;

Other

Packing accessories

150M wireless access TL-WA701N;

The power adapter.

User's manual.

The warranty card;

The toxic and harmful substances that

Passive PoE adapter

The use of the environment

Working temperature: 0 ℃ to 40 ℃;

Storage temperature: -40 ℃ to 70 ℃;

Humidity: 10% to 90%RH no condensation;

Storage humidity: 5% to 90%RH no condensation;

Typical applications

Point to point

When the two are far more network connection， the wired connection will find a problem. The traditional wired cable， not only costly， cable laying is unable toindependently resolve. To point and point to multipoint mode by TP-LINK wireless AP， wireless network can easily be more distant LAN together.Through the use of 11N wireless technology， and can guarantee such as cablenetwork bandwidth， to meet user demand of various network.

Floor covering

Compared to traditional wired network， building wireless coverage can be faster， more convenient to reach the floor layout. Users not only saves the cable access network equipment cumbersome， more flexible arrangement， and the floors are no change will be a large construction， saving the cost of network reconstruction， beautify the environment. The use of TP-LINK supportingwireless products， can help achieve building wireless coverage faster， better，and give full play to the convenience and flexibility of layout of wireless network， to meet the demand for network.

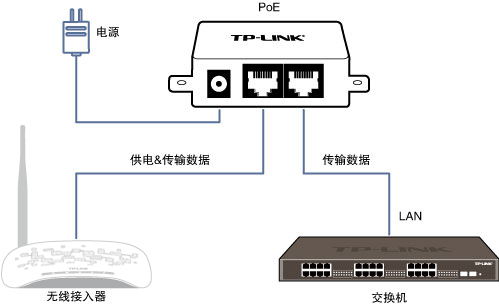

Passive PoE cable power supply

The wireless access point arrangement is often affected by the source accessconstraints， can not give full play to their advantages of flexible layout. Thecable to the wireless equipment of the power supply， to some extent improvedthe problem. TP-LINK AP support Passive PoE cable power supply， the user can choose power supply suitable access points， let more free wireless network.

Note: Passive PoE is not the standard PoE (802.3af)， please contact support for Passive PoE devices
