Product Description

Pin header no welding in default!if need welded pls contact us before order.

ESP Kit HTIT series manual (example code include) download link :https://pan.baidu.com/s/1kVuZHdl
https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series

WIFI Kit series is the new development cost-effective networking program of our company, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).

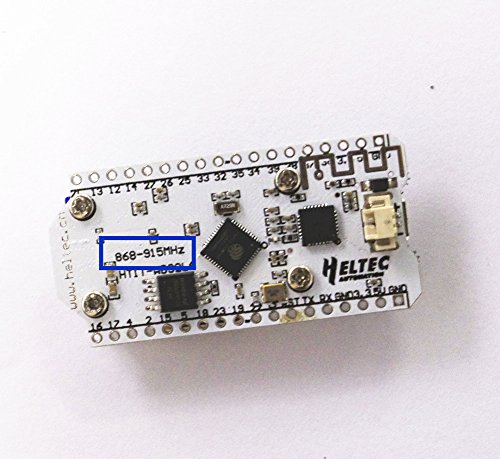

This product is based on the WIFI Kit 32 added SX1278 chip, that is, LoRa TM remote modem, 868/915MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km).

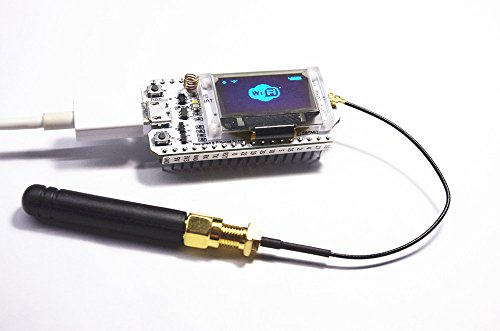

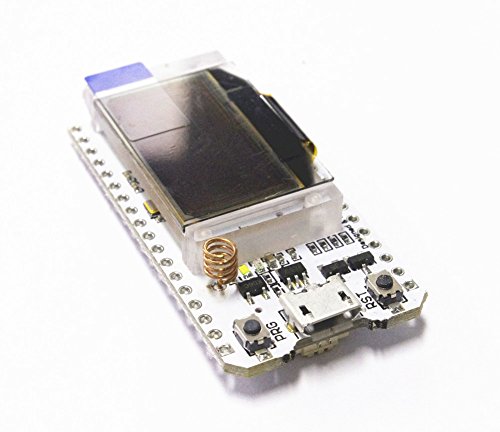

Onboard 32MBit Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

Operating voltage: 3.3V to 7V

Operating temperature range: -40 ° C to + 90 ° C

Supports Sniffer, Station, softAP and Wi-Fi Direct modes

Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b

Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n

Receiver sensitivity up to - 98 dBm

UDP continues to throughput by 135 Mbps

Feature

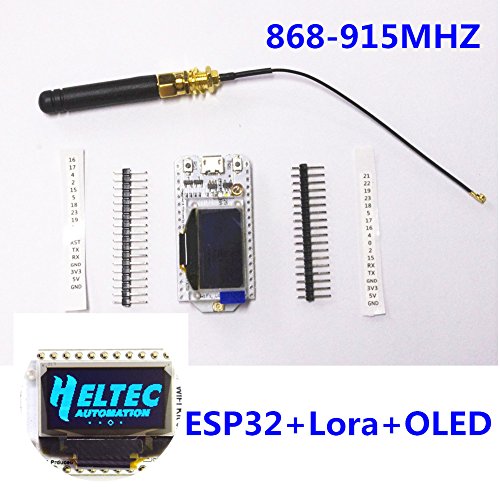

ESP32 with lora SX1278 function development board
with 0.96 inch oled display
868-915mhz
Arduino IED develop environment
lora oled
Brand : Heltec Automation
EAN : 0755082939242
Product Dimensions(LxWxH) : 4x7x10cm ; 18 g
Package Dimensions(LxWxH) : 10x7x4cm ; 18 g
