Item Descriptions:

Color:

HDMI switch 3 × 1 (4K 60 Hz HDR compatible)

BLUPOW HDMI switch 3 input 1 output

▼ Switch to 3 HDMI devices and output to TV

It is an HDMI switch that supports high quality video such as 4 KUHD and Full HD.

You can easily switch and output the video / audio of three HDMI devices to one 4K display, 4K projector, etc.

It is possible to connect and switch and output HDMI output equipment of video recorder and personal computer / game machine.

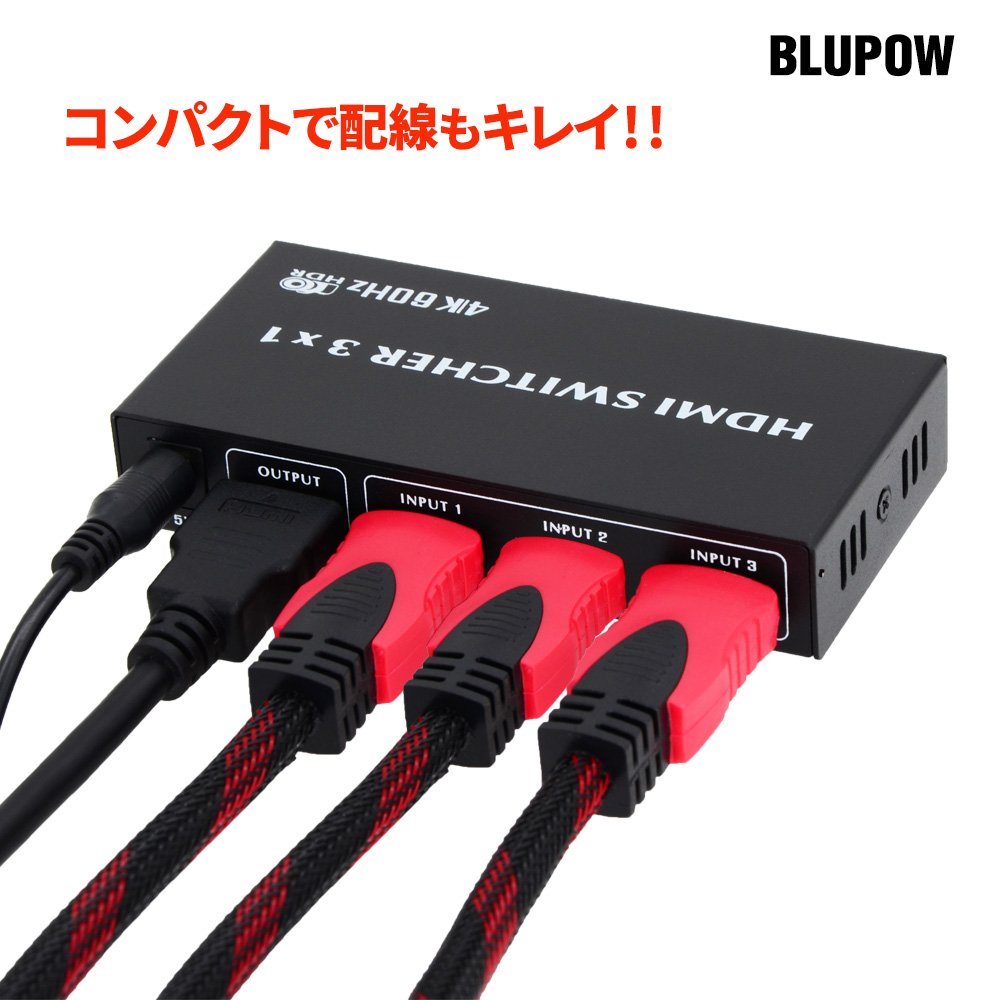

Since the direction of the HDMI port is the same direction, wiring routing is very beautiful!

Adopted gold plating for all HDMI terminals.

It is strong against rust and prevents signal deterioration.

▼ 4K 60 Hz, HDMI 2.0, HDCP 2.2, compatible with HDR

It corresponds to 4K60 Hz (24 bit), HDCP 2.2.

It can be used as it is for 4K video (4K television broadcasting and UHD video contents) which will be popular in the future.

You can enjoy full HD video data of Blu - ray player and game machine connected to 4K TV · display with high definition 4K picture quality.

It also supports the topic HDR (High Dynamic Range Imaging) video source, so you can enjoy vivid images as they are.

It also supports high quality images of full HD images of 1080p (1920 × 1080).

▼ High quality audio format compatible

It corresponds to DTS - HD / Dolby - trueHD / LPCM 7.1 / DTS / Dolby - AC 3.

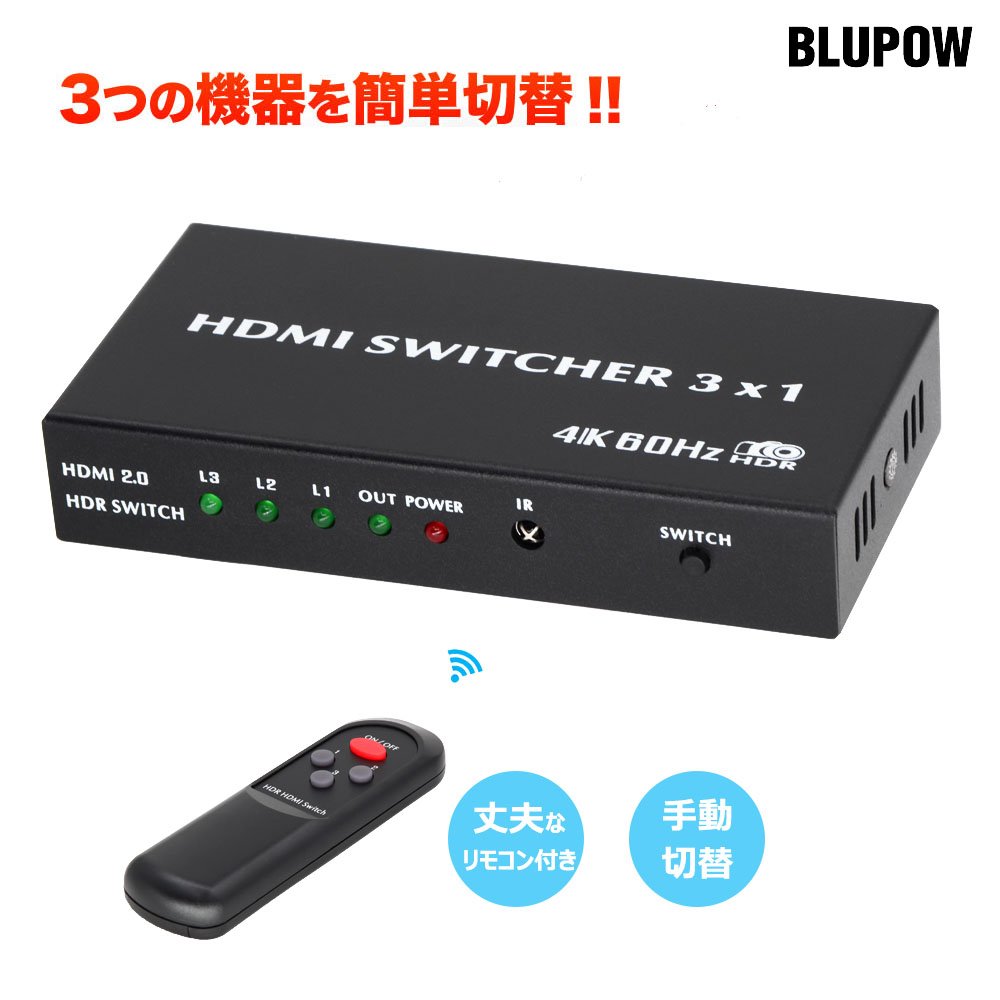

▼ convenient remote control included for input switching

A convenient remote control is included so that you can easily operate from a remote place.

Although there is automatic input signal detection function by turning on / off the power supply of the input device, manual switching to select the playback device with the main unit change switch · remote control is also possible.

※ What is the input signal automatic detection function

→ For example: If you turn on the power of the input 2 to the place where you are watching input 1, the signal of input 2 is automatically detected and output.

Please acknowledge it beforehand, please purchase.

In PS4 Pro or 4K environment

When using it, be sure to

Premium HDMI Cable Certified cable

Please use.

【please note】

* When enjoying the HDR image, please use HDR-compliant output equipment, TV, display / projector.

* 4K / 60 Hz (UHD) In ​​order to fully enjoy the video and sound, it is necessary to have a device (TV or AV amplifier) ​​compatible with them.

* Please use high speed HDMI cable.

When switching at 4K 2 K resolution,

Four

K2K compatible Premium HDMI cable

Please use.

※ HDMI cable is not included.

Please purchase separately.

* The total distance that can be extended at 4 K 2 K resolution varies greatly depending on the performance and connection environment of the HDMI device and display.

It is compact size and will not get in the way anywhere you put it

Product Specifications

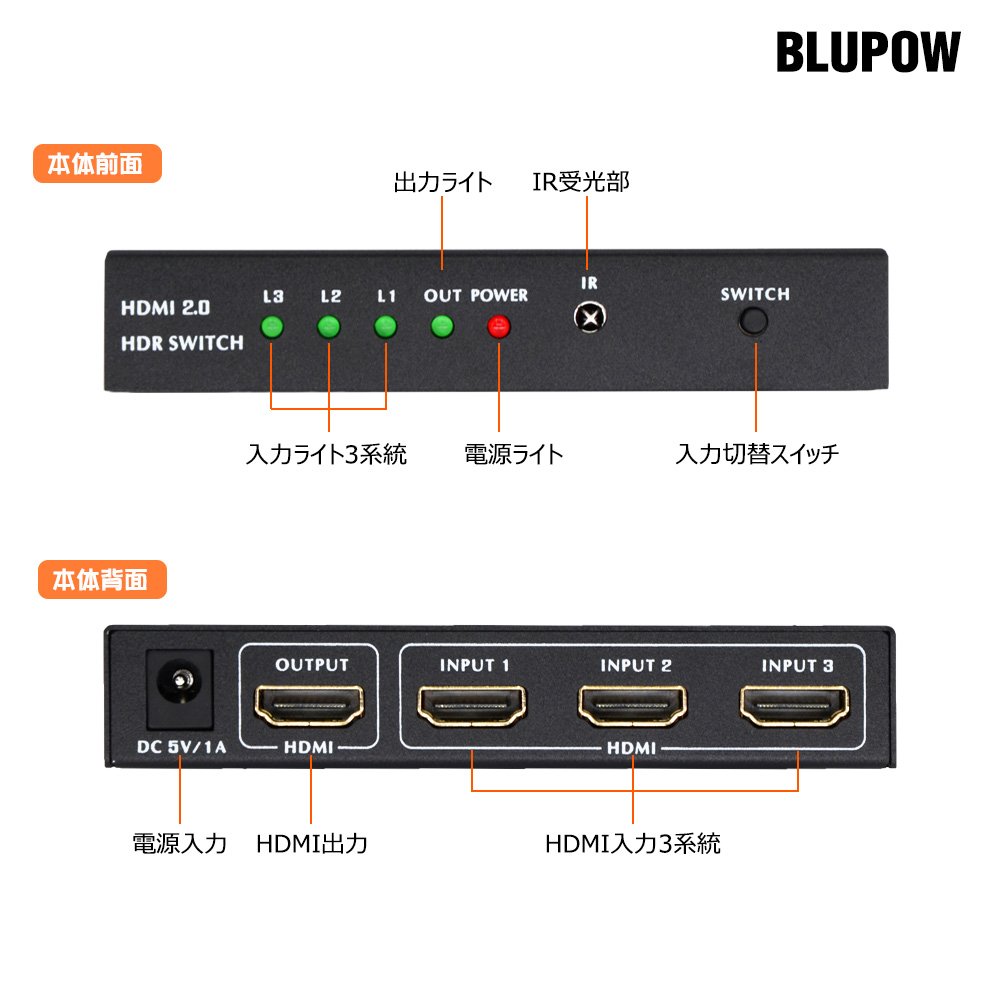

Input: HDMI type A (19 PIN) female × 3

Output: HDMI type A (19 PIN) female × 1

HDMI resolution: 24/50/60 fs / 2160 P / 1080 P / 1080 i / 720 P / 576 P / 576 i / 480 P / 480 i

Video color format: 24bit / 2160P; 24/30 / 36bit / 1080P / 1080i / 720P / 576P / 576i / 480P / 480i

HDMI standard: HDMI 2.0

HDCP standard: HDCP 2.2

Audio format: DTS-HD / Dolby-trueHD / LPCM 7.1 / DTS / Dolby-AC 3

Transmission bandwidth: 600 MHz

Input cable distance: ≤ 5 m AWG 26 HDMI standard cable

Output cable distance: ≤ 5 m AWG 26 HDMI standard cable

Maximum operating current: 500 mA

Power supply: Input AC 100 V to 240 V (50/60 Hz) Output DC 5 V / 1A

Working temperature: -5 ℃ ~ + 40 ℃

Work humidity: 5% to 85% RH (noncondensing)

Material: Steel

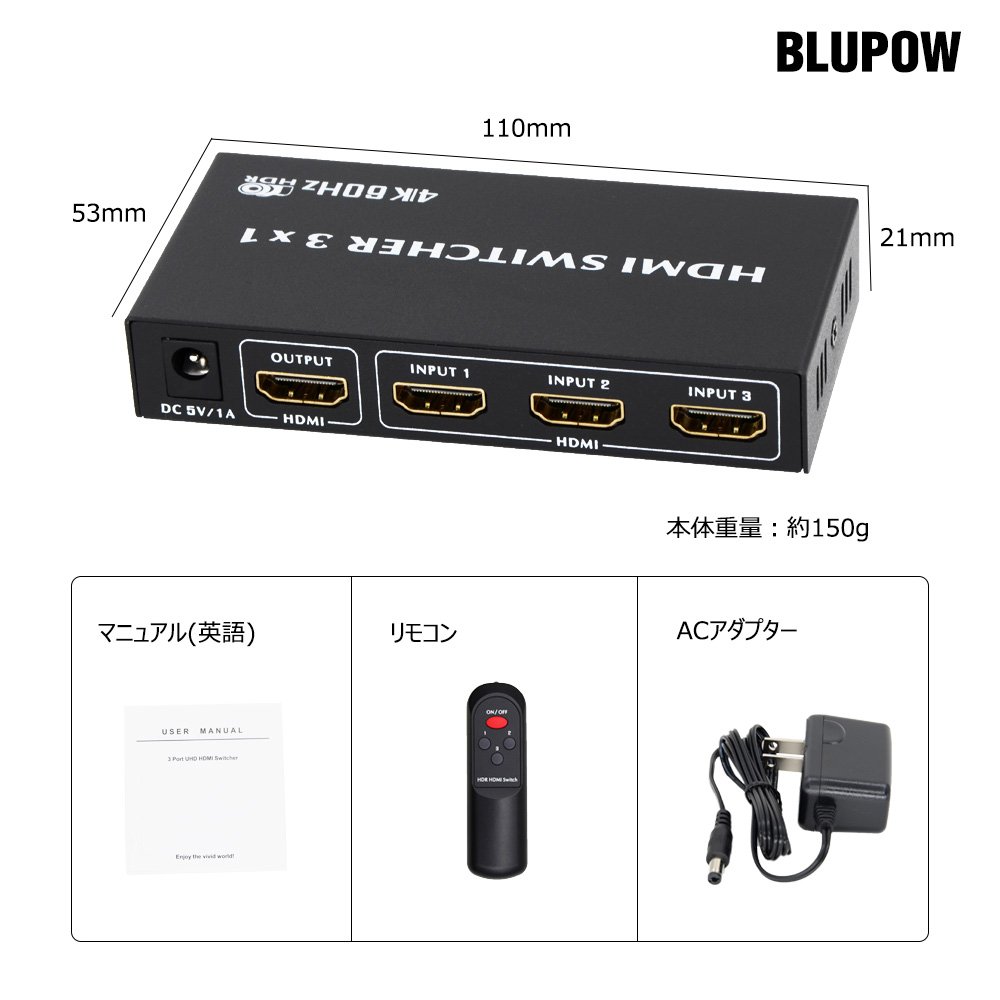

Body size (approx.): 110 × 53 × 21 mm

Body weight (approx): 150 g

set content

1 x body

1 x Remote control (

Two AAA batteries required separately purchase

1 x AC Adapter

1 x Manual (English)

【please note】

* Depending on the specification of HDCP, the output may be re-recognized when the device is switched, so the video may be interrupted for several seconds.

* Be sure to turn off the power when connecting or disconnecting the HDMI device (plugging / unplugging the cable).

There is a risk of recognition failure, poor output setting, or damage to the equipment.

* Depending on the HDMI device, it may be necessary to recognize the display at startup.

In that case, it is necessary to start the HDMI device after switching the port.

* It does not guarantee that it will operate normally with all equipment.

Notes on remote control:

① Remote control

Two AAA batteries must be prepared

There is, please put the battery before using.

② Remote control

Toward the IR receiver of the main unit

Please use it.

③ If by any chance remote control malfunction, it will be displayed on the ordering page to the order page

"Contact the seller

Please click and contact us.

※Warranty period:

It is 12 months from the date of purchase

※ If you have any questions about the product do not hesitate to contact us.

Our company e-mail:

[email protected]

Features:

• Please enter model number Confirm this is compatible:
• BLUPOW HDMI switch It is an HDMI switcher that can easily switch and output 3 video / audio to 1 4K display, 4K projector, etc.
• It is with a remote control that can be switched even if it is far from the main unit.
• It corresponds to 4K video of 4K 60 Hz (24 bit) HDCP 2.2.
• It also supports the topic HDR (High Dynamic Range Imaging) video source, so you can enjoy vivid images as they are.
• It also supports high quality images of full HD images of 1080p (1920 × 1080).
• Corresponding audio format: DTS - HD / Dolby - trueHD / LPCM 7.1 / DTS / Dolby - AC 3 input terminal · Because output terminals are on the same side, you can wire cleanly without cables jumping out.
• Although there is automatic input signal detection function by turning on / off the power supply of the input device, manual switching to select the playback device with the main unit change switch · remote control is also possible.
• Gold plating process is adopted for all HDMI terminals.
• It is strong against rust and prevents signal deterioration.
• It corresponds to various HDMI equipment such as 4K compatible HDD recorder, 4K projector, PS4 · PS3.
• * 4K / 60 Hz (UHD) In ​​order to fully enjoy the video and sound, it is necessary to have a device (TV or AV amplifier) ​​compatible with them.
• Warranty period: 12 months from the date of purchase, if you have any questions during use, please do not hesitate to contact us.

Product information:

Shipping Weight: 18 g

Package Dimensions: 5.51 x 11.99 x 14.91 cm
