Product Description
Descriptions:

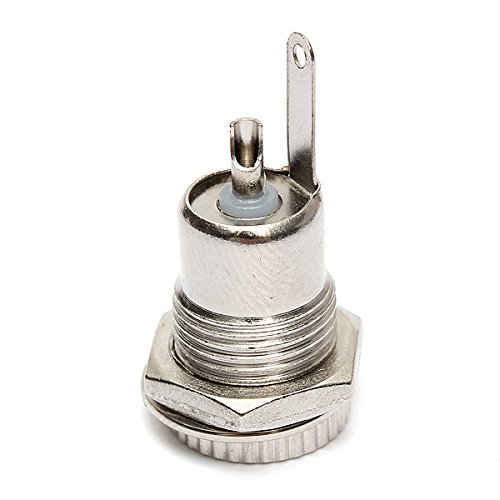

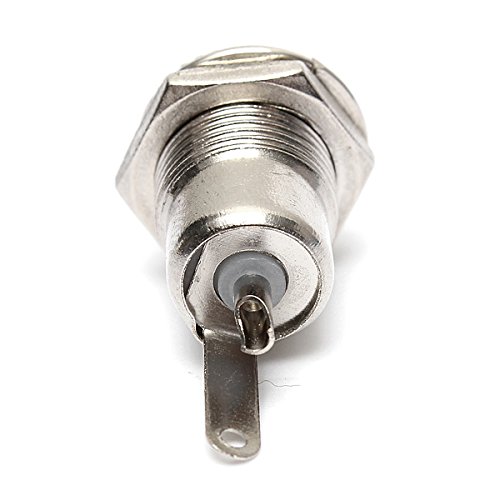

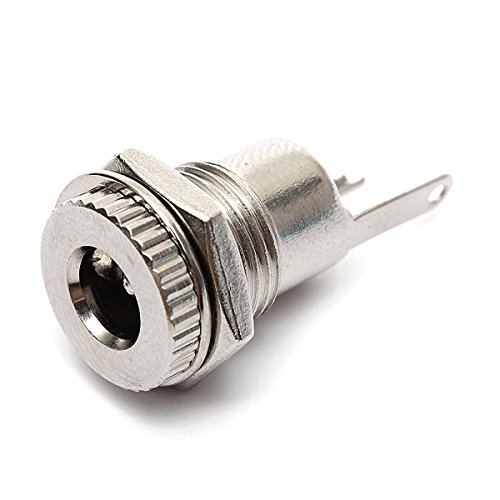

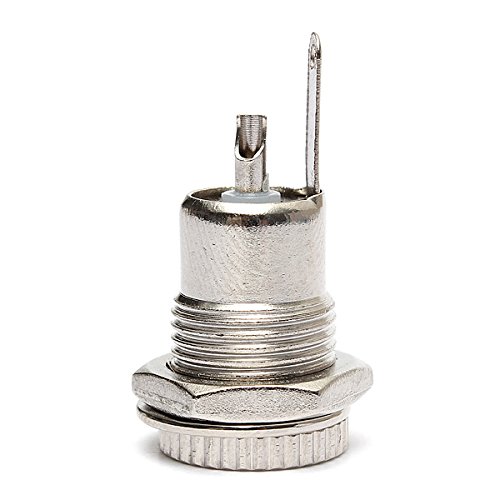

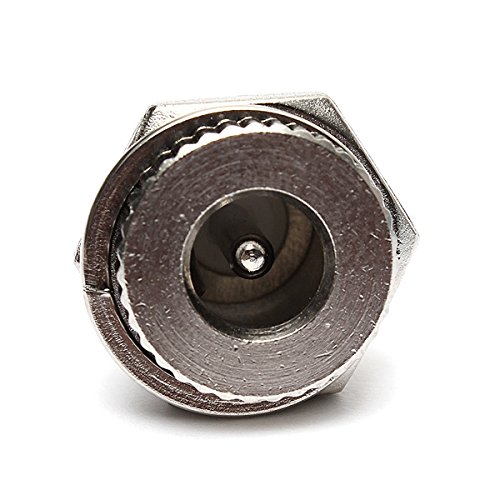

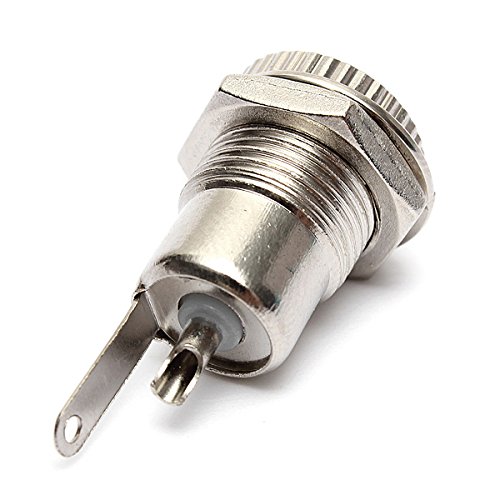

5.5mm x 2.1mm DC Power Jack Socket Female Panel Mount Connector

Specifications:
Name: DC Power Jack / DC power socket
Size: 5.5 mmx2.1mm
Metal Head DC seat(With nuts)
Operating temperature range: -40-55 ℃
Limit load: DC30V 0.5A
Contact resistance: ≤ 0.03Ω
Insulation resistance: ≥ 100MΩ DC250V
Withstand voltage: AC 500V (50hz) /min
Insertion force: 3-20N
Life: 5000 times

Features:

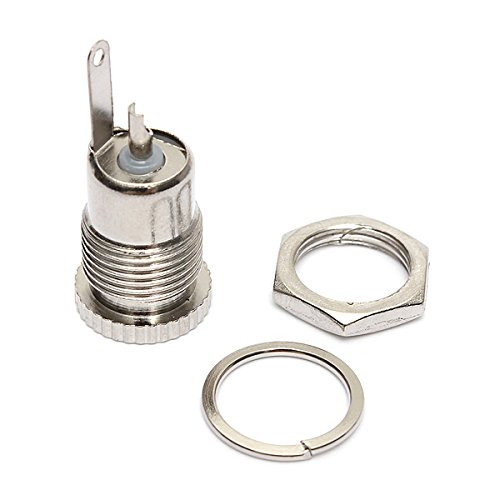

DC block head with screw mouth(with hexagonal fixing nut and washers).
Will suit 2.1/5.5mm DC Power Plug, panel mount/Copper made.
Drilling a hole and Directly installed in the panel , then tighten nut! Such as: plastic plate shell, chassis, drilling a hole on machine casing and install, easy to use and quick.
Suitable for factory production, DIY or electronic production, etc.

Package Included:
1x Copper DC Power Socket Panel Mount
