Item Descriptions:

Included stand-alone charger, chargeable compact model!

1 x Cree XM-L2 LED mounted

Brightness MAX: 1020 lumens

USB charging dock + rechargeable battery included

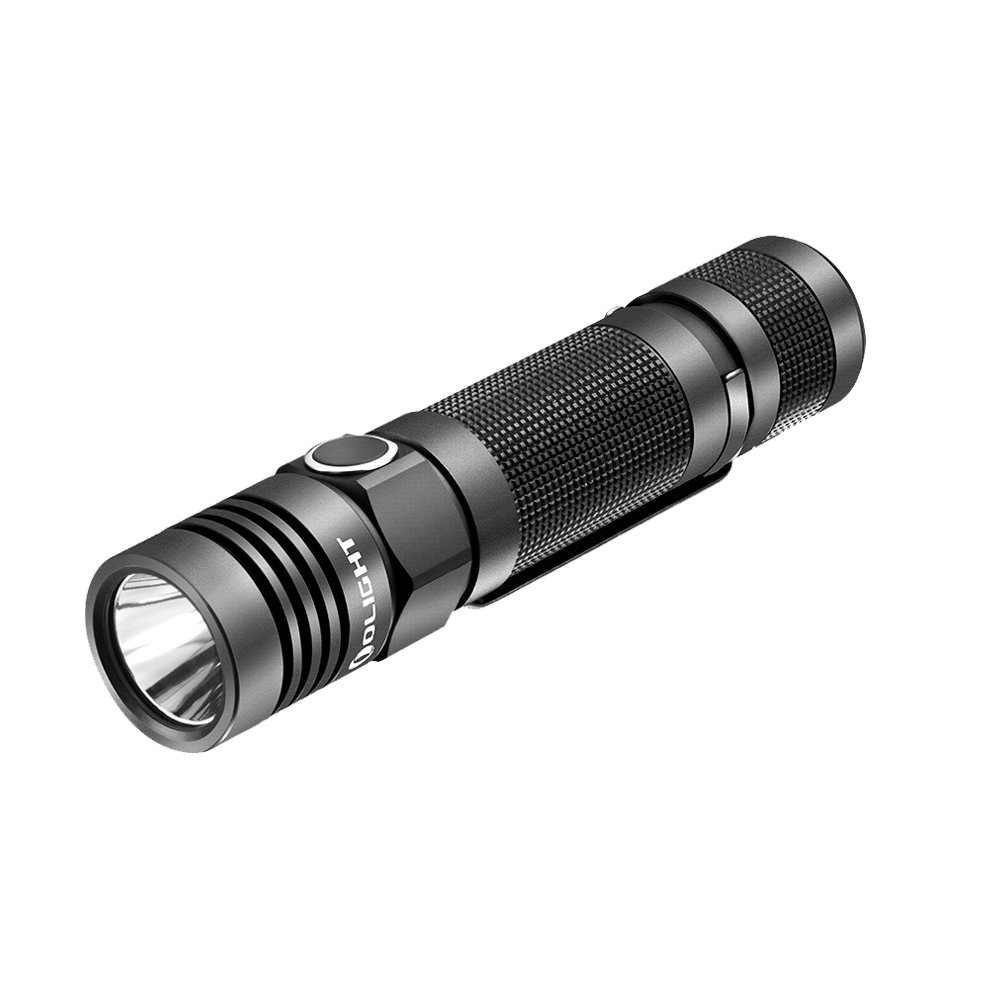

OLIGHT S30R BATON 2 is a rechargeable compact light that can be recharged with the included desktop stand.

It is excellent in waterproofness and smart charging is possible.

With CREE XM - L2, the brightness of MAX 1020 lumens.

Attach a clip to make it easy to insert into a pocket.

Small baton type easy to hold in order.

Details:

Body material: Aluminum

LENS: PMMA lens

MAX 1020 lumen

LED light: 1 x Cree XM-L2 LED mounted

Brightness is 5 types: (Batteries are in full charge state at 1 x 18650, 3600 mah)

+++ model 1 (1020 lumens, 3 minutes, 600 lumens, 120 minutes)

+++ model 2 (450 lumens, 3 hours)

+++ model 3 (100 lumens, 14 hours)

+++ model 4 (20 lumens, 68 hours)

+++ model 5 (1 lumens, 50 days)

Drip-proof performance: IPX 8 Rainy weather available

Light irradiation intensity: 9600 CD

MAX Irradiation distance: 110 meters

Battery: 2 x CR123A OR 1 x 18650 (with battery, rechargeable battery

Total length: about 117.5 mm

Diameter: about 24 mm

Weight: Approximately 128 g (including batteries)

Warranty period: 5 years

With CREE XM - L2, the brightness of MAX 1020 lumens!

The ORB - rechargeable battery included with S30R II is 18650 with protect circuit.

One 18650 size lithium ion rechargeable battery (3200 mAh and 3600 mAh rechargeable battery can be selected), once, 2 × CR 123 A can also be used,

2 × 16340 can not be used

Because it is caution needed.

Also,

Charging with CR 123 A inserted is prohibited because it causes ignition and explosion

is.

Even in preventing accidents

2 × CR 123 A thinks about emergency evacuation like insurance It is recommended to use only 18650

Body material uses aluminum craft grade aluminum alloy.

Resistant to rubbing

TYPE 3 HA

Surface treatment is applied.

Waterproof performance is excellent waterproofness of IPX 8 all weather specification.

Insert the battery into the main body from the 【-】 pole.

Since there is no battery-oriented print in the S30RⅡ body, you may mistake the insertion direction until you get used to it, but there is also a reverse polarity protection circuit in S30R II so that it will not break down even if it is inserted backwards.

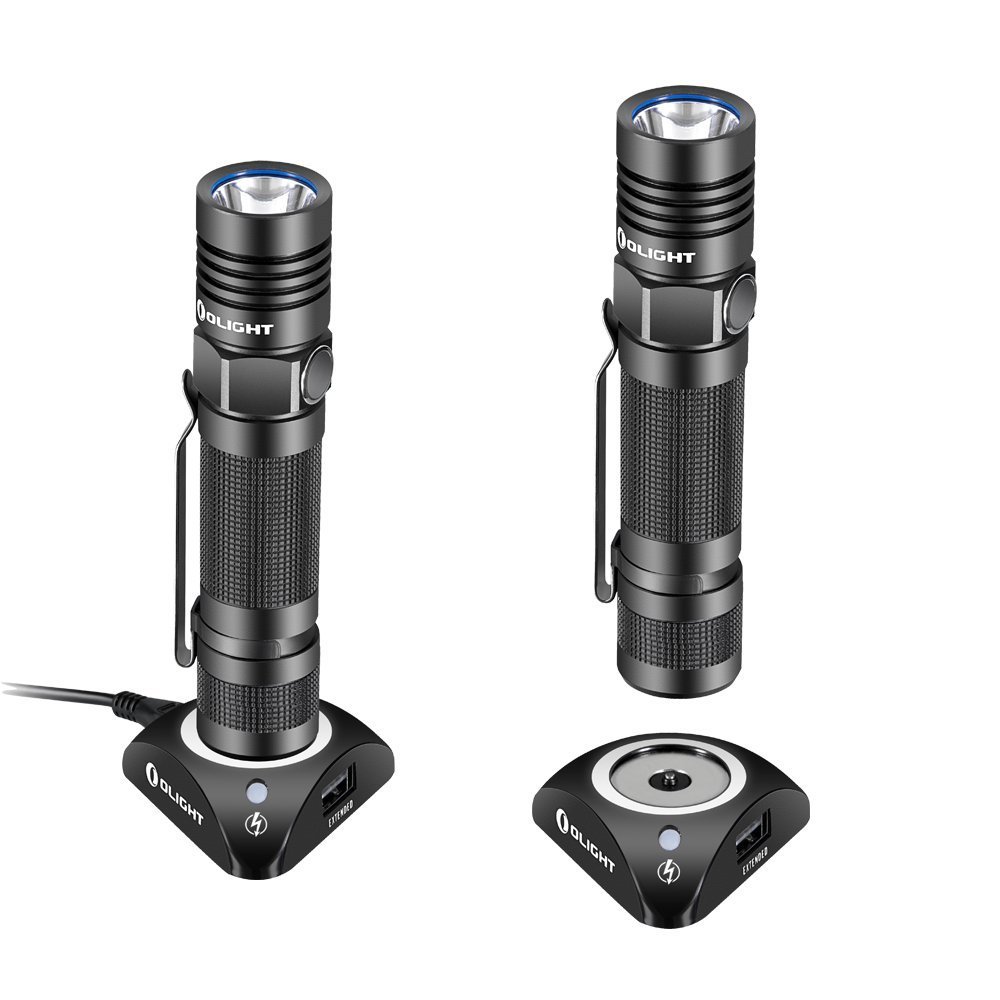

When the external power supply and charging dock are in the online state, the indicator lights constantly with [Green].

Charging will start if you set the S30 RII with the switch turned off in the charging dock.

If S30R II is set and the indicator changes from [Green] to [Red], charging has started normally, but with the light set

When an error is detected, the indicator remains [Green] and does not change

.

In that case please check the polarity of the battery and connection with the external power supply and retry.

When charging is completed, the indicator changes from [red] to [green].

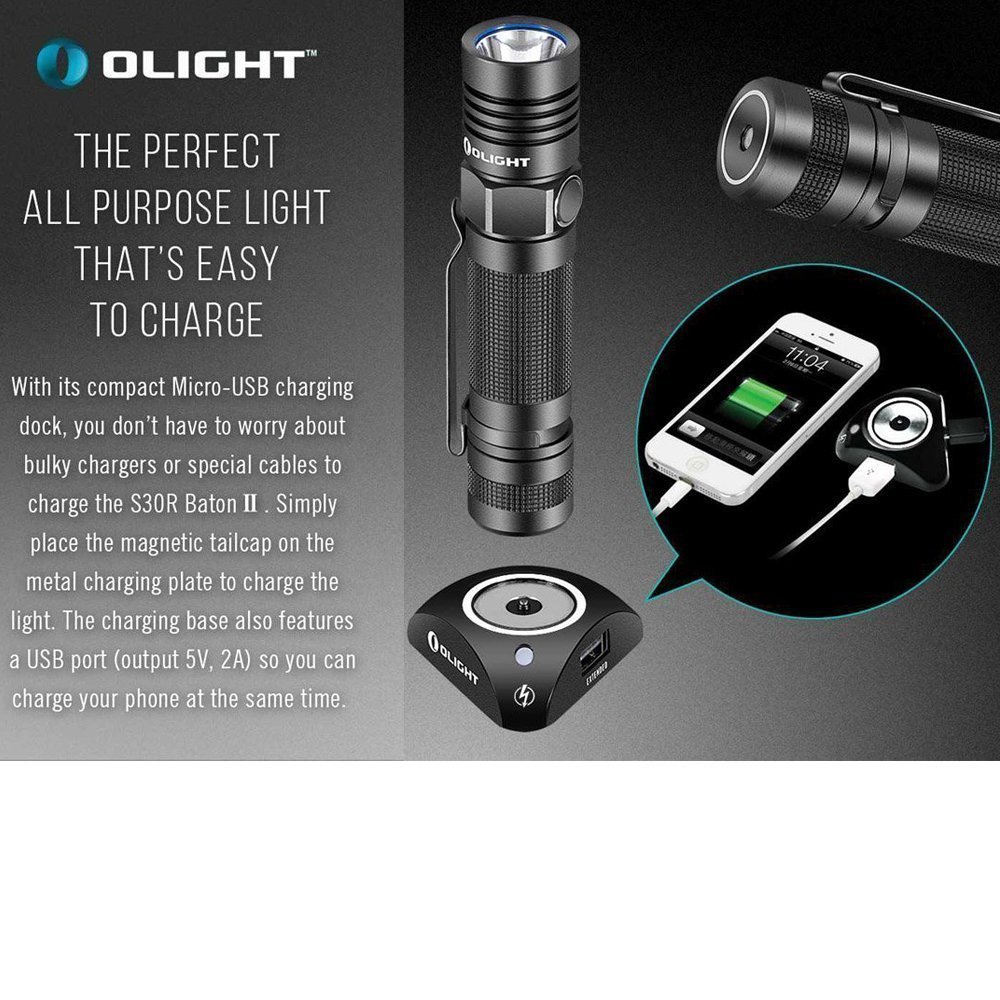

Using the USB - A port with [EXETENDED] notation in the charging dock,

Electricity can be supplied to other equipment even while charging S30R II

Has become.

Since the electrodes are exposed at both the charging dock side and the light side,

Caution about short circuit and electrode contamination

need to do it.

(* Contact point of charging dock in particular)

Method of operation:

Switch is only one button at the head.

It lights when clicked, and goes out when clicked again.

When three dimming dimming is lit, the brightness gradually changes when the switch is pressed for a long time, and its brightness is fixed when you release your finger from the switch at any brightness.

The dimming is remembered even after turning off.

Double-clicking from the off state puts it into turbo mode, double-clicking while lit lights up flashing the flash, and holding it for more than 1 second in the off state will result in the moon light mode (0.5 lumens).

Please lock the tail cap slightly by lockout for misoperation prevention.

When using, tighten the tail cap firmly.

TYPE 3 HA surface treatment resistant to rubbing is applied.

Waterproof performance is excellent waterproofness of IPX 8 all weather specification.

Magnet is contained in the tail part and it can be pasted on an iron shelf etc.

It helps hands-free work etc.

Always charge the charging stand from the USB jack on the PC itself.

After confirming that the rechargeable battery is loaded and placing it from the tail on the charging stand the indicator glows red and charging starts automatically.

When charging is completed, the indicator lights up in green.

Please use accessories or general-purpose micro USB cable for USB cable.

Be sure to insert the USB cable into the port of the charger "IN".

Use a large capacity 18650 lithium ion rechargeable battery.

CR123 As a model of two sizes, it is very compact and excellent in portability.

It is a convenient charging model that can be used in order as it is easy to operate, without having to worry about battery charges.

It is a convenient charging model that can be used in order as it is easy to operate, without having to worry about battery charges.

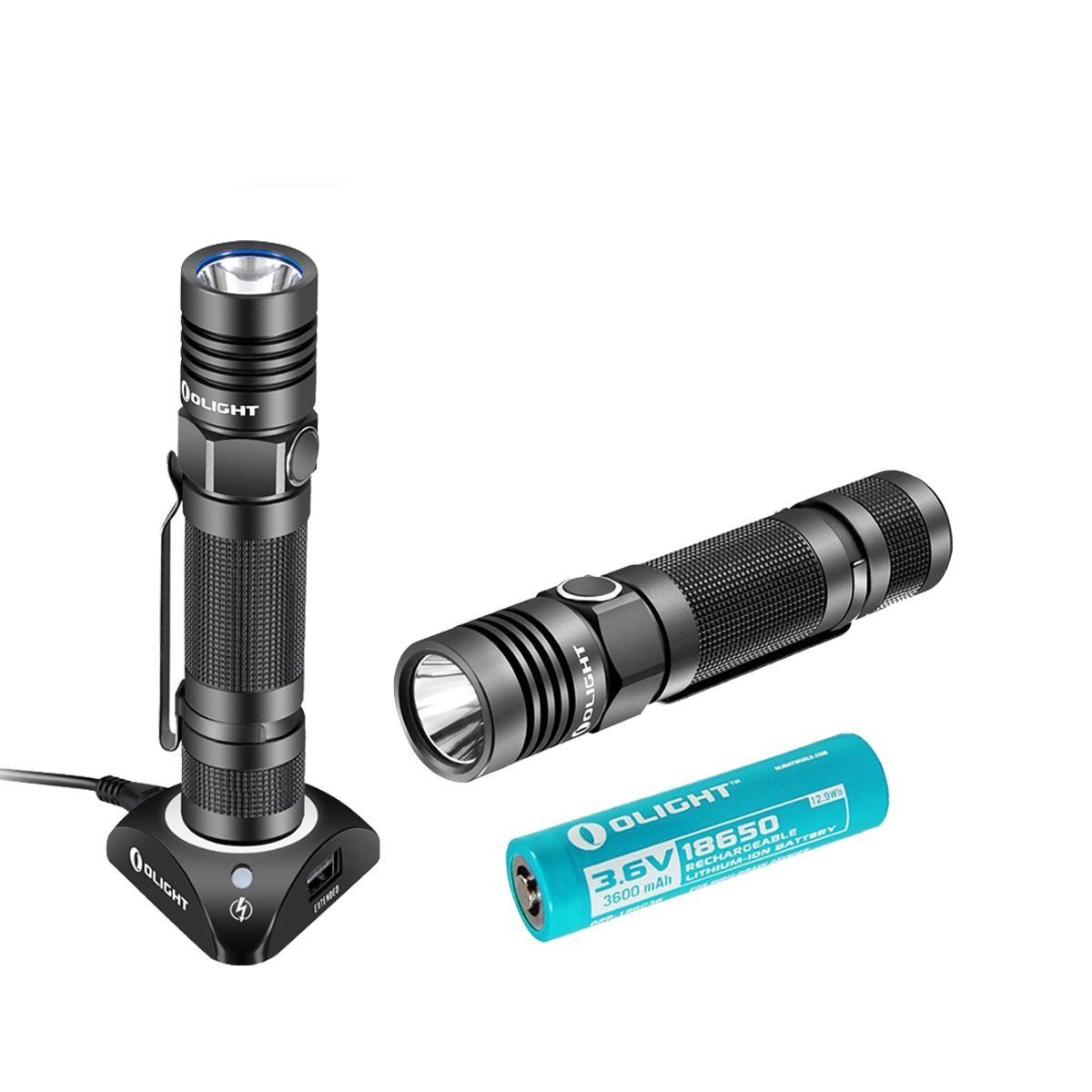

Package list:

Flash light body

Rechargeable battery (18650 - 3200 mAh and 18650 - 3600 mAh, two types can be selected)

Charging dock

USB code

user manual

※ Holder is not included.

【Notes】

※ For preventing heating of LED

[Hi] 1020 lumens are limited for 3 minutes

There is automatic dimming to 600 lumens after 3 minutes have passed.

※ The positive pole of the rechargeable battery comes to the tail side

※ It does not light during charging.

* Depending on the PC, charging may not be possible.

※ If you leave the used up batteries in the equipment for a long time, they will cause liquid leaks and damage the equipment.

Please take out the batteries as soon as you run out.

※ If you do not use for a long time please remove the battery

* Use different batteries of different types or brands (manufacturer names), use batteries that are used for new batteries or even used batteries of the same type or the same brand name, use heat, leak, rupture,

You may cause it.

When replacing the batteries, please use new batteries of the same type and the same brand name.

※ When the indicator lamp of the charging stand blinks quickly, it is not charged properly.

* If you can not improve by re-inserting the battery, please replace the battery.

* Please never charge disposable dry battery CR123A and charge it.

2 x CR 123 A can also be used,

2 × 16340 is

Usage prohibited

Because it is caution needed.

Also,

Charging with CR 123 A inserted is prohibited because it causes ignition and explosion

is.

Even in preventing accidents

2 × CR 123 A thinks about emergency evacuation like insurance It is recommended to use only 18650

Features:

• 1 x Cree XM - L2 CW LED chip with brightness up to 1020 lumens!
• LED flashlight!
• 5 steps brightness switching function + strobe mounted, can be used in various places.
• Without the trouble of replacing the battery, you can supply power from USB port with high-performance LED light with charging stand, OLIGHT S30R BATON II rechargeable LED flashlight, so if you prepare a USB port in the cigar socket,
• It is also a convenient product that can also be charged.
• High quality aviation Aluminum alloy construction and drip-proof performance: IPX8 It can be used in rainy weather, impact resistance is strong, 18650 It is a powerful flash light product making full use of the capacity and discharge performance of batteries!
• Disaster prevention, climbing, work, recommended for evening fishing!
• !
• It can be used widely for disaster, outdoor, camping, night fishing etc. and work in dark places.
• December 8, 2017 - December 11, 2017 OLIGHT Cyber-monday special sale will be held at amazon Olight Direct JP for the above 4 days.
• Almost all products are sold at a special price of 10 to 40% OFF, so do not miss this opportunity by all means!
• (゚ ∀ ゚) 20% OFF: After ordering the lights of S1R, S1, S1A, SRMINI-II, M1X, S30R II, I3E / above, we will automatically discount based on the cost
• Please do not worry.

Product information:

Shipping Weight: 222 g

Package Dimensions: 4.70 x 9.80 x 22.20 cm
