Product Description

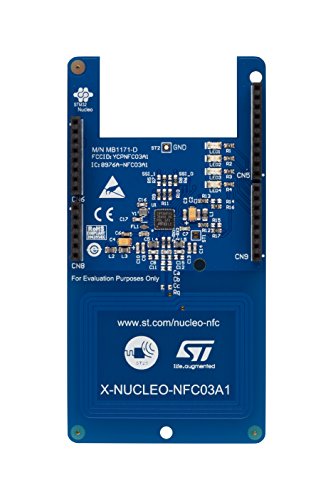

The X-NUCLEO-NFC03A1is an NFC card reader evaluation board based on CR95HF-VMD5T to enable expansion of the STM32 Nucleo boards.

The CR95HF manages frame coding and decoding in Reader mode for standard applications, such as NFC, proximity and vicinity standards.

The CR95HF embeds an analog front end to provide the 13.56 MHz air interface.

The CR95HF supports ISO/IEC 14443 Type A and B, ISO/IEC 15693 (single or double subcarrier) and ISO/IEC 18092 communication protocols, besides being MIFARE® Classic compatible1. It also supports the detection, reading and writing of NFC Forum Type 1, 2, 3 and 4 tags.

The CR95HF features an optimized power management scheme, including tag detection mode.

Communication with the Host Controller is ensured through Serial Peripheral Interface (SPI) Slave or Universal Asynchronous Receiver/Transmitter (UART).

The X-NUCLEO-NFC03A1 is compatible with the ST ArduinoTM UNO R3 connector pin assignment.

Key Features
NFC (Near Field Communication) card reader evaluation board based on CR95HF, designed for expansion of STM32 Nucleo boards
Reader/Writer modes supported
47 mm x 34 mm, four turns, 13.56 MHz inductive antenna etched on PCB, and associated tuning circuit
RF communication: ISO/IEC 14443 (A and B), ISO/IEC 15693, ISO/IEC 18092, MIFARE® Classic compatible
Equipped with ArduinoTM UNO R3 connector
Four general purpose LEDs
Scalable solution, capable of cascading multiple boards for larger systems
Free comprehensive development firmware library and examples for CR95HF, compatible with STM32Cube firmware
FCC certified
RoHS compliant

Feature

NFC card reader evaluation board based on CR95HF-VMD5T to enable expansion of the STM32 Nucleo boards
The CR95HF supports ISO/IEC 14443 Type A and B, ISO/IEC 15693 (single or double subcarrier) and ISO/IEC 18092 communication protocols, besides being MIFARE® Classic compatible1. It also supports the detection, reading and writing of NFC Forum Type 1, 2, 3 and 4 tags.
Communication with the Host Controller is ensured through Serial Peripheral Interface (SPI) Slave or Universal Asynchronous Receiver/Transmitter (UART).
The X-NUCLEO-NFC03A1 is compatible with the ST ArduinoTM UNO R3 connector pin assignment.
FCC certified RoHS compliant
Brand : STMicroelectronics
MPN(PartNumber) : X-NUCLEO-NFC03A1
EAN : 0717520032120
Product Dimensions(LxWxH) : 11x8x3cm ; 181 g
Package Dimensions(LxWxH) : 23x14x1cm ; 181 g
