Studio : Invengo

Publisher : Invengo

Binding : Electronics

Product Description

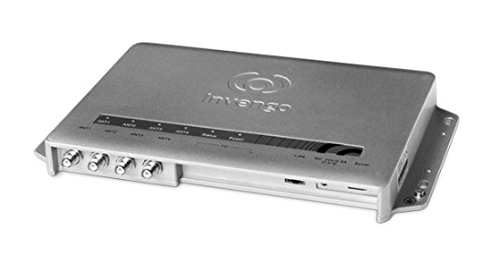

Invengo's XC-RF807 is a high performance, wide band device supporting the ISO 18000-63 and ISO 18000-61 specifications (EPCglobal Class 1 Gen 2 protocol). The Dual CPU design, coupled with a Linux operating system, handles the most complex business requirements of our customers. Great reading performance, rugged design, and optional Power over Ethernet combine to make this a solid solution. What's Included? Invengo XC-RF807 UHF RFID Reader Unit, RS-232 Cable, Ethernet Cable, One Year Factory Warranty, Free Application Software (Contact Us), and Mounting Bracket. SPECIFICATIONS ELECTRICAL: Air Interface Protocol: EPCglobal UHF Class 1 Gen 2, (ISO 18000-61 18000-63) Operating Frequency: US (902-928 MHz) Transmit Power: 11 dBm to 33 dBm Max Receive Power: Not Published Max Read Distance: Not Published Max Read Rate: Not Published Data Interface: RS-232, Ethernet GPIO: 4 Photoelectric Isolation Inputs (5 V, <20 mA); 4 Relay Control Outputs Power Source: IEEE802.3at PoE; Power Supply and Cord not included MECHANICAL: Antenna Ports: 4 RP-TNC Female Ports Dimensions: 14.17 x 8.66 x 1.54 in (360 x 220 x 39 mm) Weight: 5.50 lbs (2494.7 g) ENVIRONMENT: IP Rating: IP 54 Operating Temperature: -20° to 70° C APPLICATION INTERFACE: Host API: JAVA, .NET, C Demo Software: Invengo RFID Demo Software Application Software: Invengo ConneXion
0
