Product Description
Specification:

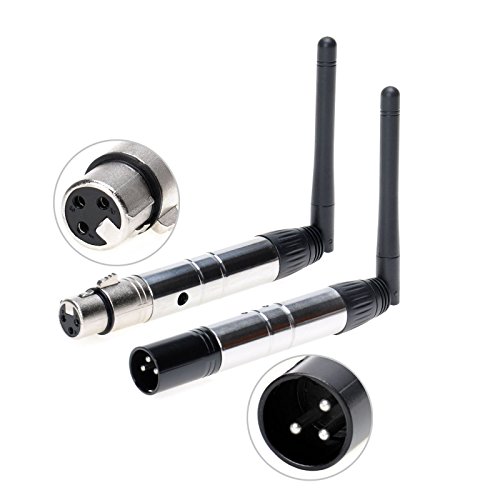

1. 2.4G wireless DMX512 R/T
2. 126 channels jumping frequency automatically, high anti-jamming ability. to ensure works reliability
3. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere
4. each other in the same place...(Tricolor LED displaying Indicators)
5. Input voltage:5VDC 500mA MIN

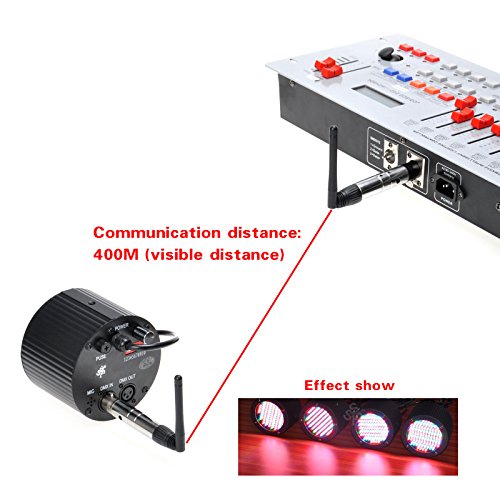

6. Communication distance: 400M (visible distance)
7. Work frequency section: 2.4G ISM,126 channels.frequency section
8. Max transmitting power rate:20dBm
9.Modulation: GFSK

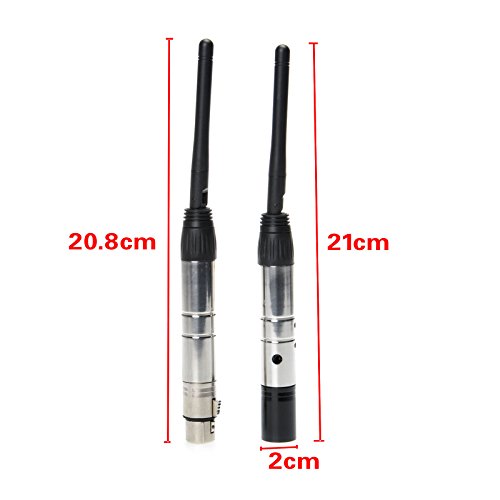

10.Size: 21*2*2cm
11.Weight:375g

Operating manual：

ID code and LED color corresponding
relationship：
1：RED
2：GREEN
3：RED GREEN
4：BLUE
5：RED BLUE
6：GREEN BLUE
7：RED GREEN BLUE

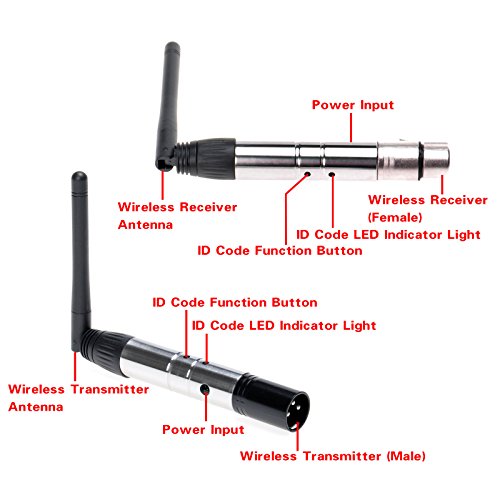

1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC，to the color ID desired,adding 1 each time you press the switch will advance the color ID code.
3. Working condition： LED constant lit up：No DMX or wireless signal. Red LED flash：Transmitting. Green LED flash：receiving
4. RF frequency 2.400 - 2.525G，total 126 channels，it's searching automatically,
5. ID Code "1-7" groups ID code，press 'KEY' for setting，it only can work under same ID code of transmitter and receiver. (Same LED Color)
This unit is for Indoor use only

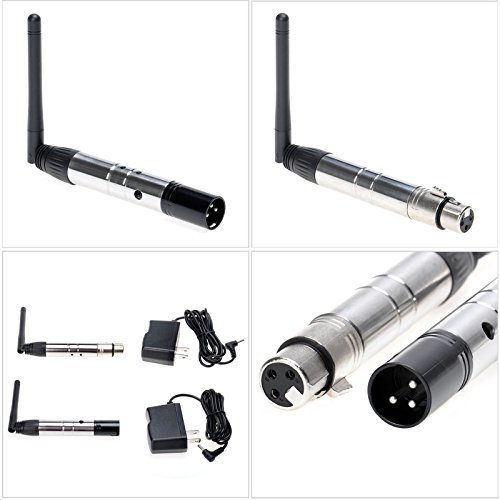

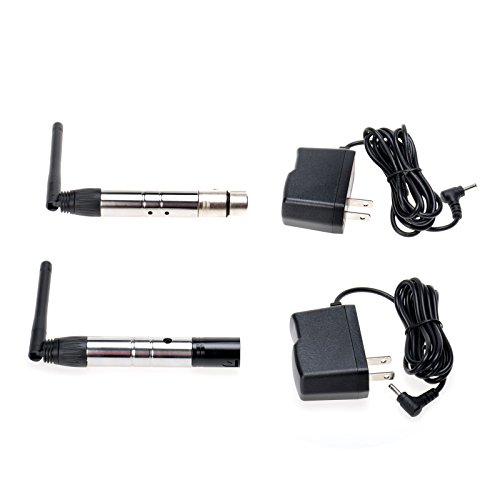

Packing list:

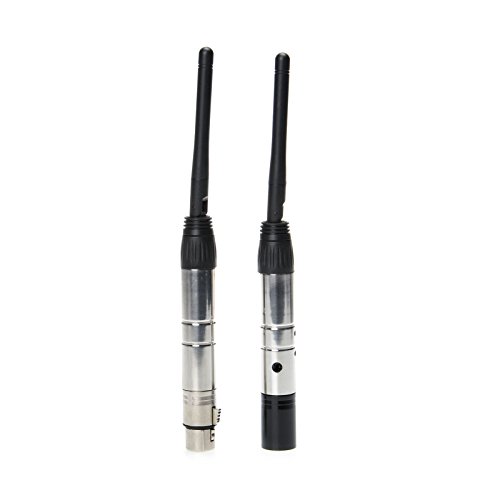

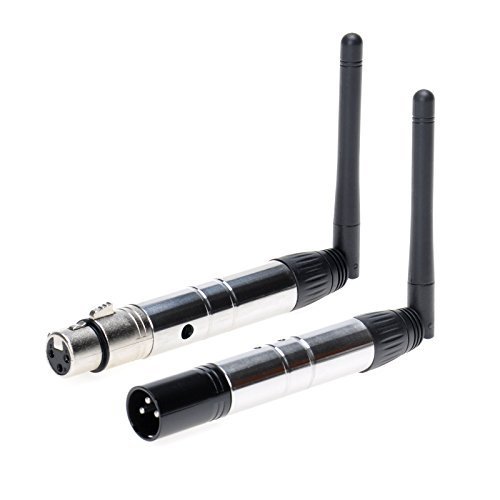

2x DMX512 wireless receiver/transmitter unit
2x 5V adapter
