Item Descriptions:

SUPERS T186 camera

(Caution: Please insert micro micro SD card / (TF card) for any operation of this product.

If you do not insert the Micro SD card / (TF card), the red light blinks 5 times, and it was shut down.

☆ When there is a problem with the product, we will sorry for troubling you, please contact to that effect.

I will correspond as soon as possible.

☆ Please be careful!

"TEBAK CAM" store

Products purchased from,

We offer free exchange service

Movie format: AVI

Motion: M-JPEG

Movie resolution: 1920 * 1080full 1280 * 720p HD

Frame rate: 30 fps

Photo format: JPG

Video Proportion: 4: 3

Supported OS: Windows me / 2000 / xp / 2003 / vista; Mac OS; Linux

Battery capacity: 1800 mAH Operating time Approximately 17 hours

Charging voltage: DC-5V

Interface: Mini 5 pin USB

SD card: TF card

Battery type: lithium polymer

HD720P recording:

From the standby mode, after pressing the B button once, the red light flashes twice (the motor shakes twice), 1280 * 720 recording starts.

The file is saved every 5 minutes.

Press the B button once again, the red light turns on (the motor vibrates once) and returns to the standby mode.

Shooting:

From the standby mode, press the C button once, the red light flashes once (the motor shakes once), the picture is taken and it is automatically saved and returns to the standby mode.

Full 1080P recording:

From the standby mode, press the C button for 3 seconds to change to the 1080P recording mode (the motor shakes once).

1920 * 1080P After the recording starts, the red light flashes twice (the motor shakes twice), and the file is saved every 5 minutes.

Press the C button again (the motor shakes once) and return to the standby mode.

Motion detection Recording:

From the standby mode, pressing the D button, the red light blinks three times (the motor shakes three times), the standby mode of motion detection recording is started (1280 * 720 P), when a moving object is found, the device

Record automatically.

The file is saved every 5 minutes.

Press the D button again (the motor shakes once) and return to the standby mode.

Format TF card:

From the standby mode, press the D button for 5 seconds (the motor lightly shocks * 1 after shock * 3), all the contents are deleted, the red light is lit, and the unit returns to the standby mode.

(I used the TF card, but formatted once after it got longer, the speed got faster.

Since this machine and the computer are not the same system, after formatting the TF card with the computer, the speed of the TF card can be slower)

Recording while charging:

Push ON on the main unit, connect it to the USB 5 V - 1A charger, the red light flashes twice (the motor shakes twice), 720 P recording will start.

charging:

Connect ON to the main switch (remove the TF card), connect to the USB 5 V - 1A (or more) charger and the motor will shake once.

The red light turned on when charging, when the electricity was full, the red light went out.

(Hint: Set is a lot of batteries, so it will take about 10 or more hours, please wait patiently)

Time set:

Please establish a file named 【TIMERSET.txt】 and write "20160901 122315 Y" like this and save it.

Then put the file on the removable disk, press the A button on the control, the time watermark appears when recording.

"20160901 122315 N" Time has gone

Package included:

1 * body

1 * Battery

1 * Remote control

1 * USB cable

1 * Japanese Instruction Manual

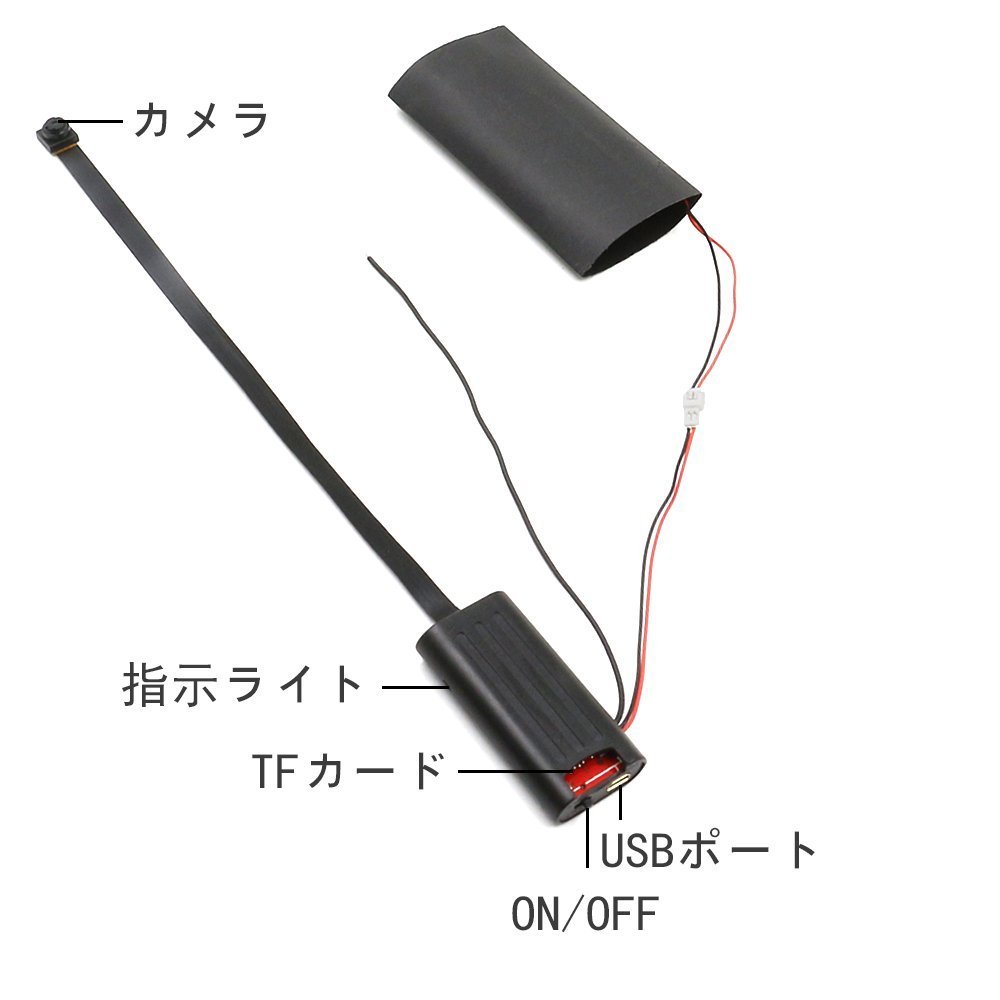

Various buttons

Caution:

1): You can not open the power supply (insert it in the TF card), the red light blinks three times (the motor shakes once), it will not charge the battery

2): You can not open the power supply (unplug the TF card), the red light turns on and the battery will not charge

3): Storage of TF cards is full and low electricity situation: the motor shakes 4 times consecutively, the remote control has no response.

4): Recorded video files may interfere, noise is large, please charge immediately.

5): When not using this machine, press OFF on the body switch, do not use for a long time, electricity can be exhausted

I want evidence with a hidden camera

■ Evidence collection item to protect yourself in daily life such as stalkers and suspicious people, DV damage!

■ To protect important people, such as nursing homes and babysitters as suspected abuse!

■ Just plug into an outlet when you want to shoot!

As crime prevention measures at the time of emergency!

This product is a necessary and practical tool in the field of security, education, life etc. at home for the purpose of crime prevention and security for protecting important families and property.

Features:

• Please enter model number Confirm this is compatible:

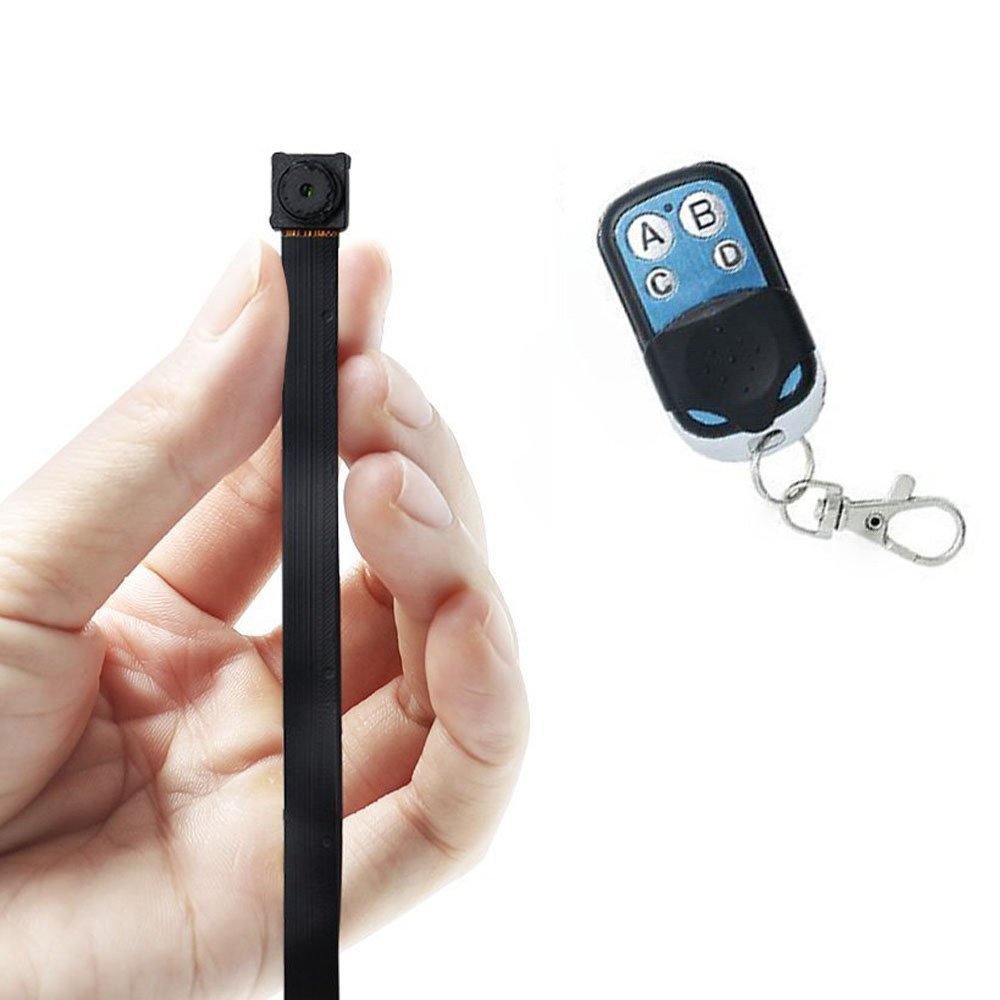

• Lens is versatile as hidden camera with small size of bean grain.
• Since this product was lightweight and compact it was easy to install.

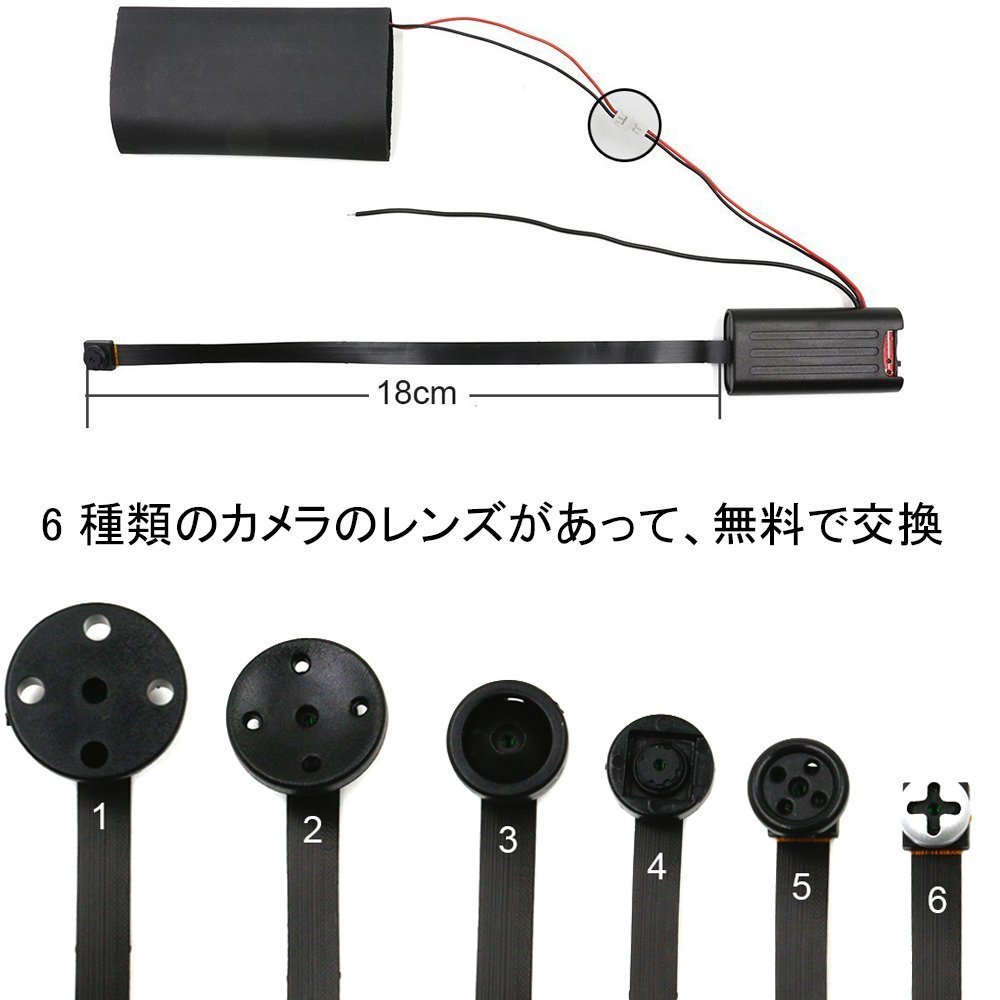

• Thumb size high definition video capture capsule and 180 mm US imported OV 9712 non-interfering camera are adopted.
• Lightweight, compact, large capacity 1800 mah high capacity polymer lithium battery is used, there is a camera shake correction function compared with other products and you can take a long time recording of 17 hours beautifully.
• The image quality can also be selected with 1280 × 720 P, 1920 × 1080 P movie, still picture is 12 million pixel level.
• Everyone will use it, but I use it on a drone.
• Convenience as a minutes meeting such as long-term conference, negotiation.
• In addition, you can record at the same time charging, nonstop recording realized Impersonation button will be bundled
• Compared with similar products, it has shake correction function and you can take beautiful.
• There is movement with motion detection function that is strong
• About Japanese Instruction Manual Our company will translate easily, if you have any problem, please do not hesitate to contact us

Product information:

Shipping Weight: 181 g

Package Dimensions: 5.00 x 9.50 x 12.09 cm
