Item Descriptions:
Color:

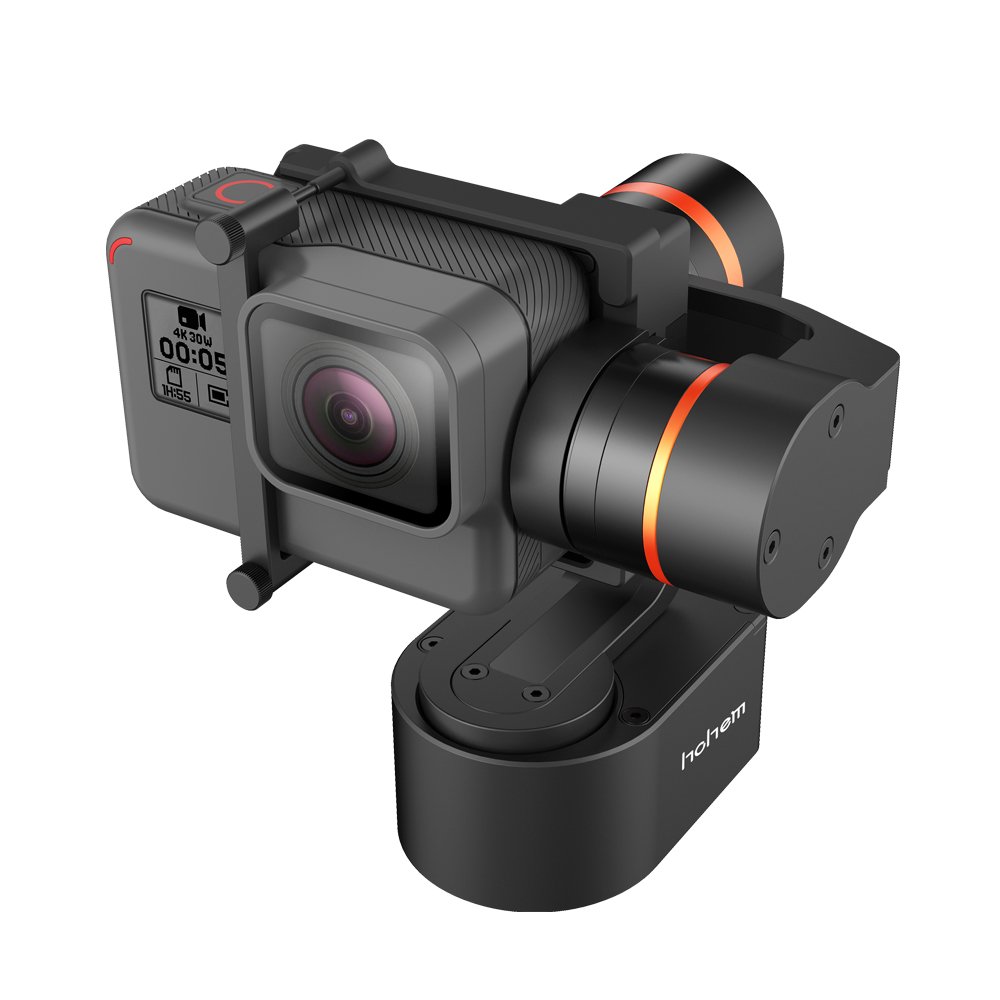

XG 1
basic specifications
【basic specifications】
: Size: 9 * 8 * 10.5 cm.
Weight: 234 g.
Working time: 1.5 hours.
Charging time: 1.3 hours.
Battery type: 18350 lithium ion battery.
Applicable instrument width: maximum 25 mm.
Action cam weight: Up to 170 g.
APP: Android, IOS compatible.
Operating temperature: 0 ° to 40 ° C
[Blurred Image Handling]
: Three axis control: Mechanical operating range of elevation axis: 320 °, mechanical operation range of lateral roll axis: 320 °, mechanical operation range of needle path shaft: 360 °.
Stable shooting is possible by suppressing camera shake.
Activities in various scenes such as sports, landscape, travel, family events etc!
【Compatible models】

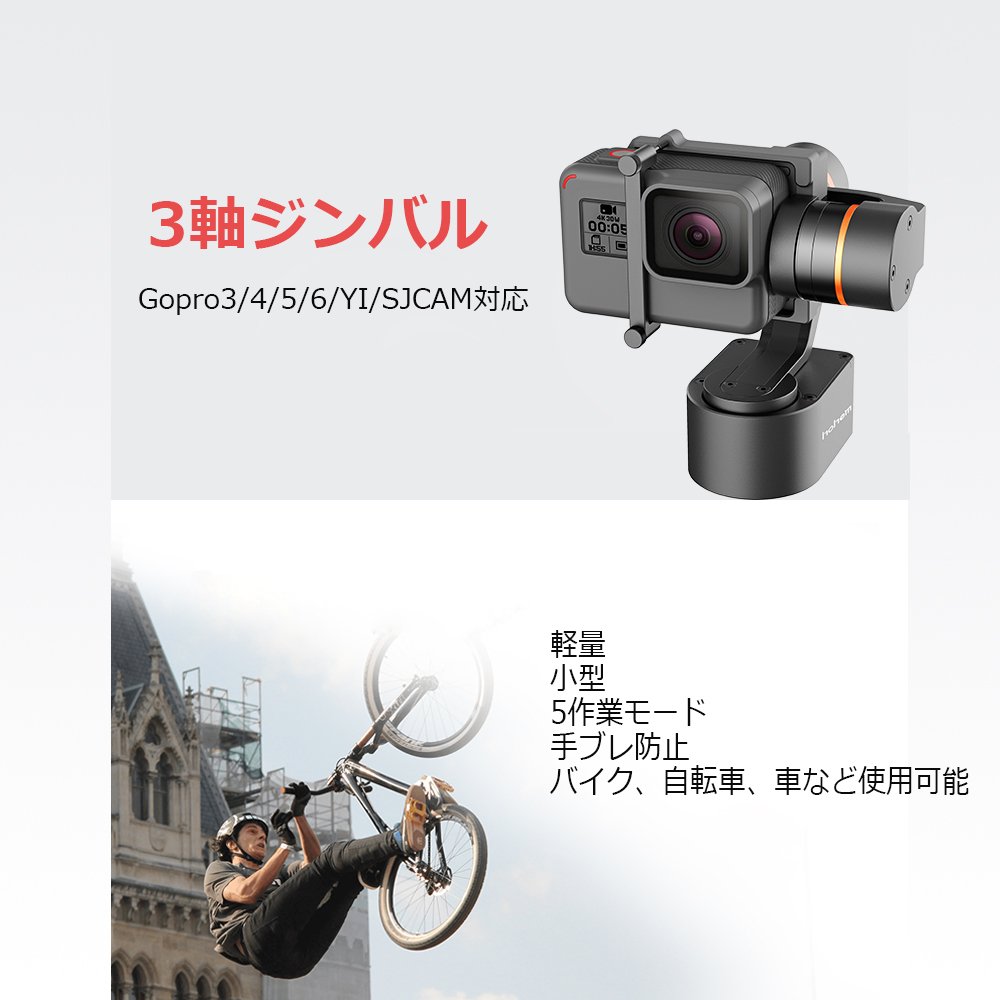

: It corresponds to the action camera Gopro 3/4/5/6 / YI / SJCAM etc.
Power button operation explanation:
Power button operation explanation:
① Press once: Automatically tracks left and right
② Press twice: Automatically tracks left, right, up and down
③ Press three times: 3 axis lock
④ Press four times: 3 axes are released, complete tracking
⑤ Press five times: initialization setting
⑥ Press and hold for 3 seconds: Toggle power ON / OFF

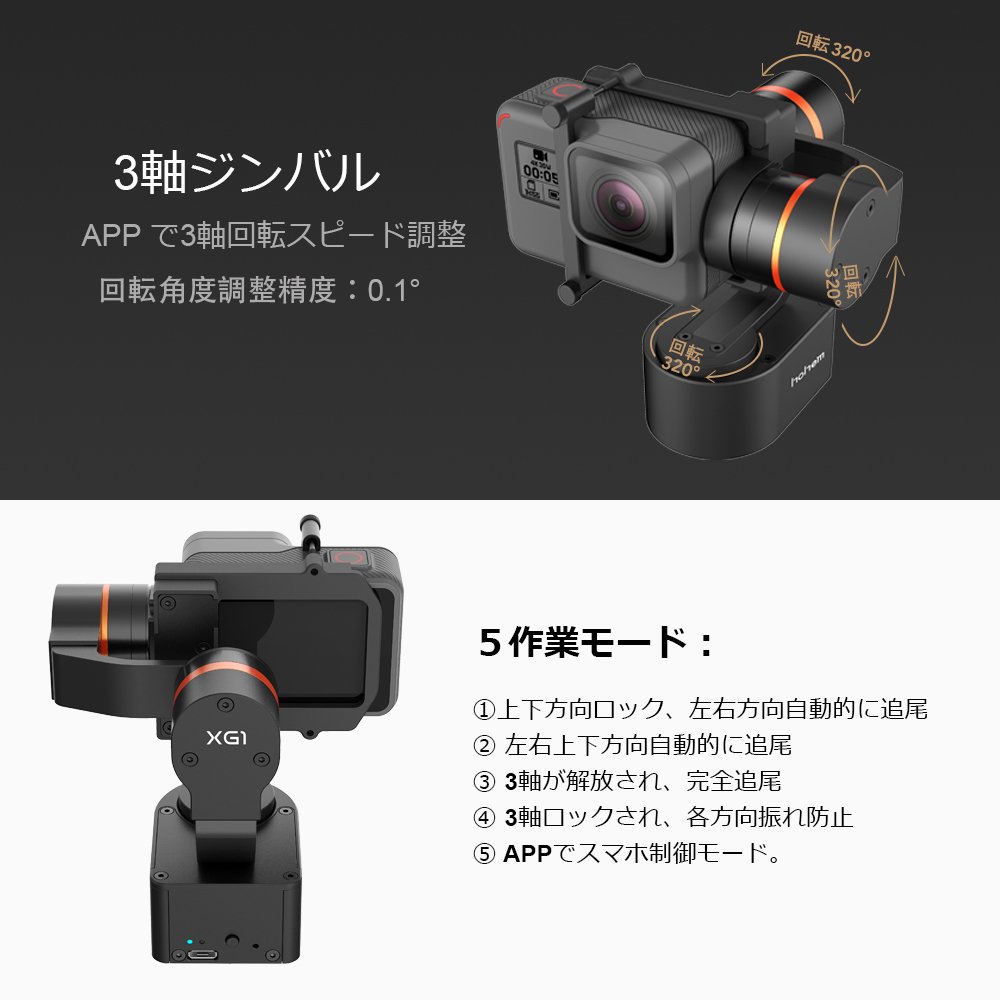

[Working mode]
① Tracking in the left-right direction, tracking automatically in the left-right direction.
② Tracking automatically left, right, up and down.
③ Three axes are released and complete tracking.
④ 3 axis locked, not tracked.
⑤ APP control mode

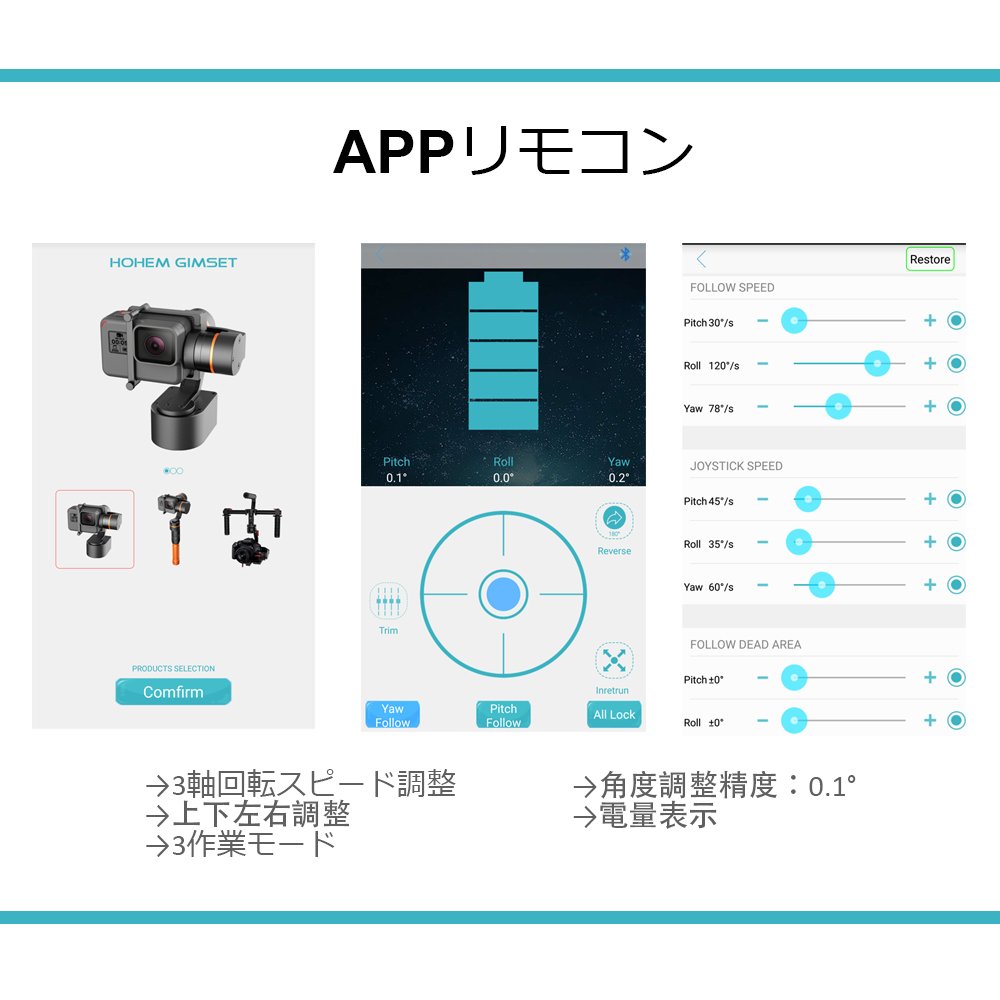

【APP Extension】
You can make more possibilities using APP for Hohem products.
Currently it covers functions such as tracking focus, delay shooting and so on.
Hohem product exclusive APP "Hohem Gimset" can be downloaded from the App Store and Google Play.
specification:
specification:
Size: 9 * 8 * 10.5 cm
Weight: 234 g
Shipping weight: 610 g
Angle error range: ± 0.03 °
Machine operating range of elevation axis: 320 °
Machine operating range of horizontal roll axis: 320 °
Machine operating range of the needle axis: 360 °
Operating temperature: 0 ° to 40 ° C
Working time: 1.5 hours
Voltage: 3.7 V
Current: 350 mA
Power 1.3 W
Battery type: 18350 lithium ion battery
Power: 3.33 Wh
Capacity: 900 mAh
Charging temperature: 5 to 40 ° C
Operating temperature: 0 ° to 40 ° C
Charging time: 1.3 hours
Input: 5 V
Charge current: 960 mA
Applicable equipment width: 25 mm max.
Action cam weight: Up to 170 g
APP: Android, IOS compatible
In case
Supplied items:
In case
3 axis gimbal body * 1
Micro USB cable * 1
Storage case * 1
Belt * 1
User manual (English) * 1
Accessories * 1 set
Features:
- Please enter model number Confirm this is compatible:
- 【Latest 5 work modes】: ① Vertical locking, tracking in left and right direction automatically.
- ② Tracking automatically left, right, up and down.
- ③ Three axes are released and complete tracking.
- (Motorbike photography support) ④ 3 axis lock, do not track without any direction swing.
- ⑤ Smartphone control mode with APP.
- 【Too strong APP extension】: You can make more possibilities by using APP dedicated to developing Hohem products.
- At present, it supports functions such as tracking focus and 3 axis rotation speed adjustment.
- Hohem product exclusive APP "Hohem Gimset" can be downloaded from the App Store and Google Play.
- 【Anti Shake Hand】: Three axis control: Mechanical operating range of elevation axis: 320 °, mechanical operation range of horizontal roll axis: 320 °, mechanical operation range of needle path shaft: 320 °.
- Rotation speed can be adjusted with APP.
- Stable shooting is possible by suppressing camera shake.
- Activities in various scenes such as sports, landscape, travel, family events etc!
- 【Basic Specification】: Size: 9 * 8 * 10.5 cm.
- Weight: 234 g.
- Working time: 1.5 hours.
- Charging time: 1.3 hours.
- Battery type: 18350 lithium ion battery.
- Applicable instrument width: maximum 25 mm.
- Action cam weight: Up to 170 g.
- APP: Android, IOS compatible.
- Operating temperature: 0 ° to 40 ° C.
- Easy calibration: Have the calibration press the power button five times and place it on the horizontal plane.
- 1/4 "standard hole, T-clamp, high-grade case, USB cable etc
- [Attention]: Action camera is not attached.
Product information:
Shipping Weight: 630 g
Package Dimensions: 7.59 x 15.29 x 22.20 cm
