Item Descriptions:

Product introduction

● High sound quality "HDDA mic preamp" installed ● SD / SDHC card ● Built-in stereo built-in microphone ● 4 input, 4 track simultaneous recording or stereo mix recording ● Built-in 4 input 2 output mixer ● Recording format: 16/24 bit,

44.1 / 48/96 kHz (WAV / BWF) ● + 4 ​​dBu line level / phantom power supply (24/48 V) compatible XLR / TRS input (1 / L, 2 / R) ● CAMERA IN, OUT terminal ● Maximum output 50 mW + 50 mW

Headphone jack ● Can be replaced while being attached to the camera and camera head ● HOLD switch to prevent misoperation ● Mini-B type USB cable included ● 4 AA batteries or USB bus power (sold separately AC adapter PS - P 515 U)

Drive ● Built in mixer ● 3 stage low cut filter (40/80/120 Hz) ● Limiter function ● Dual Rec function ● Auto Rec function ● Prerecord function ● Self-timer recording function ● Track increment function ● Jump back playback

Function ● Equalizer installed ● Level alignment function ● Resume function ● Divide function ● Slate tone generator ● Stereo mini jack Mic input terminal (1-2)

From Amazon

Stereo built-in microphone and four XLR inputs as desired

Audio recorder for camera users

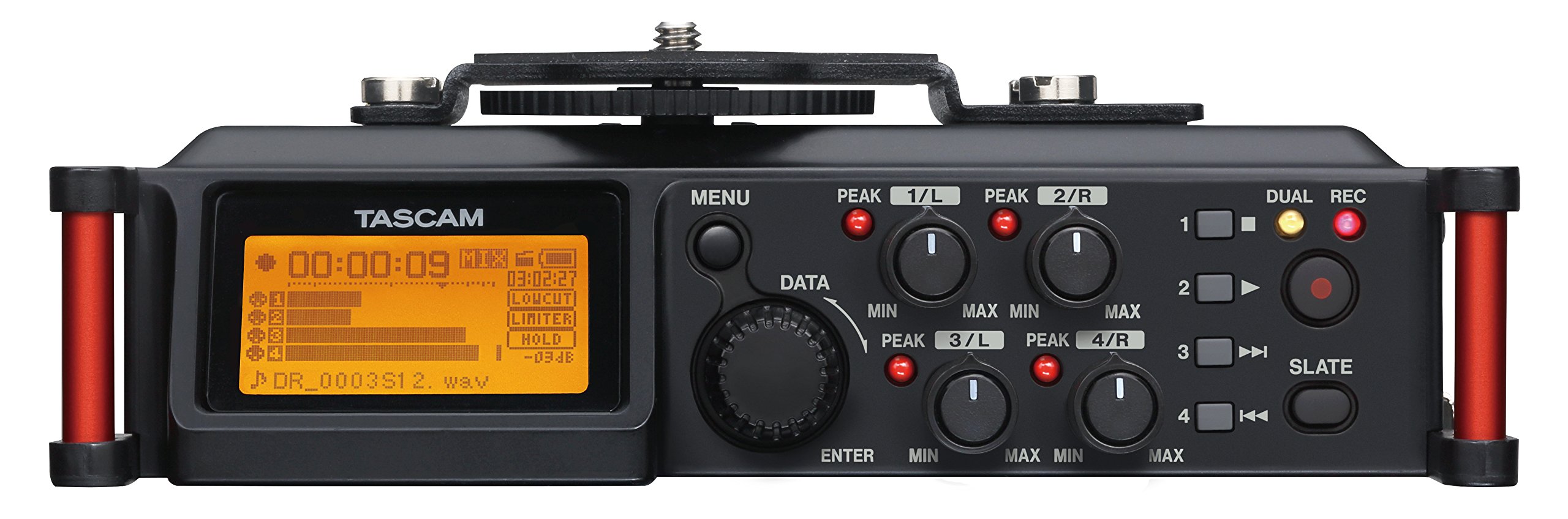

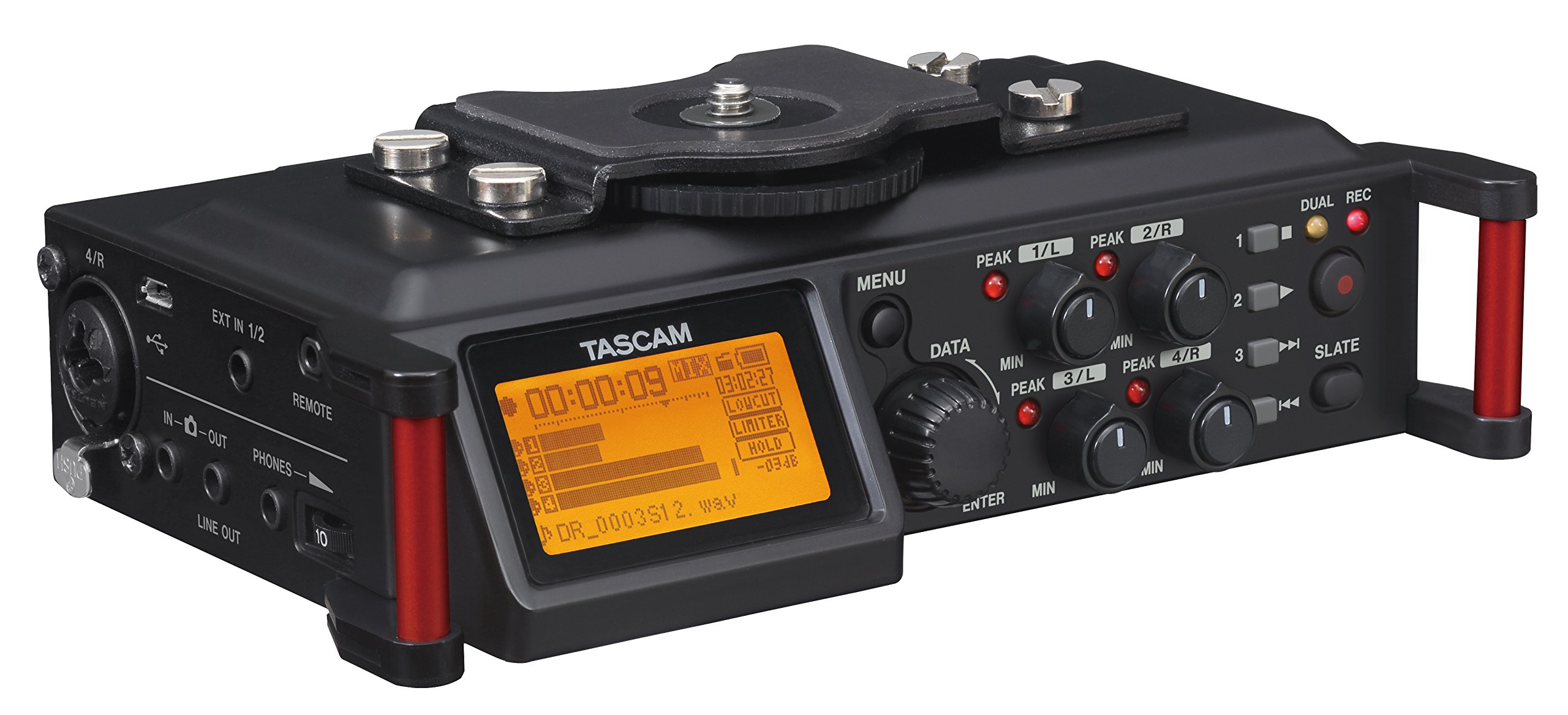

"DR - 70D" is a 4 - track linear PCM recorder that can make the sound of moving images higher quality by using it when shooting moving images with DSLR (digital single - lens reflex camera) or video camera.

Four XLR microphone inputs are installed, from entry users to professionals, to meet the needs of a wide range of movie production sites.

Robust but compact enclosure can be mounted on either the top or bottom of the camera, and recording can be done easily even with a single stereo microphone.

By combining the built-in microphone with the XLR microphone input, for example, ambience with the built-in microphone, connecting the XLR input with an interview gun mic, etc. will spread the variation of setting without compromising maneuverability.

A unique HDDA (High Definition Discrete Architecture) circuit boasting a maximum gain width of 64 dB and EIN (equivalent input noise) of -120 dBu is installed in the preamplifier that amplifies the microphone input sound.

The four microphone inputs are equipped with a limiter and a low cut filter, and independent gain adjustment is possible.

Also equipped with a stereo mini jack input corresponding to a general video camera microphone, a total of 4 channels can be recorded with various microphone combinations.

It is also a major feature that it is high sound quality, and we adopt Texas Instruments NE 5532 for operational amplifiers affecting the sound quality, and we are devoting the know-how of audio makers that we have cultivated to the selection of parts as well as circuit design as well as circuit design.

In addition, it is equipped with a number of specifications specialized for movie shooting with cameras.

The function to record the slate tone serving as the reference for the alignment of the sound of the camera and the sound recorded with "DR - 70D", and the function to output the sound after mixing in the "DR - 70 D" to the camera. CAMERA OUT

Terminals are equipped.

In addition, since it also has a CAMERA IN jack for inputting and monitoring the output sound of the camera, voice monitoring of the DSLR without headphone jacks is also possible.

"DR - 70D" specialized in movie shooting is a high - quality 4 - track recorder that you can use in conjunction with many cameras in a wide range of fields such as movies, documentary production, and TV recording.

Main features

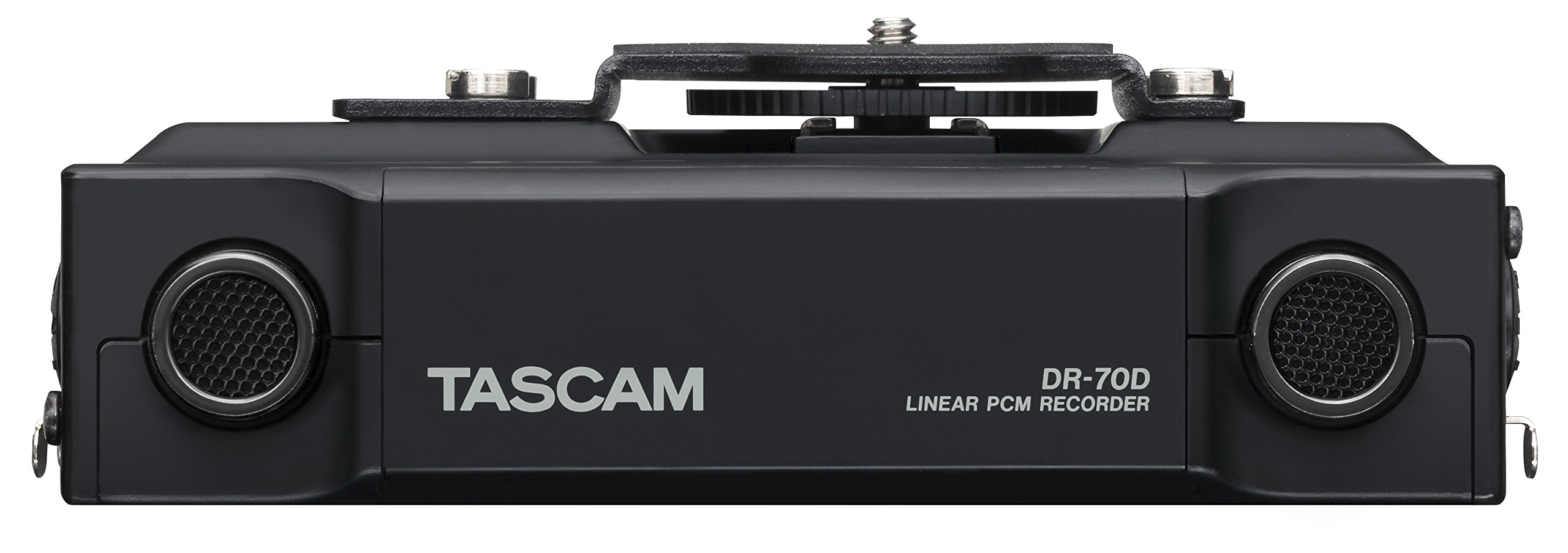

■ Two built-in microphones

Two omnidirectional microphones are installed.

Even natural body stereo sound images can be easily recorded with only the main body.

Together with a small gun mic, recording can be performed in a compact setting even when recording the speaker 's voice in the interview and the surrounding sound at the same time.

■ Built-in 4-input 2-output mixer, 4 ch multi-recording or stereo mix recording possible

Equipped with a mixer capable of mixing a total of 4 channels among four XLR inputs (1-4) compatible with phantom power, inputs (1-2) with stereo mini and built-in stereo microphones (3-4).

In addition to being able to adjust the PAN and the level, a limiter, a low cut filter of 5 stages, a delay which can compensate distance between microphones are carried.

In addition, since MS decode function is also equipped, MS stereo microphone can also be used.

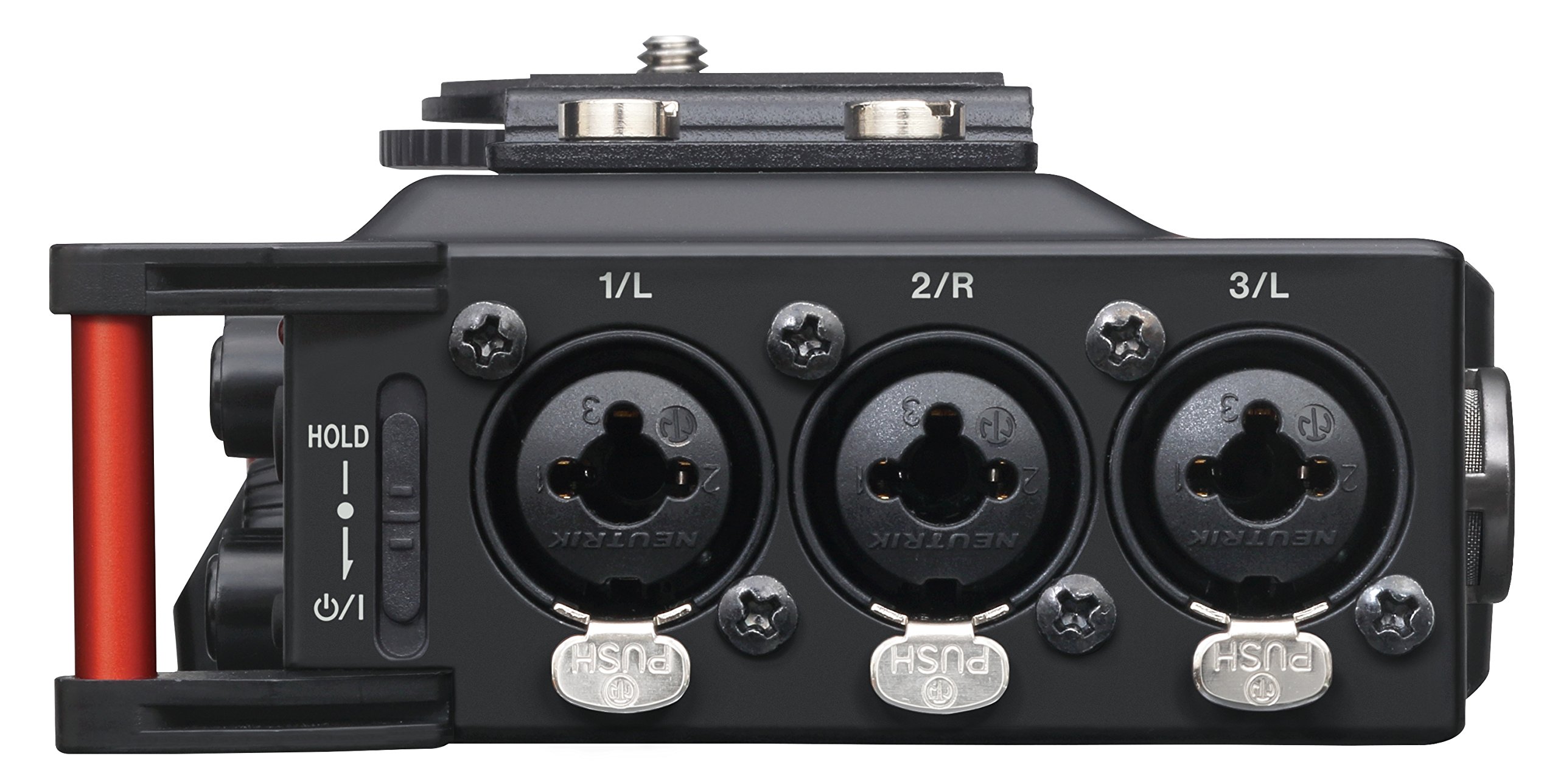

■ Four XLR / TRS combo jacks are installed and wide setting is possible

Four XLR / TRS inputs are installed.

It is a 4 channel specification enabling operation such as ambience and microphone for each speaker, two gun microphones and stereo microphone.

Since it is possible to select 3.5 mm stereo input for 1 and 2 channels and built-in microphone for 3 and 4 channels, a wider range of microphone setting is possible.

<About each mode>

MONO / DUAL MONO: Ideal for recording only the voice of a single performer.

STEREO / DUAL STEREO: Ideal for recording with built-in microphone or stereo microphone.

2 MIX / DUAL 2 MIX: Creates a stereo file with multiple inputs mixed.

In DUAL mode, you can create backup files for clipping due to excessive input, in a mode where recordings of different levels are performed at the same time.

■ High sound quality "HDDA (High Definition Discrete Architecture) microphone preamplifier" installed

■ Can be installed on either the top or the bottom of the camera in a design that is both compact and robust

The microphone preamplifier receiving and amplifying the microphone input sound has a great influence on the sound quality of the sound to be recorded.

In "DR-70D", TASCAM's own HDDA microphone preamplifier which carried out elaborate parts selection was installed.

For operational amplifiers that greatly influence sound quality, it is made up of sticking parts such as selecting NE 5532

It is a differential microphone amplifier circuit of a discrete configuration, boasting EIN (equivalent input noise) of -120 dBu or less.

AD converter that digitizes the analog signal also carries a device made by CIRRUS LOGIC company which is equivalent to linear type PCM recording machine DR series.

Fidelity digitizes voice amplified by high sound quality HDDA circuit.

Recording supports up to 24 bit / 96 kHz.

When installing to the camera support system and stabilizer, make thorough miniaturization so as not to disturb camera work.

While pursuing high mobility while providing abundant input terminals.

Also, a screw hole for the tripod on the receiving side is arranged on the bottom of the main unit, and the top of the main unit is equipped with a removable camera mounting screw and shoe mount.

You can choose a good installation method, such as installing it between the tripod and the camera or attaching it to the camera body with a hot shoe.

* To install "DR - 70D" on the top of the camera, a shoe - mount adapter of AK - DR70C (sold separately) is required.

Specification group specialized for movie shooting with camera

■ CAMERA OUT terminal enabling simultaneous recording with "DR-70D" with camera

Equipped with a dedicated terminal for outputting the sound after mixing to the camera.

It is possible to record the same sound on the camera as "DR - 70D".

■ Variety of slate tone generators that facilitate alignment with movie files

Built-in generator that can sound slate tone as reference in positioning.

In addition to being able to sound automatically at the start of recording or at the beginning and the end, it is also possible to sound a slate tone at an arbitrary position using the SLATE button.

When inserting automatically: OFF / HEAD (only at the start of recording) / HEAD + TAIL (at the start of recording + ending)

When inserting manually: Press and hold the SLATE button to sound.

■ Stereo mini-jack microphone input terminal (1-2) to which a video camera microphone can be connected

Among the input terminals, the 3.5-mm stereo mini's 1-2 input terminal has a maximum input level of +10 dBV, and it is a specification that a stereo mini output video camera microphone can be connected.

You can set settings such as connecting a video camera microphone for ambience to input terminal 1 - 2 and shot gun mic for XLR connection to 3-4.

Plug-in power can also be supplied.

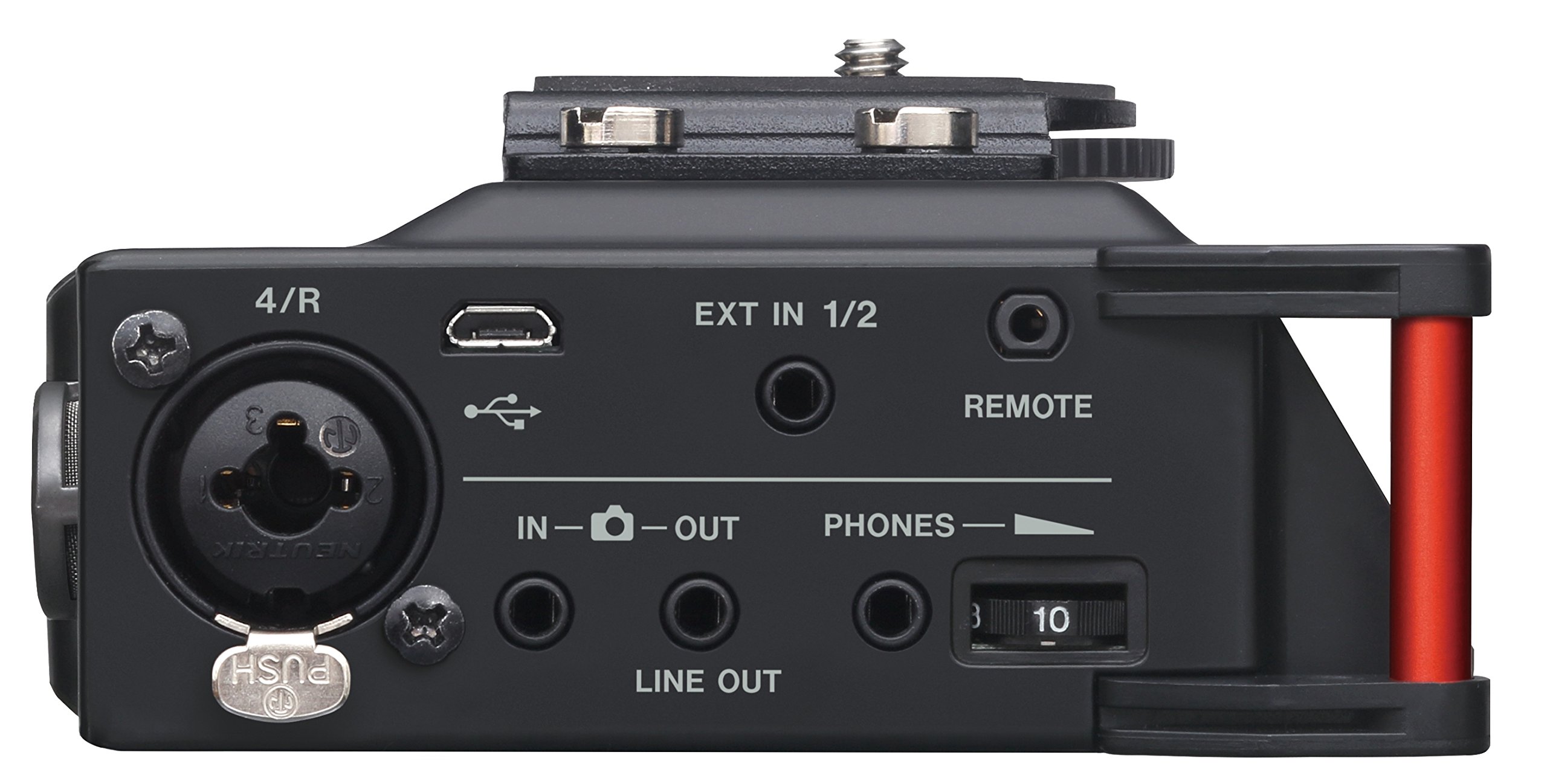

■ CAMERA IN jack for monitoring recorded sound on the camera body

In addition to the CAMERA OUT jack, it also has a CAMERA IN jack for enabling audio monitoring of the camera.

By using the monitor select function of "DR - 70D" together, it is possible to efficiently monitor not only the "DR - 70D" but also the sound of the camera.

Features:

• Please enter model number Confirm this is compatible:
• Four XLR / TRS combo jacks are installed and wide setting is possible
• Built-in 4 input 2 output mixer, 4 ch multi recording or stereo mix recording possible
• High sound quality "HDDA (High Definition Discrete Architecture) microphone preamplifier" loaded
• Can be installed on either the upper or lower side of the camera in a design that is both compact and robust
• A versatile slate tone generator that facilitates alignment with movie files

Product information:

Shipping Weight: 861 g

Package Dimensions: 11.20 x 20.80 x 26.80 cm
