Product Description

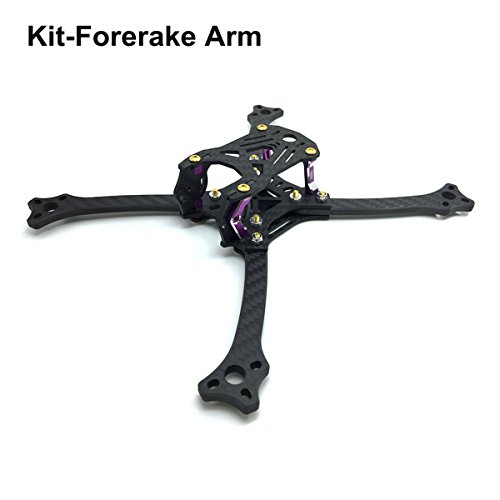

211mm FPV Frame Racing Quadcopter Kit Carbon Fiber Forerake X Arm Frame Kit by Crazepony

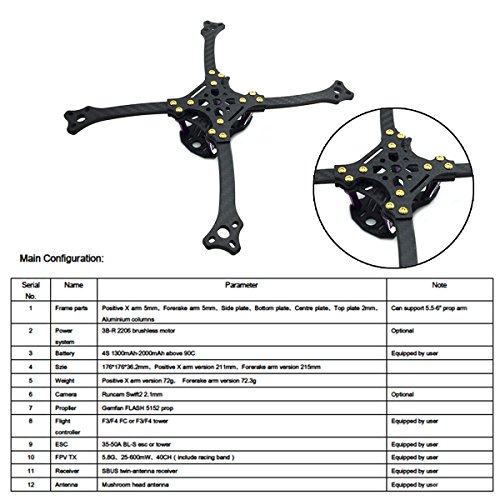

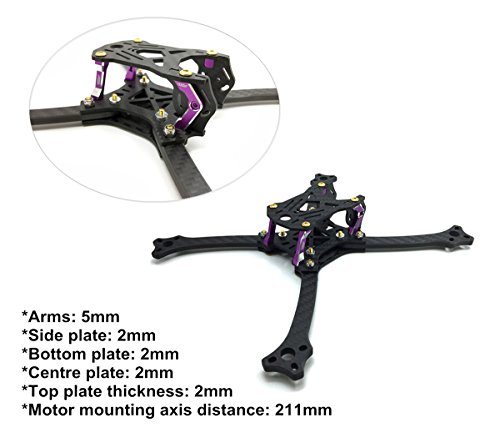

Basic parameters:
1. Arms: 5mm, Package Szie: 118mm*95mm*33mm
2. Side plate, Bottom plate, Centre plate, Top plate thickness: 2mm

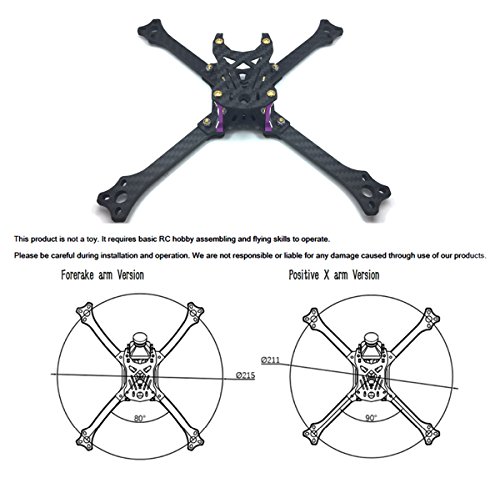

3. Motor mounting axis distance: 215mm
4. Empty weight: 72.3g, Shipping Weight: 135g

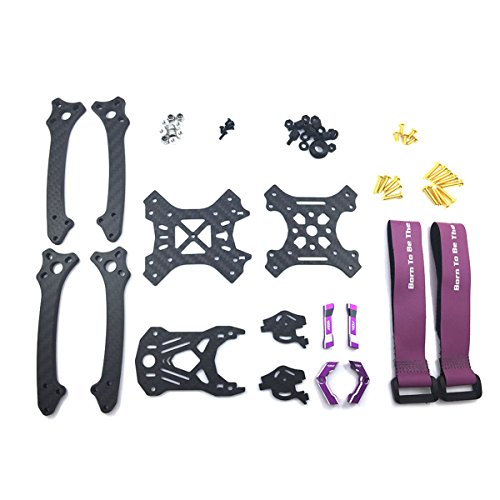

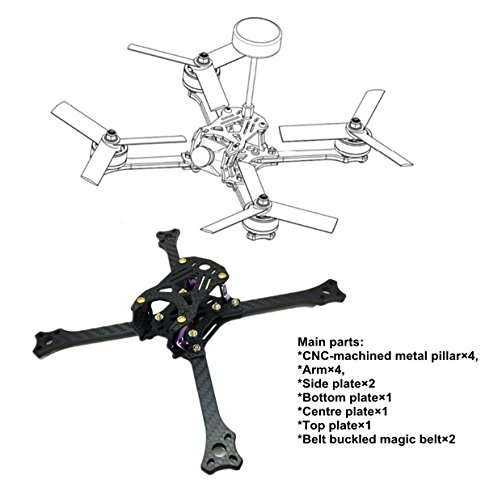

Main parts:
1. CNC-machined metal pillar×4
2. Arm×4
3. Side plate×2,Bottom plate×1,Centre plate×1,Top plate×1
4. Belt buckled magic belt×2

What you will need to complete the drone:
1. Power System: 3B-R 2206 KV2500 brushless motor CW×2, CCW×2, Gemfan FLASH 5152 prop ×4
2. Battery: 4S 1300mAh-2000mAh above 90C
3. ESC: 35-50A ESC X4
4. Flight Controller: F3/F4 FC or F3/F4 tower
5. VTX: 5.8G, 25-600mW, 40CH（include racing band）
6. Camera:Runcam Swift2 2.1mm
7. Receiver:SBUS twin-antenna receiver
8. Antenna:Mushroom head antenna
Package Including
1 * 3B-R 211 FPV Frame Racing Quadcopter Kit
