Product Description

Maximum Working Pressure: 1.0MPa
Working Current: Less than 500MA
Open/close Time: 3-5S
Actuator Material: Engineering Plastics
Sealing Material: EPDM and PTFE
Actuator Rotation: 90 Degree
Install By Any Angle
Max. Torque Force: 2 N.M
Environment Temperature:5~122F
Liquid Temperature: 32~194F

Regular Types:
BACOENG 2 Way 5V/12V/24V Motorized Ball Valve, 2/3/4/5/7 Wires
BACOENG 3 Way 5V/12V/24V Motorized Ball Valve, 2/3/4/5/7 Wires
BACOENG 2 Way 110V/230V Motorized Ball Valve, 2/3/4/5/7 Wires
BACOENG 3 Way 110V/230V Motorized Ball Valve, 2/3/4/5/7 Wires
BACOENG 2 Way Time Control/ Leak Monitor Motorized Ball Valve
BACOENG 2 Way 1 1/4"-2" Motorized Ball Valve
BACOENG 3 Way L Port Motorized Ball Valve
BACOENG Motorized Ball Valve With EU Plug.
BACOENG Motorized Ball Valve With US Plug.
CWX DC3-6V 2 Wires+Auto Return When Power Off Electric Ball Valve
CWX DC12V 2 Wires Control Electric Ball Valve
CWX DC12V 3 Wires Control Electric Ball Valve
CWX DC12V 5 Wires Position Feedback Electric Ball Valve
CWX AC/DC9-24V 2 Wires Spring Return When Power Off Electric Ball Valve

Feature

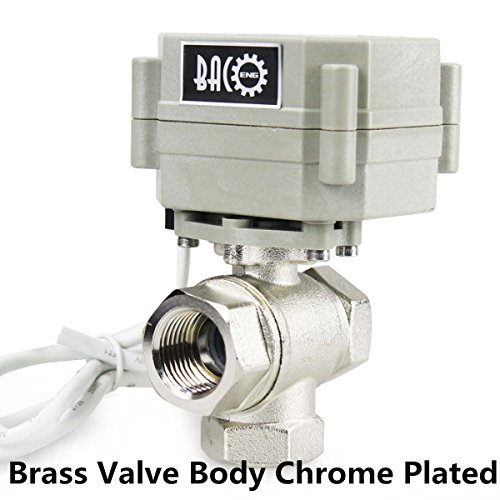

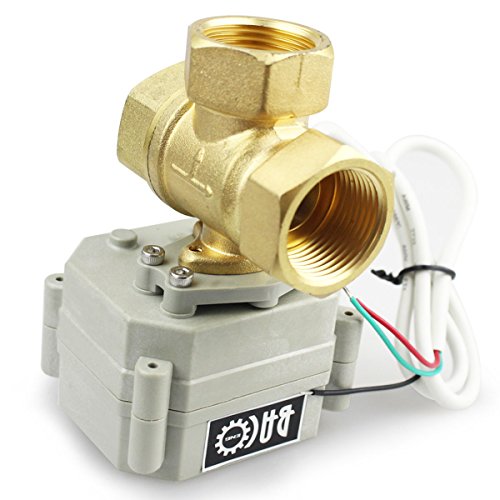

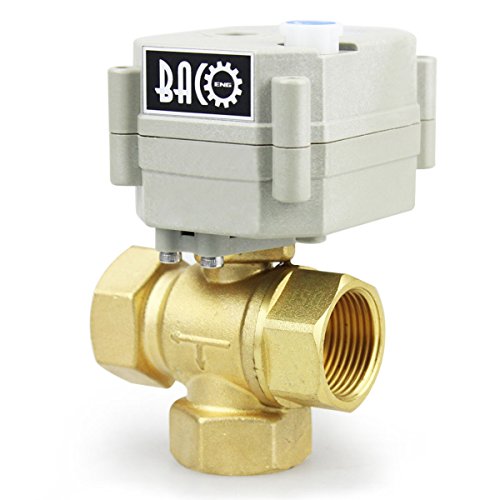

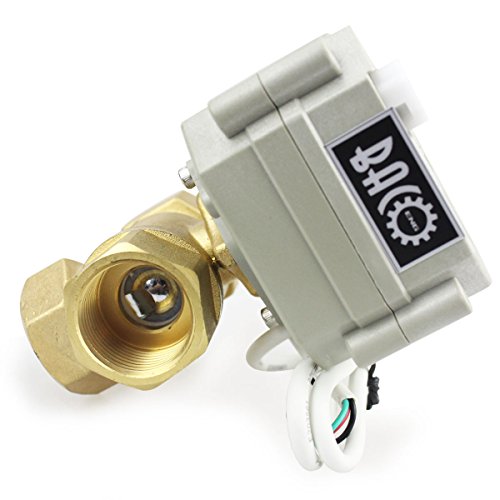

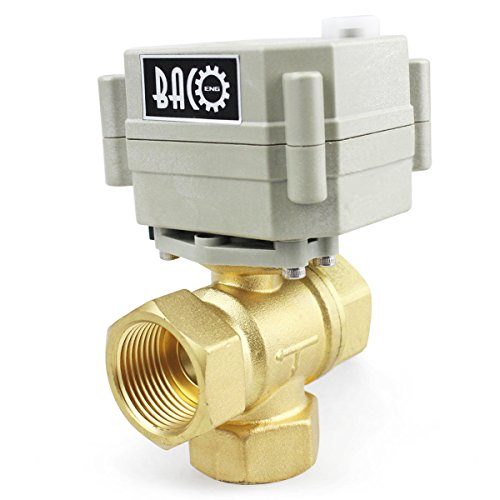

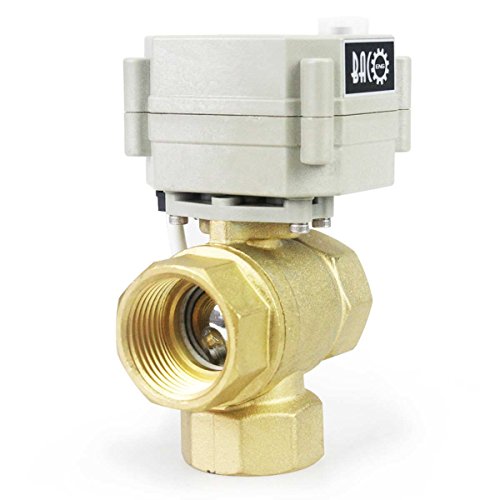

Valve Body: 3 Way NPT 3/4" DN20 Brass
Orifice Size: 18mm, Full Bore

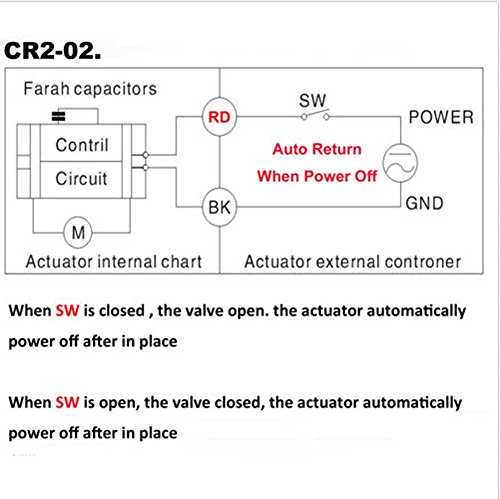

Actuator: AC/DC9-36V CR202 Two Wires Control+Spring Return When Power Off
With Manual Override and Indicator. Metal Gears Inside
Limit Switches Inside, Cut Off Power Automatically When F.O or F.C?
Brand : BACOENG
MPN(PartNumber) : P0384
