bayite DC 6.5-100V 0-100A LCD Display Digital Current Voltage Power Energy Meter Multimeter Ammeter Voltmeter with 100A Current Shunt B013PKYILS









Current range: DC 0 - 100A


Current range: DC 0 - 20A

Product Description


Main Specifications:

Working voltage: DC 6.5 ~ 100V
Measuring:Accuracy: 1%
Power Consumption: 0.2W
Measurement speed: 2 times/s
Store Energy data when power off. Can be reset to 0.
The blue backlight can be turned on/off manually

Test Range and Display format:

1.Active Power test range: 0~10kW
2.Energy test range: 0~9999kWh
3.Voltage test range: DC 6.5~100V
4.Current test range: 0~ 100A
Precautions

1. This module is only suitable for 6.5~100V DC power.
2. Applied load should not exceed the rated power.

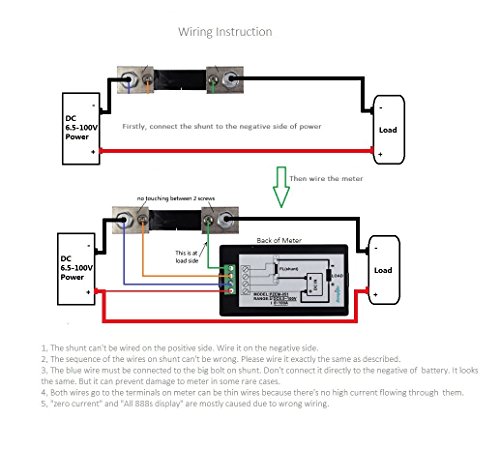

3. Wiring order cannot be wrong.
4. This module is suitable for indoor， please do not use outdoor.

Packing including:

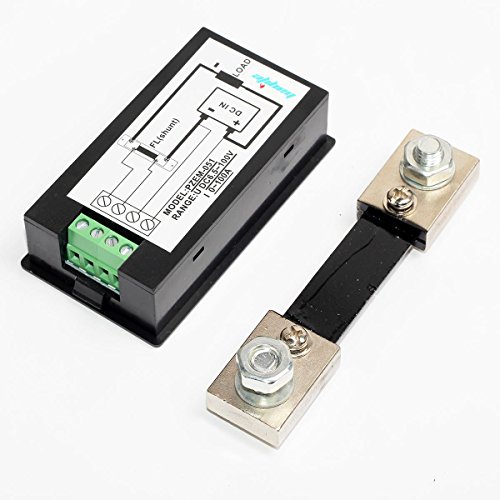

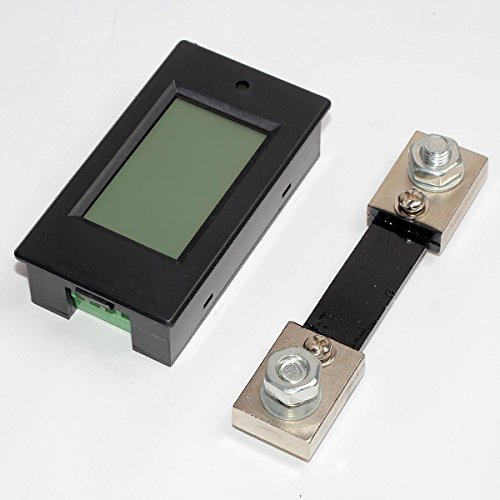

1x DC 6.5-100V 100A Power Multimeter

Feature

Voltage test range: DC 6.5~100V; Current test range: 0~100A;
Store energy data when power off(can be reset to 0).
w/ overload alarm function(If active power is larger than threshold， backlight and power will flash)
Large-screen LCD (display voltage， current， active power， energy at the same time).
The blue backlight can be turned on/off manually.
Brand : Bayite
MPN(PartNumber) : BAYITE-PZEM-101
EAN : 0711463670166
