Product Description

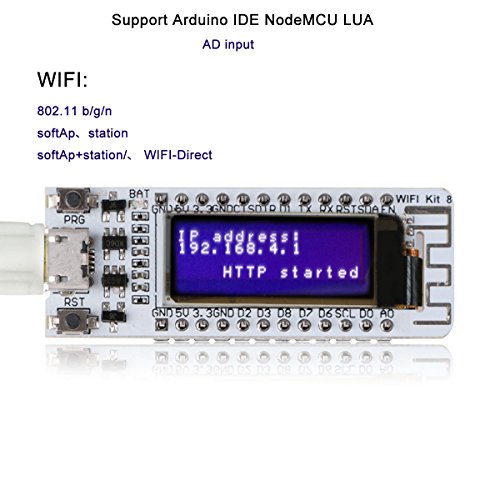

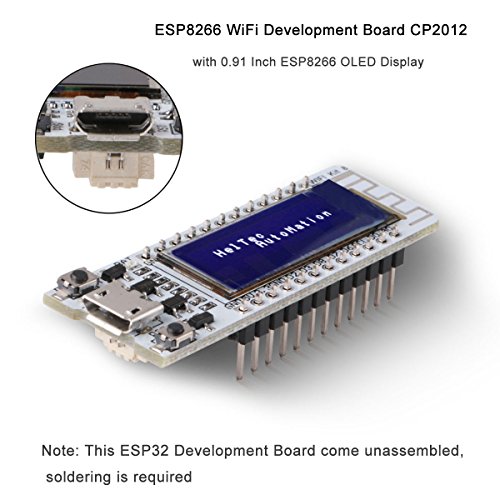

ESP8266 WiFi Development Board with 0.91 Inch ESP8266 OLED Display CP2012 Support Arduino IDE NodeMCU LUA

Description:
WIFI Kit 8 is a cost-effective Internet of things development program , the main chip using ESP8266, with CP2014 USB to serial chip, lithium battery interface and charge and discharge circuit, 32M Byte Flash, WIFI antenna, 0.91-inch OLED display.
It can be programmed in Arduino and NodeMCU environments.
Document link:
https://www.adrive.com/public/drzr3P/datasheet%20F000905.rar

Package Including
1 * ESP8266 development board with OLED
2 * Pin headers

Feature

Document link: https://drive.google.com/open?id=0B8DSGdAr8_31d19WQmN6SE1fLVE
Document link:https://www.adrive.com/public/drzr3P/datasheet%20F000905.rar

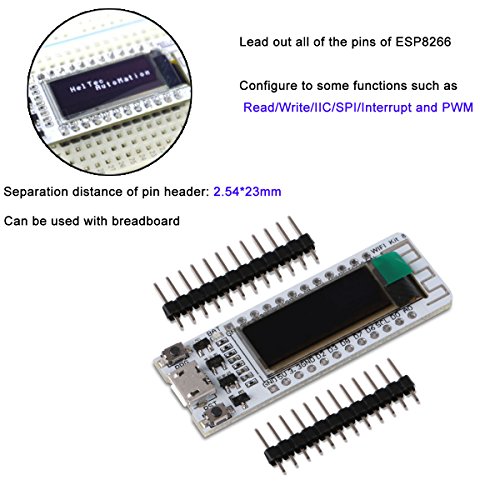

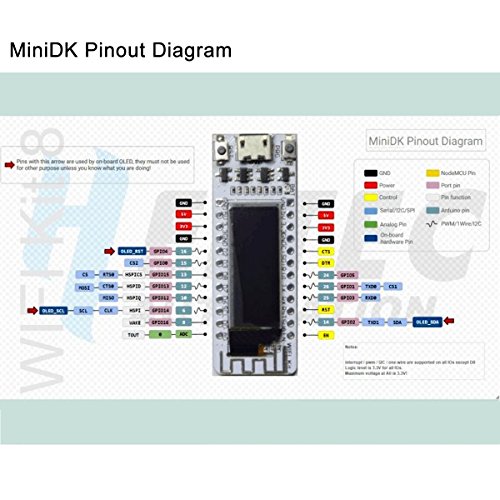

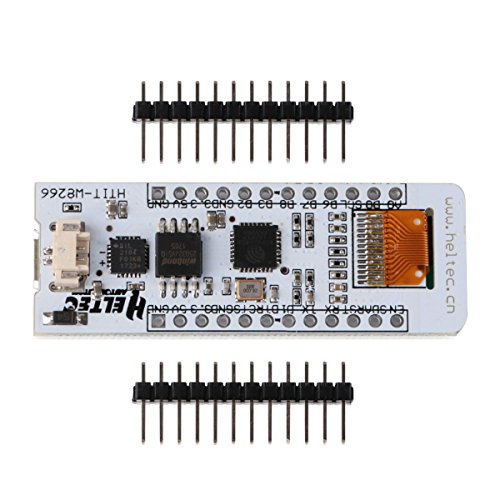

Main chips: espressif esp8266 chip, cp2104 chip, Leads all pins of ESP8266,NOTE: This item come unassembled, soldering is required.
12 digital pins can be configured to read, write, IIC, SPI, the middle, PWM and other functions
1 AD input, Working voltage: 3.3V 7V, Integrated 0.91-inch 128 * 32 OLED, white
Brand : MakerFocus
MPN(PartNumber) : F6U193312H3KK7378
EAN : 0190033882480

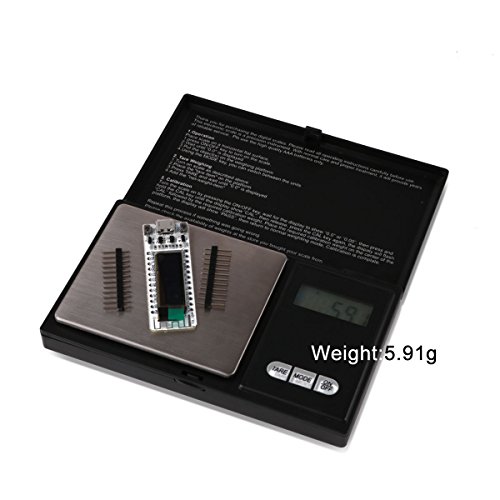

Product Dimensions(LxWxH) : 6x2x1cm ; 9 g
Package Dimensions(LxWxH) : 11x7x1cm ; 9 g
