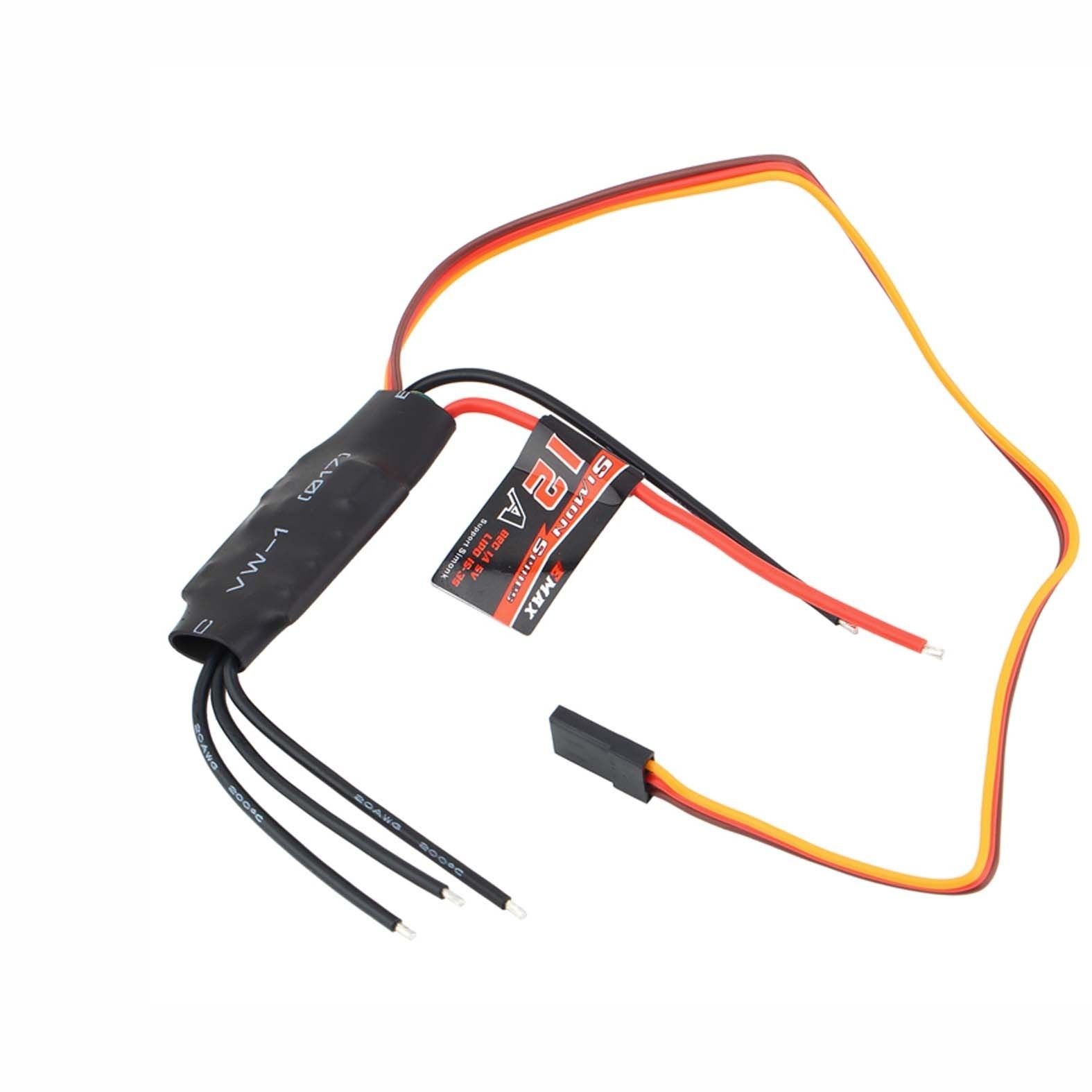

Item Descriptions:
size:
4 pcs
-Features
- Based on Simon K firmware, further optimized to the perfect drive performance.
- Low-voltage protection, over-heat protection and self-check functions.
- Separate power supply for MCU and BEC, enhancing the ESC's ability of eliminating magnetic interference.
- Parameters of the ESC can be set via program card or transmitter.
- Throttle range can be set compatible with different receivers.
- Equipped with built-in linear BEC or switch BEC.
- Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
-Specifications
- Continuous current: 12 A
- Burst current (10 S): 15 A
- Input: 2S - 3S Lipo
- Dimension (L * W * H): 25 mm x 20 mm x 7 mm
- Weight: 9 g (wires Included)
- BEC Mode: Linear
- BEC Output: 1A / 5V
- Programmable: Yes
Features:
- - DC: 12 A
- - Input: 2S - 3S Lipo
- - Size (L * W * H): 25 mm x 20 mm x 7 mm
- - BEC mode: linear
- - BEC output: 1A / 5V
Product information:
Shipping Weight: 99 g
Package Dimensions: 2.49 x 13.21 x 17.20 cm
