Product Description
Indoor TV Antenna Data:
Frequency range: 47-230MHz, 470-862MHz
Receiving range: FM/VHF/UHF
Gain: 32dB
Output level: 102dBμV Max
Impedance: 75Ω
Noise figure: ≤3dB

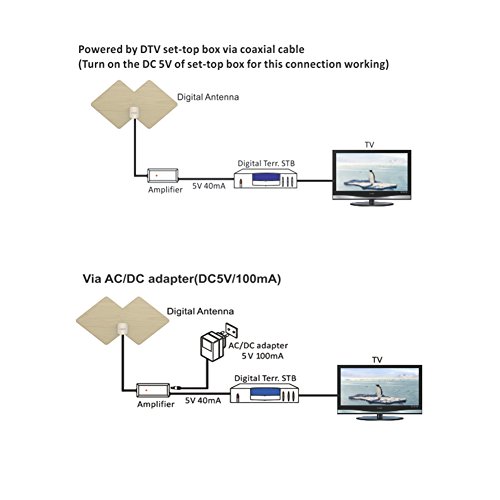

Power supply: Via DTV set-top box(DC 5V/40mA) or AC/DC adapter(DC5V/100mA) Reception range: 75mile

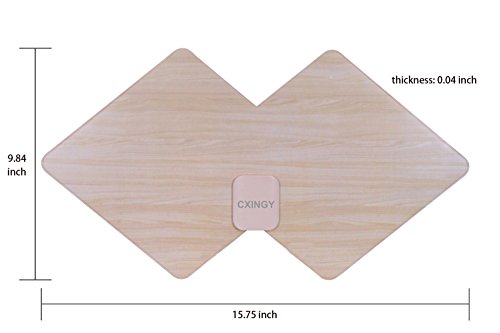

Product size: 400*300*1.5mm

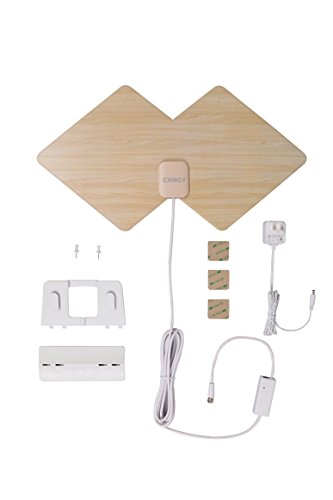

Accessory: antenna with built-in amplifier and attached 10FT TV cable; power adapter.
Color: black, white or wood-grain are available.

Product Features:
Ultra Thin and Lightweight Soft Design
Multi-positioning for best possible reception
Excellent reception for digital, free view and analog TV signals
With high gain and low noise Built-in amplifier

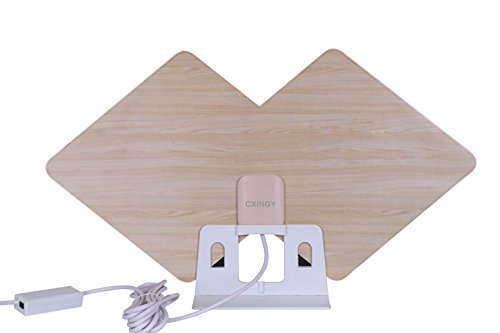

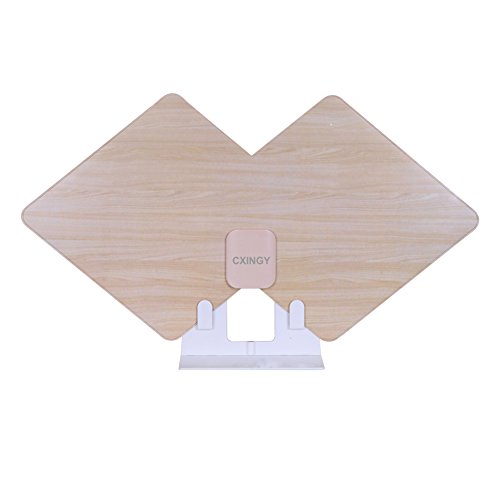

With stand or sticker or Wall needle, table, wall, window glasses, etc. Are available for convenient multi-positioning.
Specially Compatible with HDTV of various digital terrestrial signal ATSC and DAB/FM radios.

Setting And Connections:
1. Connect the antenna coaxial cable to set-top box or TV with digital TV ready.
2. Connect the DC plug of AC/DC adapter to the in-line amplifier of antenna, and plug the AC/DC adapter in to AC power socket
3. After all the connections have been done properly, turn on the television set and select a TV program, then adjust the antenna position until get the best signal reception.

Operation Instruction:
For the best reception, please check the following conditions.
1. Keep the antenna away from the sources of interference and those big power consumption devices, such as air conditioner, hair dryer and microwave oven, etc.
2. Place the antenna near the windows under indoor environment.
3. In digital terrestrial reception, interceptions between antenna and transmission tower will cause signal loss temporarily. Please install the antenna as high as possible to reduce interceptions.
