Item Descriptions:

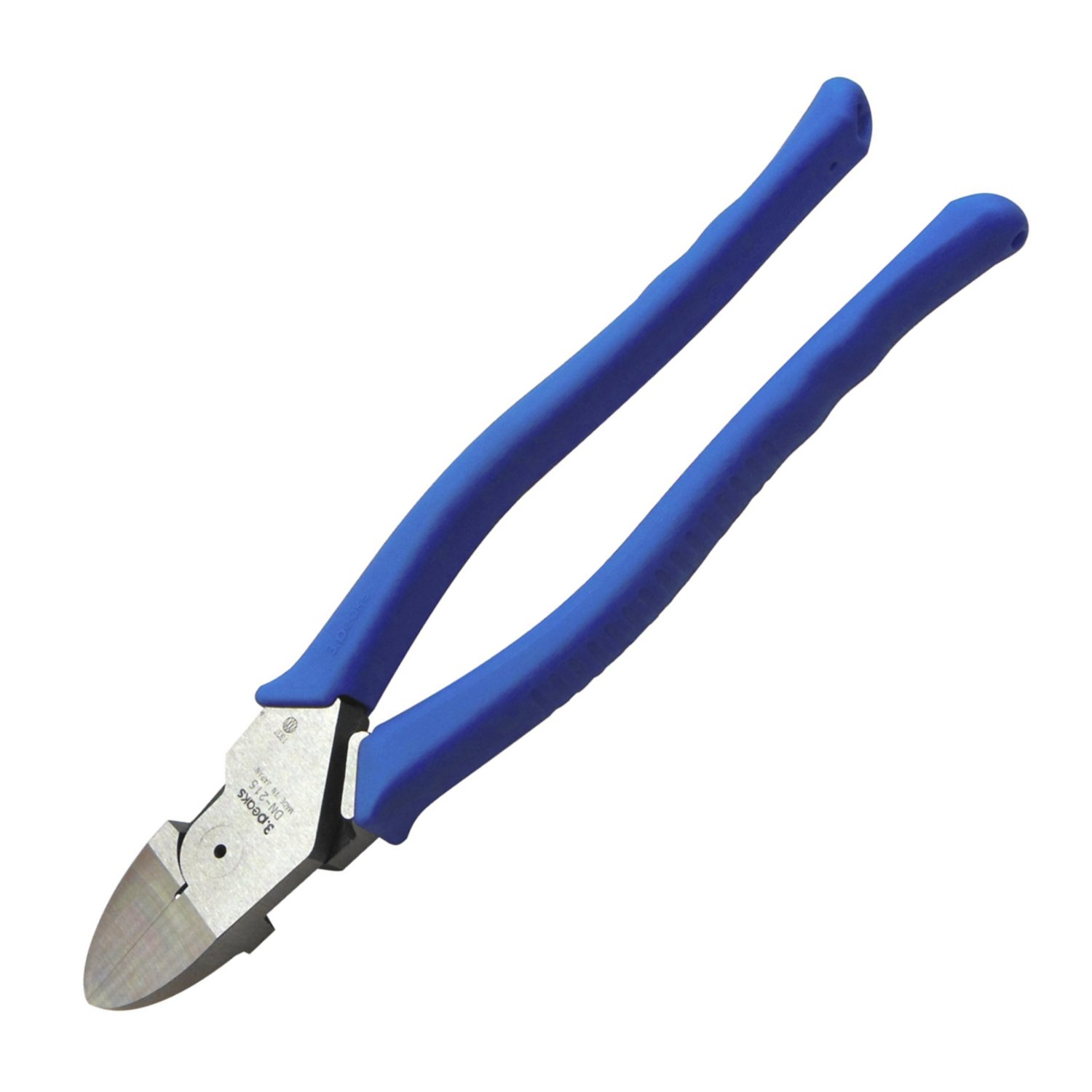

Product introduction
Ease of cutting of VVF line with eccentric lever principle.
● By setting the blade angle from 15 ° to 7 °, the arm - wrist - fingertip - the cutting edge becomes almost linear, thereby achieving a natural and stable working posture and improving work efficiency.
● Blade is thin and sharp due to precision machining, outstanding sharpness.
The steering wheel is easy to grasp easily by the manufacturer's original narrow design.
● There is a grip hole for falling prevention strap mounting.
● Elastomer grip that is easy to fit in hands.
※ Grip is not an insulator.
Please turn off the power before use.
From Amazon
Ideal for electric construction
View larger image
Nippa specialized for electric work for long-awaited craftsmen
Dedicated tool to cut heavy and hard wire material such as cable wiring and copper wire for electric construction.
You can get a comfortable sharpness and a beautiful cut.
To disconnect the VVF line
VVF line (Vinyl insulated Vinyl sheathed Flat-type cable) in the image can be easily cut.
The cut surface is also beautifully finished.
Cut wire
View larger image
Ease the cable
It is suitable for cutting wire work related to electrical work.
VVF 3-core cable and wire can be cut to 2.6 diameter, copper wire to 4.0 diameter.
Body of eccentric lever principle
View larger image
Excellent cutting ability by "eccentric lever principle"
By bringing the fulcrum closer to the blade part direction than the conventional pliers, the lever ratio can be improved, the cutting ability can be improved, and the object can be lightly cut.

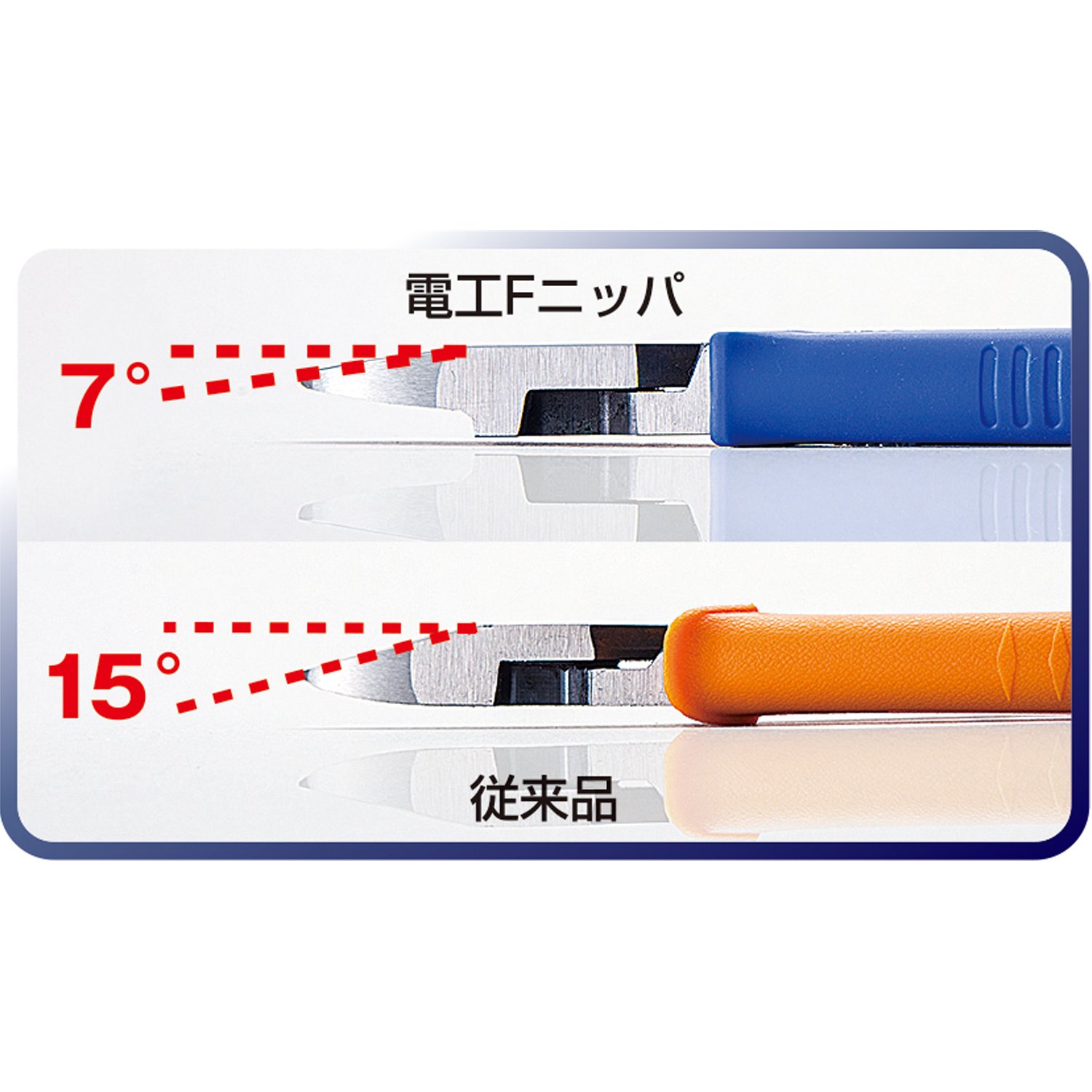

Turn the blade angle to 7 °
View larger image
From 15 ° to 7 °

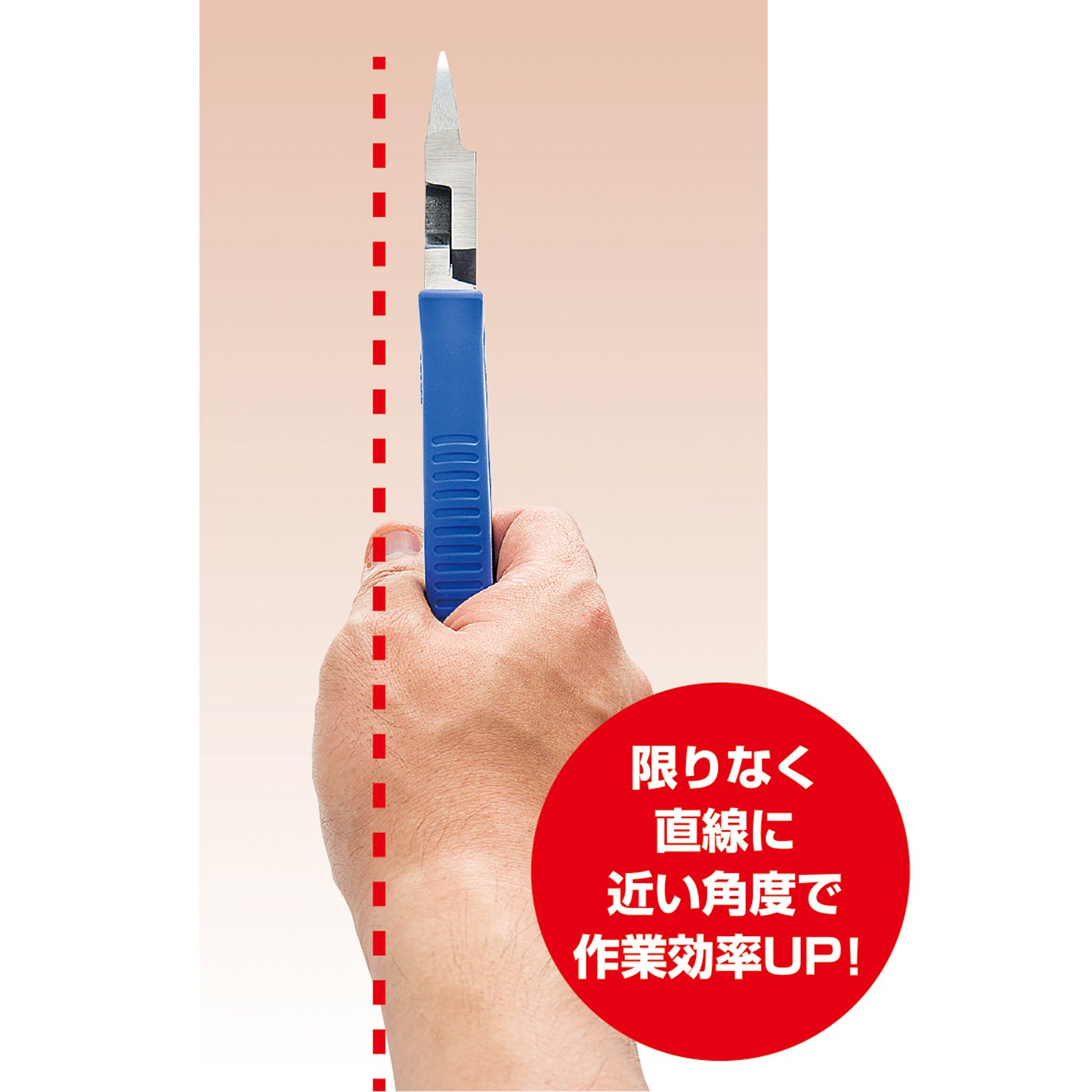

By changing the angle of the blade from the conventional 15 ° to 7 °, the arm - wrist - fingertip - cutting edge becomes almost linear, and it is possible to maintain a natural and stable work posture.

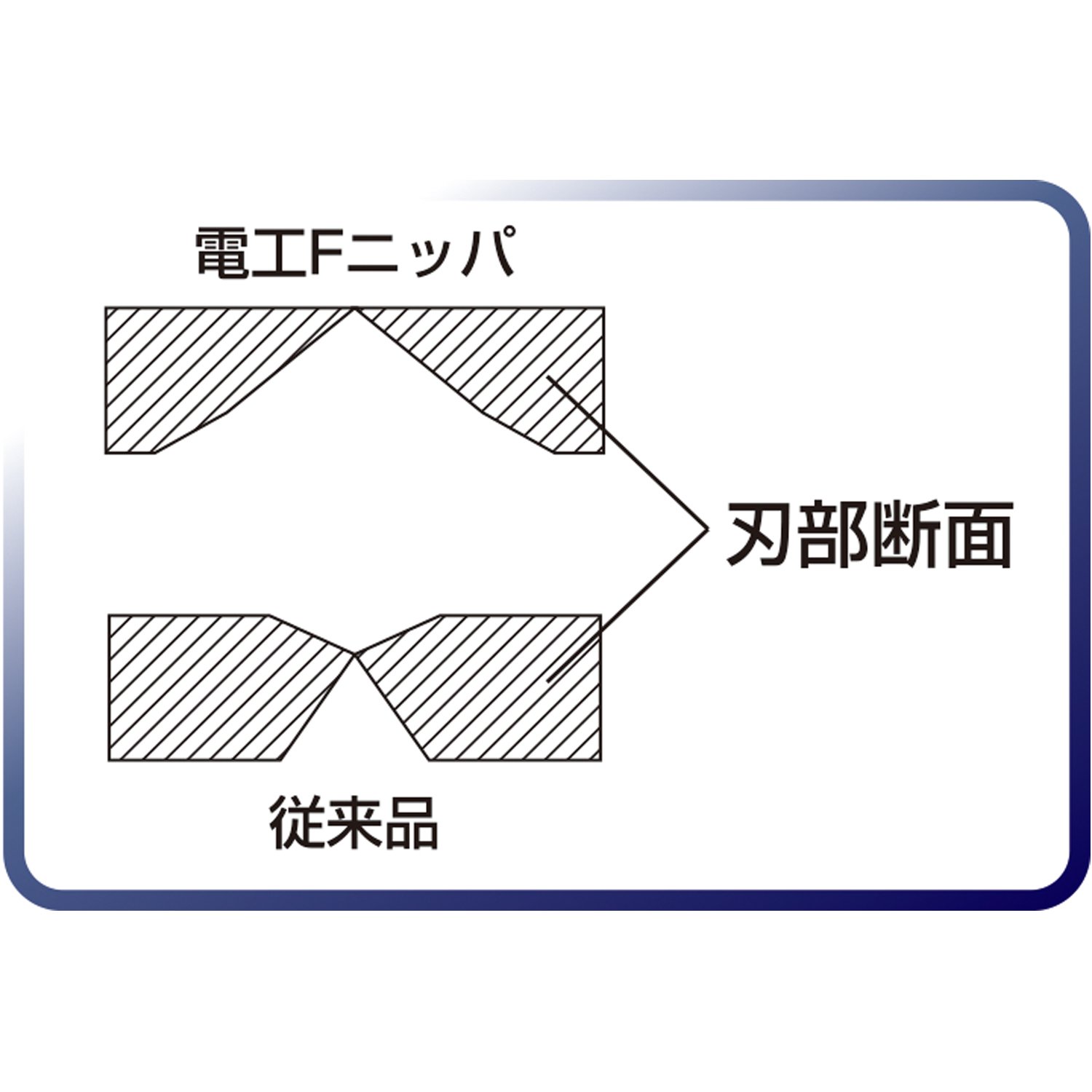

Precision machining blade
View larger image
Thin, sharp blade
Precise machining makes the blade thinner and sharper.
Exercise outstanding sharpness.
Grip hole for strap attachment
View larger image
Do not drop it while working
There is a grip hole to attach a fall prevention strap.
Prevent the falling of the working tool while working.
(The strap is not included.)

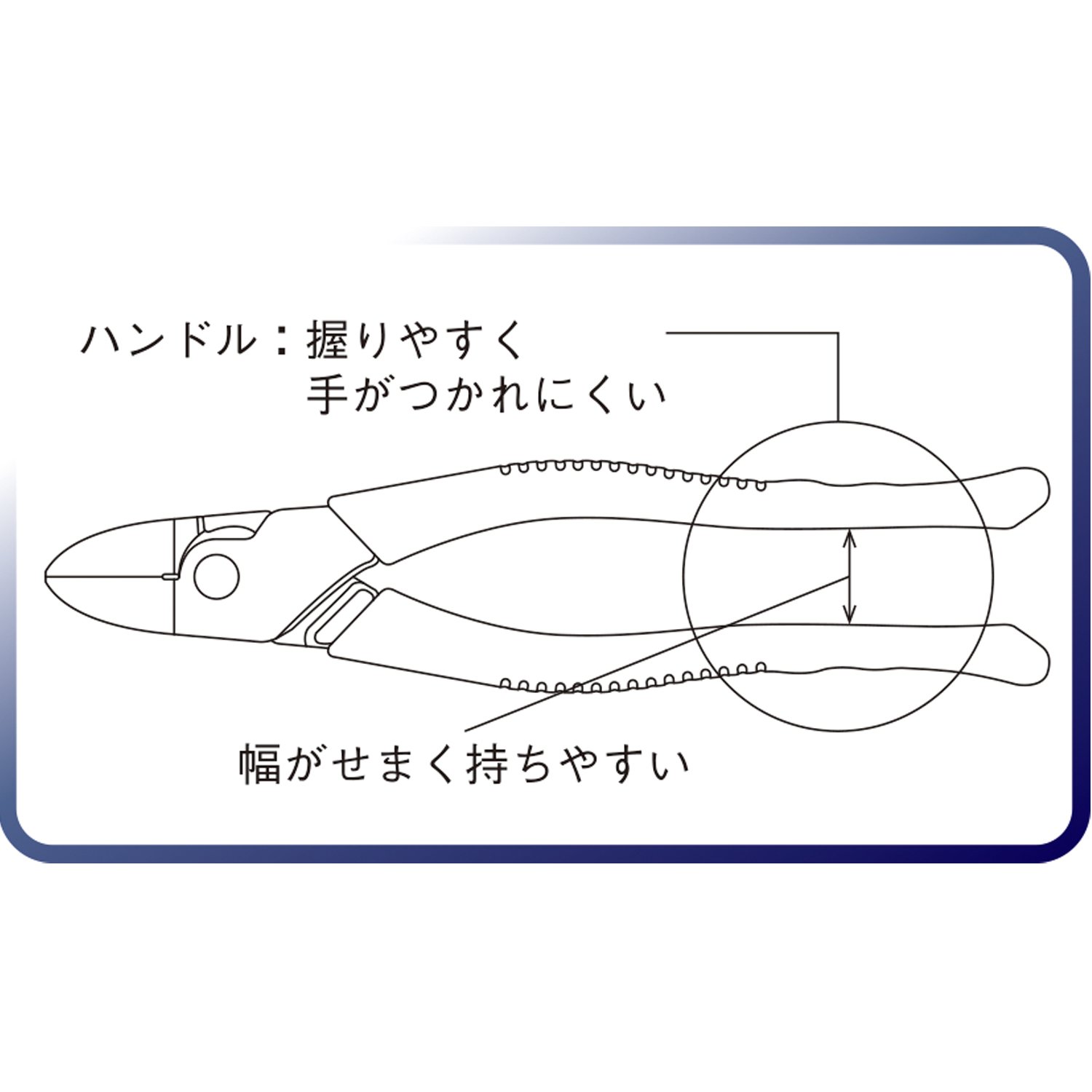

Wide design
View larger image
Easy to enter power
When the cable is sandwiched, the distance between the left and right handles is short, the force is easy to convey with narrow design, easy to grasp the big one.
The handle is also easy to grasp and less tired.
Features:
- Overall length: 215 mm
- Grip width: 47 mm
- Tip width: 27 mm
- Blade angle: 7 °
- Material: Vanadium steel, elastomer resin
- Cutting capacity: 3 VVF core / diameter 2.6 mm, wire / 2.6 mm wire diameter, copper wire / 4.0 mm diameter ※ Iron wire can not be cut
Product information:
Shipping Weight: 299 g
Package Dimensions: 0.20 x 7.39 x 25.20 cm
