Product Description

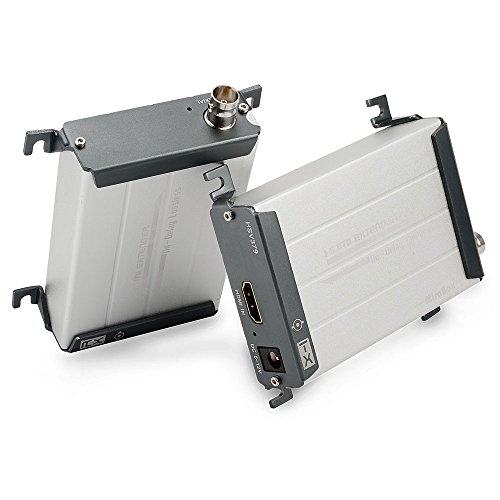

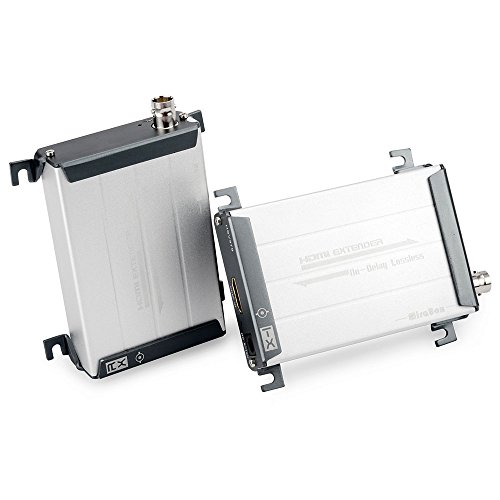

HDMI Extender Over Coaxial Cable Support Loss-less No Delay, Coaxial Cableial Cable Transmitter And Receiver

Introduction

This product extend FULL HD HDMI signal up to 200 meters over a single Coaxial Cableial cable without any video loss and time delay.

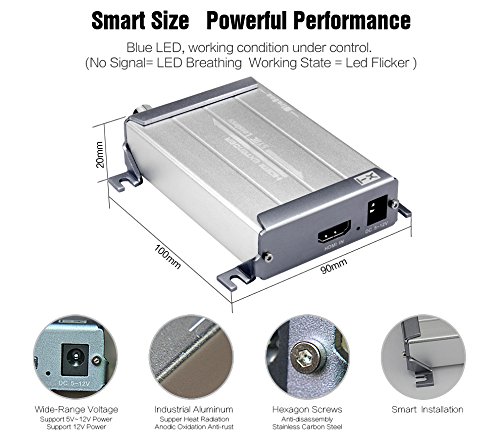

HSV379 also have many professional designs which suitable for various application scenario, especially for engineering project usage Such as 5V-12V wide range power supply, mountable aluminum alloy shieding.
Features

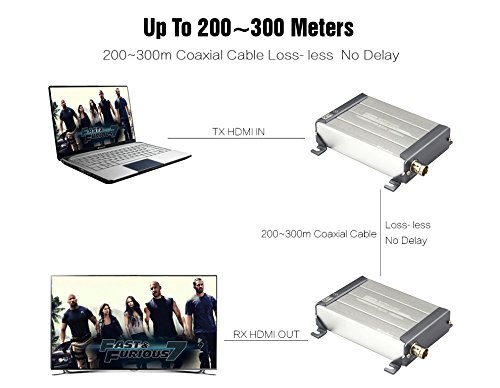

1. Extend FULL HD HDMI signal over 200 meters via singal Coaxial Cableial cable
2. No video loss, no time delay.
3. Very low cost solution.
4. Wide range power supply

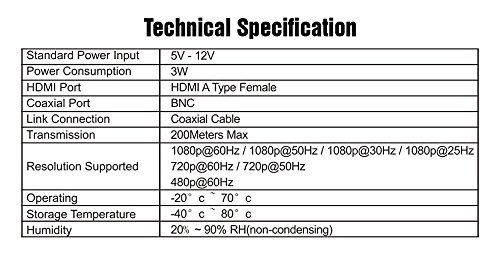

Technical Specification

Standard Power Input: 5V-12V
Power Consumption:3W
HDMI Port: HDMI A type Female
Coaxial Cableial Port: BNC
Link Connection: Coaxial Cableial Cable
Transmission: 200meters
Resolution Supported: 1080p@60Hz / 1080p@50Hz / 1080p@30Hz / 1080p@25Hz /720p@60Hz / 720p@50Hz /480p@60Hz

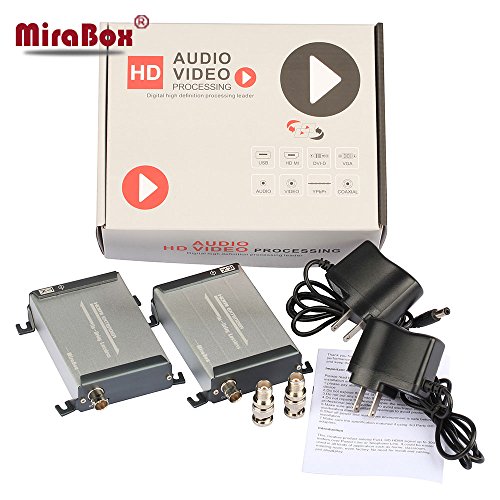

Package Contents: Sender *1 Receiver *1 Power Adaptor *2 Manual *1
Operating:-20°C - 70°
Storage Temperature: -40°C - 80°C
Humidity: 20% ~ 90% RH(Non-condensing)
