Product Description

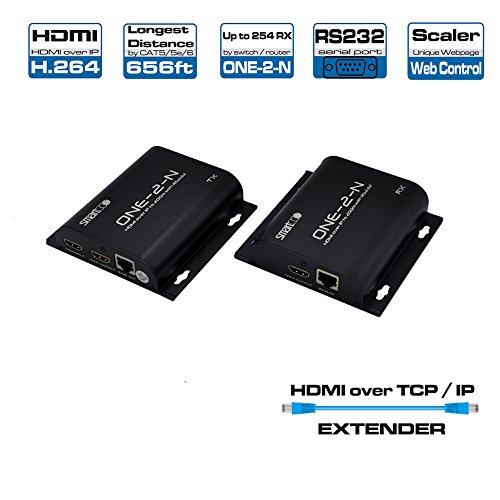

H.264 HDMI over IP extender provides extension of HDMI signals up to 200 meters by a single cat5e/6 cable at resolution up to 1080P@60HZ. It applies advanced video decode H.264 that is with excellent image processing and transmission capacity, offering more fluent and steady signal transmission. It supports point-to-point and one-to-many connection system, and provides RS232 communication port.

Features
-HDMI 1.3 version, HDCP 1.2 version;
-Support HDMI resolution up to 1080P@60Hz;
-Transmit HDMI video and audio signals up to 200m over a single CAT6 cable; 150m over single CAT5E cable; 120m over single CAT5 cable;
-Low bandwidth occupation: 10Mbps;
-No influence to the internet usage when it is connected to the switch;
-High compatibility, can auto-match source and display device;

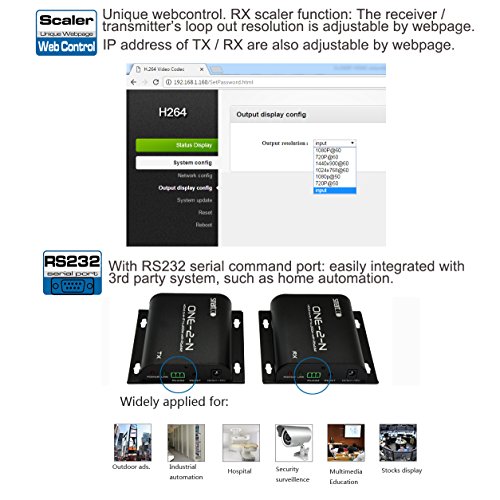

-With RS232 serial port for control via PC;
-Output resolution is adjustable via IP;

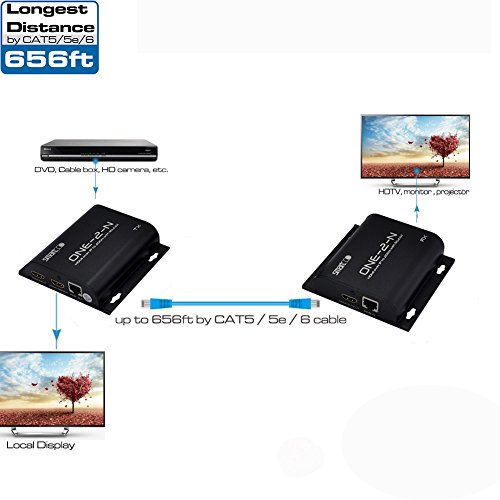

-Supports point-to-point and one-to-many system;
-Good anti-interference performance, strong adaptive ability for long time operating and use in high temperature;
-Built-in automatic adjustment system, make the image smooth, clear and stable;
-Built-in ESD protection;
-Simple to install, plug and play.

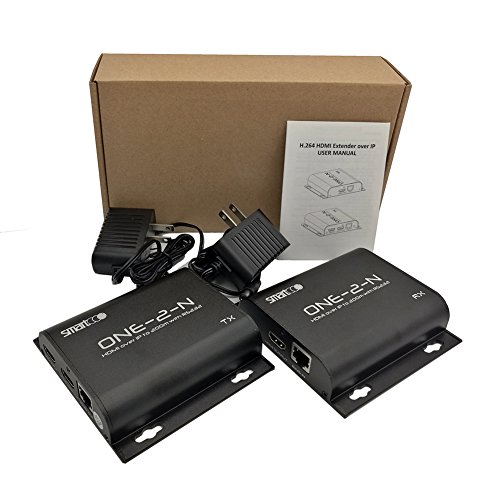

Package Content
Transmitter x 1
Receiver x1
IR cable x2
Power supply x2
