-. Binding : Electronics
-. Brand : TYT
-. Color : Black
-. EAN : 0713543693508
-. Feature : Dual band: TX: 134-174MHz and 400-480MHz, AM/FM RX: 108-180MHz, 134-174MHz and 350-520MHz / V+U Full Duplex Operation, Cross band Repeater Function / 50W output power for 144MHz and 35W for 430MHz / Ultra-size LCD Screen Dual Display / ore than 800 Memory Channels
-. Label : TYT
-. Manufacturer : TYT
-. MPN : TH-7800
-. PackageQuantity : 1
-. PartNumber : TH-7800
-. ProductGroup : Car Audio or Theater
-. ProductTypeName : TWO_WAY_RADIO
-. Publisher : TYT
-. Studio : TYT

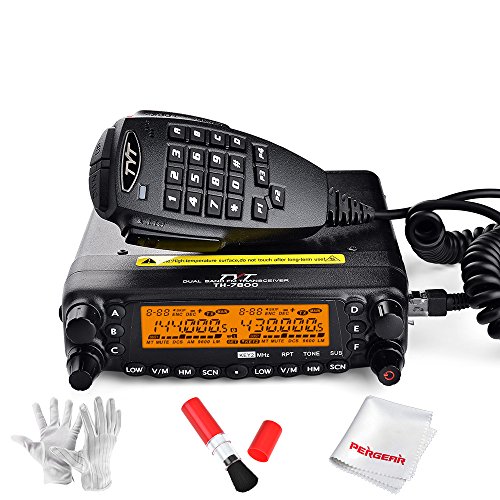

-. Title : TYT TH-7800 50W Dual Band Dual Display Repeater Car Truck Ham Radio
-. UPC : 713543693508

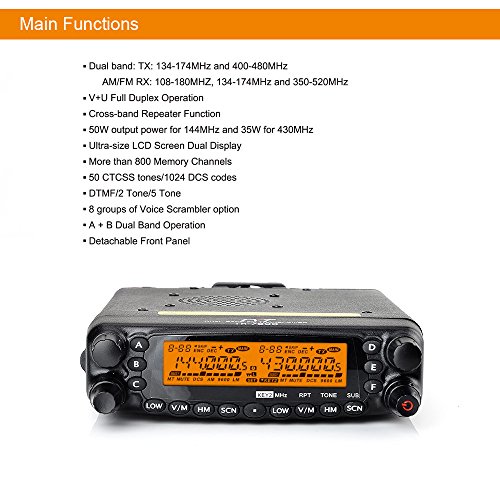

Main Functions:

* Dual band: TX: 134-174MHz and 400-480MHz
AM/FM RX: 108-180MHz, 134-174MHz and 350-520MHz
* V+U Full Duplex Operation
* Cross band Repeater Function
* 50W output power for 144MHz and 35W for 430MHz
* Ultra-size LCD Screen Dual Display
* More than 800 Memory Channels
* 50 CTCSS tones/1024 DCS codes
* DTMF/2 Tone/5 Tone
* 8 groups of Voice Scrambler option
* A+B Dual Band Operation
* Detachable Front Panel

Specification:

Frequency Range Dual band: TX: 134-174MHz and 400-480MHz
AM/FM RX: 108-180MHz,134-174MHz and 350-520MHz
Channel Capacity 809 channels
Channel Spacing 2.5/5/6.25/10/12.5/15/20/25/50KHz
Modes of Emission F3
Antenna Impendence 50 Ohms, unbalanced(Antenna Duplexer bulit-in)
Frequency Stability ±5 PPM@-140°F~+140°F(-10℃-+60℃)
Operating Voltage -4°F~+140°F(-20℃-+60℃)
Operating Temperature Range 13.8VDC (±15%). Negative ground
Current Cunsumption(Approx) RX: 0.5A (Squelched)
TX:8.0A (50/430MHz), 8.5A(29/144MHz)
Case Size(WXHXD) 140x41.5x168mm (w/0 knobs & connectors)
Weight(Approx) 2.2lb(1Kg)

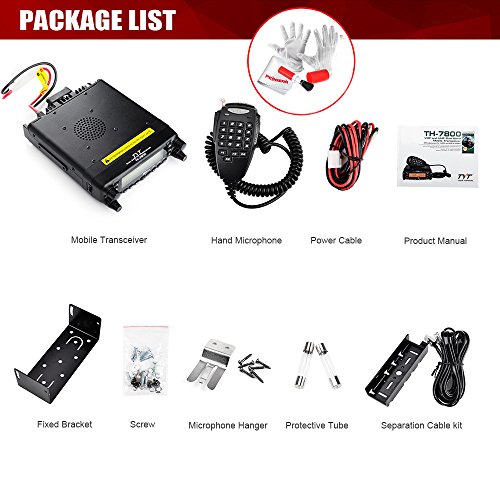

Package contents:

1* TYT TH-7800 Radio unit

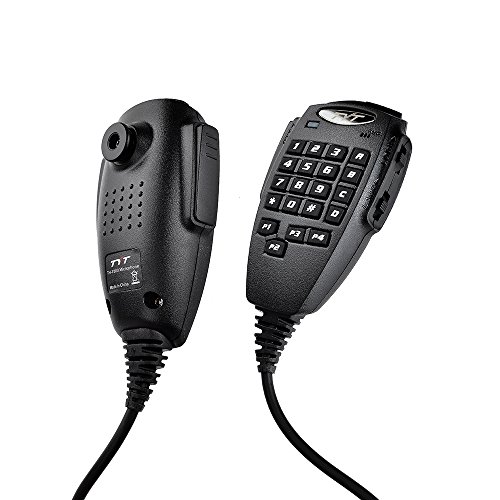

1* Keypad DTMF microphone
1* Radio body mounting bracket
1* DC power cable with fuse holder
1* Front controller separation cable
1* Front controller mounting bracket
1* Screw packs
1* Protection fuses
1* User manual
1* Pergear Cleaning Kit
