Item Descriptions:

Product description

To illumination, to signboards and street lamps, to work lights and light fixtures 1. Always energize mode Turn the setting knob at the center of the main unit to the position of "always energized".

Regardless of the light sensor or timer, it is always on.

2. Optical Sensor Mode Turn the setting knob in the center of the main unit to the position of "Optical sensor function only".

It turns on automatically when the surroundings are dark (20 to 30 lux or less), and turns off automatically when it gets bright.

3. Light Sensor + Timer Mode Turn the setting knob at the center of the main unit to the position (2 · 4 · 6 · 8) of "Light sensor + timer".

It turns on automatically after 3 to 5 seconds when dark (20 to 30 lux or less) turns on automatically, and turns off automatically when the set time comes (even when the timer is running, the surroundings become bright, the light sensor reacts

It automatically turns OFF regardless of the timer).

Package form Prestar mount size H240 × W190 × D50 (mm) Applicable electric appliances ● Lighting equipment 750 W or less Street lights, garden lights, illuminations, lighting fixtures, etc. ● Heater use equipment 1,500 W or less ● Transformer equipment 750 W or less ● Motor used

Instrument ※ It can not be used for air conditioner.

Specification Input AC 100 V, 50/60 Hz Power consumption 1 W Connection capacity Maximum 1500 W (Lighting fixtures up to 750 W) Optical sensor sensitivity 20 to 30 lux * Timing of ON / OFF timing shifts depending on the orientation, angle, weather etc of this machine installation

there is.

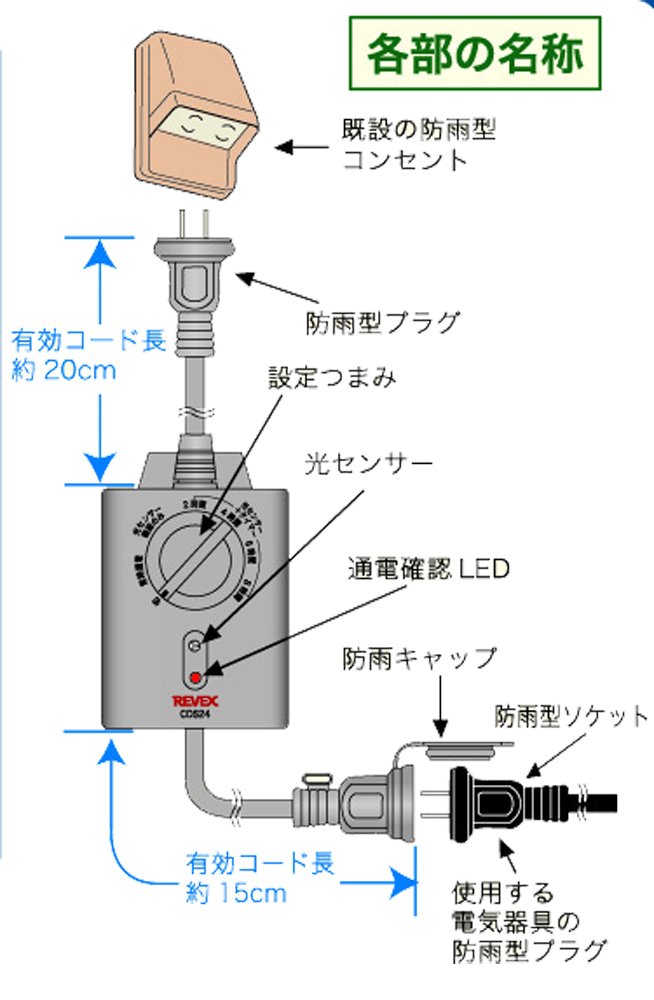

Timer setting time 2, 4, 6, 8 hours Effective code length Input side: 20 cm, Output side: 15 cm Body size W 70 × H 110 × D 45 (mm) Weight 280 g Production area China

From Amazon

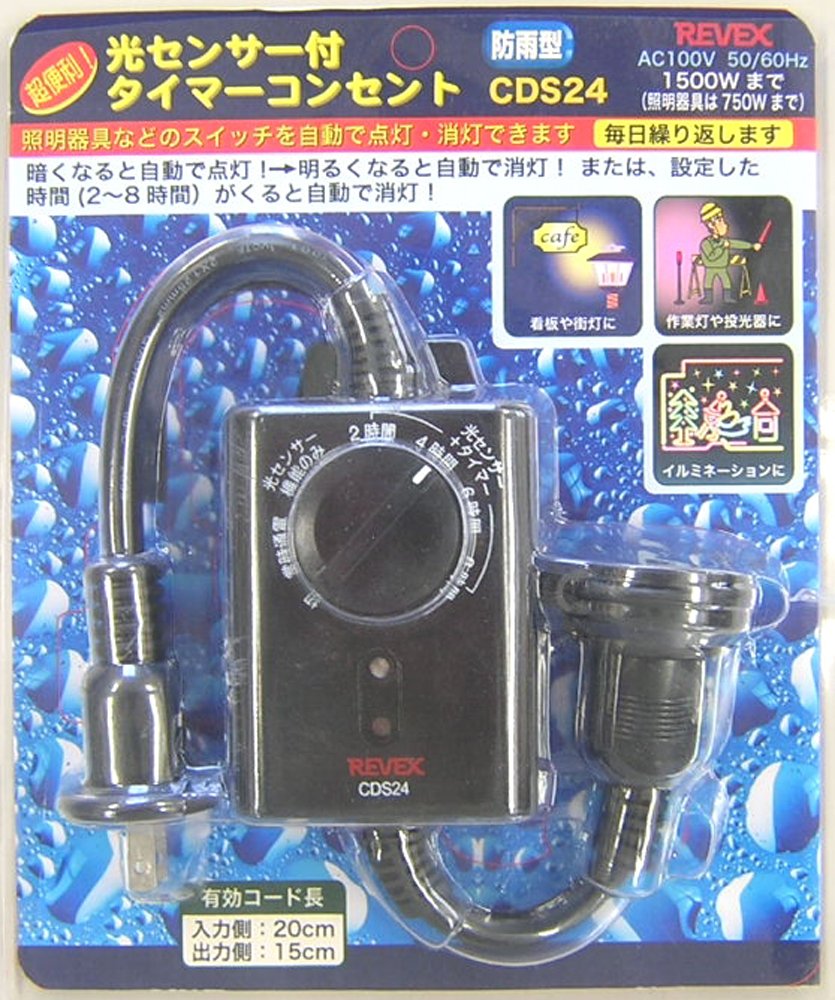

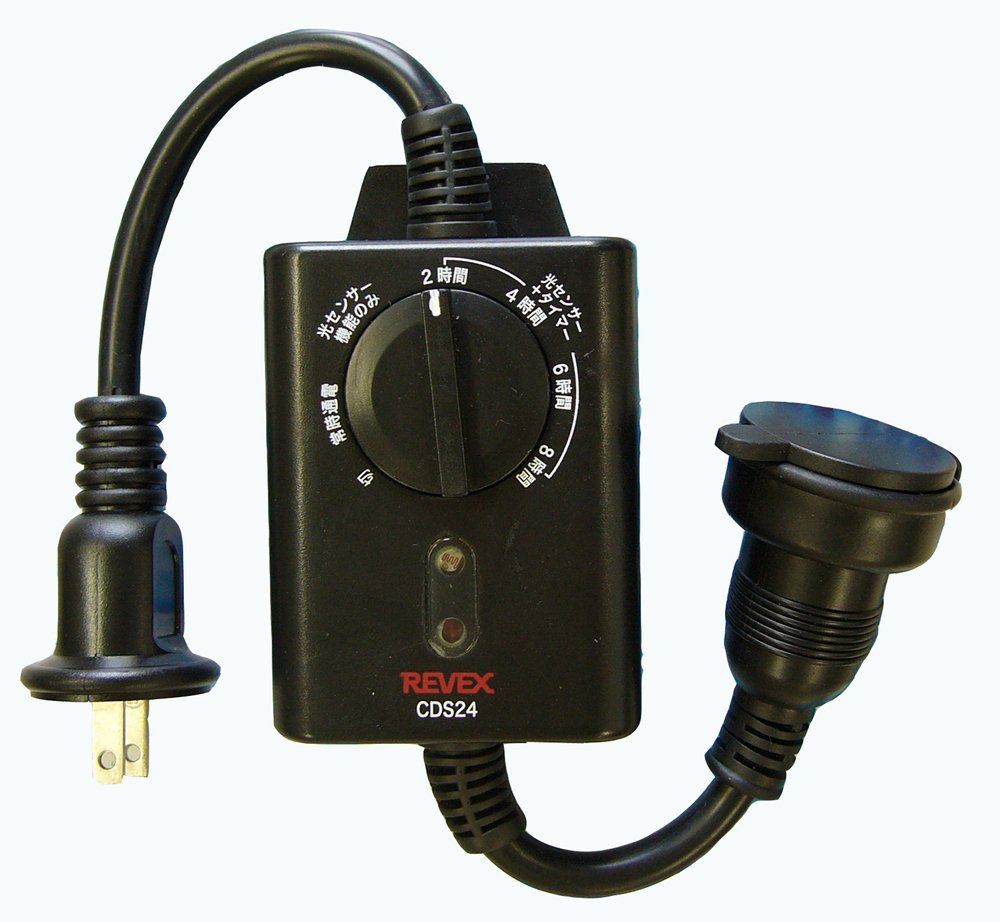

Timer receptacle with light sensor (rainproof type)

A timer that allows you to "turn on / off" the appliance switch automatically and many times.

Economical without wasteful electricity.

It turns on automatically when it gets dark, turns off automatically when it gets bright, or turns off automatically when the set time (2 to 8 hours) comes.

Once set it can be used repeatedly everyday

Useful and useful

To signboards and street lamps.

Illumination also turns on automatically.

For work lights and floodlights

Three convenient operation modes

1. Always energized mode

Turn the setting knob at the center of the main unit to the position of "Always energize".

Regardless of the light sensor or timer, it is always on.

2. Optical sensor mode

Rotate the setting knob at the center of the main unit to match the position of "optical sensor function only".

It turns on automatically when the surroundings are dark (20 to 30 lux or less), and turns off automatically when it gets bright.

3. Light sensor + timer mode

Turn the setting knob at the center of the main unit to match the position of "light sensor + timer" (2, 4, 6, 8 hours).

It turns on automatically after 3 to 5 seconds when dark (20 to 30 lux or less) turns on automatically, and turns off automatically when the set time comes (even when the timer is running, the light sensor reacts and the timer

It automatically turns OFF regardless of it)

Applicable appliances

● Heater use equipment 1500 W or less

Electric kettle, electric carpet, toilet seat and so on.

● Equipment used for transformers 750 W or less

TV, stereo, AV equipment etc.

● Equipment using motor 400W or less

Fan, ventilation fan, pump etc.

● Lighting equipment 750 W or less

Fluorescent light, stand, illumination etc.

※ It can not be used for air conditioner · cooler

* It may be unusable for automatic operation electric appliances by remote control, sensors, etc., and appliances with built-in electronic timer

* How to check unusable appliances / Insert electric appliances you want to use into outlets etc. in your house, turn on the power and operate it.

Next, with the power turned on, unplug the power outlet, plug it in again, and those that do not turn on can not be used with this timer

※ There may be times when it is necessary to reset the clock after use

Features:

• Size: W70 × H110 × D45 mm
• Body weight: 280 g
• Material · Material: PC (polycarbonate), ABS (acrylonitrile · butadiene · styrene) resin
• Country of Origin: China
• Rated voltage: AC 100 W 50/60 Hz
• Maximum rated input power: 1500 W
• Power consumption: 1 W
• Optical sensor sensitivity: 20 to 30 lux
• Setting time: 2 · 4 · 6 · 8 hours * Reset when it gets brighter than 5 seconds

Product information:

Shipping Weight: 371 g

Package Dimensions: 5.10 x 19.99 x 24.00 cm
