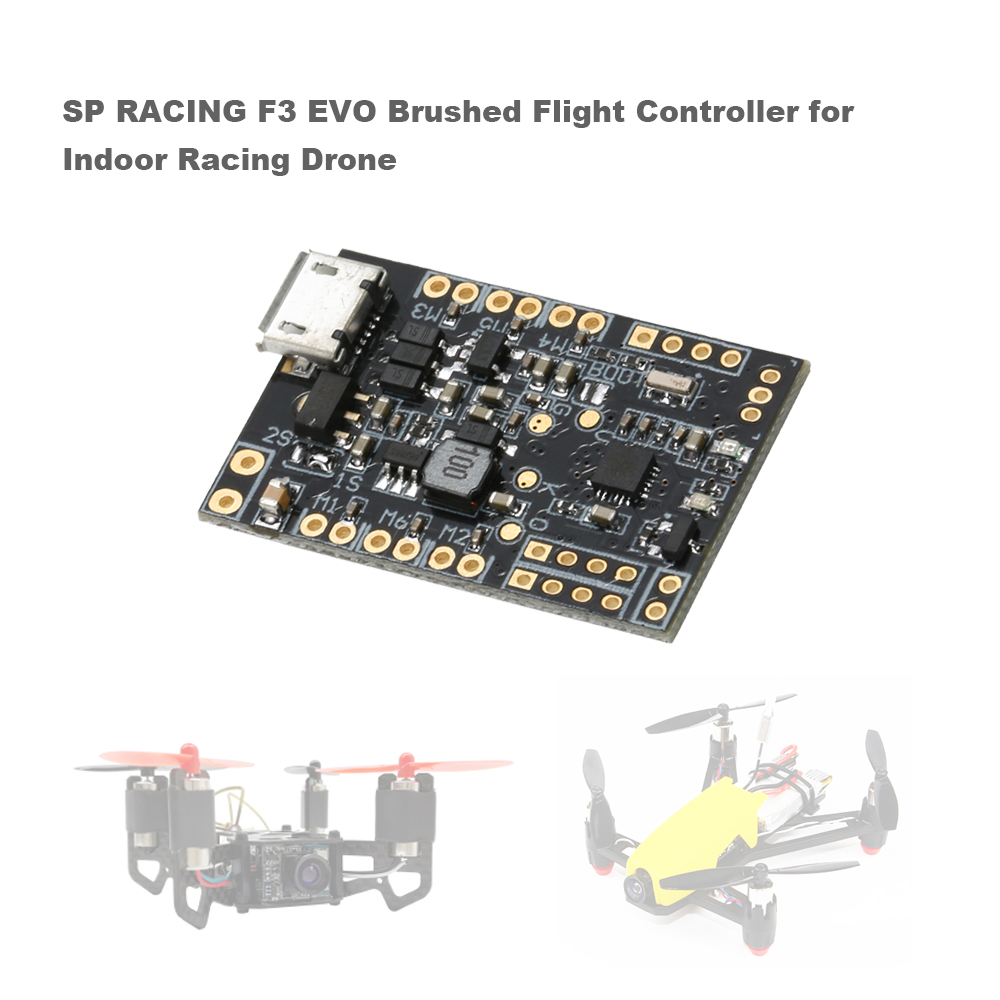

This brand new SP RACING F3 EVO Brush Flight Controller is developed on the basis of F3 EVO SP RACING， which is based on the SP Racing F3 EVO firmware. This mini brush flight controller is designed for mini racing drone， can be applied on both quadcopter and hexacopter.
Features:
Super mini and lightweight， only weighs 3g.
F3 EVO Brush is a 32 bit brush flight controller developed out of the F3 EVO SP RACING， based on a SP RACING F3 EVO firmware.
The flight controller support 1S (4.2V) and 2S (8.4V) power supply， 2S power can provide more violent flying experience. (In order to use 2S power， you need to cutoff "1S" and connect "2S" on the controller board.)

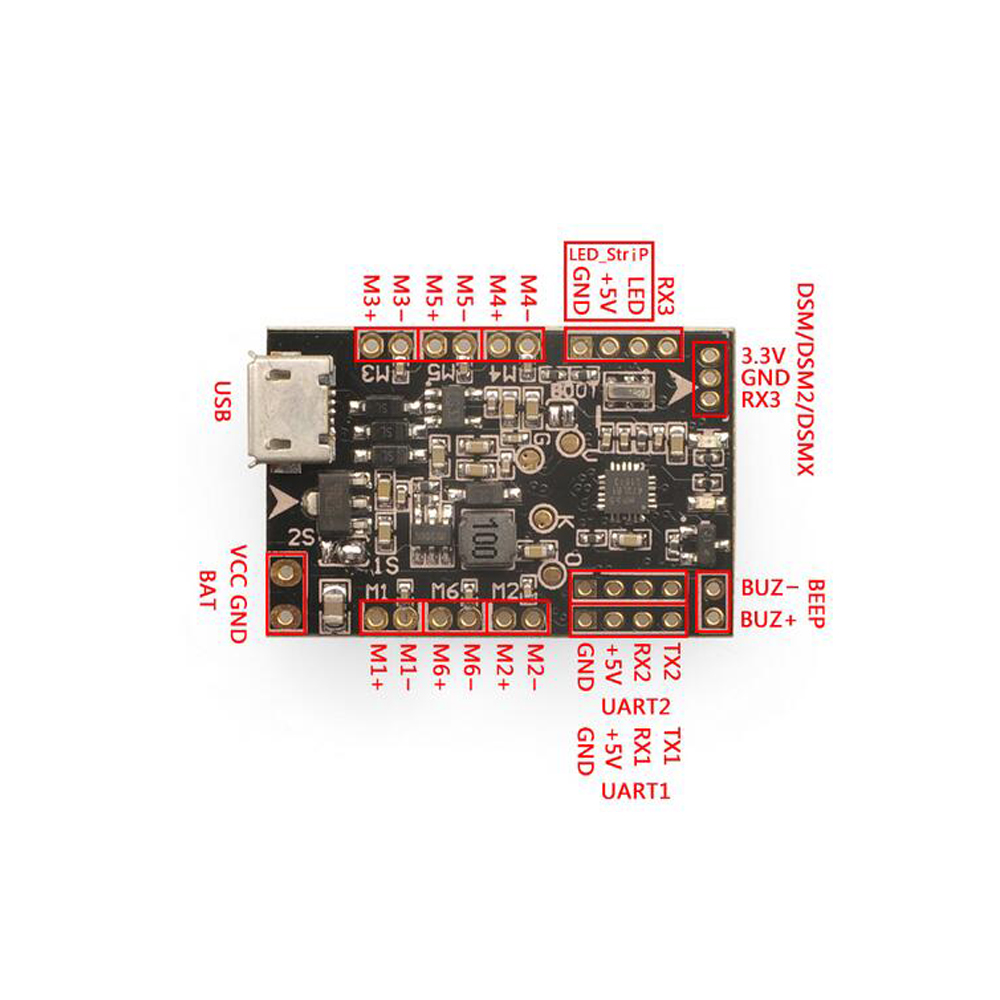

Independent design of the circuit structure， comes with the pressure reduction technology， whether it is 1S or 2S power input， UART1/2 output 5V， UART3 output 3.3V.
Using STM32F303CCT6 + MPU6500， advanced hardware platform F3 guarantee more stable flight.
With a large current MOS transistors， operating current of up to 10A or more. Each machine is equipped with freewheeling diodes.
Support for PPM， SBUS， DSM receiver input signal.
With battery voltage detection and buzzer interface.
In support of the world almost all coreless motor， including 1020 coreless motor.
Specifications:
Input power: 1S / 2S (4.2V / 8.4V)
Signal support: PPM， SBUS， DSM
Motor support: All RC coreless motor
Item dimension: 33 * 22 * 5mm
Item weight: 3g
There might be deviation due to manual measurement.
Package information:
Package size: 5 * 3 * 0.7cm / 2 * 1.2 * 0.3in
Package weight: 5g / 0.17oz
Polybag package
Package list:
1 * F3 Brushed Flight Controller
1 * Power cable
1 * Double sided tape
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
