Alightings RGB LED Connector for 4Pin 5050 Non-Waterproof LED Strip Lights- Strip to Wire Quick Connection, 20 - 18 AWG Wire No Stripping











For 3pin Waterproof


For 5pin Non-waterproof


10pcs 4pin RGB Strip Connector


Kit: 10pcs Gapless, 10pcs Connectors


50 Pcs Strip to Wire


Diy Strip to Wire


For Rgbw Waterproof


Strip to Strip


For 5050 Non-waterproof

Product Description

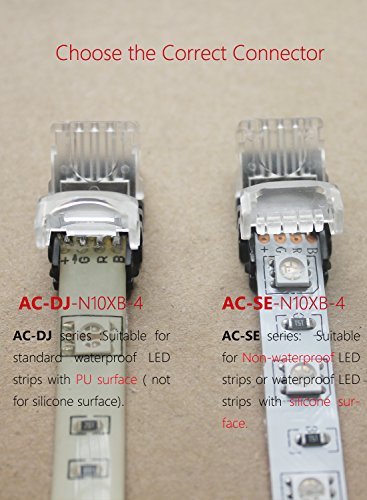

NOTE: 1.Make sure your section of LED light strip is 10MM wide 4 PIN NON-WATERPROOF RGB LED Strip.
2 .Need to peel off the silicone on the surface of led light strip when you want to connect WATERPROOF LED strip.
3. Ensure your Wire Diameter 22-20AWG and without stripping wire .

Firmly bite through led light strip, don't like traditional connector only conductive connection
Updated version of LED strip connector, assemble wire by yourself as needed, flexible to different project! Both solderless for rgb led strip and wire joint. Just clasp your prepared led strip section into the connector to get connected. worry-free solution for non-waterproof 5050 4pin LED light strip connection and extension needs,extension for whatever the wire length you want to connect.  compatible with 30-120 LEDs/M strip, made of flame retardant material, safely use. Support high current LED strip lights.
Solderless Wire Joint Quick Splice Connector for 22-20awg Cable
Our products were an innovative safe and quick wire connector,peeling free,tapping free and twisting free. well waterproof and dust proof function. it greatly changes the way of wire connection .it allow any users to just insert the wire into wire joint and press cover by pliers to connect the wire safely and conveniently.

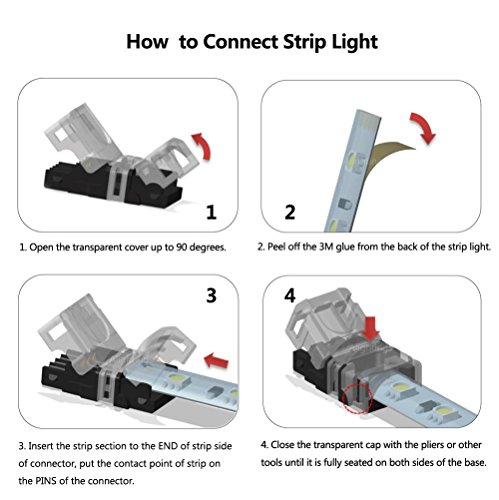

Installation Instructions:
Strip End:
1.Open the transparent cover of connector up to 90 degrees.
2 .Insert led strip section to the END of led strip connector, put the contact point of led strip on the PINS of the connector.
3. Close the transparent cap with a plier
Wire End :
1.Cut the desired wire length and insert it directly into the guide slot.
2.Make sure that the positive & negative on the led strip light surface are corresponding to the ones on the wires.
3.Close the transparent cap with a plier.
4. End of installation.
Package :

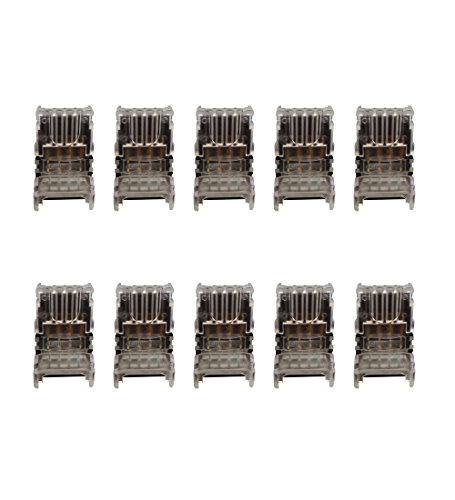

10 pcs Strip to Wire Connectors

Feature

This LED Strip Connector Suitable for 4 pin 10mm 5050 NON-WATERPROOF led light strip, One end for RGB extension wire and another end for Non-waterproof rgb led strip, Use these with the 4 core extension wire to get lighting exactly where you want it
Connect led strip to wire: Can DIY custom wiring, without stripping wire, no soldering,Compatible with 22-20awg 4 conductor wire, solid wire or stranded wire, Use these with the 4 core extension wire to get lighting exactly where you want it
Firmly bite through led light strip, don't like traditional led strip connector only conductive connection, it is a solid connection and much stronger
Should peel off covered silicon on the surface around soldering line area, if you want to connect WATERPROOF led light strip
Alightings Products are sold and shipped by Alightings. If you purchase a product from another seller, please request a refund as it is a counterfeit. Alightings is the only Authorized Dealer of Alightings products.
Brand : Alightings
Item model num : SYNCHKG106030
MPN(PartNumber) : COMINHKG106030
EAN : 0647336181166
Package Dimensions(LxWxH) : 16x8x2cm ; 23 g
