Item Descriptions:

size:

Left handle

appearance

It is a novelty or fashion appearance.

It is used for wooden doors and aluminum doors.

Two types of code (master code and user code).

Easy to replace, install exit lock.

Characteristic

Opened with three emergency override keys, opening the lock for emergency events by code.

4 AA 1.5V alkaline battery is required.

(It is not included in the package)

Battery life: Approximately 20,000 times (about 1 year, up to the alarm you need to replace the battery within 10 days).

You can store one group master code and a group of nine user codes.

Alarm when battery power is low.

Alarm occurs when an error code is input.

It is suitable for door bolt size of 55 - 60 mm.

specification

Suitable for door thickness: 35 - 50 mm (standard 2 3/8 "back set)

Material: Zinc Alloy (Rust Prevention)

Style: Left Handle / Right Handle (Option)

Rock rod thickness: 8 mm / 0.3 "

Bolt: 50 mm / 1.97 in

Battery: 4 * 1.5 V AA battery (not included)

Current work: ≤ 300 mA

Static power consumption: ≤ 10uA

Outside size: about 13.5 * 14 * 20 cm / 5.3 * 5.5 * 7.9 in (L * W * H)

Center latch on top: about 9.5 cm / 3.7 "

Center latch below: about 7.5 cm / 3.0 "

Internal size: about 13.2 * 4.7 * 10.3 cm / 5.2 * 1.9 * 4.1 in (L * W * H)

Center latch on top: about 4.5 cm / 1.8 "

Center latch below: about 3.2 cm / 1.3 "

Product weight: Approximately 1438 g / 50.7 oz

Notes and package list

Please confirm that your door requires a left or right handle to avoid unnecessary troubles.

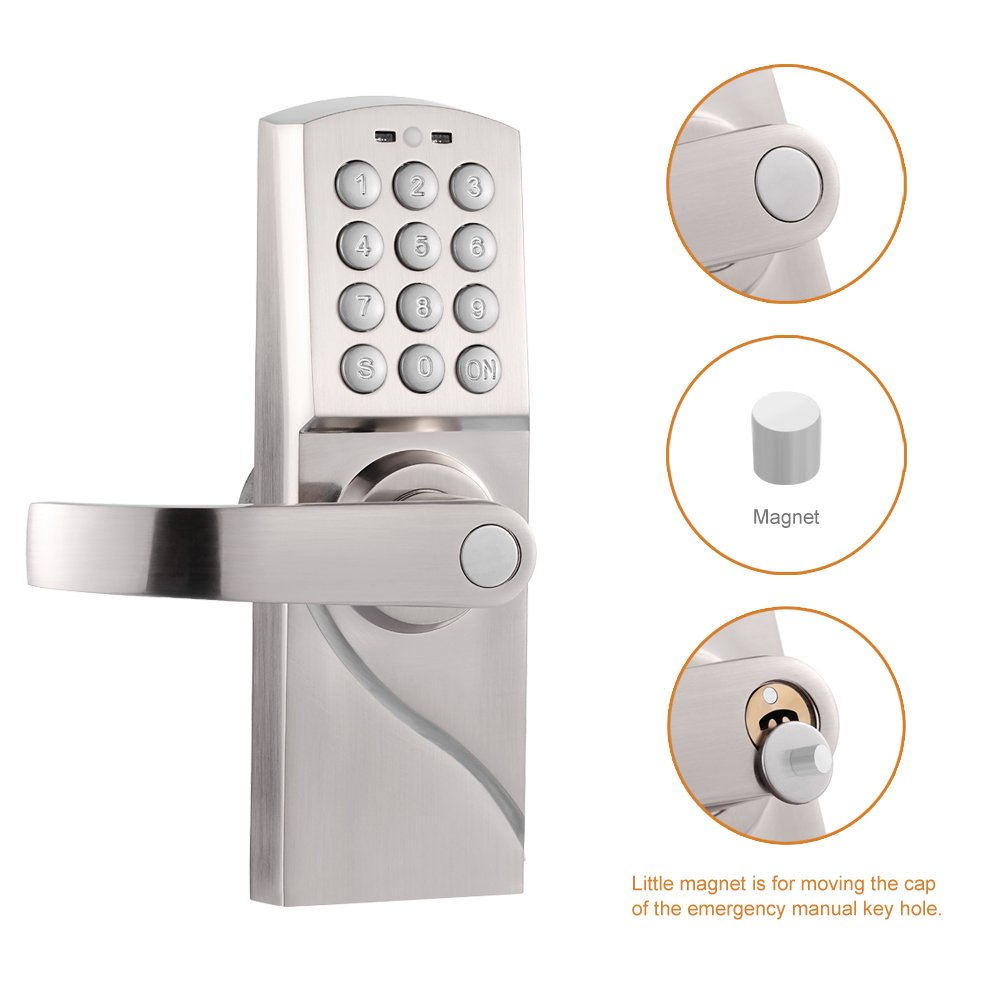

Little magnet moves cap of manual keyhole in emergency.

Each time you turn on the input code and unlock it is necessary to wait until the indicator turns off.

Master code and original code, that should not be forgotten.

Please carefully read the instructions before you install and use the lock.

Please keep this instruction manual carefully.

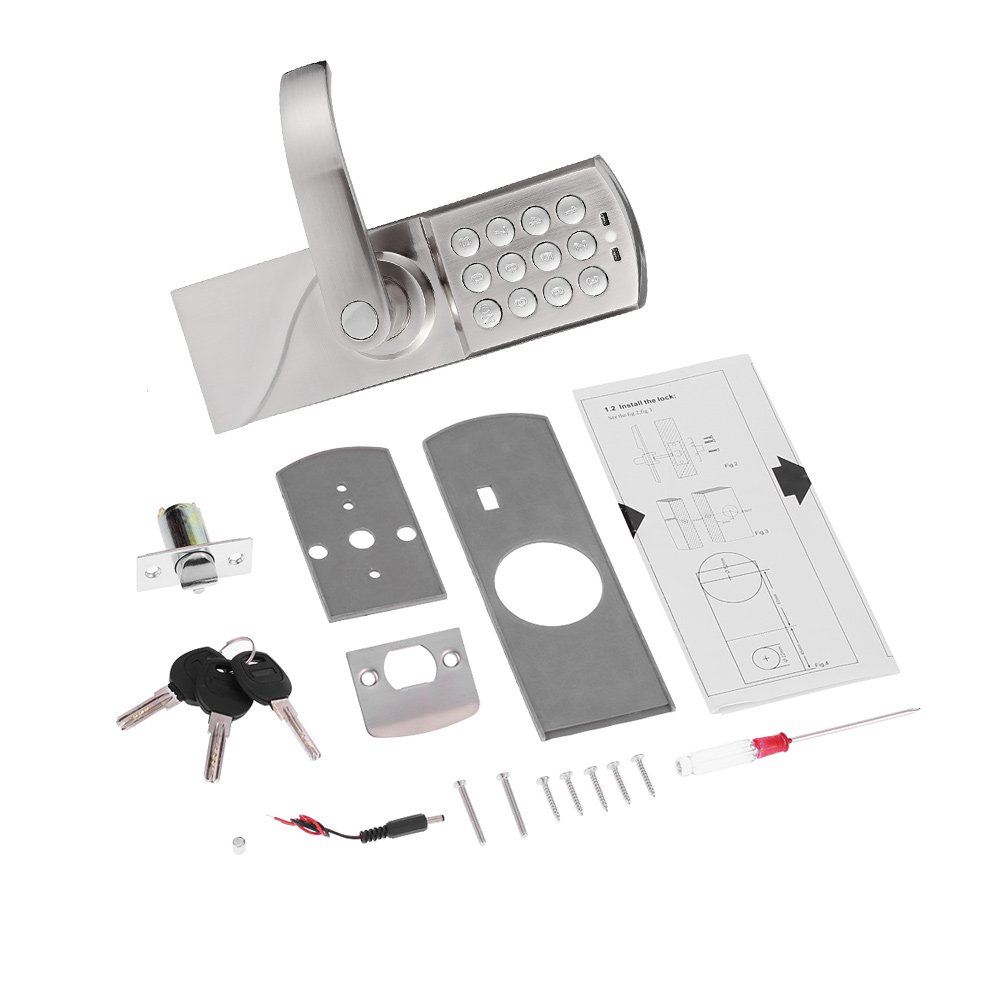

Package list:

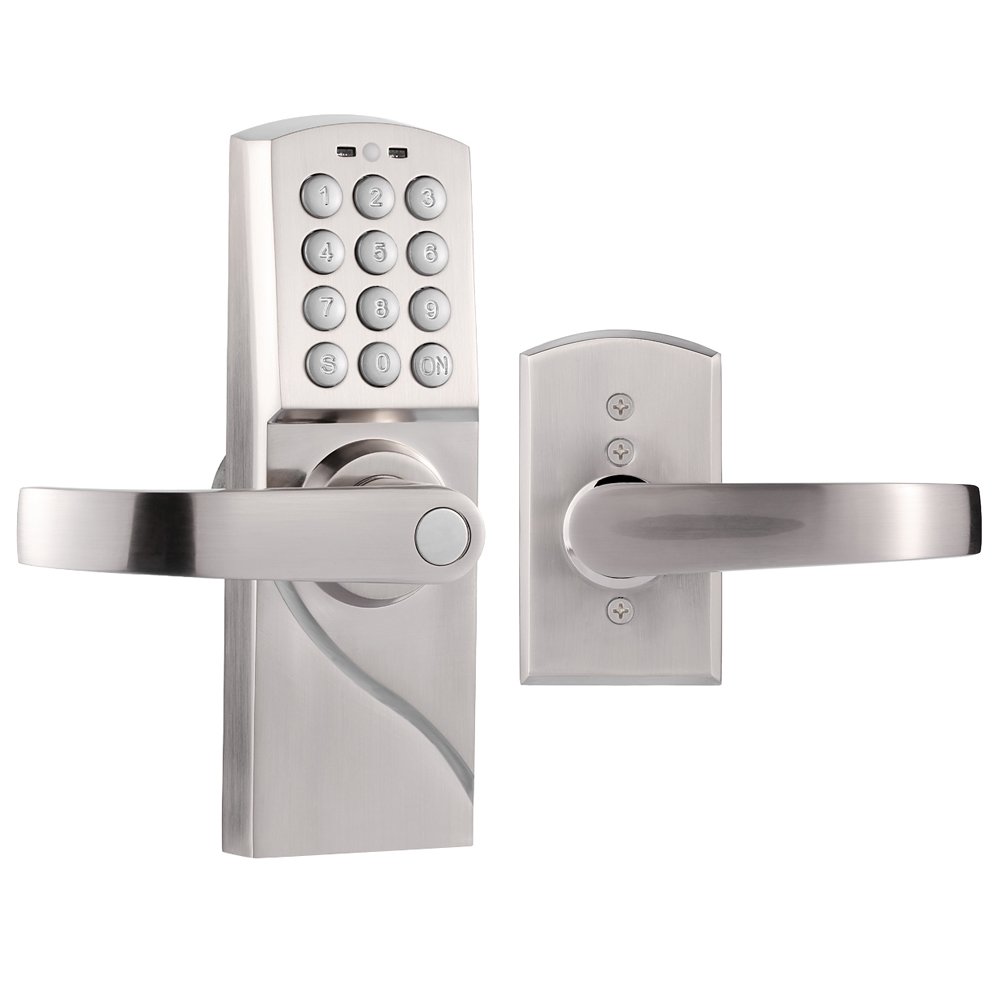

1 * Lock out side handle

1 * lock inside handle

3 * key

1 * Installation accessories (screw & nut & washer)

1 * User manual

Features:

• It is a novelty or fashion appearance.
• It is used for wooden doors and aluminum doors.
• Two types of code (master code and user code).
• Easy to replace, install exit lock.
• Opened with three emergency override keys, opening the lock for emergency events by code.
• 4 AA 1.5V alkaline battery is required.
• (It is not included in the package)
• Battery life: Approximately 20,000 times (about 1 year, up to the alarm you need to replace the battery within 10 days).
• You can store one group master code and a group of nine user codes.
• Alarm when battery power is low.
• Alarm occurs when an error code is input.
• It is suitable for door bolt size of 55 - 60 mm.

Product information:

Shipping Weight: 1900 g

Package Dimensions: 19.41 x 24.99 x 27.79 cm
