Item Descriptions:

Detects infrared rays emitted by people and animals, and automatically shoots movies and still images.

Night photography is also possible using infrared irradiation.

There are a wide range of applications as monitoring and security cameras and crime prevention, such as surveillance at ranches and agricultural wildlife damage and parking lots where there is no power supply.

Using the included belt, you can easily fix it to wood and balls.

"if you thought it was a malfunction

It seems that the power does not turn on.

1, Please check whether the battery power is available.

2, Before installing the battery, operate the slide switch to the "OFF" position.

3, Please check whether it is connected with correct polarity.

Please install 8 batteries.

4, Please check whether the speed of SD card has reached CLASS 10.

Please try also to replace the SD card.

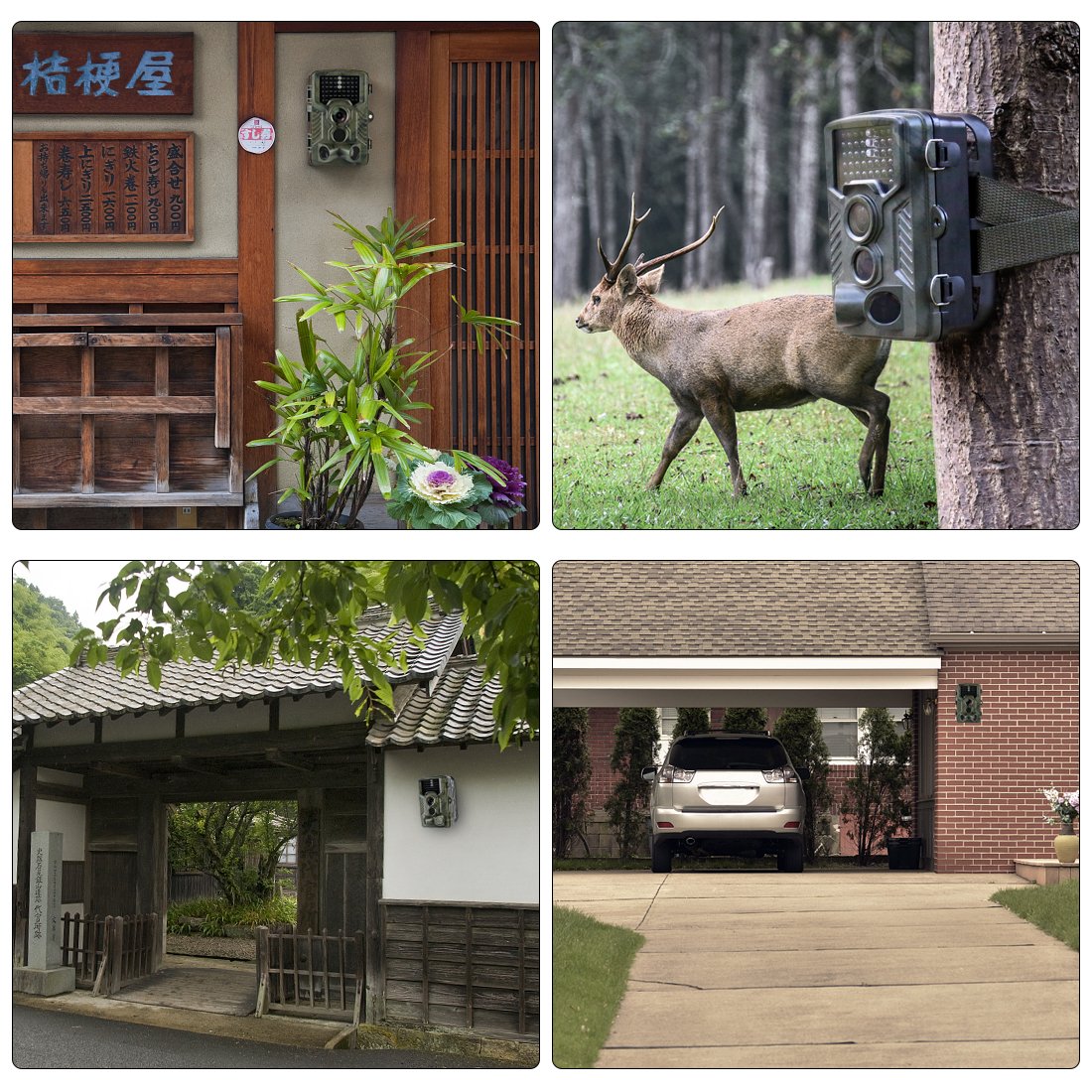

Uses:

Monitoring and crime prevention for places where people's eyes are hard to reach

Ecological observation of animals

Surveillance of private lands (parking lot / mountain forest) etc, acquisition of evidence photograph

Management of a vast site (golf course, field farm, orchard)

Acquisition of check effect, evidence photograph

please note:

I made a Japanese manual, if you contact us we will send you an electronic version by e-mail.

The recording medium is MicroSD card.

(SDHC compatible, 4 GB to 32 GB · class 6 or more)

Japanese instructions are attached.

(To the end of the book)

How to install

Open the lid and insert the batteries.

In case

Insert a memory card.

When putting the power switch in TEST, it will become the setting information screen

Check shooting settings.

Change the setting if there is a setting you want to change.

When turning on the power switch, automatic shooting will be performed after 15 seconds.

Close the lid of the case and install it in the place you want to monitor.

To check photos and videos, turn off the power switch, remove the memory card, put the memory card in your computer, and check photos and movies.

No wiring required!

Battery type surveillance and security cameras that can be used just by placing it

Night shooting with infrared night vision is possible

Recorded images can be checked on the main unit's monitor, TV and PC

It is also fixed to the pillar of the tree etc. in the attached band and also to confirm the damage of beasts in the field

Body size (approx) / th> Width: 95 × depth: 75 × height: 135 (mm)

Body weight (approx.): 353 g (battery not included)

Power system: 4 AA alkaline batteries or 8 AA batteries used

Data recording medium: microSDHC card compatible (4 GB to 32 GB · class 6 or more)

Image sensor: 5 million pixel color CMOS sensor

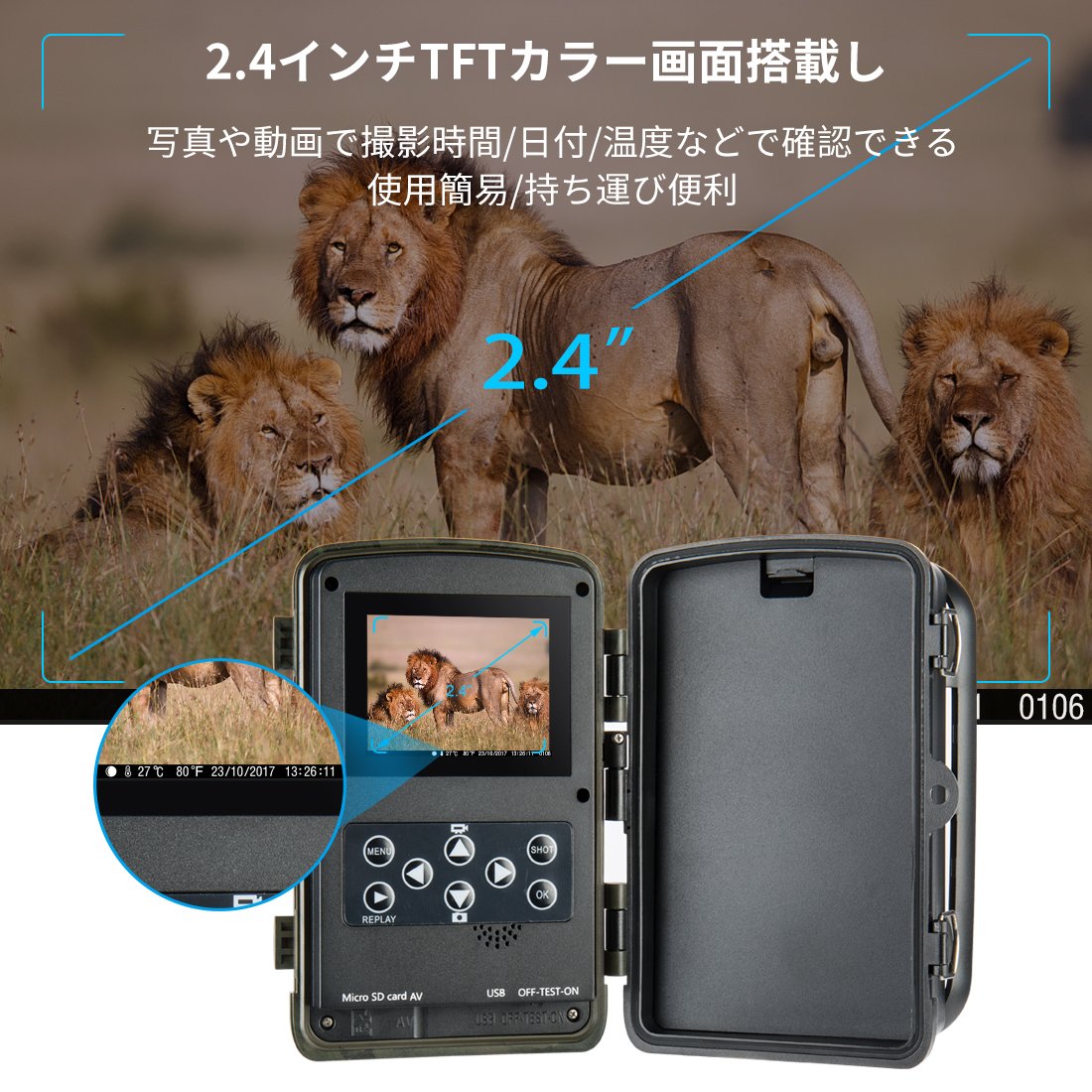

Display: 2.4 inch TFT color liquid crystal

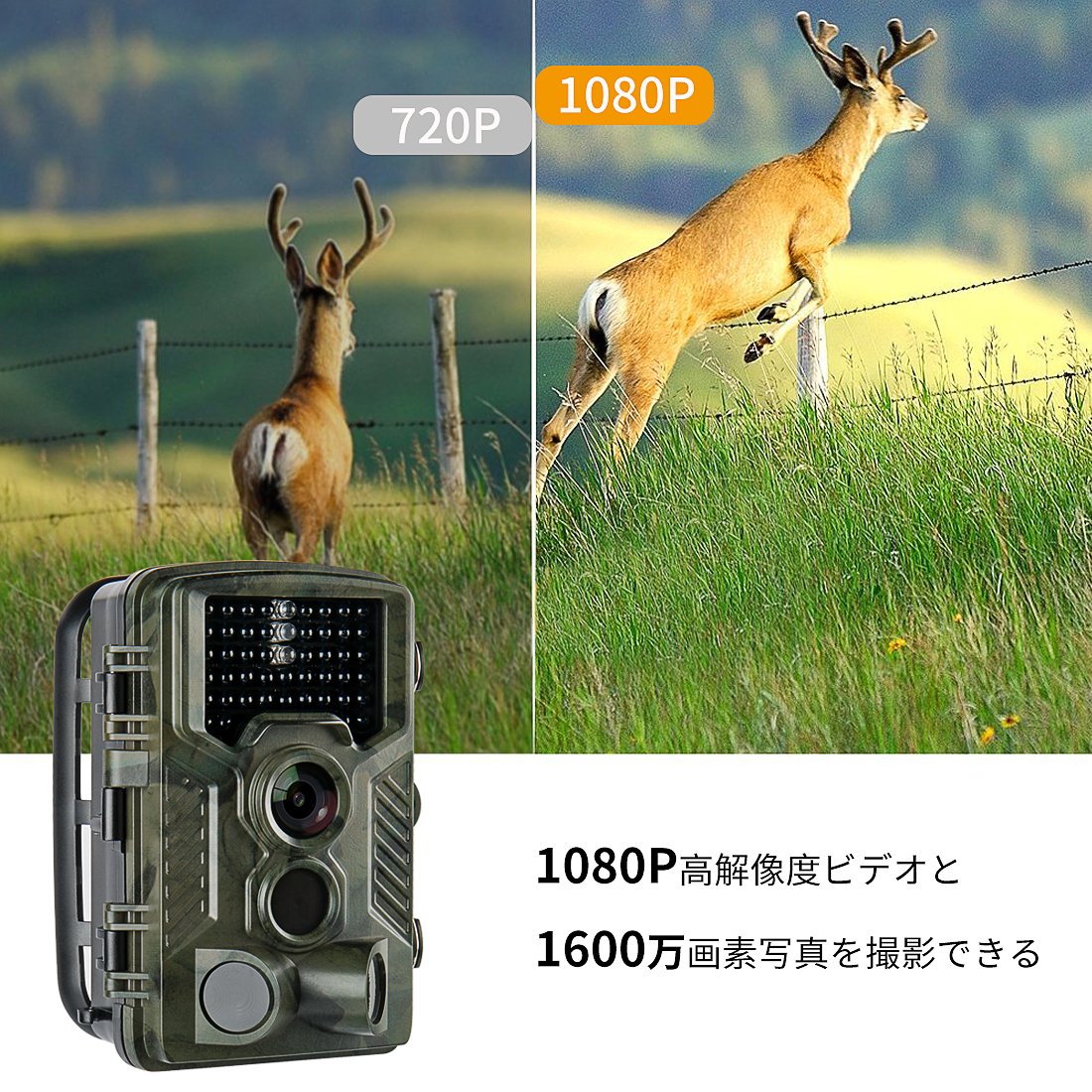

Movie resolution: 1080 FHD (1920 × 1080) / 25 fps other

Infrared irradiation distance (approx.): 20 m

Operating temperature: -20 ℃ ~ 60 ℃

Operating humidity: 5% to 90%

Thermal sensing: 3 levels (high, medium, low)

Heat sensing distance: 25 m (when temperature is 25 ° C. or lower)

Thermal sensing angle: 50 ° / 120 ° (including side heat sensor)

Features:

• Please enter model number Confirm this is compatible:
• 【High Quality & Nighttime Shooting】 ★ We give security to products purchased at Fivanus store.

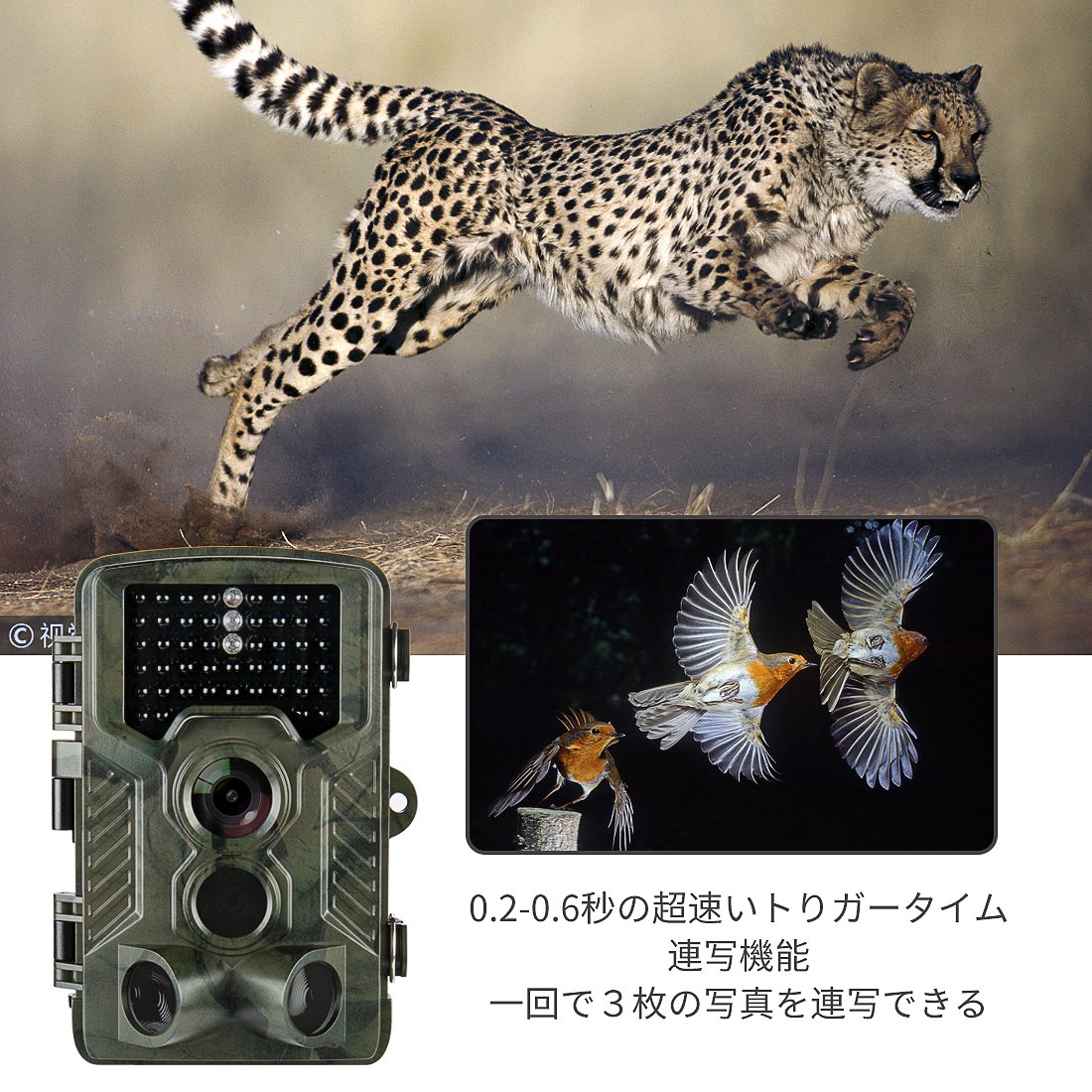

• It is a trigger speed of 0.2 seconds with 16 million pixel night vision camera, so it appears clearly.

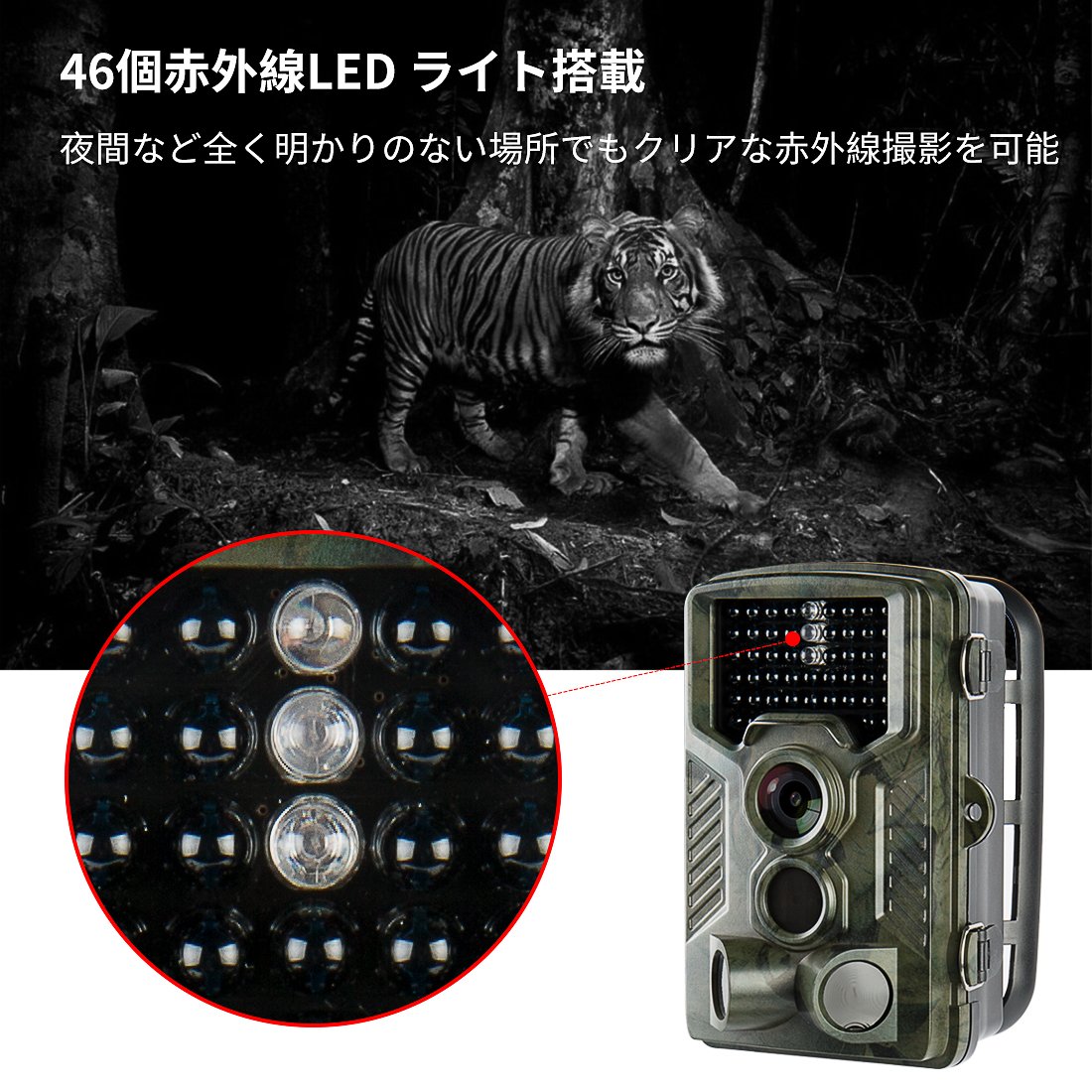

• With 46 pieces of infrared lights, it automatically lights up at night or in dark and keeps shooting.
• High-definition images can be recorded even in places without light sources.
• 【Automatic shooting & Japanese response】 With an infrared camera with a moving body sensor and infrared irradiation function, shooting is performed automatically in response to moving objects if you set in an animal path.
• All setting screens are also changed to Japanese, so it's easy to understand without getting lost.

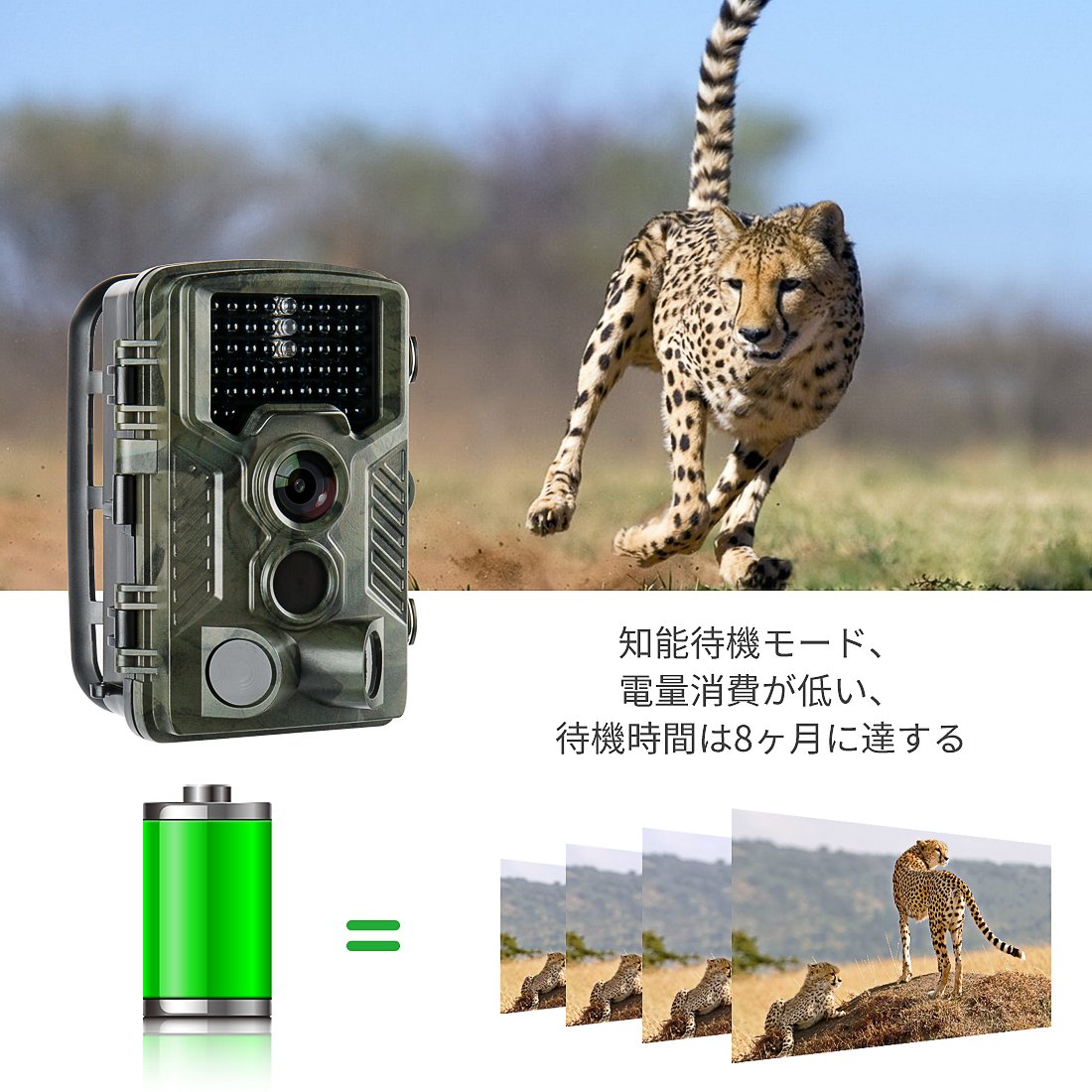

• 【Ultra long standby & waterproof dust】 When using 8 AA size batteries, the maximum waiting time will reach 8 months.
• Since the power source is battery type, wiring work is not necessary.

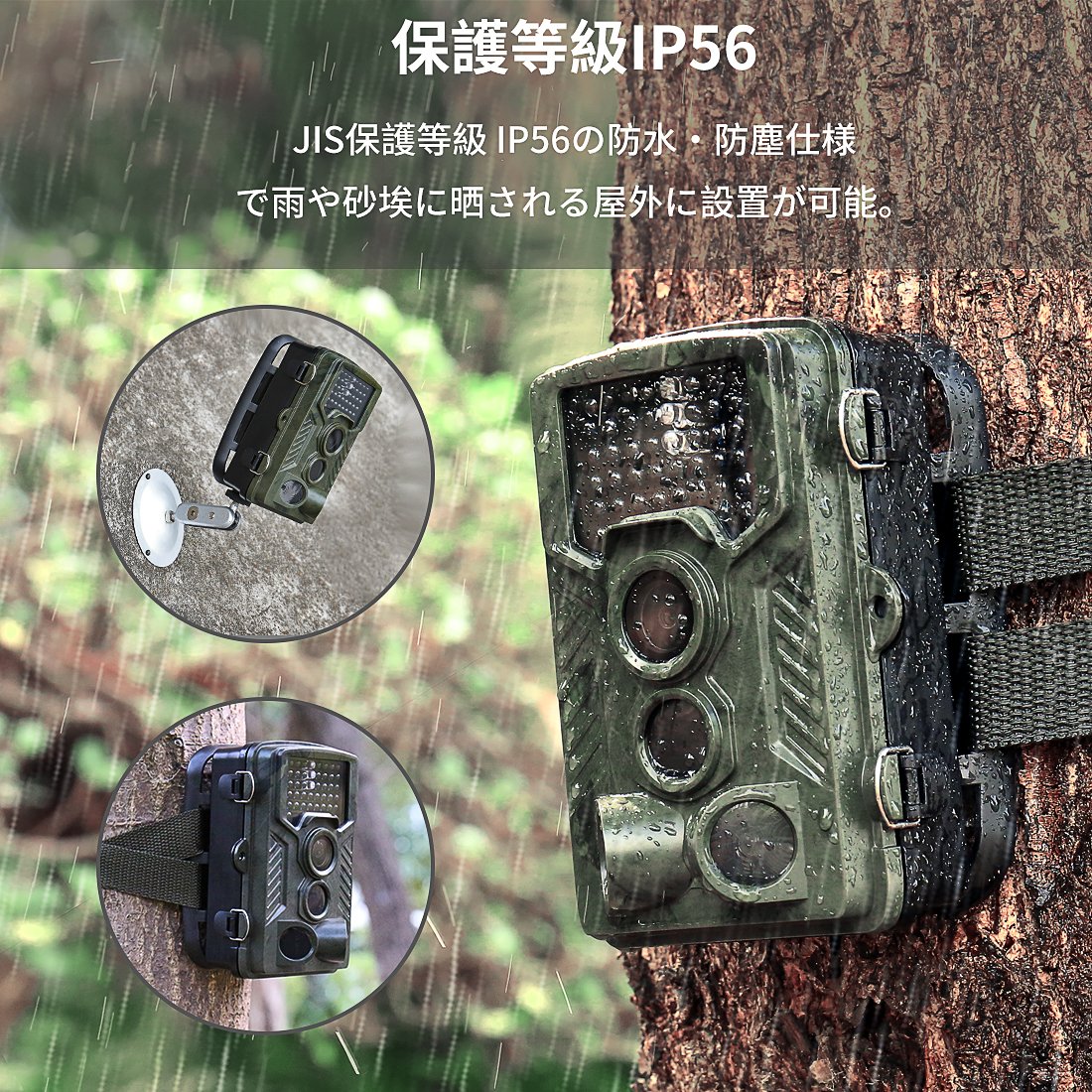

• Moreover, it can be used outdoors with IP 56 waterproof specification, dustproof / rainproof specification.
• 【Security Surveillance & Outdoor Shooting】 It is a super-recommended item that integrates a trail camera, infrared camera, motion detection camera, security camera, surveillance camera, hidden night vision camera, waterproof camera.
• It is also useful for photographing & crime prevention of surroundings of the house, parking lot, bicycle parking lot, field, rice field, wildlife and so on.
• [Easy to Operate & Quality Assurance] The operation to fix the strap is simple, quickly assembles the camera, and it fits the position.
• If you have any questions, please do not hesitate to contact fivanus customer service.

Product information:

Shipping Weight: 689 g

Package Dimensions: 10.90 x 14.61 x 24.89 cm
