Product Description

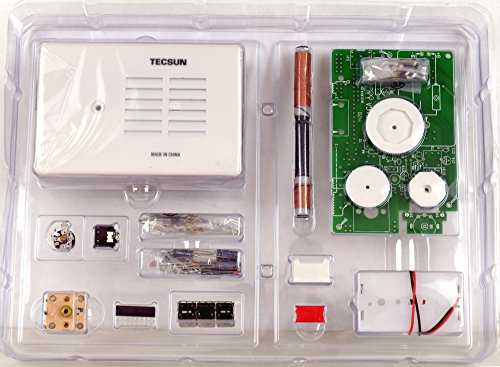

The big issue for a DIY transistor radio is how to make it good, the Tecsun 2P3 radio kit is made to fulfill this demand. The 2P3 comes with electronic components such as transistors, resistors, capacitors, radio knobs, and circuit broad. It lets both hobbyist and DIYers to build their own AM radio receiver with a detailed diagram and instructions. From this DIY, you learn many things that a book can not tell you, It tells you how the Resistors and IC works together to make a radio work, Fun to Do It. It is not like any other kits, this kit comes with a radio case that designed for the radio, so after it is assembled , you can use it as radio and put into your pocket. If you like to get a better user's manual, please click here to get it:www.etsy.com/listing/208723987/2p3-assembly-manual-supplement Tecsun 2P3 AM / MW Radio Receiver DIY Kits - MAKE YOUR OWN AM RADIO Specifications:
Frequency range: 530 kHz ~ 1620 kHz
Power supply: 2 x AA size battery
Sensitivity: < 1mV/m
Max. output: 120mW
Quiescent current: 7mA
Size: approx. 165 x 105 x 29mm
Primary Operation Construction:
Mixing circuit
IF amplifier
Detector
Automatic gain control
Audio amplifier
Components:
- Ceramic capacitors
- Polyester capacitors
- Electrolytic capacitors
- Ceramic filter
- Resistors
- Detector diode
- Diode
- Transistor
- Speaker wire
- Screws
- Nuts
- Hexagonal screw column standoff
- Shield cover
- Case
- Speaker (1W) - Earphone socket (3.5mm) - Potentiometer - Variable capacitor - Audio amplifier - AM oscillator coil - IF transformers - Magnetic antenna - Battery box - Plastic ribbon - Antenna support - Logo - Circuit board - Tuning knob - Volume knob - Non-conductive screwdriver

Feature

Build a high performance AM radio Receiver
DIY for enthusiasts, higher sensitivity than 99% AM radios on the market
Step-by-step Guide included
Great for learning and education
Completed it with a radio case, make it your favorite radio and take it anywhere you want, Tell and Show !
Brand : Tecsun
Item model num : 2P3
MPN(PartNumber) : 2P3
EAN : 0793631064489
Product Dimensions(LxWxH) : 28x21x6cm ; 726 g
Package Dimensions(LxWxH) : 29x21x7cm ; 726 g
