Product introduction

· 35 mm full size · Approximately 21.1 million pixel CMOS sensor · High definition · high speed image processing Next generation image engine "DIGIC 4" loaded.

- Commercial ISO sensitivity 100 to 6400, extended ISO 25600 is also possible.

· EOS series first full HD movie shooting function installed · Up to 3.9 frames per second continuous shooting performance and UDMA support · High speed · High precision 9 points + Assist 6 points AF sensor mounted

From Amazon

Both high resolution and high ISO sensitivity of about 21.1 million pixels are compatible.

Self-developed 35 mm full size CMOS sensor installed

A more refined sense of resolution in video expression.

More clear beauty.

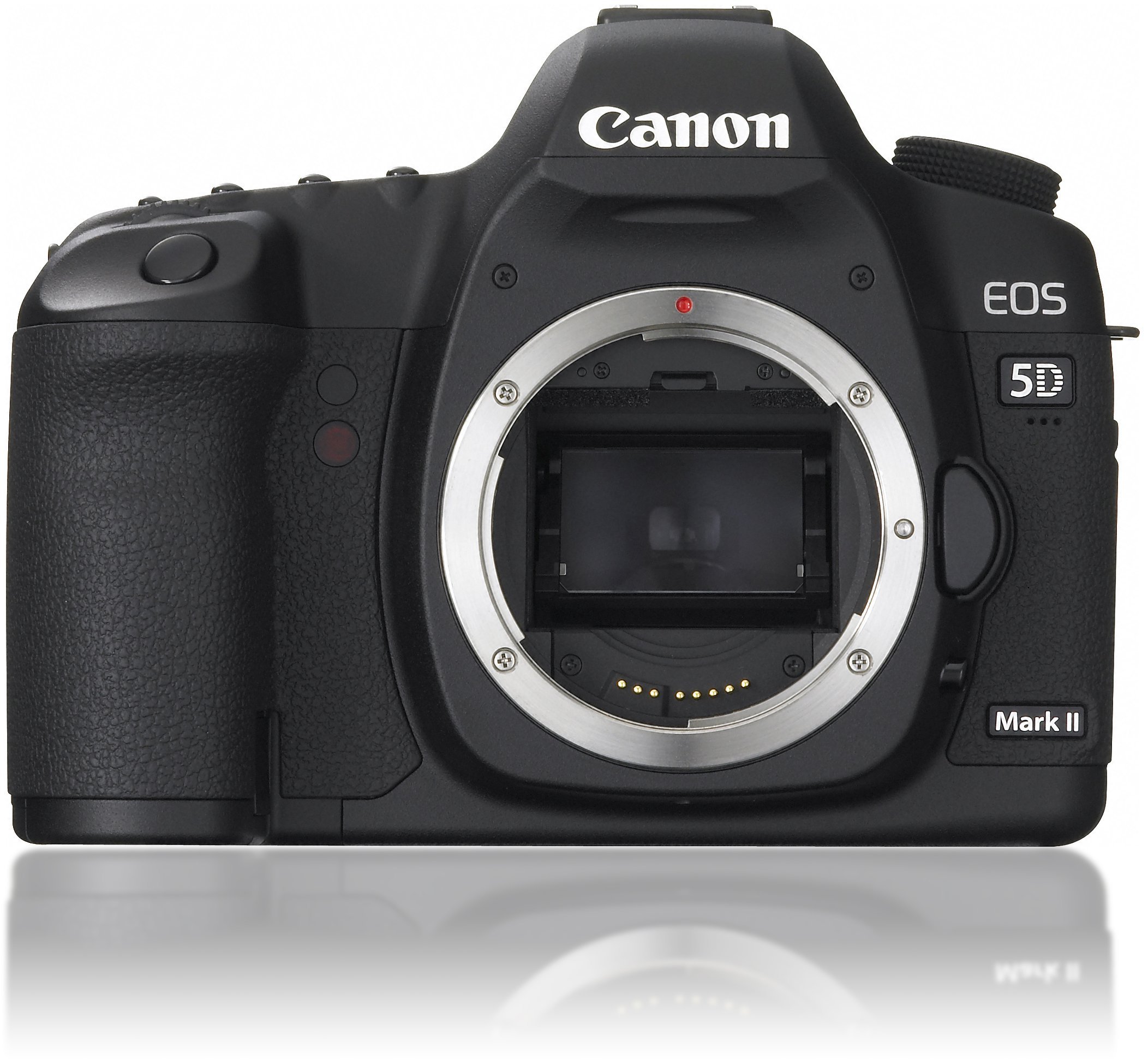

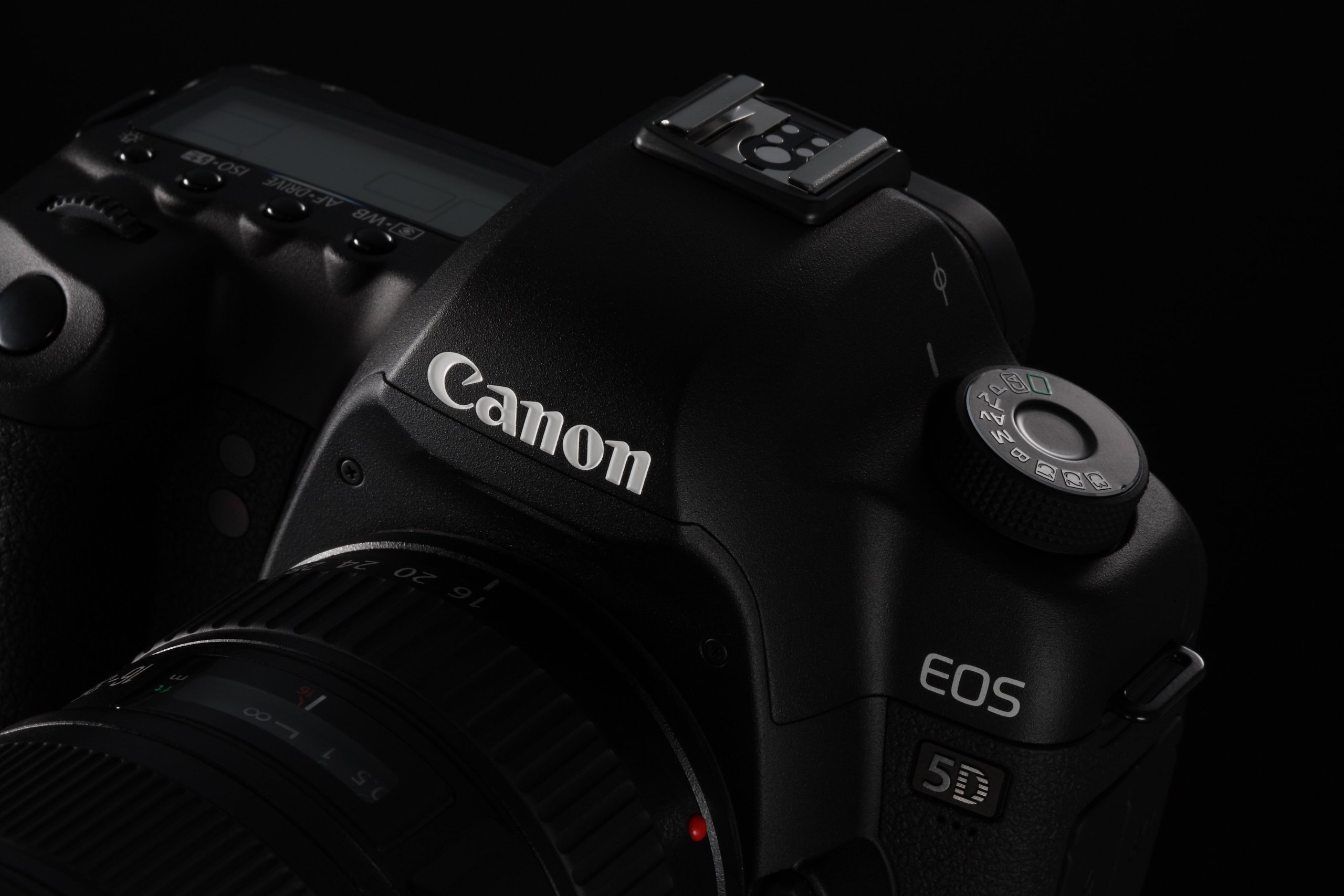

The EOS 5D Mark II is equipped with a newly developed CMOS sensor of 35 mm full size and approximately 21.1 million pixels (effective sensor size is about 36 × 24 mm).

It achieves both high ISO sensitivity and low noise at the same time.

Furthermore, in order to process high-capacity data of about 21.1 million pixels at a high speed, we improved 1-line / 4-channel readout and introduced a high-speed amplifier.

Signal reading is about 2.2 times * compared with conventional models.

In addition, power saving is achieved by reducing power consumption of the output amplifier.

* Compared with EOS 5D.

Advanced technology realizes high resolution, high sensitivity and wide dynamic range

In order to make the two factors of high pixel and high sensitivity compatible at an unprecedented level, the newly developed CMOS sensor of EOS 5D Mark II pursues the most efficient light collection efficiency among the limited sensor size.

Increase aperture ratio by reducing the microlens gap (microlens gap) for each pixel aligned on the sensor.

Furthermore, by further shortening the distance from the on-chip microlens to the photodiode, we achieved further improvement in the light collection rate.

By increasing the amount of light to be taken in, it is compatible with high pixel of about 21.1 million pixels and wide ISO sensitivity (extended L: 50, H1: 12800, H2: 25600) with ordinary ISO sensitivity 100 to 6400, wide dynamic range

I will.

Infrared cut low-pass filter which realizes both sense of resolution and effective false color suppression

Application of the high image quality technology cultivated so far to the low pass filter on the surface of the CMOS sensor.

It consists of two low-pass filters, phase plate, infrared absorption glass.

In order to eliminate the influence of infrared ray which causes deterioration of image quality, a dichroic mirror which reflects infrared light is adopted as a low-pass filter on the forefront.

Together with infrared absorbing glass that absorbs unnecessary infrared rays contained in incident light, it is a hybrid structure that performs ideal infrared light cutting.

Effective reduction of red ghost and fog caused by reflection of sensor surface etc. is also possible.

Furthermore, an optical low pass filter made of three quartz plates suppresses false color and color moiré.

Make full use of lens performance and make good use of our accumulated experiences.

Ideal for digital single lens reflex, "35 mm full size sensor"

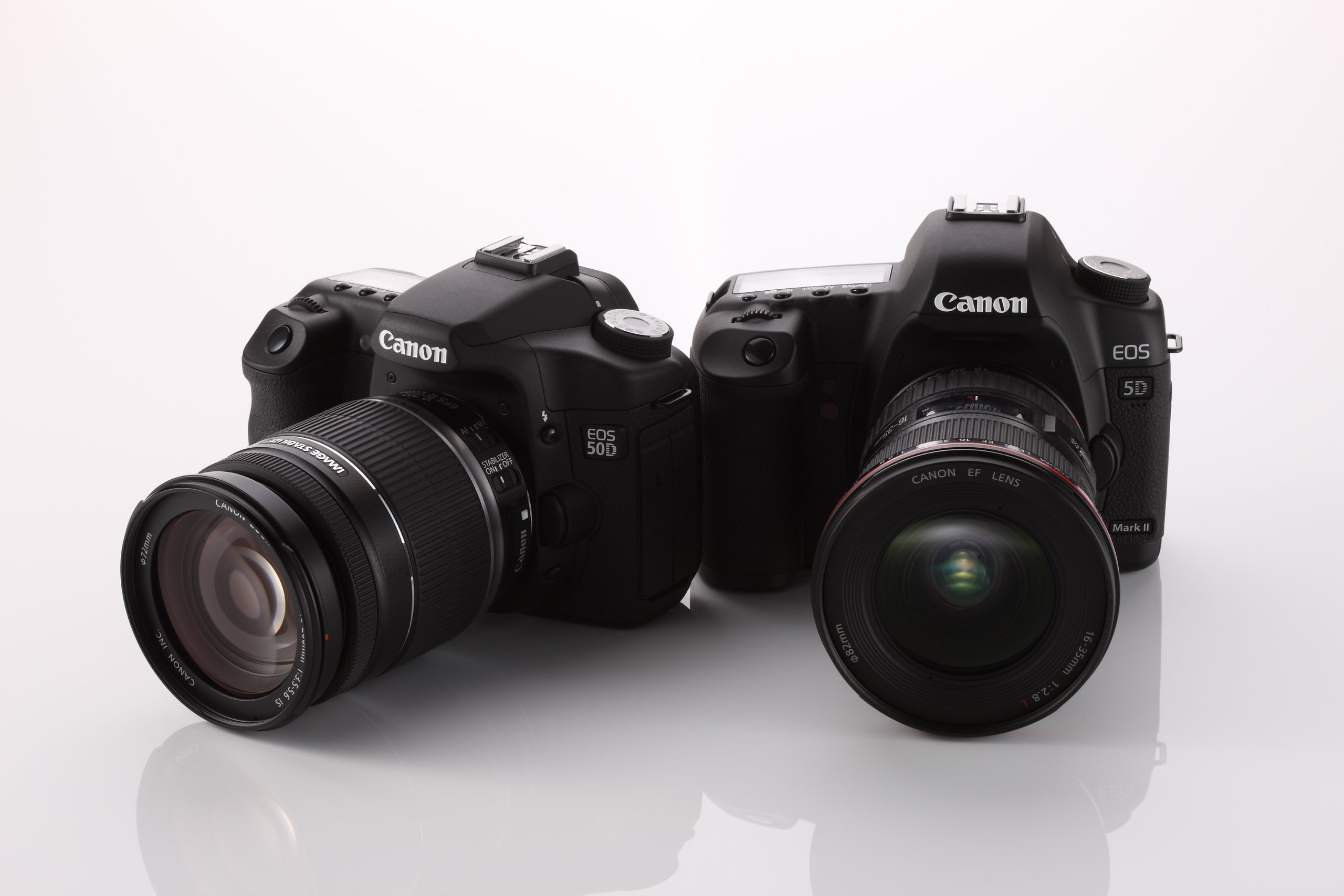

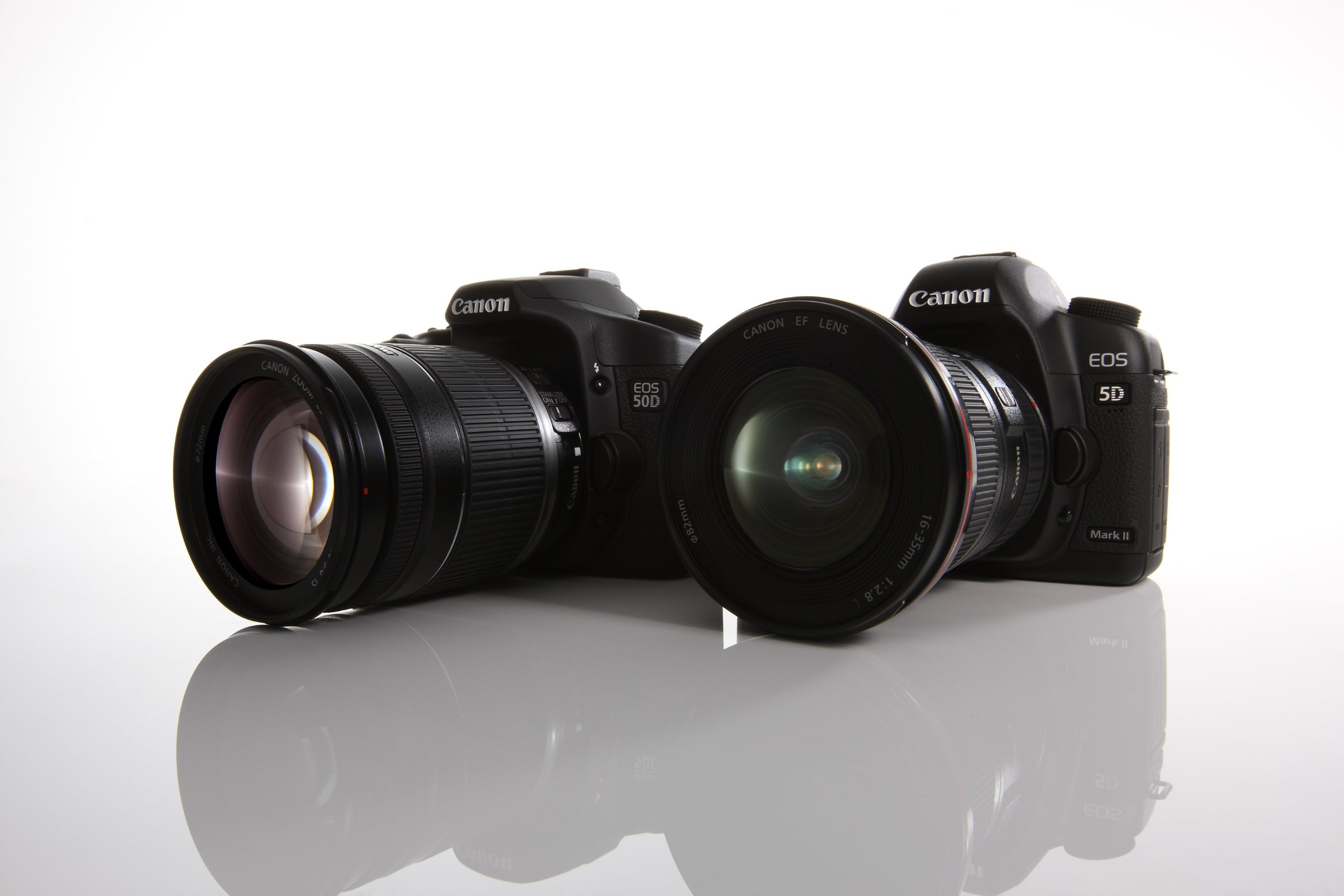

"35 mm full size sensor" which has an area about 2.5 times APS - C size.

The difference in format is obvious from the same focal length and shooting from the same position.

As shown in the photograph, when photographing with a focal length of 50 mm, the APS - C size sensor narrows the photographing range to 2/3 on the diagonal, so it is trimmed to the focal length of 80 mm of the full size sensor

.

With the EOS 5D Mark II equipped with a 35mm full-size sensor, it is possible to cut out a vast landscape without changing the angle of view and perspective of the lens.

We can do lens work making full use of the experience cultivated with film camera.

More high definition, even faster.

Next-generation image engine "DIGIC 4" to open up a new field of image expression

Large capacity data of about 21.1 million pixels sent from the CMOS sensor.

The next-generation video engine "DIGIC 4" is processing it at high speed.

We have enhanced the high-definition and natural color reproduction that we have cultivated so far, and achieved further speedup.

By incorporating DIGIC 4, it is possible to improve two ordinary ISO speeds by low noise development processing, eliminate constraints on reducing the number of consecutive recordable images, evolve noise reduction processing at high sensitivity shooting, full HD movie shooting function, auto lighting optimizer function

, Live View shooting function with face catching technology, etc., we have realized a variety of new functions beyond the previous digital SLR.

14 bit signal processing realizing rich and beautiful gradation expression

Adopt signal processing of 14 bits (16384 gradations) same as professional aircraft for processing when analog output signal sent from CMOS sensor is changed to digital signal.

By storing the RAW image recorded with 14 bits in 16 bit TIFF after development, it is possible to obtain an image that makes full use of gradation.

Also, since images recorded with JPEG (8 bits each) at the time of shooting are also generated from 14 bit RAW data, images with excellent gradation can be left.

Commonly used ISO sensitivity is 100 to 6400.

Enhanced 25600 super high sensitivity shooting is also possible

Common use ISO sensitivity of EOS 5D Mark II is 100 ~ 6400.

With the evolution of the new CMOS sensor and the noise reduction technology which improved the convergence rate by adopting the gapless microlens, the wide range of the dynamic range at the time of low sensitivity and the noise reduction at the high sensitivity are realized.

We can respond to more diverse scenes and at the same time we can create high definition and clear work.

The ISO sensitivity can also be extended L: 50, H1: 12800, H2: 25600 possible.

In addition, the automatic setting range of ISO sensitivity is ISO 100 to 3200 for fully automatic / creative fully automatic / program AE / shutter priority AE / aperture priority AE.

For Manual Exposure / Valve / Strobe Shooting, it will be fixed to ISO 400 *.

* Minimum ISO 100 when overexposure occurs during daytime sync with flash photography.

High sensitivity / Long second exposure Exposure also clear and beautiful.

Two noise reduction functions

Due to the improved image processing capability of DIGIC 4, the noise reduction function at the time of high sensitivity shooting has further evolved.

Excellent noise reduction effect with all ISO sensitivity while maintaining resolution feeling.

In particular, it significantly reduces the color noise of the shadow area.

The noise reduction effect can be selected from 4 levels of "standard", "weak", "strong", "do not".

* 2 Also, to reduce noise during long-time exposure shooting, select from "No" to reduce noise in all shots with an exposure time of 1 second or more, "Automatic" to reduce noise only when noise is detected

can do.

* * 1 Both can be set by custom function.

* * 2 Continuous shootable number of images is reduced with "Strong" setting.

Features:

• Please enter model number Confirm this is compatible:
• CANON EOS 5D Mark II

Product information:

Shipping Weight: 1061 g

Package Dimensions: 8.89 x 15.01 x 27.61 cm
