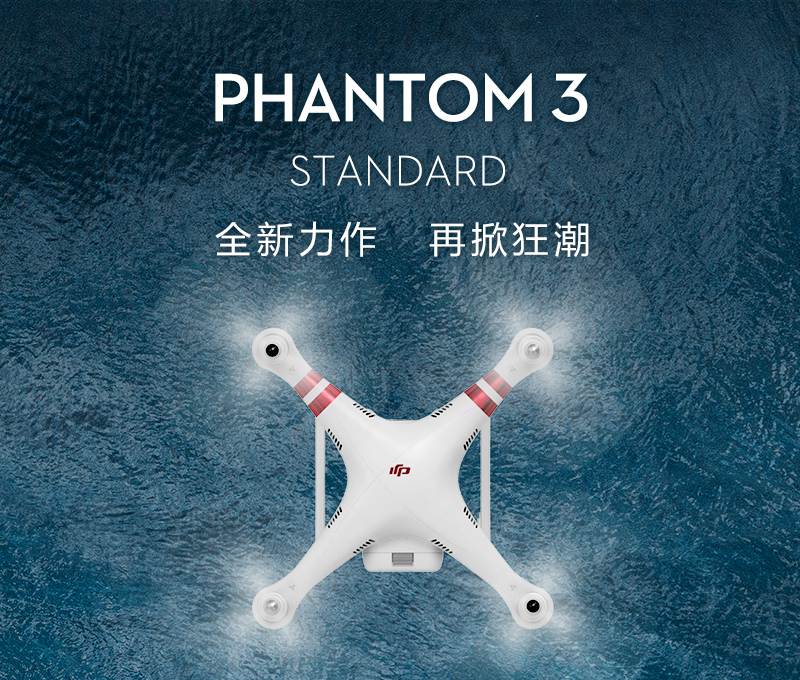

Aircraft
Takeoff Weight: 1216 g
The maximum rise speed: 5m / s
Maximum lowering speed: 3m / s
The maximum level flight speed: 16m / s (Atti mode)
Maximum flight altitude: 6000m
Flying time: about 25 minutes
Working temperature: 0 ℃ to 40 ℃
GPS module: GPS
PTZ
Controllable rotational range: Tilt: -90 ° to + 30 °
The amount of jitter angle: ± 0.02 °
camera
Camera sensor: 1 / 2.3 inch CMOS, Effective Pixels 12 million
Lens: FOV90 ° 20mm (35mm format equivalent) f / 2.8
ISO range: 100-3200 (video), 100-1600 (photo)
Electronic Shutter speed: 8 seconds 1/8000 sec
Photo Maximum resolution: 4000 * 3000
Photo Shooting mode: single shot
Multi Burst (BURST): 3/5/7 Zhang
Auto Exposure Bracketing (AEB): 3/5 Zhang @ 0.7EV steps
Time Lapse
Video Resolution: 2.7k: 2704 * 1520p 30 (29.997)
FHD: 1920 * 1080p 24/25/30/48
HD: 1280 * 720p 24/25/30/48/50/60
Maximum 40Mbps stream video store
Support document storage formats: File system: FAT32 / exFAT
Image formats: JPEG, DNG
Video format: MP4 / MOV (MPEG-4AV / H.264)
Support card type: Micro SD card, maximum support 65GB capacity, transmission speed of Class 6 and above
Working temperature: 0 ℃ to 40 ℃
WiFi: Operating frequency: 2.400GHz-2.483GHz
Signal maximum effective distance: FCC1000 meters, CE: 500 meters (outdoor open unobstructed environment, flight altitude 120 m)
Transmit power (EIRP): FCC: 27dBm; CE: 20dBm
Remote control: Operating Frequency: 5.725GHz-5.825GHz, 922.7MHz-927.7MHz | (Japan Version)
Signal maximum effective distance: FCC: 1000 米, DE: 500 meters (outdoor open unobstructed environment, flight altitude 120 m)
Working temperature: 0 ℃ -40 ℃
Battery: 2600mAh rechargeable lithium battery 18650
Transmit power (EIRP): FCC: 19dBm; CE: 14dBm
Operating current / voltage: 600mA / 3.7V
Charging Interface: Micro USB
Charger: Voltage: 17.4V
Rated power: 57 watts
Intelligent Vehicle Battery (PH3-4480mAh-15.2V): Capacity: 4480mAh
Voltage: 15.2V
Battery type: LiPo 4S
Energy: 68Wh
Battery overall weight: 365 g
Working temperature: -10 ℃ to 40 ℃
