Product Description

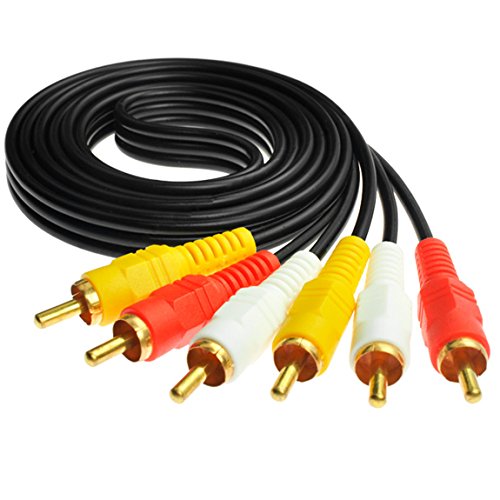

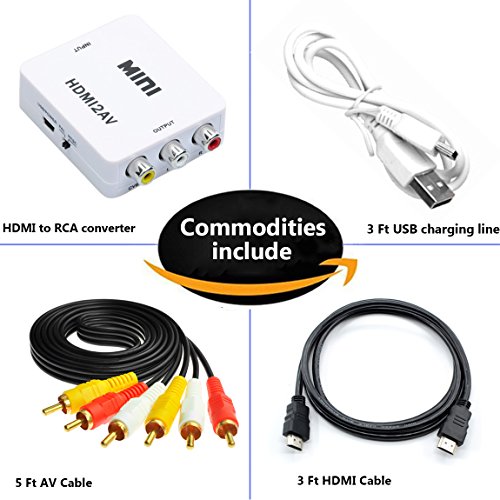

Commodities include：1 x Converter 1 x 3FT HDMI Cable 1 x 5FT RCA Cable 1 xPower Cable

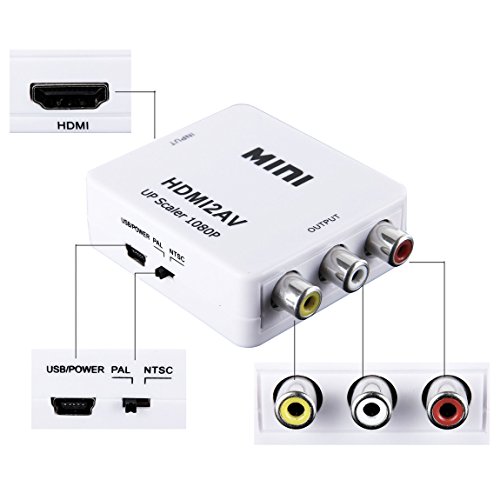

Product interfaces:

1 x HDMI video signal input port

1 x Mini USB Power supply interface

1 x PAL/NTSC Switch

1 x Right sound channel audio output(Red)

1 x Left sound channel audio output(White)

1 x AV video signal output terminal(Yellow)


Description/Features:

Teorder MINI HDMI to AV signal converter converts HDMI video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals,while support DVI system sideline signals.
Convert high quality HDMI video signal into normal CVBS signal(standard-definition 480i, 576i),HDMI Input; Composite Video Audio R/L Output

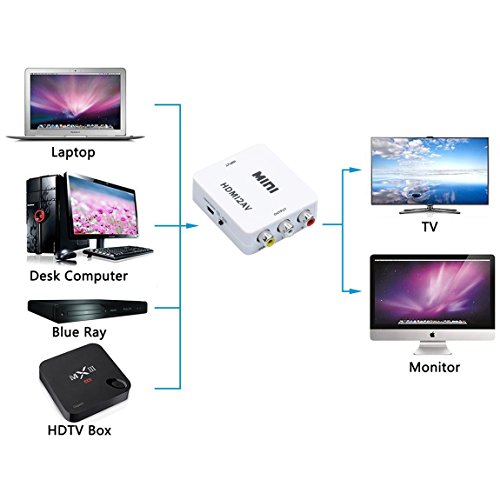

Can hook to play on Xbox/PS4/PS3/PC/Laptop/TV/STB/VHS/VCR/Camera/DVD/Blu-ray Player
Compatible HDMI1.3, Support HDMI input from 480i to 1080P.Does NOT support 3D
Supports NTSC and PAL two standard TV formats with a select switch.



.HDMI Input Resolution: 640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x1024@60Hz,1360x768@60Hz,1600x1200@60Hz, 1920x1080@60Hz,480i/60Hz,480p/60Hz,576i/60Hz, 576p/60Hz,720p50/60Hz,1080I50/60Hz,1080p50/60Hz.



Note:

Make sure you power the USB port during the hook in order for it to work properly

Make sure that the switch is set to the correct display format (NTSC for N.American TV's,PAL for Europe/Asia)
Please setting correct play format for your device to switch PAL or NTSC when you used hdmi to av adapter.
