Product Description
1. Description

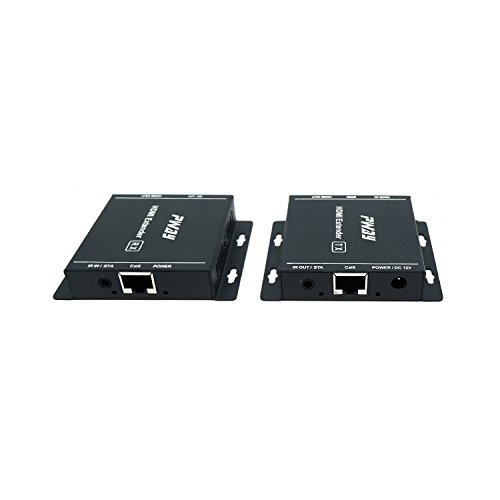

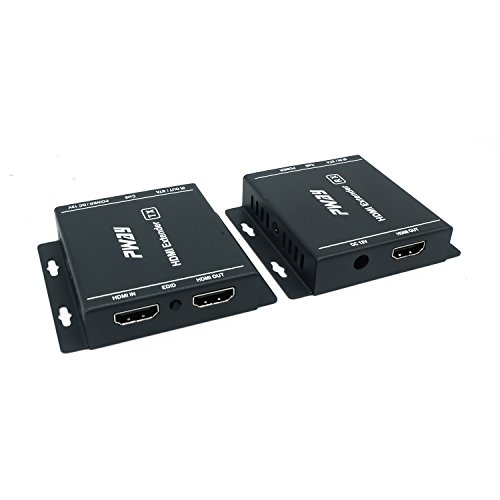

The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable , it supports highest resolution up to 1920*1080@60hz andwide bandinfrared signal transmission. The HDMI extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2. Features

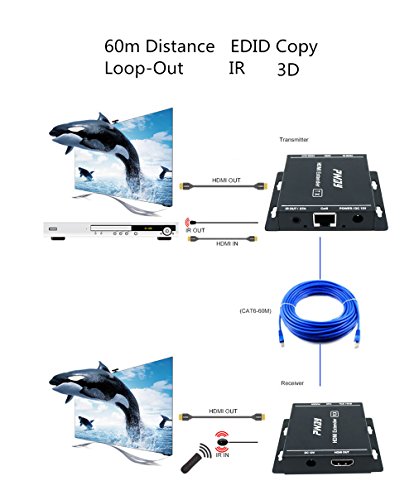

lTransmits HDMI video and audio signals up to 60M over a single CAT6 cable;
lSupport video resolution up to 1920*1080@60Hz, 3D signal;
lSupport wide band infrared signal transmission;
lSupport copy EDID function, can match many kind display device;
lSupport POC unilateral power supply, need 1pc 12V power to TX/RX
lCompliance with HDMI 1.3 and HDCP 1.2 standard;
lEthernet cables with a standard IEEE - 568b connection, convenient installation;
lHigh compatibility, can auto-match source and display device;
lBuilt-in automatic adjustment system, make the image smooth, clear and stable;
lBuilt-in ESD protection system;
lSimple to install, plug and play;

3. Specifications

Video
StandardsHDMI 1.3; HDCP 1.2
Maximum pixel clock165MHz
Maximum data rate6.75Gbps
Maximum resolution1920*1080@60Hz

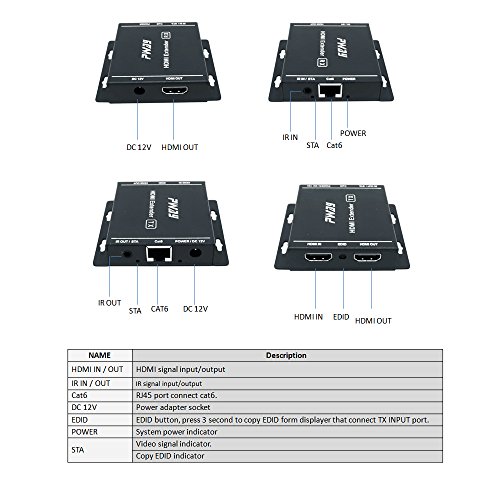

ConnectorHDMI-A
Impedance100Ω
IR
Interface3.5mm earphone seat
Signal directiondirectional
Signal typeDigital
IR frequency20-60kHz
UTP
InterfaceRJ45
Transmission distanceCAT6-60M
Other
Power supplyThe power adapter: DC 12V
Power dissipationMAX 3W
TemperatureOperating: -5℃ ~ 70℃
HumidityOperating: 5% ~ 90%

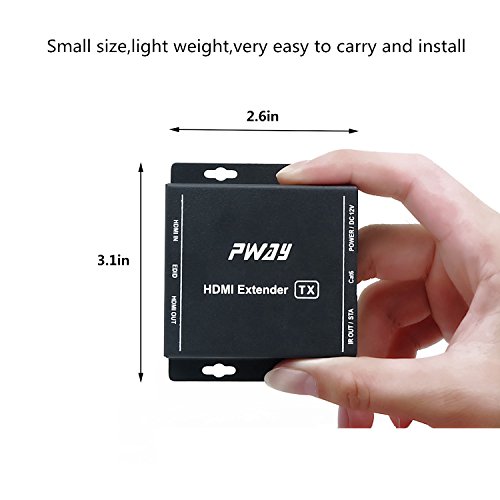

Dimension78*67*17mm

4. Package list

l HDMI transmitter .....................1 pcs
l HDMI receiver ...........................1 pcs
lIR TX and RX cable...........................1 set
l Power adapter ...........................1 pcs
l User manual ..............................1 pcs
