Onion Arduino Dock 2 for Omega2




Product Description

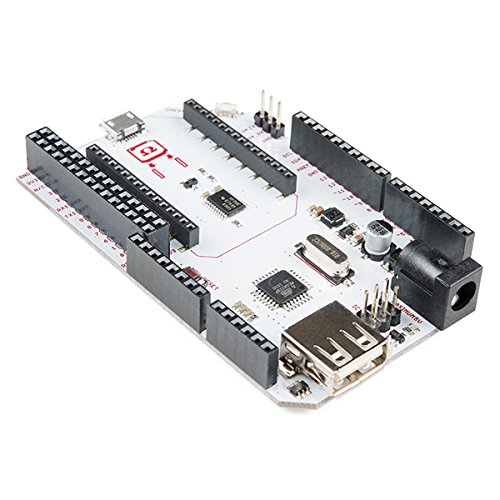

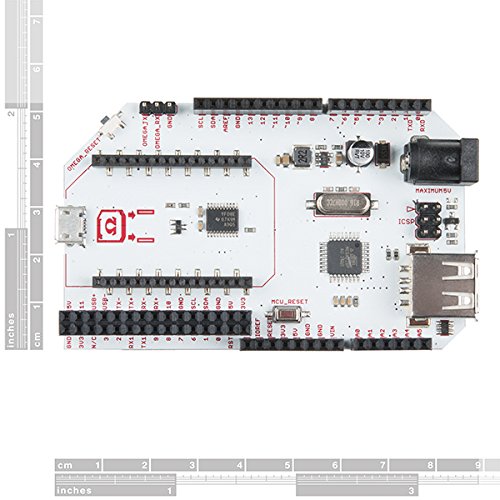

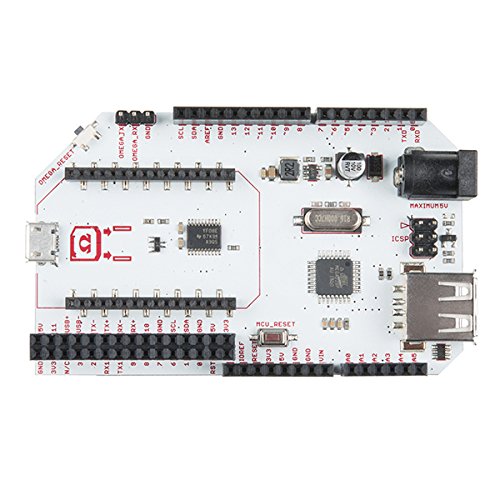

Supercharge your projects by combining the familiar Arduino platform with the power & connectivity of the Omega2. The Arduino Dock 2 features the ATmega328P microcontroller as a coprocessor, that's the same microcontroller used on the Arduino Uno R3. The microcontroller pinout is the same as on the Arduino Uno enabling the reuse of all existing Arudino Shields. Because of the Omega's wireless capabilities, the microcontroller can be programmed wirelessly using the Arduino IDE. Communication between the Omega and microcontroller can be achieved through a serial UART connection as well as the I2C bus. Provide power with any Micro USB cable and the Dock will safely power the Omega and microcontroller. The Omega's GPIOs are exposed on the Expansion Header, use the Expansion Header to connect Onion Omega Expansions or control other external devices and circuits. Connect USB devices directly to the Omega with the on-board USB Type-A connector. Rich documentation, tutorials, and projects available at Onion's official site.

Feature

Features an ATmega328P microcontroller coprocessor that connects to the Omega
All microcontroller pins accessible and arranged in same pattern as on the Arduino Uno
Expansion Header provides access to Omega's USB2.0, UART, I2C, SPI, 12 GPIOs and supports Omega Expansions
Program the microcontroller wirelessly using the Arduino IDE with the Omega
Serial UART and I2C communication between the Omega and microcontroller
Brand : Onion
Item model num : OM-D-ARD2
MPN(PartNumber) : OM-D-ARD2
EAN : 0636276892232
Product Dimensions(LxWxH) : 10x7x3cm ; 18 g
Package Dimensions(LxWxH) : 10x7x3cm ; 18 g
