Product Description

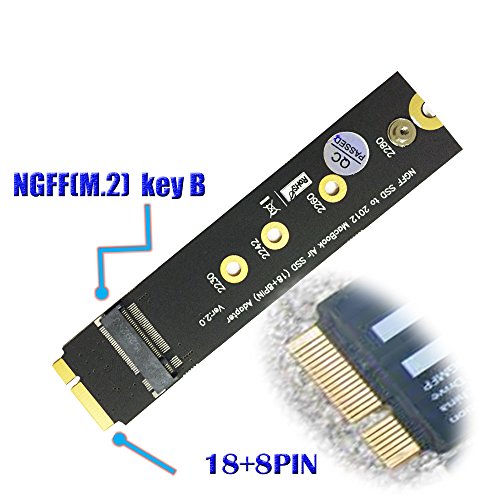

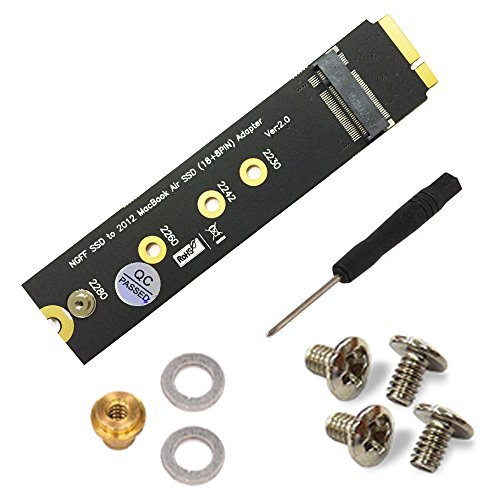

NGFF SSD to 18 8 pin SSD adapter for 2012 MacBook Air A1465 A1466
Features:
1:The adapter only supports 2012 version Apple MacBook Air,the model includes A1465 A1466 (MD223 MD224 MD231 MD232).
2: This adapter installed the NGFF SSD can replace original APPLE SSD, can install the MAC OS or Windows OS.

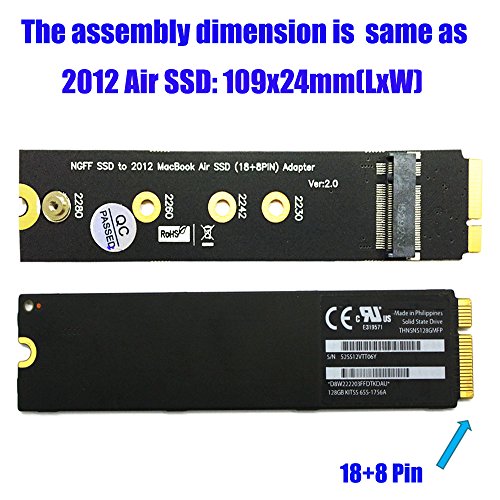

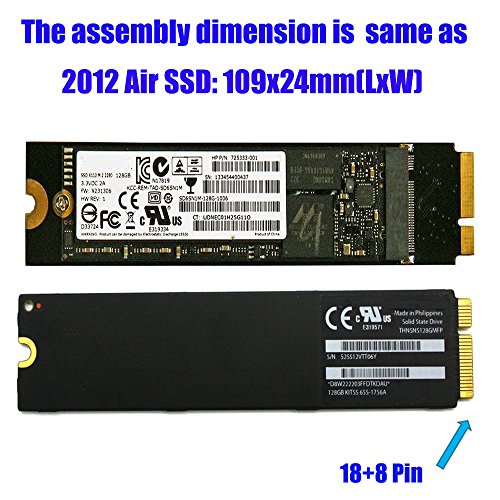

3. The adapter dimension is the same as SSD of original APPLE SSD (LxW:109X24mm).
4. No additional driver is needed.
5: The adapter card only supports 22x42/22x60/ 2280 size of M.2 NGFF (SATA) SSD, it does not support PCIe X2 or PCIe X4 transfer mode of SSD,
About M.2 NGFF SSD interface standard:
1.Socket 2(B M key):there are SATA(such as THNSNH128G8NT/
THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCIe X2(such as PX-AG128M6E/PX-AG128M6E/SD6PP4M models of SSD) two different transfer mode. 2.Socket 3(M key):PCIe X4(such as MZHPU128HCGM and MZHPU512HCGL models of SSD) transfer mode.
About MacBook Air SSD interface standard:
1: 2010 and 2011 version MacBook Air SSD is 6 12 pin, the dimension is 109 x24 mm（SATA-bus interface
2: 2012 version MacBook Air SSD is 8 18 pin, the dimension is 109x 24 mm（SATA-bus interface） 2012 version MacBook Pro SSD is 8 18 pin, the dimension is 89 x33 mm（SATA-bus interface）
3: 2013 and 2014 and 2015 version MacBook Air SSD include two sides golden-finger, one side is 16 12 pin, the other side is 11 14 pin, the dimension is 89 mm*24 mm. It's PCIe X4 bus interface.
4: 2013 and 2014 and 2015 version MacBook Pro SSD include two sides golden-finger, one side is 16 12 pin, the other side is 11 14 pin , the dimension is 89x33 mm. It's PCIe X4 bus interface.
