Instructions for use:
Positive red alligator clip connected to the battery , the black alligator clip connected to the battery negative;
1, first with the battery charger output connection , and then plug the charger into the charging socket on the power supply . After charging the battery first unplug the clip removed.

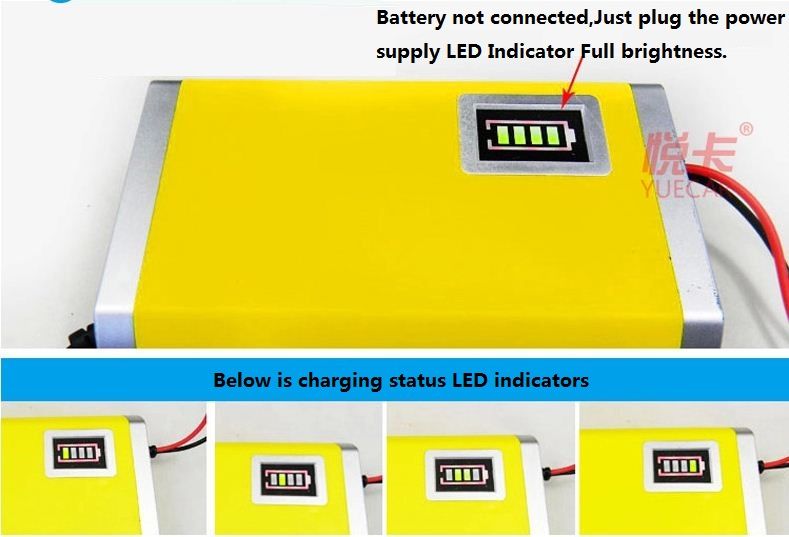

2 , the charger indicator light flashes when Happy is charging , when marquee full grid has been relatively full , continue to charge the full grid recommended 4-6 hours , so you can make more full battery charge saturation (except for the following 18Ah battery ) .
If you do not have a long-term loss of electricity or lack of electrolyte battery , the voltage will be relatively low , may lead to charging.
Charging encountered questions :
1. When charging , the power plug ( do not take the battery clip ) and the charger indicator is flashing red and green . When the clip according to Red + Black - After receiving the battery , then the light will turn red , while the fan starts to rotate , then start charging the
2. To charge the battery voltage is below 9V , charger indicator remains will be displayed in green. Do not turn red , it means not charging.
3. charger lights changed circumstances
Some customers are not allowed to reflect the changing light , the charger lights change your battery status and whether or not related to the new battery with an old battery often becomes special lights not working properly, or you can charge by the amount of time to determine the voltage charging case . Charger Set is generally in accordance with the new old set of batteries . For the general situation is more serious loss of electricity customers, please note that the voltage is below 9V after the charge does not go up , the normal charge if a green light , you can first punch over time , depending on your battery capacity , so your battery will slowly be repair.
4. When charging , the light has been green. What is the reason?
May charge your battery is full , it will not change a red light .
5. lights flashing when charging
You may reverse the positive and negative . Disconnect the battery clip to reconnect.
6. Plug in the power , connect the battery when the two clips , battery charger indicator changes from red to green soon
Then explain your battery power is full, then you can continue to add 3-5 hours better.
7. When charging , the battery will hear carefully inside "grunt " ( similar to boiling water boil ) the sound which is normal , indicating that is charging.
8. When charging, the charger will generate heat which is normal, electrical work , heat is normal.
9. charged up for a long but has a red light
Explanation may be that your battery has been broken , electricity can not be stored , it has to charge state. Make sure your battery is OK or NOT.
