Designed for golf, accurate measurement of the distance between the players and holes
A feature
This is a new invention with a precision optical and digital technology to measure the distance of the golf observation equipment, which is a very safe distance test device, there is no form of energy radiation, in the measurement of distance activities in the human body without any damage And destruction.
Two kinds of functions
1.GREEN MODE (lawn function)
This feature is designed specifically for golfers, and you can easily get the distance between your holes.
2.GENERAL MODE (general function)
This function is suitable for the general situation, first of all you enter the height of the target into, you can measure the distance between you and the target.
Three parts name
1. switch / adjust key
2. Function keys

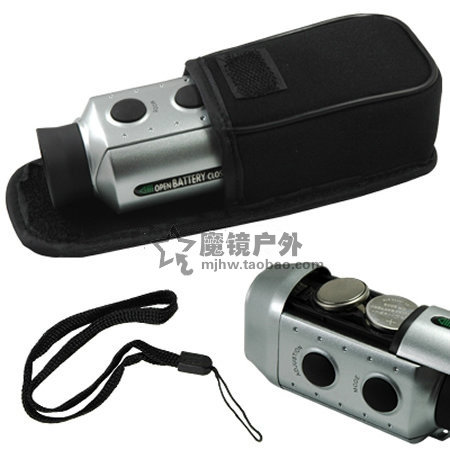

3. Place the battery into the place
Peep hole
5. Objective lens
The main parameters of indicators:
Objective: 28mm;
Eyepiece: 16mm;
Resolution: 13 ";
Magnification: 7 times;
Farthest test distance: 900 yards (1 yards = 0.914 meters)
Viewing angle: 7.8 °;
Power: Use two cr2032 button batteries
Volume: 90mm × 50mm × 38mm;
Four use method
1. Press the switch / adjust key to start the instrument, and the safety will enter the lawn function directly.
2. When playing golf:
The height of the ruler in the code (2.6 yards) is entered.

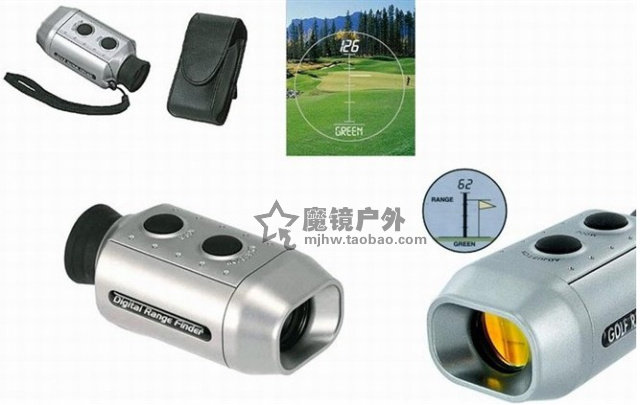

(1) align the bottom line of the screen with the horizontal line of the lawn.
(2) Press the switch / adjust key to move the position of the scanning line up to the top of the golf flag.
(3) the number will be at the top of the screen, prompting you and the hole distance.
3. Used to measure the distance of the special target
Press the function key when the instrument into the general function of the state, the screen will display three digits and one decimal point.
If you want to check your distance from the target, please enter it in height.
(1) Press the switch / adjust key to enter the general function status, the screen will display three digits and one decimal point.
(2) Press the function key to move to the tens digit, then press the switch / adjust key to enter the number, the range is 0 to 9.
(3) Repeat the above steps, set the number of digits and the decimal point below the single digit.
(4) Press the function key to end the above input process.
(5) Depending on the height you enter, the screen displays the minimum distance you can measure.
(6) align the bottom line of the screen with the lowest line of the target.
(7) Press the switch / adjust key to move the position of the scan line up to the top of the target.
(8) the number will appear at the top of the screen, prompting you and the target distance.
Five precautions
1. The displayed distance is the same as the height unit that has been entered.
2. After the end of the operation 60 seconds after the automatic power switch.
3. Please do not use the product to observe the sun, this will cause permanent damage to your eyes.

•

•

•
