Item Descriptions:

color:

4 ports · Power supply not included

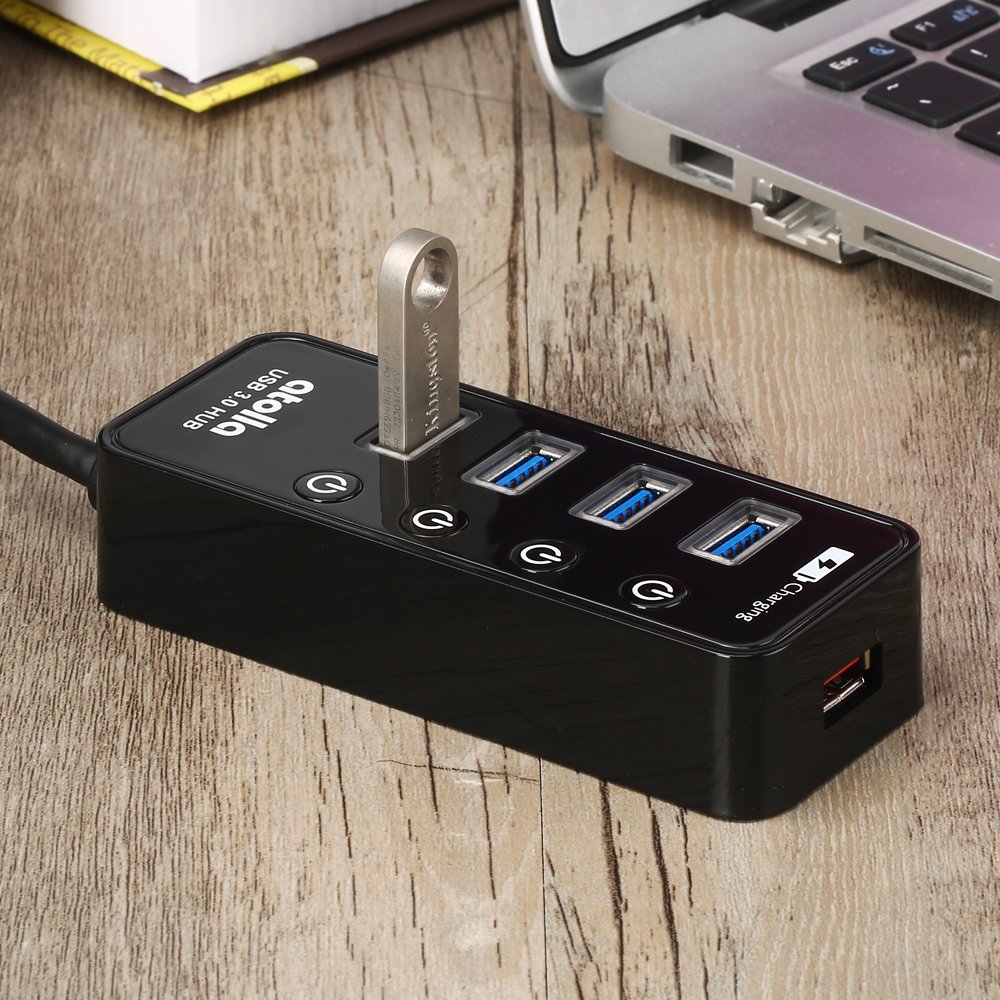

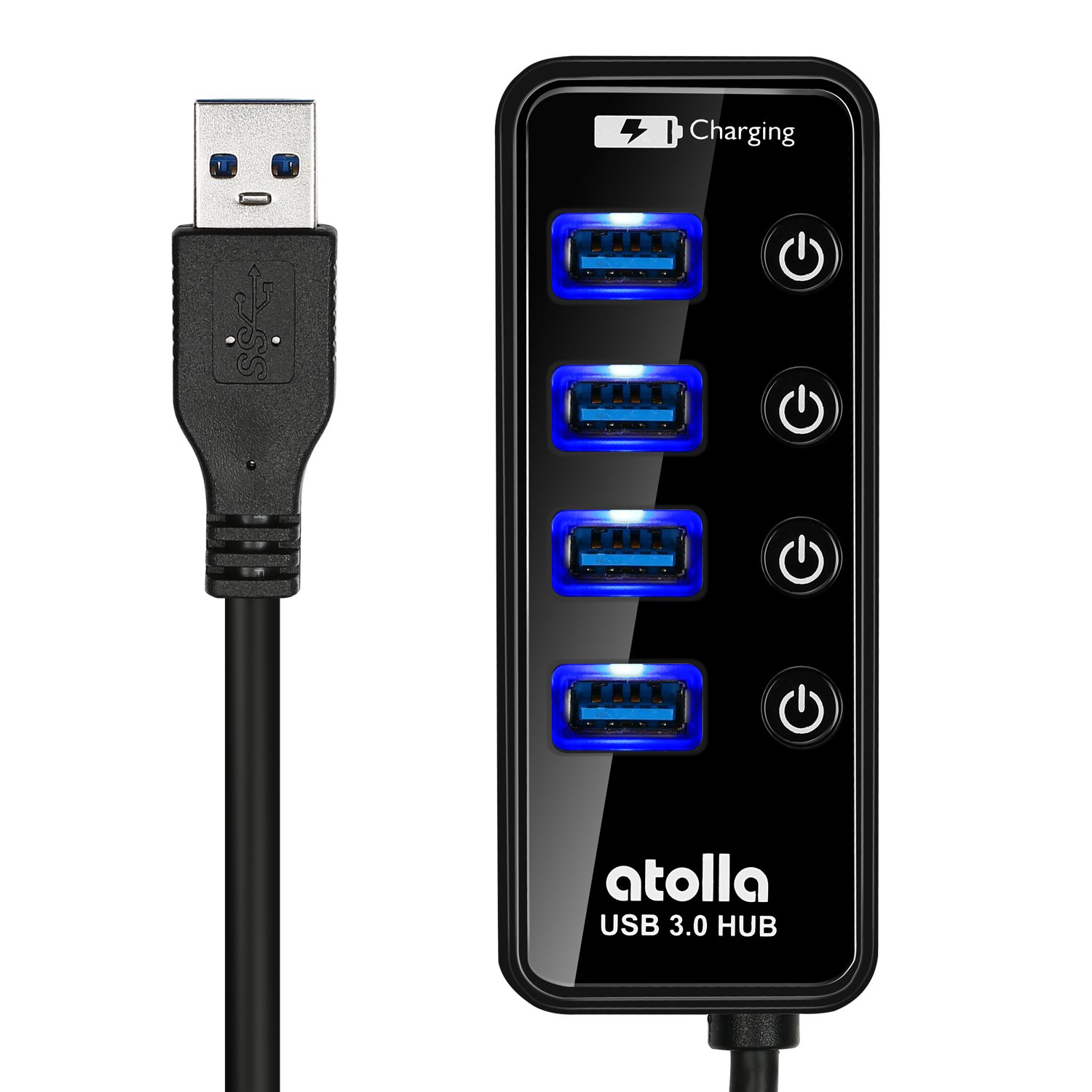

USB 3.0 Hub kit (self power, with power switch, 4 ports + 2.4 A charge port x 1)

Can be expanded to 4 ports by connecting to the USB 3.0 port!

Furthermore, one charge port is installed!

Atolla USB 3.0 hub is designed for bus power, which means it works fine without an external AC adapter (for example for keyboard and mouse), which requires low power, peripheral equipment.

However, the total power is limited by the host computer's USB port, USB 2.0, USB 3.0 or 500 mA, usually less than 900 mA, usually small.

Atolla 's official AC adapter will be added to provide you with a stable connection and quick charge for buying a complete kit, a device that appeals to power, CH - 204U3 - K.

Since it is compatible with USB 3.0, it is for transferring data such as memory and HDD.

The atolla USB 3.0 hub has backward compatibility with USB 2.0 / 1.1 devices.

However, in order to reach the maximum transfer rate (of 5 Gbps) of Super Speed ​​USB 3.0,

It requires USB 3.0 port to laptop / PC, USB 3.0 extension (if required) cable and USB 3.0 device.

Charge dedicated port

Output is 2.4 A

While synchronizing these USB 3.0 port data, it can charge up to 1.5 A, BC 1. 2 compliant.

At the same time, the utilization USB intelligent charging controller adapts to the highest charging mechanism for devices that dynamically detect (USB up to 2.4A) USB SmartCharging port · able to force appliances such as tablets etc

Independent power switch

Open: Click on the switch

Close: Press switch for 2 seconds

The hub indicates that the blue LED light is being powered.

Driver unnecessary, can be used just by inserting

Operating system requirements:

Windows: Windows® 10, Windows® 8.1, Windows® 8, Windows® 7, Windows Vista®, Windows® XP

Mac: Mac OS X 10.2 (above)

Mac OS X Lion · 10.7.4 users should upgrade to Mountain Lion 10.8.2

Since then to avoid unstable connections.

Linux: Kernel 3.0 or later

Features:

• Please enter model number Confirm this is compatible:
• 1, USB3.0 4 port high speed hub is applied to computers and personal computers.
• No drive, plug and play correspondence.
• It is compatible with systems such as Windows (XP / Vista / 7/8 / 8.1 / 10) / Mac OSx (10.x and above) / Linux.
• 2. It has a power input interface (2A / 1A), and incorporates an intelligent chip that automatically switches.
• (If you use more than one device charging or using a hard disk drive, you need to add an extra power adapter 5 V 2 A - 5 V 5 A. This product does not include a power adapter)
• 3, USB 3.0 is high speed up to 5 Gbps, compatible with USB 2.0 / USB 1.1 can also be used.
• 4, ABS It adopts the high-strength material, the smooth appearance, the surface of the gloss finish, the finish full of luxury.
• Each port has an LED lamp, and the operation status of each port can be seen.

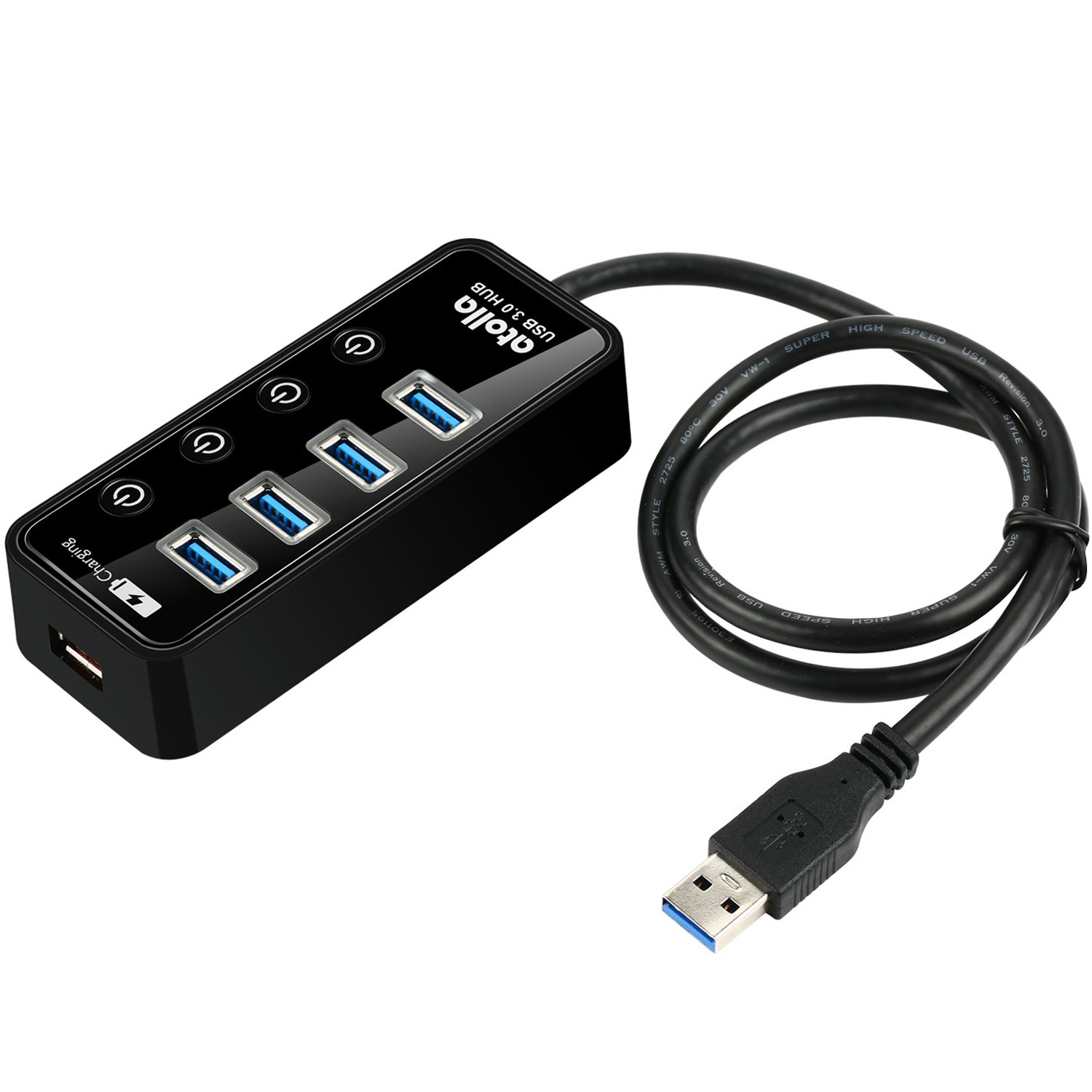

• 5, Cable length: 60 cm, Dimension width of goods × height: 11 × 4.5 cm, product weight: 90 g

Product information:

Shipping Weight: 108 g

Package Dimensions: 2.90 x 7.49 x 13.99 cm
